Configuration Analysis of Japanese Isuzu Foam Fire Truck for Large Fire Scene

In addition to Isuzu light truck series, Isuzu medium heavy truck is also quite good, such as FVR fire truck chassis. This chassis has a high standard in terms of convenience of modification or vehicle testability and has high market recognition.

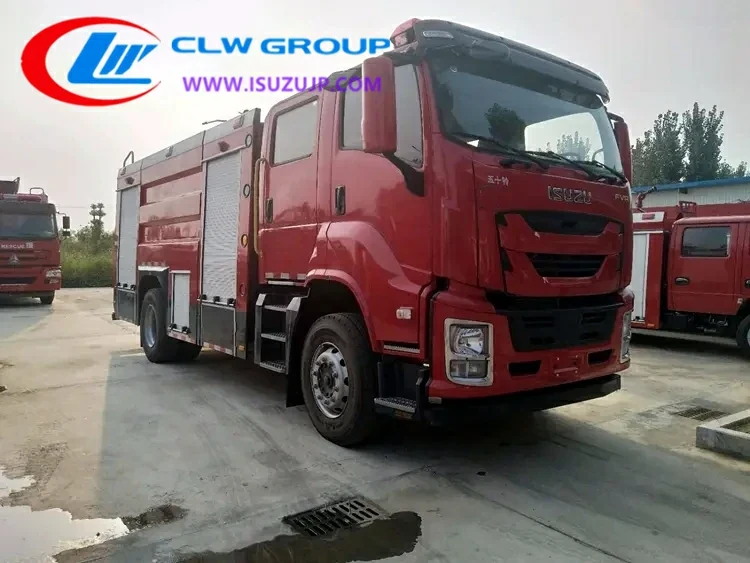

The following small series brings you a Japanese Isuzu foam fire truck designed to fight large oil fires. The configuration of this car is as follows:

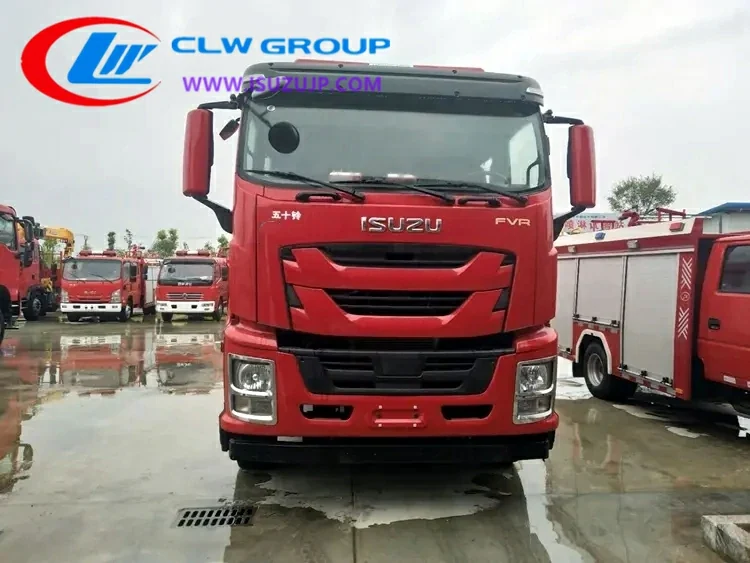

Japanese Isuzu 6 ton fire rescue truck

It adopts the new Isuzu FVR double row cab, equipped with Isuzu 240 HP engine, six-speed manual transmission matched with Isuzu technology, 295 / 80r22 5 tires, the standard configuration of ABS, cold and warm air conditioner, central lock with key, electric doors, and windows, multi-functional LCD instrument, air brake, etc.

The overall dimension of the whole vehicle is 8140x2550x3470mm, the total mass is 17000kg, the rated load mass is 6600kg, and the curb mass is 10025kg.

The total volume of the upper tank is 6.6m3, the volume of the water tank is 4.65m3, and the size of the water tank is 1680x2400x1200mm;

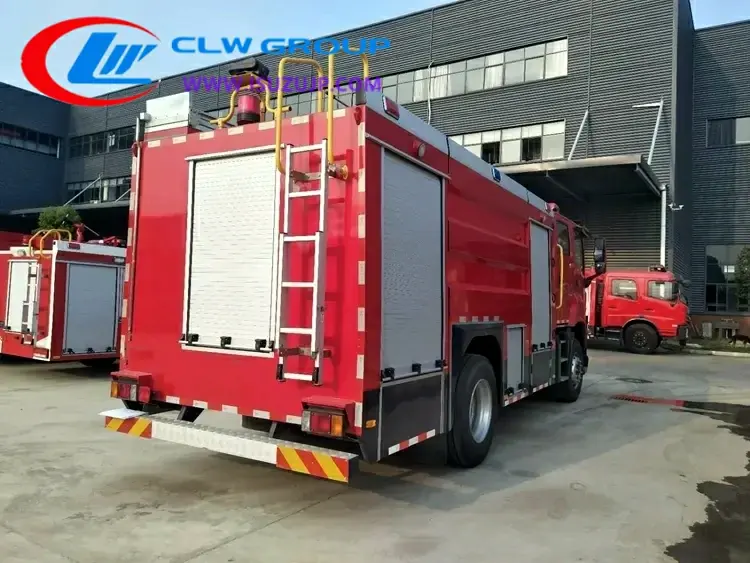

Japanese Isuzu 6m3 pumper fire truck

The volume of the foam tank is 1.95m3, and the size of the foam tank is 710x2400x1200mm.

The vehicle adopts an integral side protection structure. The material of the rear protection device is Q235A, the section size is 100x120mm, the connection with the vehicle is bolt connection, and the height of the rear protection ground is 398mm.

This Japanese fire truck is composed of two parts: a double-row cab and a body. The double row cab can seat 2 + 3 people. The body adopts an inner exposed tank structure. The front of the body is an equipment box, the middle is a tank body and the rear is a pump room.

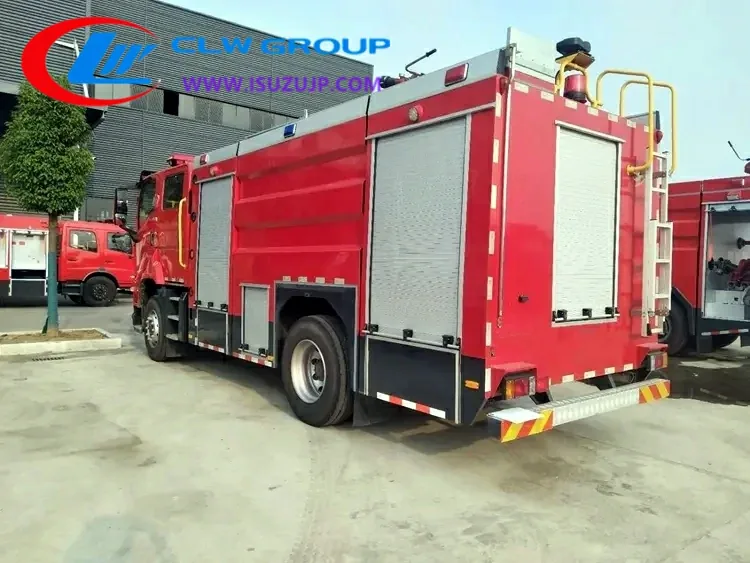

Japanese Isuzu 6000L fire truck engine

The middle liquid tank is made of high-quality carbon steel, internally sprayed with epoxy primer and epoxy asphalt paint, and the body is elastically connected with the chassis.

The main special devices installed on the top include a fire pump, fire monitor, etc. Equipped with a fire pump, the water range is greater than or equal to 55 meters, and the foam range is greater than or equal to 50 meters.

Japanese Isuzu foam fire truck has the characteristics of large liquid carrying capacity, good handling, and convenient maintenance. It can be widely used in public security fire brigades, factories and mining enterprises, communities, docks and other places to put out large oil fires and general material fires.
