Main photo
ISUZU Day Old Chicks Truck

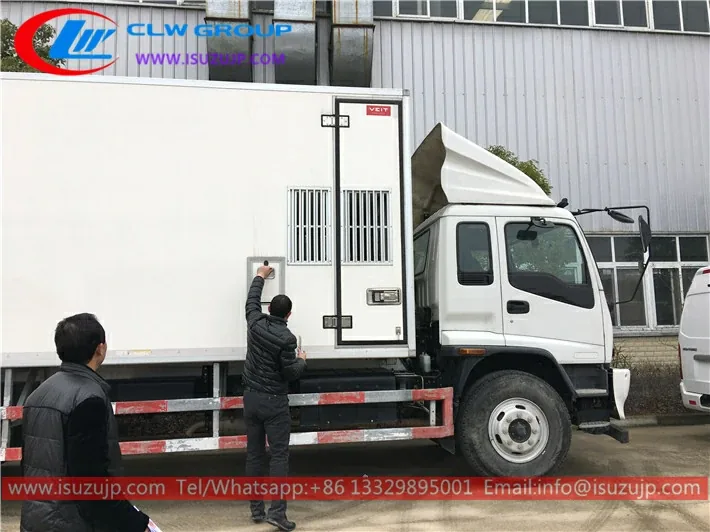

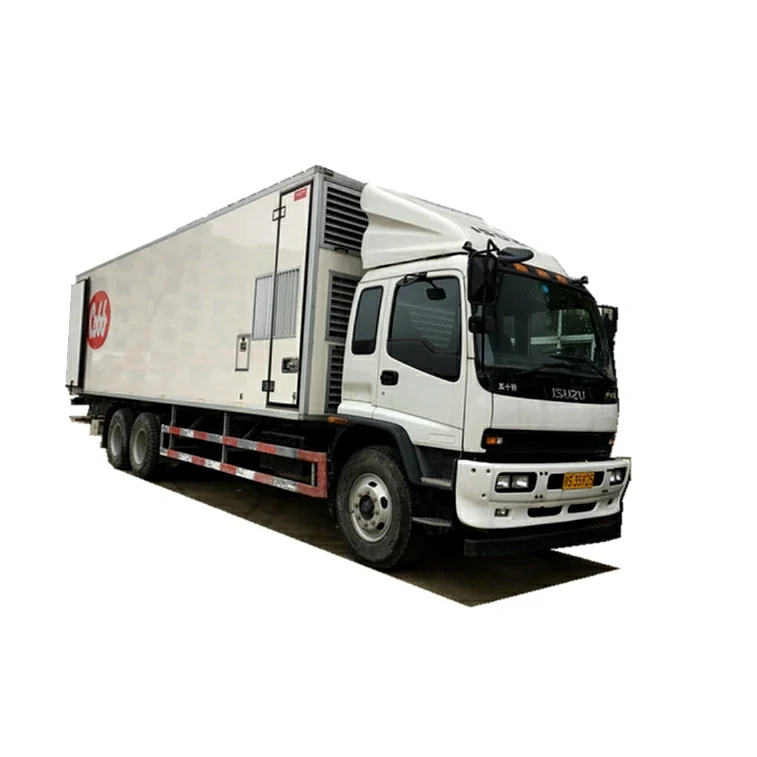

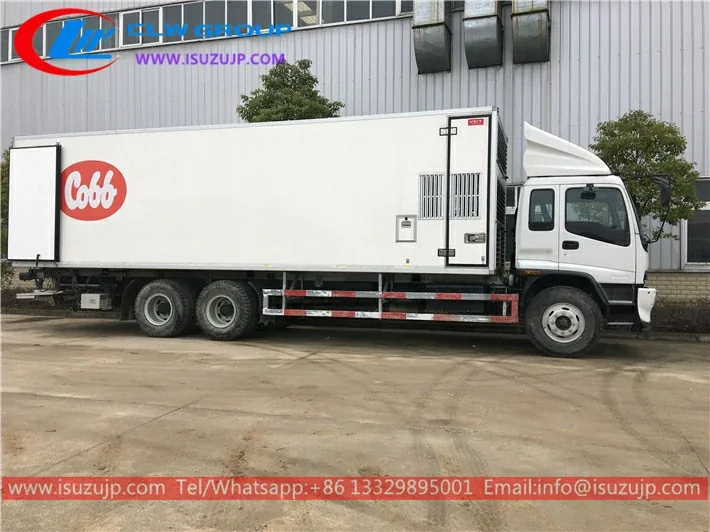

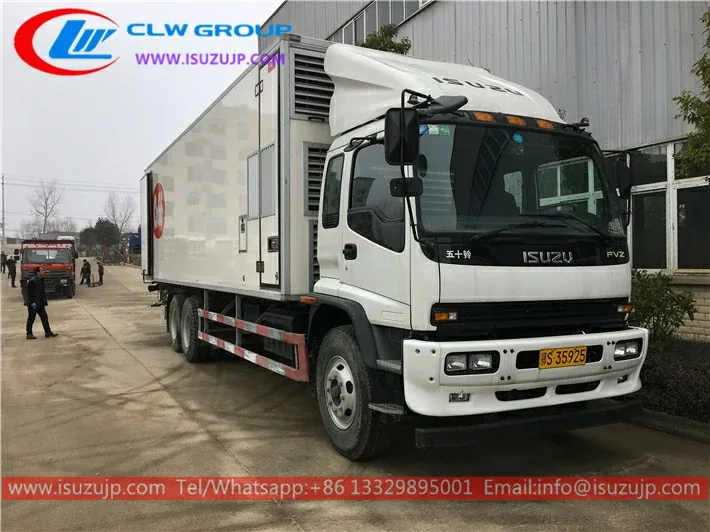

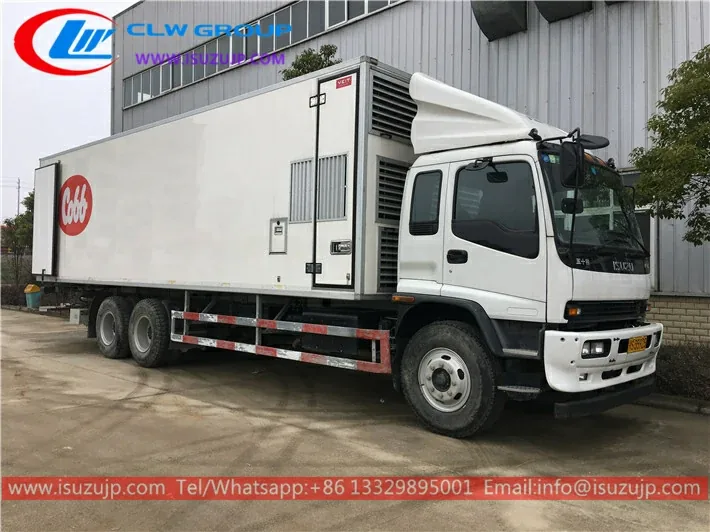

10 Wheel ISUZU FVZ 9.4m Baby Chick Transport Vehicle
ISUZU 9.4m baby day old chicks truck, ISUZU left-hand drive model 6X4 chassis, FAST 12 -shift manual gearbox, ISUZU 300HP engine. Equipped with famous cooling units
- Product Origin
- China
- Body Size
- 12000x2550x3320 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 20 rows.
10 Wheel ISUZU FVZ 9.4m Baby Chick Transport Vehicle Description
- Isuzu baby chick transport vehicle also called chicks transport truck，Day old chick vehicles，chick transport vehicle，Baby Chick transport truck，live chick transport vehicle，Day old chicken transportation truck，Chick carriage truck，Chick conveyance truck.
- Day old chicks truck mainly used to transport chicken seedlings, duck seedlings and other livestock and poultry seedlings. It solves the characteristics of high or low temperature, insufficient ventilation and high mortality in general trucks.
- It uses the insulation technology of refrigerated trucks and the installation of ventilation and exhaust systems in the boxes.
- The heating system greatly improves the survival rate of transporting chicken fry and duck fry. It is the first choice for breeding farms.
Advantage
- The temperature of the special transporter car is constant temperature, and it also has the characteristics of refrigeration, heating, exhaust, and large transportation. It can transport the chickens in hot summer or cold winter. Chicken seedling survival rate.
- The chick transporter can install a temperature display in the cab so that the temperature inside the cabin of the chick carrier can be monitored at any time.
- There are several ventilation and heating equipment in the compartment of the chicken carrier transporter, and there are multiple exhaust vents in the compartment. The air is ventilated and ventilated to ensure that the chicks in the compartment have sufficient oxygen.
- the special transport vehicle for chicks also has the characteristics of environmental protection, dustproof, sunscreen, corrosion resistance, etc. The materials used are made of high quality FRP materials. Our company can customize the chicken carrier transport according to the special requirements of the users.
Specification
10 Wheel ISUZU FVZ 9.4m Baby Chick Transport Vehicle Specification
| Product name | 10 wheel ISUZU FVZ 9.4m baby chick transport vehicle | |
|---|---|---|
| Overall dimension(L*W*H)(mm) | 12000X2550X4000 | Chick van box dimension(L*W*H)mm 9400X2400X2400 |
| Drive type | 6×4 LHD | Total mass（kg） 20000 |
| Gearbox | 12-speed transmission, manual | Tire specification 1000R20 |
| Power steering | Yes | Exhaust braking Yes |
| Air-cut braking | Yes | Driver cab ISUZU FVZ with air conditioner |
| Engine | 300HP engine | Emission standard Euro IV |
Performance and consumption
| Heating system | Watering system | Without, the client chooses to install |
|---|---|---|
| Cooling system | One refrigerated reefer | China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) |
| Ventilation system | Air duct installed on the floor for airflow | Two-line as the pictures show |
| Blind windows | 3 sets of blind windows with sliding doors for the left and right van sides (as the pictures show), Windows: 3*2=6 | |
| electronic ventilator fans | 2 sets of electronic ventilator fans for the front and rear plate; Electronic fans: 2*2=4 | |
| Sky-window | Top-mounted sky window* 2 sets sky-windows Sky-windows: 2*1=2 | |
| Dimension | ||
| Chick van box body | Length | 9400mm |
| Width | 2400mm | |
| Height | 2400mm | |
| Material | Exterior and interior | High quality with the whole skeleton of the SANDWICH plate bonding process. Inner plate use high-quality fiberglass and exterior plate with Fiberglass Reinforced Plastic (FRP) |
| Middle insulation layer | Middle insulation layer with high-quality 80mm PU foam sheets. | |
| Chicks nos. | About 60,000 chicks | |
Questions
Questions About The 10 Wheel ISUZU FVZ 9.4m Baby Chick Transport Vehicle
What chassis is the 10 Wheel ISUZU FVZ 9.4m Baby Chick Transport Vehicle built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu day old chicks truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
