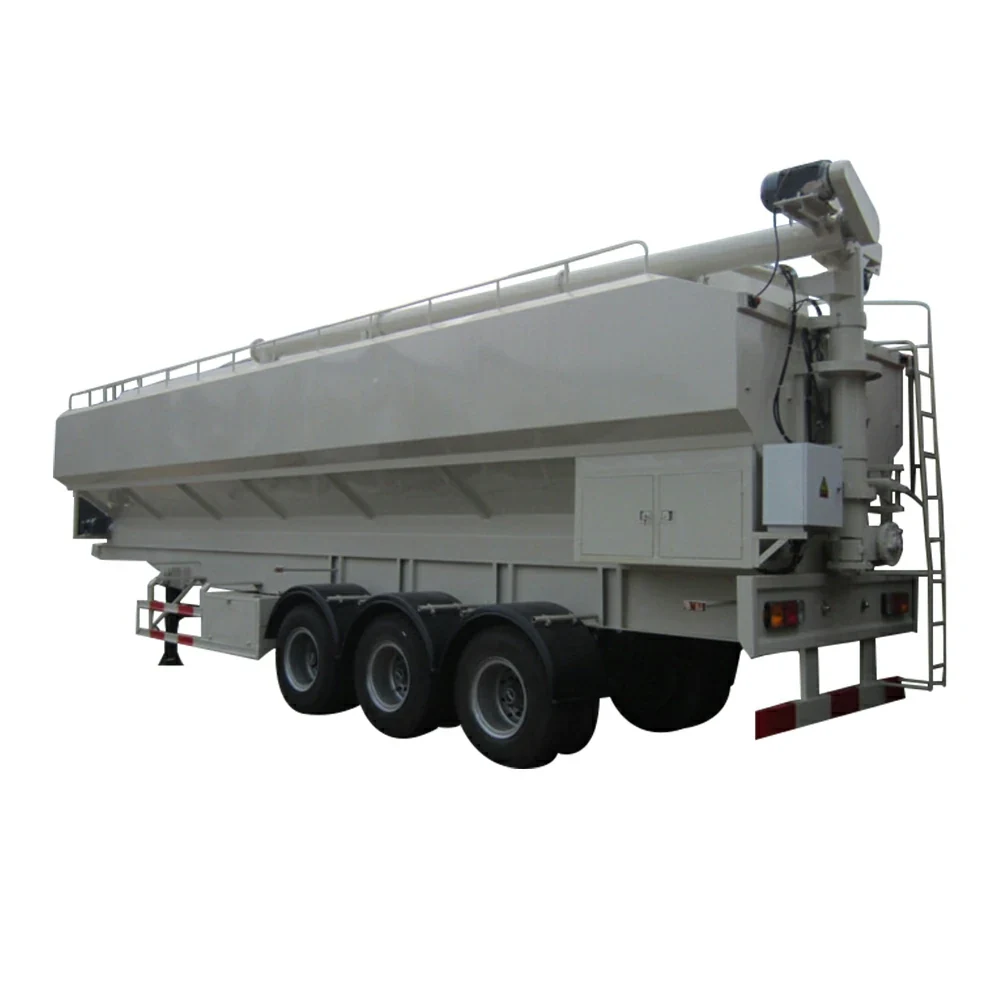

Main photo3 Axle 55m3 Feed Trailer for Sale
3 pieces BPW or Fuwa 13 ton axle with Electric auger (optional hydraulic auger)，2-5 units warehouse to load different type feed at one time, with 55cbm/22T loading capacity
- Overall Dimension
- 13000x2500x3980 mm
- Loading Weight
- 24,000 kg
- Tank Body Material
- 4mm high-quality low alloy steel
- Product Origin
- China
- Body Size
- 13000x2500x4000mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 23 rows.
3 Axle 55m3 Feed Trailer Application
- feed trailer is mainly used to transport bulk feed products or raw feed production from feed mills to livestock farms, poultry farms and feed processing users.
- At the same time, it can also be used to transport certain non-corrosive powder and granular materials, such as powder and Grain depot turnover.
- A bulk feed cargo trailer is composed of running gear, loading feed tank, discharging auger system and electro-hydraulic operating system, etc.
- The feed tank body is welded and formed with high-quality steel plates.
- The bulk feed tank body usually is divided into several warehouses to load different feeds at the same time.
- The unloading of the electro-hydraulic auger saves manpower and time.
Advantage
- Perfect performance
- Transporting feed in bulk not only saves labor but also has a lower cost than transporting it in bags.
- Bulk feed is sealed and transported in the tank to reduce loss, ensure quality and avoid pollution.
- Fully automatic loading and unloading, continuous operation, greatly improving production efficiency.
- Separate bins can be installed in the tank, which can simultaneously transport a variety of different types of feed or puffing media.
- The parts are standardized and easy to repair and maintain.
Specification
3 Axle 55m3 Feed Trailer for Sale Specification
| Product name | 3 axle 55m3 feed trailer for sale |
|---|---|
| Function | Transport all kinds of dry feed |
| Weight and Dimensions | |
| Overall dimension | 13000x2500x3980 mm |
| Loading weight | 24,000 kg |
| Chassis frame | |
| Main beam | Q345B steel |
| Axle brand | 13-ton FUWA or BPW |
| Axle number | 3 |
| Landing gear | FUWA or JOST 28 ton |
| Suspension system | Mechanical suspension |
| Brake | 6 big chamber brake system |
| Traction Pin | 2″or 3-1/2″ |
| Tire specification | 11:00R20 or 12R22.5 |
| Tire quantity | 12 |
| Electrical system | |
| Side marker lamp | LED type |
| Voltage | 24V |
| Receptacle | 7 Pole plug |
| Superstructure | |
| Tank body material | 4mm high-quality low alloy steel |
| Standard configuration | loading feed tank, discharging auger system and electro-hydraulic operating system, etc |
| Performance | 1:Average discharge speed (kg/min):510 2. Rotation angle of discharge system；±180° 3. Maximum elevation angle of discharge system:60° 4. Horizontal maximum conveying distance (m):7.2 5. Vertical maximum conveying distance (m)：8.2 6. Feed residual rate:≤0.10 |
Chicken Feed Transport Truck Scene Working Display
The unloading speed is 1m3 or more than 0.6 tons per minute, and the entire vehicle unloading time is 12 minutes
Questions About The 3 Axle 55m3 Feed Trailer for Sale
What chassis is the 3 Axle 55m3 Feed Trailer for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this bulk feed trailer?
The factory table lists Loading Weight 24,000 kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Other Bulk Feed Trailer Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 3 Axle 55m3 Feed Trailer for Sale
This build is listed as overall dimension 13000x2500x3980 mm with loading weight 24,000 kg. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
