Main photo
Isuzu Road Sweeper Truck

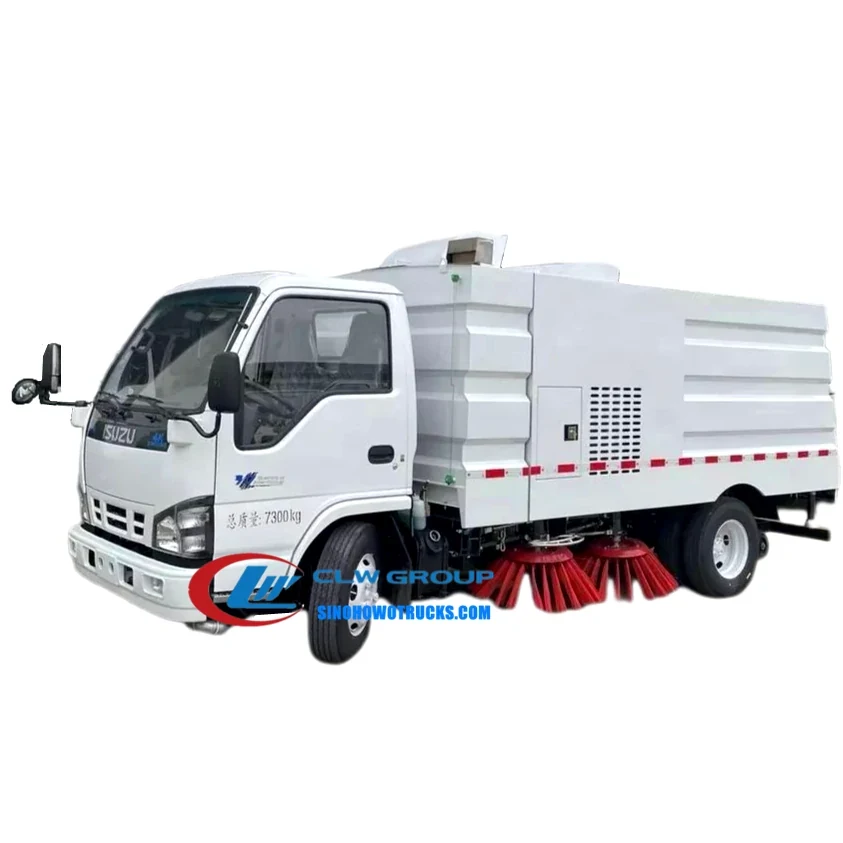

ISUZU 120HP Truck Mounted Road Sweeper Malaysia
ISUZU NKR 4×2 chassis, MBS 5-shift manual gearbox, 120HP diesel engine, stainless steel 4m3 dust bin and 1.5m3 clean water body, 4 brushes system
- Emission
- Euro 5 Diesel
- Pay Load
- 2240 kg
- Axle Load Capacity
- Front 2.4T, Rear 4.5T
- Maximum Cleaning Capacity
- 60000 m2/h
- Volume
- Water Tanker: 1.5 m3 Garbage Tanker: 4.0 m3
Specification below is the factory table for this model, reproduced without edits. 30 rows.
ISUZU 120HP Truck Mounted Road Sweeper Description
- ISUZU 120HP truck mounted road sweeper also called street sweeper, vacuum sweeper, road sweeping truck, street sweeping truck, road cleaning vehicle
- A road sweeper is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas.
- This unit shall be suitable for dry-type cleaning job as well as dust suppression with water spray in the roadside and narrow lanes.
- CHENGLI road sweeper truck uses whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU auxiliary engine, efficiently avoiding secondary pollution.
Advantage
- ISUZU NKR chassis, no overhaul within 500,000 km.
- ISUZU engine, super powerful; reliable performance.
- Nice shape, rational structure
- Italy imported high-pressure pump, super powerful, efficient pump in and out Strong, durable, perfect performance.
- Road Sweeper body capacity from 2 to 16 Cubic Meter.
- Easy operation and easy maintenance.
- Virious types of refuse container lifters are available.
Specification
ISUZU 120HP Truck Mounted Road Sweeper Malaysia Specification
| No | Item | Data |
|---|---|---|
| 1 | Product Name | ISUZU 120HP truck mounted road sweeper Malaysia |
| 2 | Cabin | 600P Cabin, single row , three person allowed, Manual doors and Windows and rearview mirror/MP3/ power steering/fabric seat. |
| 3 | Driving type | 4X2 Left hand driving |
| 4 | L*W*H(mm) | 6200*2010*2530 |
| 5 | GVW | 7300 kg |
| 6 | Pay load | 2240 kg |
| 7 | Kerb Weight | 4930 kg |
| 8 | Axle load capacity | Front 2.4T, Rear 4.5T |
| 9 | Tire | 7.00R16 6+1 |
| 10 | Wheelbase(mm) | 3360 |
| 11 | Steering | Hydraulic steering with power assistance |
| 12 | Gear box | Manual, Model MSB, 5 forward speed+1 reverse |
| 13 | Braking system | Oil brake |
| 14 | Engine Power | IZUSU model. 4KH1CN5HS, 96KW / 130HP, 2999ML |
| 15 | Emission Standard | Euro 5 Diesel |
| 16 | Secondary Engine | JE493-G3 57kw/77hp |
| 17 | Accelerate outside noise | ≤ 84dB （ A ）, Meet the noise level 2 requirement |
| 18 | Sweeping efficiency | ≥95% |
| 19 | Sweep width | 3.0m |
| 20 | Maximum cleaning capacity | 60000 m2/h |
| 21 | Volume | Water Tanker: 1.5 m3 Garbage Tanker: 4.0 m3 |
| 22 | Working Pressure | 16MPa |
| 23 | Electric Voltage | 12V |
| 24 | Increase function | With front flush and rear spray function Install an extra hose on rear door for hand-hold vacuum sucking dirt. |
| 25 | Sweep plates No. | 4 pcs. |
| 26 | Sucking disc | 1 set. |
| 27 | Standard spare parts | Brushes , door seals…. |
| 28 | Warranty | For 1 year since the truck leave factory |
| 29 | Delivery time | With 35 workings days since receive deposit. |
Road Sweeper Accessories,tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 120HP Truck Mounted Road Sweeper Malaysia
What chassis is the ISUZU 120HP Truck Mounted Road Sweeper Malaysia built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu road sweeper truck?
The factory table lists Pay Load 2240 kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Road Sweeper Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
ISUZU KV600 7cbm Street Sweeper Vehicle
27 spec rowsView Details
ISUZU NPR 8cbm Road Sweeping Truck
27 spec rowsView Details
ISUZU NKR 5m3 Street Cleaner Truck
27 spec rowsView Details
Quote The ISUZU 120HP Truck Mounted Road Sweeper Malaysia
This build is listed as emission Euro 5 Diesel with pay load 2240 kg. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
