ISUZU FVR 16m3 Asphalt Paving Truck
28 spec rowsView Details
- Home
- All Products
- Construction Truck
- ISUZU Bitumen Distributor Truck
- ISUZU 3000liters Asphalt Spreader Truck for Sale Philippines
Main photo
ISUZU Bitumen Distributor Truck

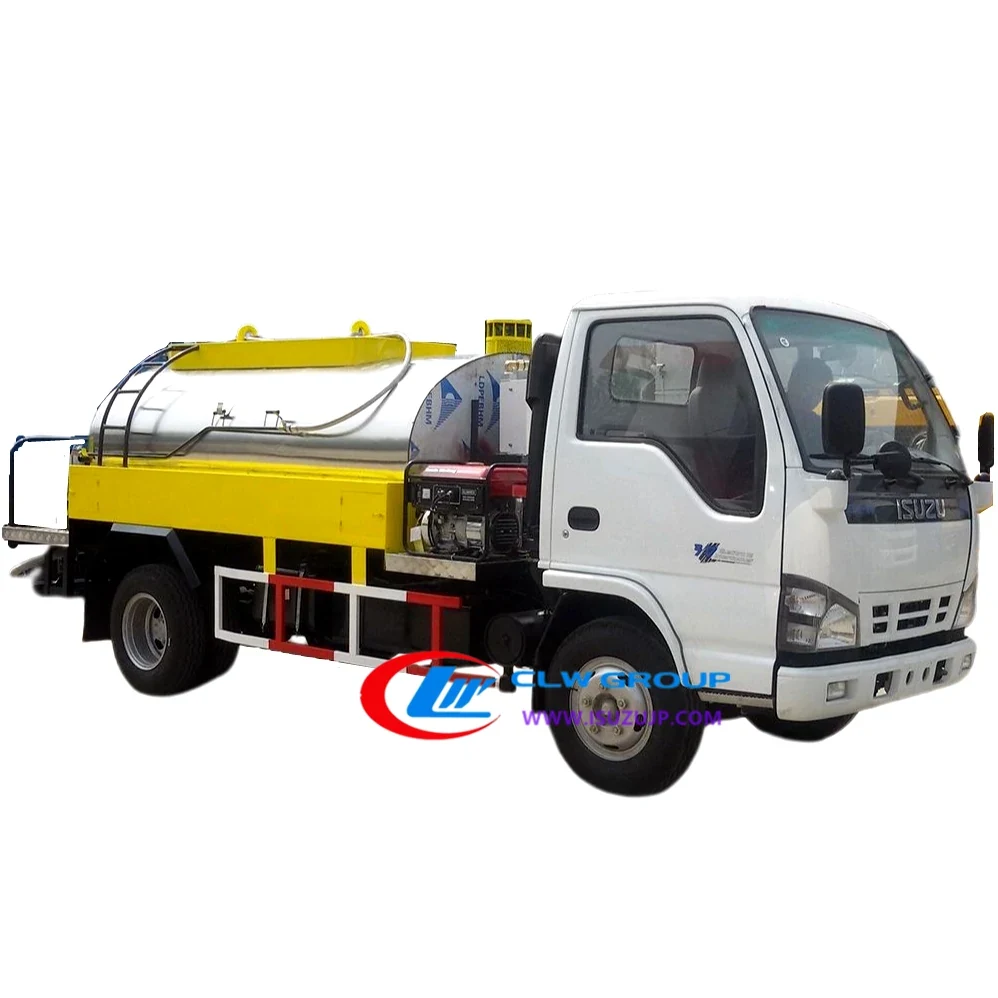

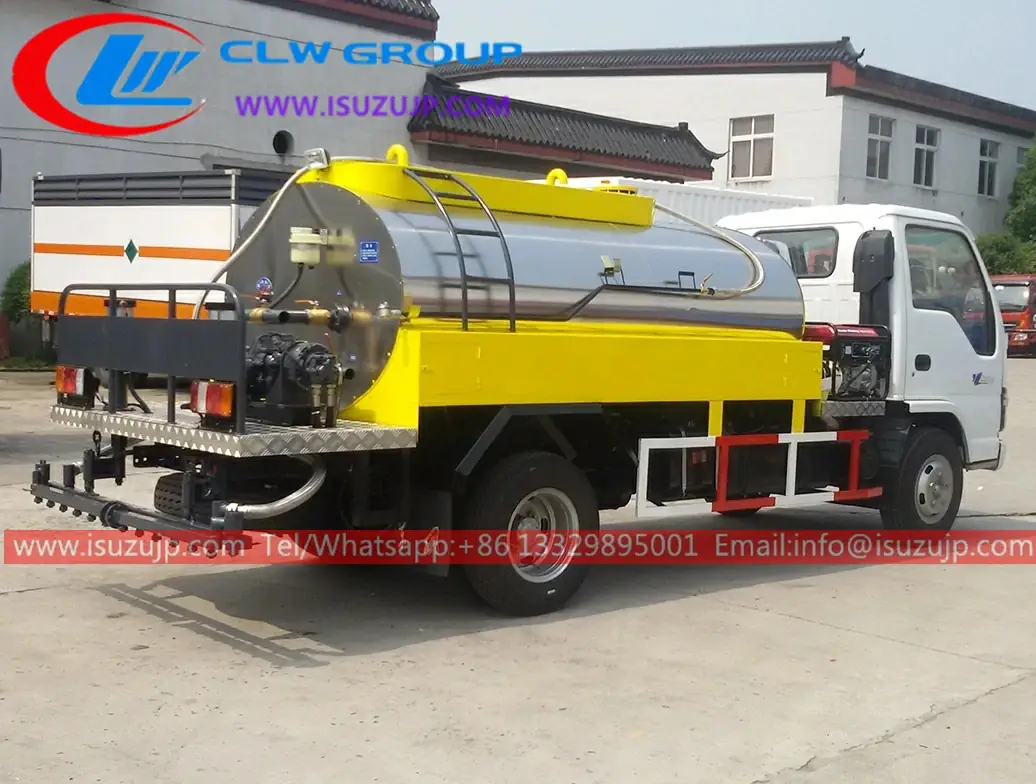

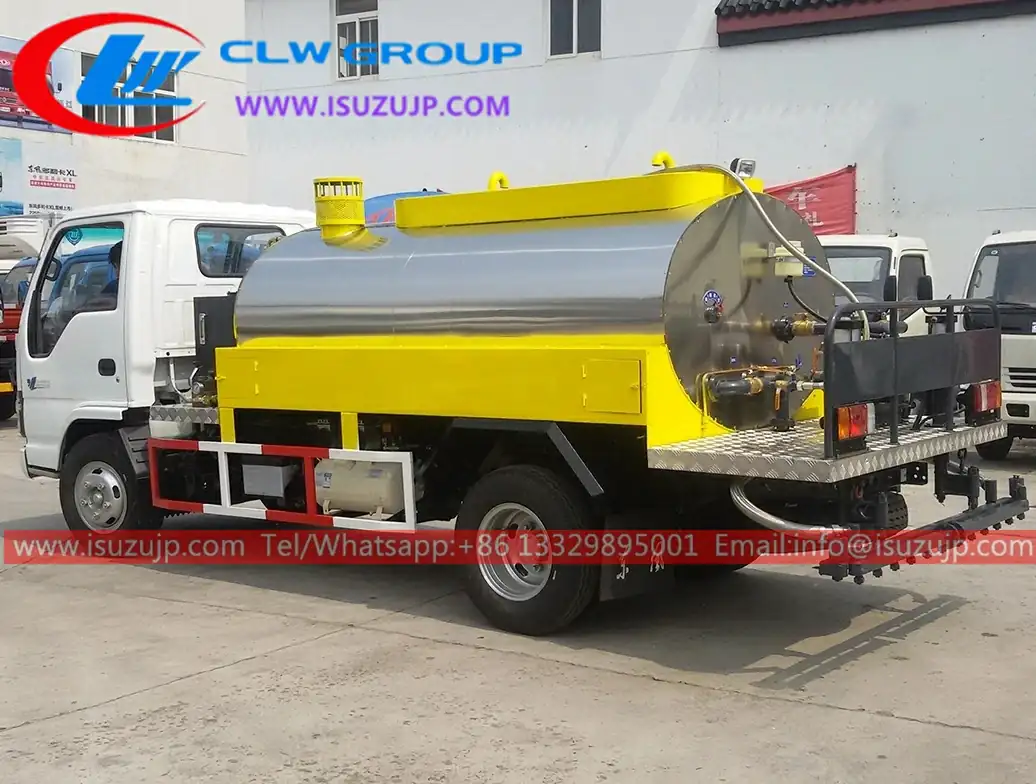

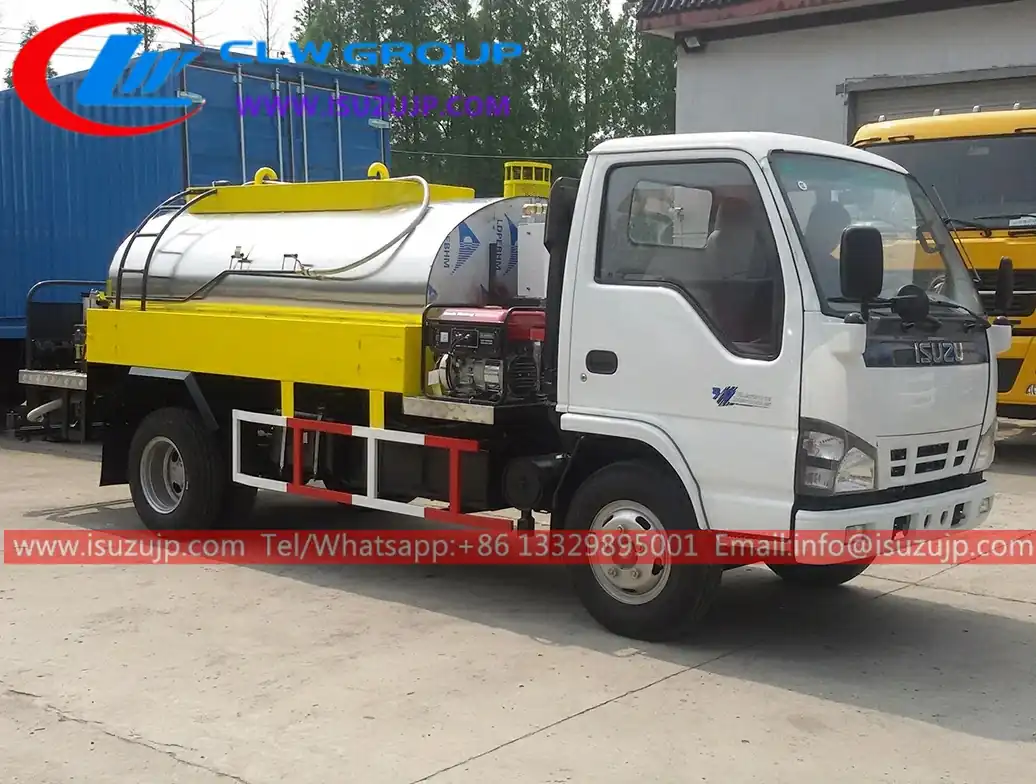

ISUZU 3000liters Asphalt Spreader Truck for Sale Philippines
3 ton Asphalt Spreader truck adopt NKR truck chassis, 4HK1 engine with 120HP, Manual MSB 5-shift gearbox, intelligent bitumen spraying system
- Transmission
- MSB, 5-Forwards & 1-Reverse, Manual
- SHANGGUI PUMPS, QGB270
- PLC Control System SIEMENS Brand
- Product Origin
- China
- Body Size
- 6000x2300x2500 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 20 rows.
ISUZU 3000liters Asphalt Spreader Truck Description
- ISUZU 3000liters asphalt spreader truck is equipment that is widely used in road construction. It is an intelligent high-tech product that can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt, and high viscosity modified asphalt. Asphalt distributor is basically made up of chassis, asphalt tank, asphalt pump, spray system, heat conduction oil heating system, hydraulic system, electric control system, distribution control system, and rinsing series. And the distribution system has two main types: hand-controlled and computer-controlled.
Advantage
- ISUZU NKR truck chassis, perfect performance
- ISUZU 4HK1 series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Spray width can be adjusted flexibly from 2m to 6m.
- Easy operation and easy maintenance.
- Automatic asphalt distributor truck boasts three layers. It can adjust the spray amount according to its operational speed.

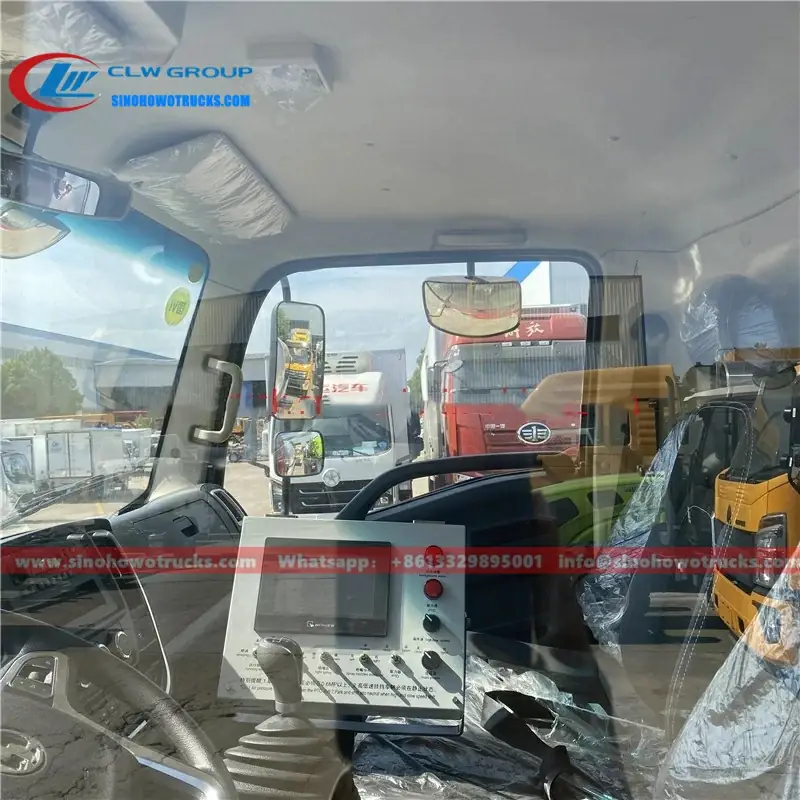

- The whole asphalt spraying process can be finished in the cab.
- Each nozzle is controlled by a separate computer. The spray width can be adjusted at random.
- The control procedure is equipped with two control systems, cab, and post-operational platform to ensure the reliability of asphalt spray.
- The computer control system adopts a modular design for lower accident rates and maintenance.
- The temperature of asphalt in the tank is kept below or equal to two degrees per hour
- distributor is equipped with an automatic blowing device to shift the asphalt outside to the tank
Chassis:
Asphalt distributor System:
Specification
ISUZU 3000liters asphalt spreader truck for sale Philippines
| Overall Dimension(LxWxH) | 6500×2100×2800 mm | Driving type 4*2 , Left Hand Drive |
|---|---|---|
| Chassis Parameters | ||
| Chassis model | ISUZU | Wheelbase 3360 mm |
| Cab | 100P cabin, single row, with A/C | |
| Engine | Model | ISUZU 4JB1CN |
| Rated power | 98hp | |
| Emission | Euro IV/V | |
| Fuel Type | Diesel | |
| Tire | Size | 7.00R16 |
| Number | 6+1(with one spare tire) | |
| Transmission | MSB, 5-Forwards & 1-Reverse, Manual | |
| Fuel tank | 120L | Brake Oil barke or Air Brake |
| Front axle | 2.5Tons | Rear Axle 4.8Tons |
| Tank Parameters | ||
| Asphalt Tank Capacity | 3m3 / 3000L | Asphalt Spraying Width 4500mm |
| Asphalt Spraying Rate | 0.2-2.5L/m2 | Spraying error ±2% |
| Hydraulic Pump | CBQ540-L | Heat-transfer Oil Pump RY25-25-160 |
| Hydraulic Motor of Asphalt pump | TILORMS Brand, 05-90-BD31 | Burner Italian RIELLO G10,(100×10³kcal/h) |
| Generator | 24V Converter | Nozzles No. 29 |
| Asphalt Pump | SHANGGUI PUMPS, QGB270 | PLC Control System SIEMENS Brand |
Questions
Questions About The ISUZU 3000liters Asphalt Spreader Truck for Sale Philippines
What chassis is the ISUZU 3000liters Asphalt Spreader Truck for Sale Philippines built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu bitumen distributor truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
