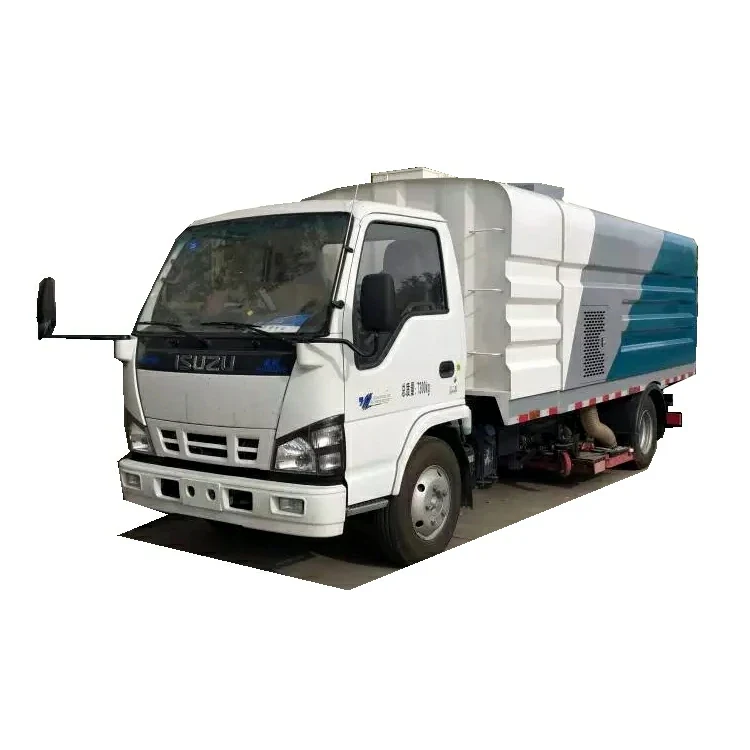

ISUZU 4k engine 6cbm dust suction vehicleMain photo
ISUZU Vacuum Cleaner Truck

ISUZU 4k Engine 6cbm Dust Suction Vehicle

ISUZU 600P 4×2 chassis, MSB 5-shift manual gearbox, 120HP diesel engine, stainless steel 6m3 dust bin

Chassis
ISUZU
Engine
ISUZU
Power
120 HP (88 KW)
Overall Dimension
7000X2300X2800 mm
GVW / Kerb Weight
9,800kg / 5,400kg
Drive Type
4X2, (left hand drive)
Transmission
MSB 5 speed levers with 1 reverse
Emission
Euro 4 or 5
Email This Model

Specification below is the factory table for this model, reproduced without edits. 27 rows.

ISUZU 4k Engine 6cbm Dust Suction Vehicle Description

  • ISUZU dust suction vehicle also called dust suction vehicle is a new type of road cleaning sanitation vehicle that adopts a dust removal filter system.
  • It has changed the traditional way of sweeping with the disc brush and rolling brush of the road sweeper, and all uses the working principle of negative pressure and direct suction to complete the work, through the vehicle’s dust filter system and automatic pulse vibration dust removal system.
  • It is suitable for industrial and mining enterprises with high dust, high concentration and high density that are prone to dust pollution: such as mixing plants, cement plants, thermal power plants, stone powder plants, and quarrying processing plants;
  • Rapid dust-free cleaning and cleaning of urban elevated, express roads and bridges and tunnels;
  • Cleaning and cleaning of urban arterial roads, high-grade highways and expressways.

Advantage

  • ISUZU 4K-ENGINE 600P chassis, no overhaul within 500,000 km.
  • ISUZU engine, super powerful; reliable performance.
  • Nice shape, rational structure
  • Italy imported high-pressure pump, super powerful, efficient pump in and out Strong, durable, perfect performance.
  • Road Sweeper body capacity from 2 to 16 Cubic Meter.
  • Easy operation and easy maintenance.
  • Virious types of refuse container lifters are available.

Specification

ISUZU 4k engine 6cbm dust suction vehicle

GeneralVehicle BrandCHENGLI
Chassis BrandISUZU
Overall Dimension7000X2300X2800 mm
GVW / Kerb Weight9,800kg / 5,400kg
CabCab Capacity2 persons allowed
Air ConditionerHeating/cooling air conditioner
EngineFuel TypeDiesel
Engine BrandISUZU
Power120 HP (88 KW)
Displacement2999 ml
Emission StandardEuro 4 or 5
ChassisDrive Type4X2, (left hand drive)
TransmissionMSB 5 speed levers with 1 reverse
Wheelbase/No. of axle3815 mm / 2
Tire Specification7.00-16
Tire Number6 tires and 1 spare tire
Max Speed90 km/h
PaintMetallic paint
SuperstructureBody capacity6 cbm dust tank & 2 cbm water tank
Tanker materialStainless steel
Sweeping capacity42,000 cbm/h
Sweeping speed3-15 km/h
Max. cleaning width2800 mm
Suction PlateMiddle of the truck
Auxiliary engineISUZU engine, 77HP (57kw), super powerful JMC engine, 77HP (57kw), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual…
otherThe volume of the trash bin is 6m³, and the water-proof material filter cartridge is installed inside, and the garbage is sorted and stored, which can effectively handle the leaves, stones, and dust. The body adopts dumping and unloading. The width of the main suction cup reaches 1900mm, the width of the left and right auxiliary suction cups is 600mm, and the maximum working width is 2.5m. The 4 height-adjustable nozzle wheels can easily adjust and ensure a reasonable gap between the suction cup and the road surface, so as to achieve a better dust collection effect and a higher dust collection efficiency. Automatic pulse cleaning function, the auxiliary machine is equipped with an air pump and a volume air tank. When the air pressure is reached, the pulse blowback device is turned on to blow back and vibrate the filter cylinder in the box, so that the filter cylinder is not easy to be blocked during work, and the suction is effectively improved , So as to achieve better cleaning effect, computer PLC control, adjustable pulse interval time.

Road Sweeper Accessories,tools and Instructions

  • Free parts for 12 months.
  • Supply of original parts.
  • DHL serves 7 days worldwide.
Questions

Questions About The ISUZU 4k Engine 6cbm Dust Suction Vehicle

What chassis is the ISUZU 4k Engine 6cbm Dust Suction Vehicle built on?

It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.

What is the capacity of this isuzu vacuum cleaner truck?

Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.

Can it be built to our own specification?

Yes, we can produce according to the customer's technical drawings and specifications.

How long before it is ready to ship?

Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

How do we pay and what do we see before the balance?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.

Is the truck tested before delivery?

Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.

What support is available after it arrives?

Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
