Main photo
ISUZU Vaccine Truck

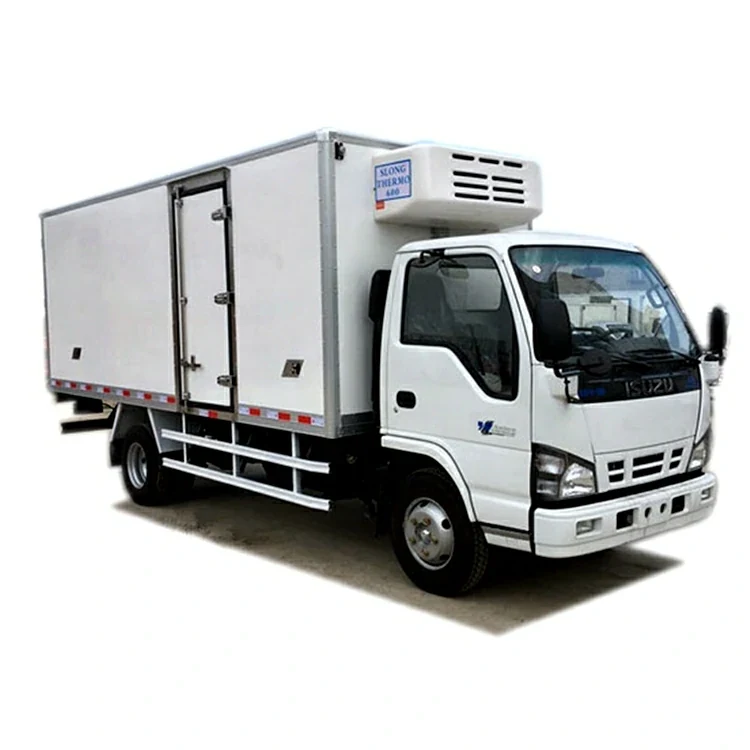

ISUZU 600P Vaccine Cold Chain Delivery Vehicle
ISUZU ELF 600P 5 ton refrigerated vaccine truck, ISUZU left-hand drive model 4×2 chassis, MSB 5-shift manual gearbox, ISUZU 120HP engine. Equipped with famous cooling units
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 120 HP (72 KW)
- Overall Dimension
- 6995X2300X3000 mm
- GVW / Kerb Weight
- 7,380kg / 3,800kg
- Drive Type
- 4X2 (left hand drive)
- Transmission
- MSB 5-shift speed levers with 1 reverse
- Emission
- Euro 5
Specification below is the factory table for this model, reproduced without edits. 31 rows.
ISUZU 600P Vaccine Cold Chain Delivery Vehicle Description
- ISUZU vaccine cold chain vehicle also called refrigerated vaccine truck，vaccine transportation truck，Vaccine transfer truck，vaccine cold chain vehicle，vaccine cold chain truck，medicine transport refrigerated truck，mobile covid vaccine truck.
- Vaccine cold chain trucks are used to transport human and animal vaccines and medicines.
Features
- It adopts airtight transportation, the rear door is a double-layer airtight structure, and the labyrinth seal is adopted, and the compartment is completely enclosed.
- The inner wall of the compartment can be a stainless steel plate, which can be corrosively disinfected.
- The bottom circumference and corners of the carriage are smoothly treated and should be cleaned and disinfected.
- All are equipped with special functions such as temperature and humidity recorder, ventilation slot, micro printer, GPRS positioning and so on.
Advantage
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification
ISUZU 600P cold chain delivery vaccine vehicle
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 6995X2300X3000 mm | |
| GVW / Kerb Weight | 7,380kg / 3,800kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 120 HP (72 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 4X2 (left hand drive) |
| Transmission | MSB 5-shift speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tire Specification | 7.00R16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body size | 5150×1900×2000(mm) |
| Load Capacity | 5 Tons | |
| Panel Structure | Fiberglass sandwich polyurethane | |
| Front/Side/Rear panel | Panel Thickness: 85mm | |
| Roof/Floor panel | Panel Thickness: 105mm | |
| Lights & Switch | Led, Water-proof, 12V/24V convertible | |
| Lowest temperature | -5°C or -20 | |
| Equipment | Standard: Aluminum alloy flooring, rear doors. Optional: 1. Hydraulic Tailift and Cargo Control System. 2. Side doors, side steps and ladders. 3. Different temperature area control. 4. Customized floor roller design for convenient working. |
Working Parameter
ISUZU 600P Vaccine Cold Chain Delivery Vehicle Specification
| Insulation thickness | 80mm ester urethane | Inside and outside materials 2.2mm FRP / Stainless steel plate Unit brand Domestic, imported / independent, non-independent |
|---|---|---|
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location Front, skirt, top Bottom ventilation slot Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain Optional Control position Cab |
| Meat hook | Optional | Insulation effect 24 hours temperature rise 5 degrees External power supply Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit Optional Temperature and humidity printer Optional |
Questions
Questions About The ISUZU 600P Vaccine Cold Chain Delivery Vehicle
What chassis is the ISUZU 600P Vaccine Cold Chain Delivery Vehicle built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu vaccine truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Vaccine Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU 600P Vaccine Cold Chain Delivery Vehicle
This build is listed as chassis ISUZU with engine ISUZU. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
