- ISUZU ELF 4 Meters Long Box Medical Waste Disposal Truck
Main photo
ISUZU Medical Waste Truck

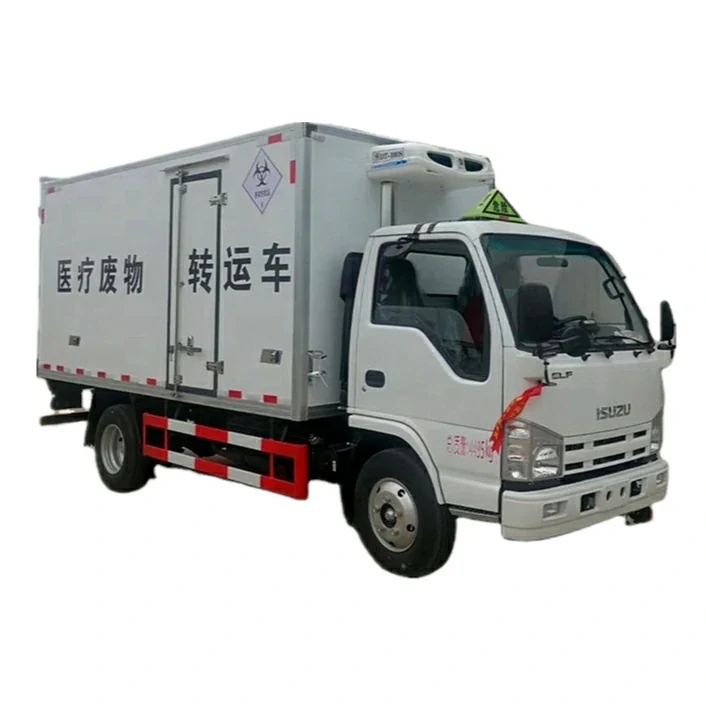

ISUZU ELF 4 Meters Long Box Medical Waste Disposal Truck
ISUZU ELF 4meters Medical waste collection truck, ISUZU left-hand drive model 4×2 chassis, MSB 5-shift manual gearbox, ISUZU 98HP engine. Equipped with famous cooling units
- Chassis
- Dongfeng
- Engine
- ISUZU
- Power
- 98HP (72 KW)
- Overall Dimension
- 5995X2100X3000 mm
- GVW / Kerb Weight
- 6,500kg / 3,500 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- MSB 5-speed forward, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 33 rows.
ISUZU ELF 4 Meters Long Box Medical Waste Disposal Truck Description
- ISUZU medical waste disposal truck also called medical waste collection van, Medical waste collector, biomedical waste carrier, medical waste disposal truck, medical waste haulage truck, medical waste transport truck, hospital waste disposal truck, medical waste transfer vehicle, medical waste collection vehicle, etc.
- As medical waste may cause infection and pollution, a medical waste collector van should be a sealed room, placed with stainless steel interior to make it anti-corrosive, equipped with a refrigerator to keep all biohazard material at low temperature, adopted with ultraviolet lamp and disinfection sprayer to kill bacteria, etc. And all corners of the van are the round type for easy cleaning.
- The van box could be hydraulically lifted to discharge medical waste easily.
Advantage
- 100% custom-made
- Equipped with refrigerator to keep the van in low temperature.
- High quality ultraviolet lamp.
- Round type van corner.
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification
ISUZU ELF 4 meters long box medical waste truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | Dongfeng | |
| Overall Dimension | 5995X2100X3000 mm | |
| GVW / Kerb Weight | 6,500kg / 3,500 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 98HP (72 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | MSB 5-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Van Box Dimension | 4070X1900X1800 mm |
| Van Volume | 14 m3 | |
| Van Capacity | 3 Ton | |
| Van Material | Interior: Stainless Steel; Exterior: Fiberglass | |
| Refrigerator | Chinese famous brand | |
| Ultraviolet Lamp | 1 set | |
| Disinfection Sprayer | 4 pcs | |
| Hydraulic Cylinder | Chinese top brand | |
| All standard accessories: a separated compartment (side opened), basic tool kit, English manual…… | ||
| Optional | Hand washing tank | |
Working Parameter
ISUZU ELF 4 Meters Long Box Medical Waste Disposal Truck Specification
| Insulation thickness | 80mm ester urethane | Inside and outside materials 2.2mm FRP / Stainless steel plate Unit brand Domestic, imported / independent, non-independent |
|---|---|---|
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location Front, skirt, top Bottom ventilation slot Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain Optional Control position Cab |
| Meat hook | Optional | Insulation effect 24 hours temperature rise 5 degrees External power supply Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit Optional Temperature and humidity printer Optional |
Questions
Questions About The ISUZU ELF 4 Meters Long Box Medical Waste Disposal Truck
What chassis is the ISUZU ELF 4 Meters Long Box Medical Waste Disposal Truck built on?
It is built on Dongfeng. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu medical waste truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
