Main photo
Skip Loader

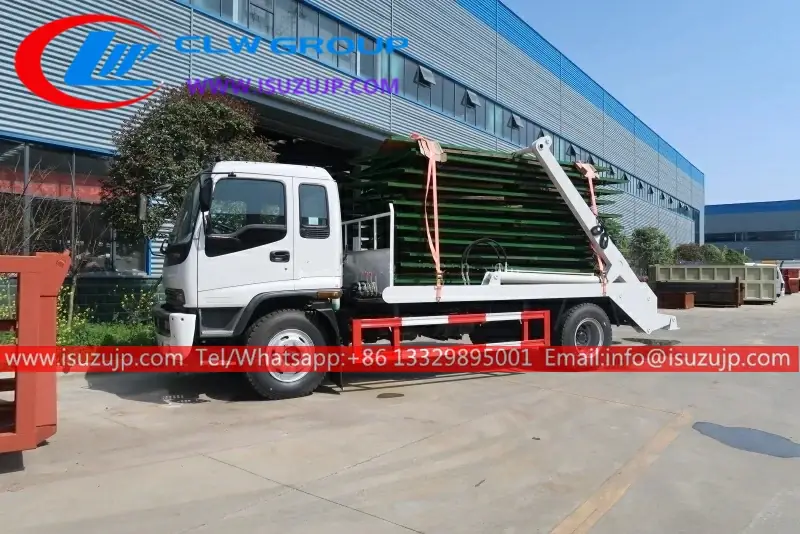

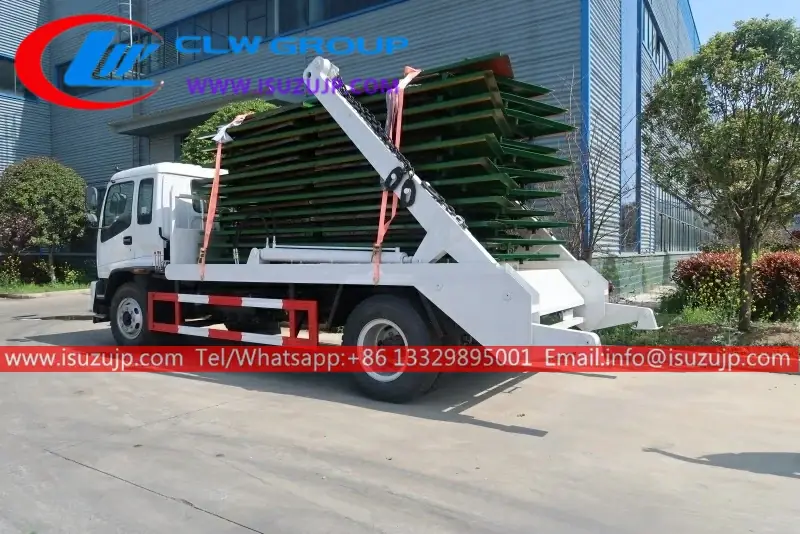

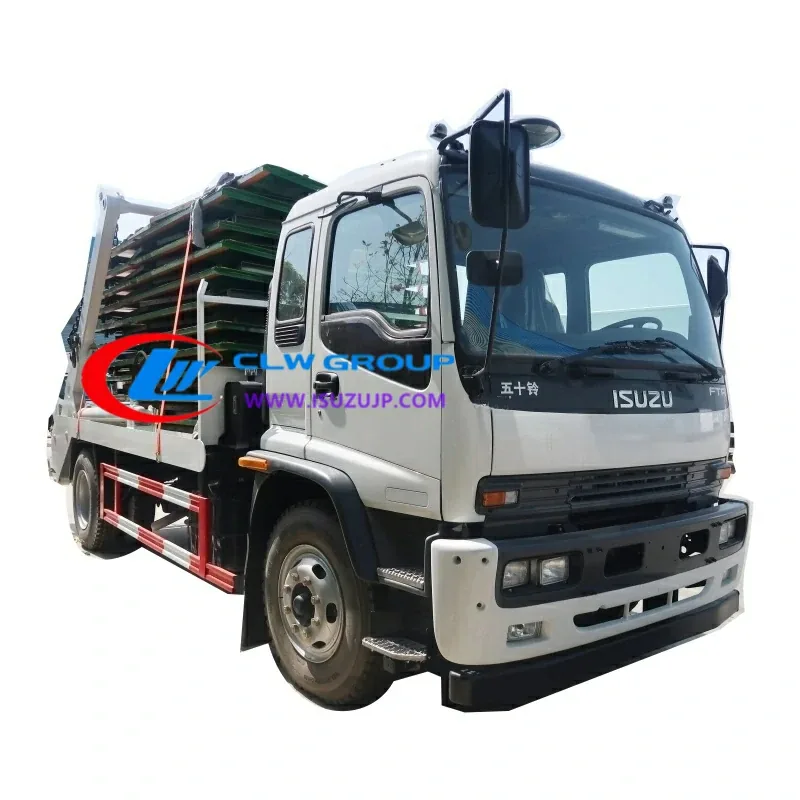

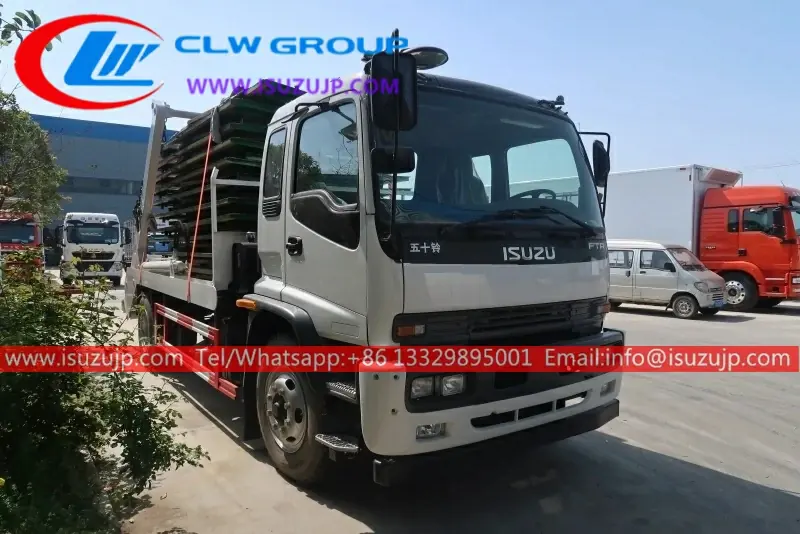

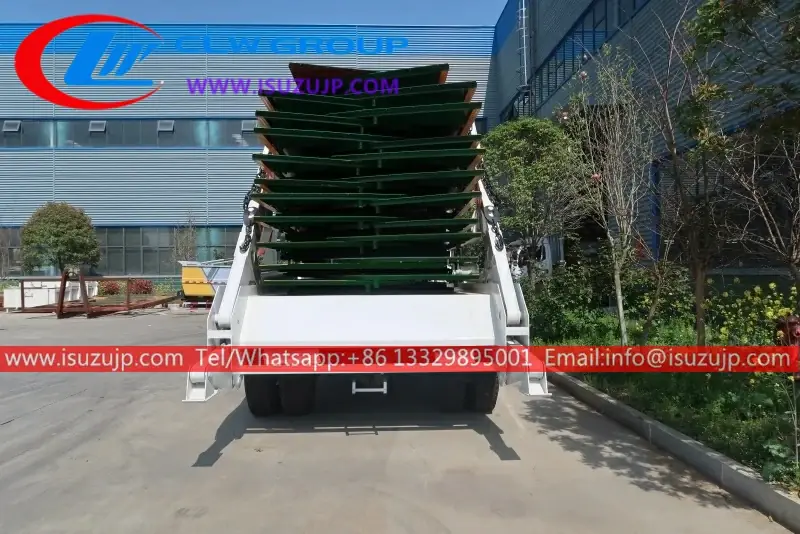

ISUZU FTR 10m3 Skip Bin Truck for Sale
8-10CBM skip bin loader truck, 4×2 ISUZU FTR chassis, MLD 6-shift manual gearbox, 205HP diesel engine, high strength steel swing arm system, Famous brand Hydraulic control device and electric control box
- Transmission
- MLD,6 forward gears & 1 reverse ,manual
- Emission
- Euro V
- Payload
- 10m3
- Box Capacity
- 10m3 Carbon steel
Specification below is the factory table for this model, reproduced without edits. 30 rows.
Isuzu FTR 10m3 Skip Bin Truck Description
- Isuzu FTR 10m3 skip bin truck is also called Swing Arm Garbage Truck, skip refuse truck, skip collection truck, skip loader garbage truck.
- Skip Loader is a garbage truck with a detachable body container. Which could enable one truck with several garbage containers for recycle use.
- It could be equipped with a cover to prevent dropping any rubbish.
Advantage
- ISUZU NKR 600P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- The dust bin material of carbon steel Q235A has more types and more specifications to meet various customers’ needs in different regions.
- Designed sewage collecting box in the bottom of fill device, the sewage directly flow into the box, avoid re-pollution.
- Hydraulic systems: two separate kinds of hydraulic control–electric control and manual control, makes the operation more simple and convenient.
- Skip garbage trucks with detachable containers can realize the function of garbage bins and truck body separate, which means that one vehicle can work with more than one garbage cargo body, to recycle transport, and improve the transport capacity.
- Ranges of types for your customized choice. Type of garbage box: sealed, semi-enclosed. The shape of the garbage box: is a rectangular shape, trapezoidal.
Specification
Main Specification
| Production name | Isuzu FTR 10m3 skip bin truck for sale |
|---|---|
| Type | 4×2 left hand drive |
| Weights | |
| Payload | 10m3 |
| Curb weight (kg) | Approx.8500 |
| Dimensions | |
| Wheelbase(mm) | 4600 |
| Overall Dimension(mm) | Approx.7850×2500×3350 |
| Box dimension (mm) | 10m3 |
| Engine | |
| Engine model | 4HK1NS(205HP) |
| No of cylinder | straight-4 cylinders,turbocharged,inter-cooling,water-cooling |
| Displacement(L) | 5.9L |
| Max power | 151kw/2200rpm |
| Max torque | 500N.m/ |
| Emission standard | Euro V |
| Drive Line | |
| Transmission | MLD,6 forward gears & 1 reverse ,manual |
| Steering | ZF8198 Power steering |
| brake | Air brake |
| Cab | |
| Configuration standard | A/C |
| Axles | |
| Front axles | HF7 |
| Rear axles | ST13 |
| Tire specification | |
| Tire | 295/80R22.5 standard tire,6 tires+1 spare tire |
| Garbage box | |
| Box capacity | 10m3 Carbon steel |
| Equipment | skip bucket ; pump ; power take-off ; multi-directional control valve ;spill valve ;one-way hydraulic valve ;balance valve,pipeline ,etc . Lifting& Unloading Time less than 45s |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU FTR 10m3 Skip Bin Truck for Sale
What chassis is the ISUZU FTR 10m3 Skip Bin Truck for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this skip loader?
The factory table lists Payload 10m3. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Skip Loader Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU FTR 10m3 Skip Bin Truck for Sale
This build is listed as transmission MLD,6 forward gears & 1 reverse ,manual with emission Euro V. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
