ISUZU Van Truck

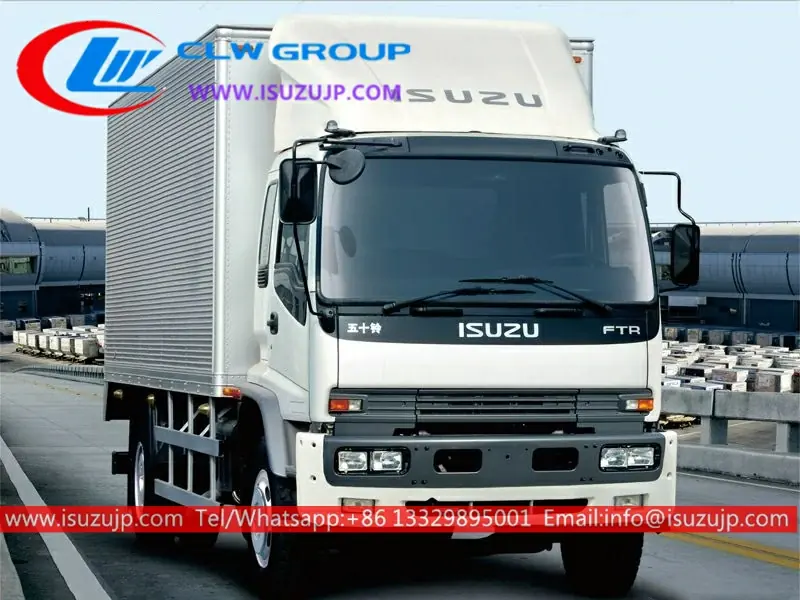

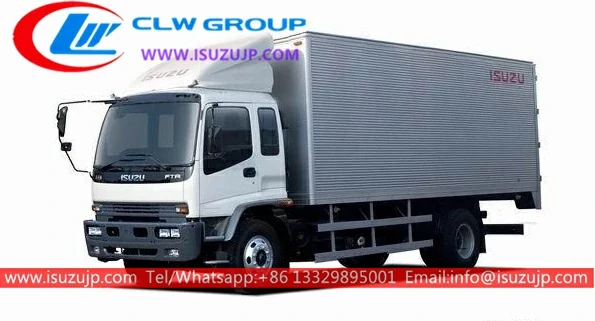

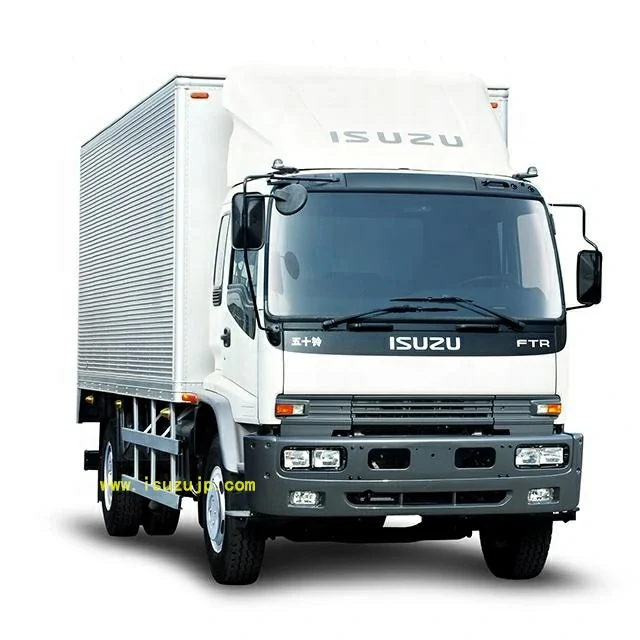

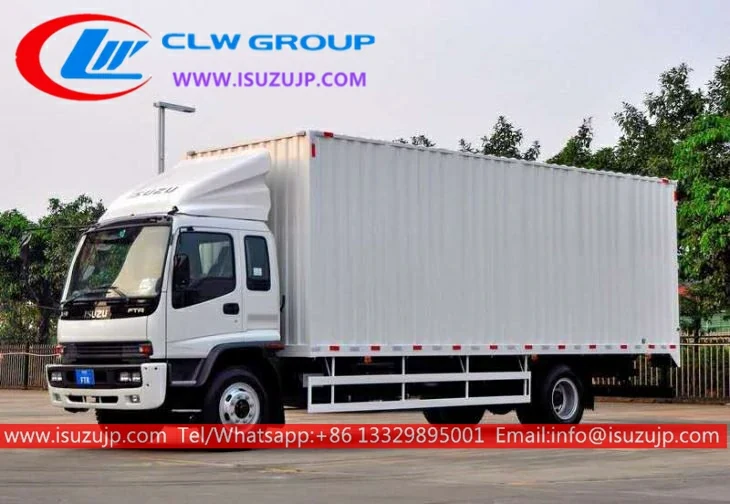

ISUZU FTR 26 Foot Box Truck for Sale
Equipped Isuzu FTR cabin 205HP engine, MLD Six-speed gearbox, double-circuit oil brake, and direction assistance
- Emission
- Euro V
- Product Origin
- China
- Body Size
- 10300x2550x3990 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 40 rows.
Application
- ISUZU FTR 26 foot box truck also called box vehicle, cargo truck, cargo van, box van, cube truck, lorry van, box truck is used to transport cargo with closed box. It is a very normal and important transport truck.
- The material used for van truck body could be corrugated steel, color steel plate, fiberglass, aluminum, or Stainless steel
- By adding a cooling system and polyurethane insulation layer, van trucks could be refrigeration trucks and carry cargo or food that need to be in low temperature.
- According to the requirements, it could be a single door at the rear or side or a double door.
ISUZU FTR 26 Foot Box Truck Advantage
- ISUZU FTR chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Accept customized
- Free logo and box paint
- Euro IV, Euro V, Euro VI engine
Specification
ISUZU FTR 26 Foot Box Truck for Sale Specification
| Truck type | ISUZU FTR 26 foot box truck for sale |
|---|---|
| Driving Type | Left Hand Drive |
| Overall Dimension（L*W*H） | 10300X2550X3900mm |
| Box Dimension（L*W*H） | 8000X2450X2530mm |
| GVW | 16000Kg |
| Curb Weight | 7510Kg |
| Axle loading: | |
| Wheelbase | 5800mm |
| F/R Track | 1960/1855 |
| Approaching Angle/Departure Angle(o) | 15/13 |
| Tire No. | 7（Including Spare Tire） |
| Tire | 10.00R20 16PR |
| Color: | Optional |
| Max Speed（Km/h） | 105km/h |
| Engine | |
| Engine System | 4 Stroke, High-Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Emission Route | DPF |
| Model | 4HK1-TC50 |
| Fuel Type | Diesel Engine |
| Max output | 150Kw |
| Horsepower： | 205Hp |
| Max Torque | 650N.m |
| Emission Standard | Euro V |
| Displacement: | 5193ml |
| Transmission: | |
| Model: | MLD-6Q |
| Type | Manual |
| Forward/Reverse | 6F/1R |
| Brake System: | |
| Service Brake | Dual Circuit Compressed Air Brake |
| Parking Brake | Spring Energy, Compressed Air Operating on Rear Wheels |
| Auxiliary System | Engine Exhaust Brake |
| Electrical System | |
| Battery | 2*12-70Ah |
| Alternator | 28V-70Ah |
| Starter | 24V/7.5Kw |
| Cab | |
| One Row and Half Cab with Air Conditioner | |
| Other Equipment: | |
| Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking，Data Recorder，Vehicle Speed Light | |
Truck Tools
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU FTR 26 Foot Box Truck for Sale
What chassis is the ISUZU FTR 26 Foot Box Truck for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu van truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
