- ISUZU FTR 3000 Gallon Sprayer Disinfection Vehicle
Main photo
Isuzu Disinfection Sprayer Truck

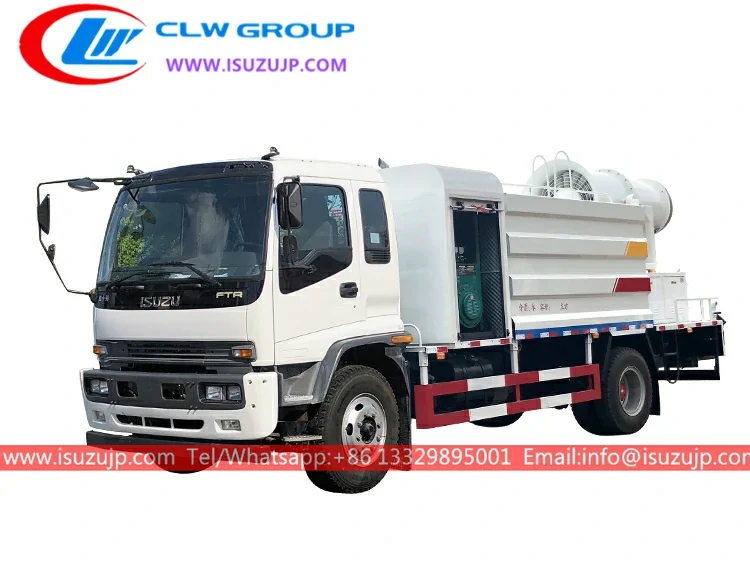

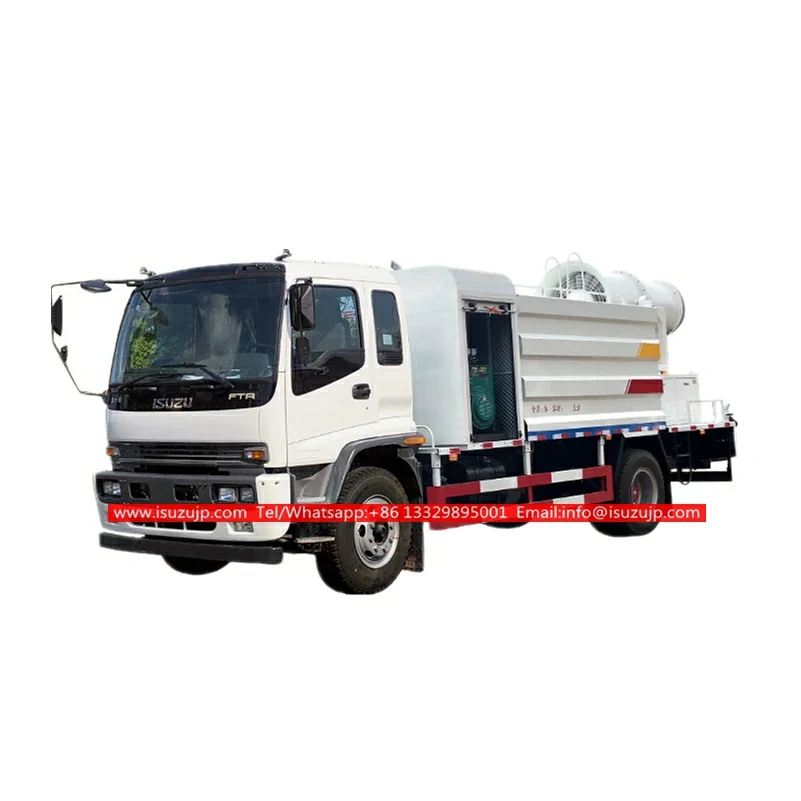

ISUZU FTR 3000 Gallon Sprayer Disinfection Vehicle
Equipped Isuzu FTR 205HP engine，six-speed gearbox, an air brake, and direction assistance
- Chassis
- ISUZU
- Engine
- ISUZU Engine
- Power
- 205 Hp (150 KW)
- Overall Dimension
- 9000x2500x3000 mm
- GVW / Kerb Weight
- 18,000 kg / 8,800 kg
- Drive Type
- 4X2 left-hand drive
- Transmission
- Manual, 6 – speed forward, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 33 rows.
ISUZU FTR 3000 Gallon Sprayer Disinfection Vehicle Application
- ISUZU sprayer disinfection vehicle equipped with high-quality portable power generator and fogger additionally on water truck. The portable generator, diesel or gasoline, drives the fogger, which makes the liquid atomization, so the disinfectant solution could be sprayed very equably.
- Disinfectant spray truck could also be equipped with special sprayers in all sides to achieve front flush, rear sprinkle, side spray. When loading clean water, it is used to sprinkle and clean the roads, water the plants for multi-use.
Advantage
- ISUZU FTR chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Sprinkling Width :>14M
- Rear working platform with water cannon range of portable water truck:28M
- Water Tank: square or round tank for option, square tank, high-quality Q235 carbon steel treated for anti-corrosion and anti-rust
- large flow water pump as standard, 50-100 meters fog Gun machine for option;
- TDM-M06 60 meters, generator power 50KW, fan power 22KW, stainless steel multistage centrifugal pump power 11KW, 100 meters wireless remote control operation.
Specification
ISUZU FTR 3000 gallon sprayer disinfection vehicle (12,000 litres)
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 9000x2500x3000 mm | |
| GVW / Kerb Weight | 18,000 kg / 8,800 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU Engine | |
| Power | 205 Hp (150 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2 left-hand drive |
| Transmission | Manual, 6 – speed forward, 1 reverse | |
| Wheelbase/No. of axle | 4700 mm / 2 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 6 tires and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 12,000 Litres (3,000 gallons) |
| Tank Material | Carbon steel with anti-rust interior treatment | |
| Generator for sprayer | Gasoline or Diesel, 50 KW | |
| Fogger Spray Speed | 80 L/min | |
| Fogger Spray Shot | 60 m-100 m | |
| Rotation Angle | Up / Down: – 5 -60° Horizontal rotation: 0-360° | |
| Operation | Remote control | |
| Optional | Burglar alarm, immobilizer, center control, radial tyre. Tank material could be stainless steel or carbon steel. |
Working Parameter
ISUZU FTR 3000 Gallon Sprayer Disinfection Vehicle Specification
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material Carbon steel Q345/stainless steel 304 |
|---|---|---|
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Generator set | 7 kW gasoline, 30-150 kW diesel | Water way Self-priming water, fire water injection, tank top water injection |
| Spray unit | 30m-120m optional | Water pump brand China pump |
| way to control | Electronic control + remote wireless remote control, 360 degree rotation + up and down 90 degree swing |
Water Bowser Tanker Truck Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU FTR 3000 Gallon Sprayer Disinfection Vehicle
What chassis is the ISUZU FTR 3000 Gallon Sprayer Disinfection Vehicle built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu disinfection sprayer truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
