- ISUZU GIGA 10 Wheeler Aluminum Truck Wing Van for Sale
Main photo
Wing Van Truck

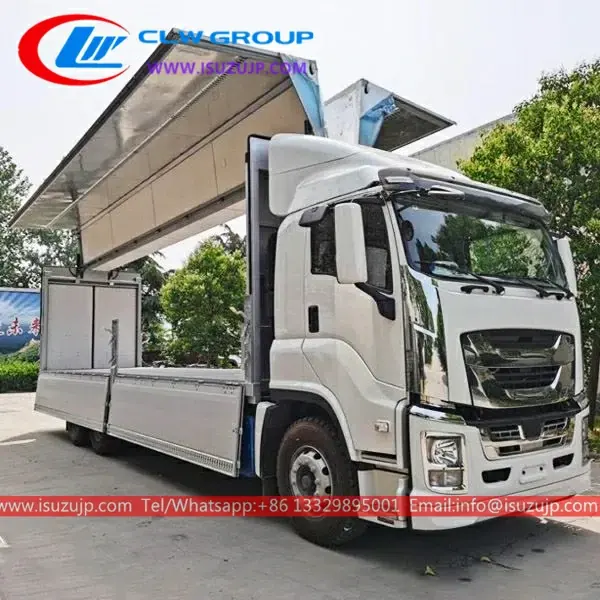

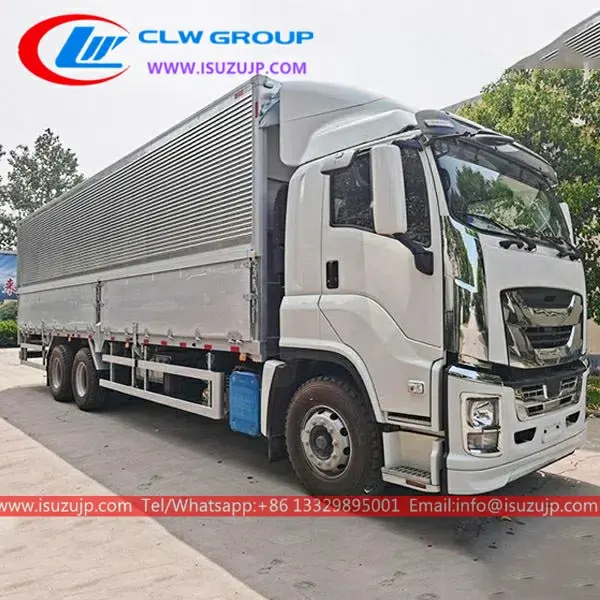

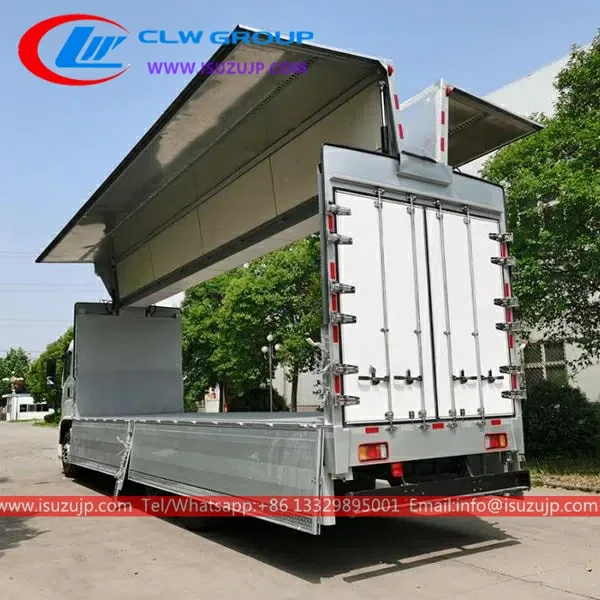

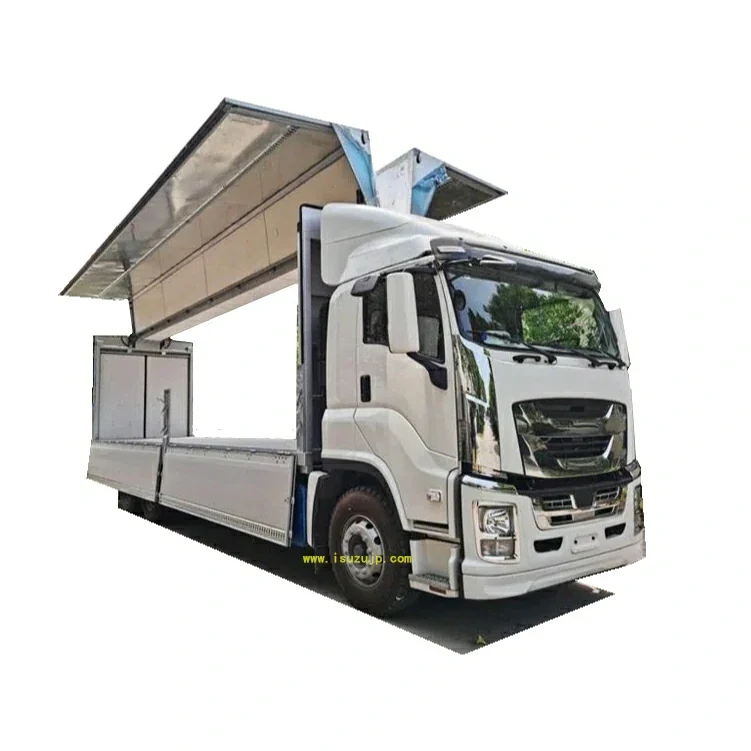

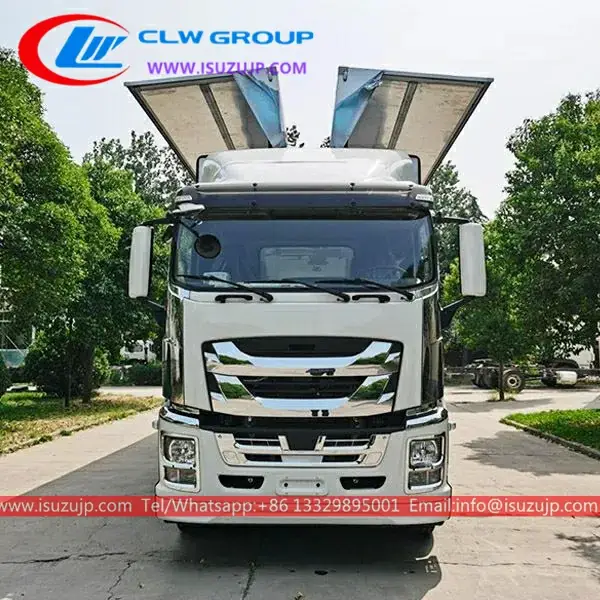

ISUZU GIGA 10 Wheeler Aluminum Truck Wing Van for Sale
Equipped Isuzu Giga 380HP engine, FAST 12-speed gearbox, double-circuit oil brake, and direct assistance
- Axle Loads:
- 7000/26000Kg (Two-axis group)
- Capacity
- 400L
- Product Origin
- China
- Body Size
- 11280x2550x3990 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 34 rows.
Isuzu Giga 10 Wheeler Aluminum Truck Wing Van Application
- ISUZU Isuzu Giga wing van also called wing body truck, wing van, 10 wheeler wing van, 6 wheeler wing van truck, etc.
- It is mainly used for the transportation and distribution of paper, household appliances, clothing, chemicals, beverages, food, and some high-grade valuables.
ISUZU 4K-ENGINE 6 Ton Box Truck Advantage
- ISUZU Giga 10 wheel chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Accept customized
- The frame of the car body structure is welded with high strength steel profiles
- An aluminum alloy box can be selected.
- It has the advantages of rainproof, dustproof, sunscreen, anti-theft and corrosion resistance
- The dimensions of the carriage cover 3.8m, 4.2m, 5.2m, 6.2m, 6.8m, 7.6m, 8m and 9.6m
Specification
ISUZU GIGA 10 Wheeler Aluminum Truck Wing Van for Sale Specification
| Products Name | Isuzu Giga 10 wheeler wing van for sale | |
|---|---|---|
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 11280×2550×3990mm |
| Box Dimension (L x W x H): | 9140x2400x2440mm | |
| Wheelbase: | 5820+1370mm | |
| Front Wheel Distance: | 2065mm | |
| Rear Wheel Distance | 1855/1855mm | |
| Front/Rear Suspension | 1370/2590mm | |
| Weights and Capacities | Curb Weight: | 15500kg |
| GVW: | 33000kg | |
| Axle Loads: | 7000/26000Kg (Two-axis group) | |
| Engine | Engine Model: | 6UZ1-TCG50 |
| Max output: | 278Kw | |
| Displacement: | 9839ml | |
| Horsepower: | 380Ps | |
| Exhaust Gas Treatment Technology: | SCR | |
| Cab | Number of Seats: | 3 |
| Cabin type | Standard Roof One Bed | |
| Chassis | Drive Type: | 6×4 |
| Tires: | 11(Including Spare Tire) | |
| Fuel tank | Capacity | 400L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tire | |
| 5 | Aluminum Alloy Gas Tank | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | Driving Data Recorder | |
| 10 | Widened Bumper | |
| 11 | Front Chrome Kit | |
| 12 | Air Suspension Cabin | |
| 13 | Air Suspension Seat | |
| 14 | Main Power Switch |
Truck Tools
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU GIGA 10 Wheeler Aluminum Truck Wing Van for Sale
What chassis is the ISUZU GIGA 10 Wheeler Aluminum Truck Wing Van for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this wing van truck?
The factory table lists Axle Loads: 7000/26000Kg (Two-axis group). Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Wing Van Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
6×4 ISUZU FVZ Heavy Duty 30 Ft Box Truck
40 spec rowsView Details
ISUZU FVR 28 Ft Box Truck for Sale
40 spec rowsView Details
Quote The ISUZU GIGA 10 Wheeler Aluminum Truck Wing Van for Sale
This build is listed as axle loads: 7000/26000Kg (Two-axis group) with capacity 400L. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
