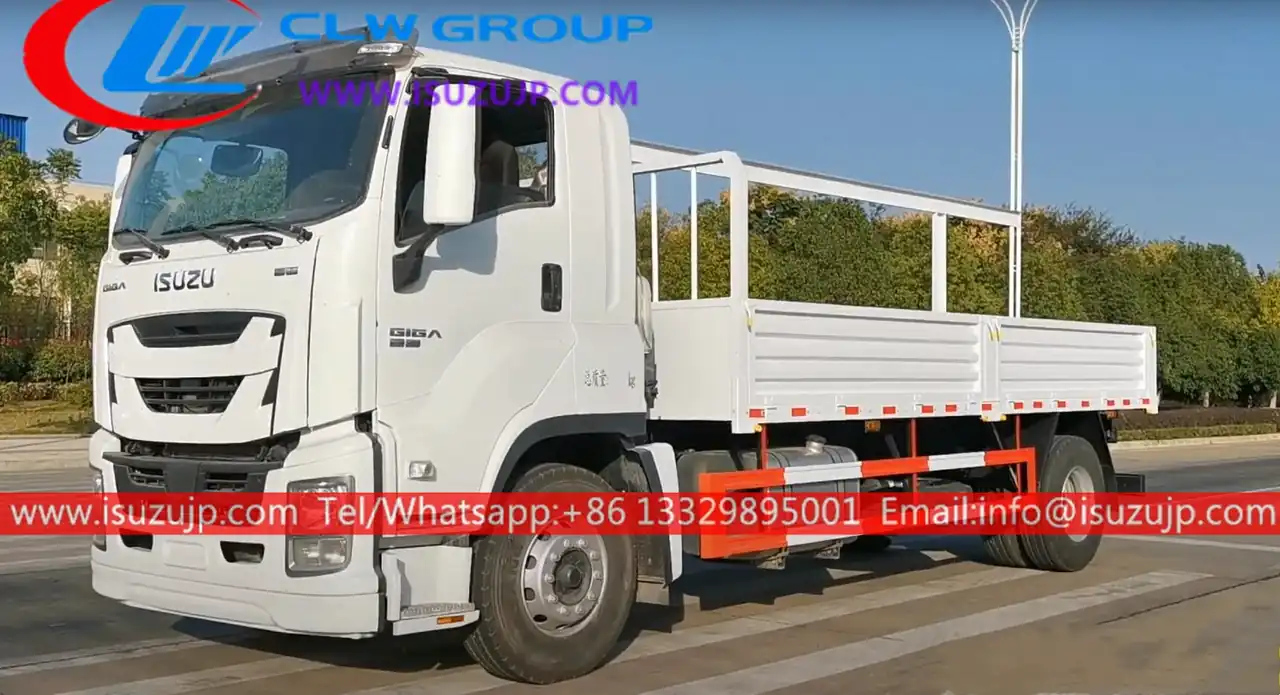

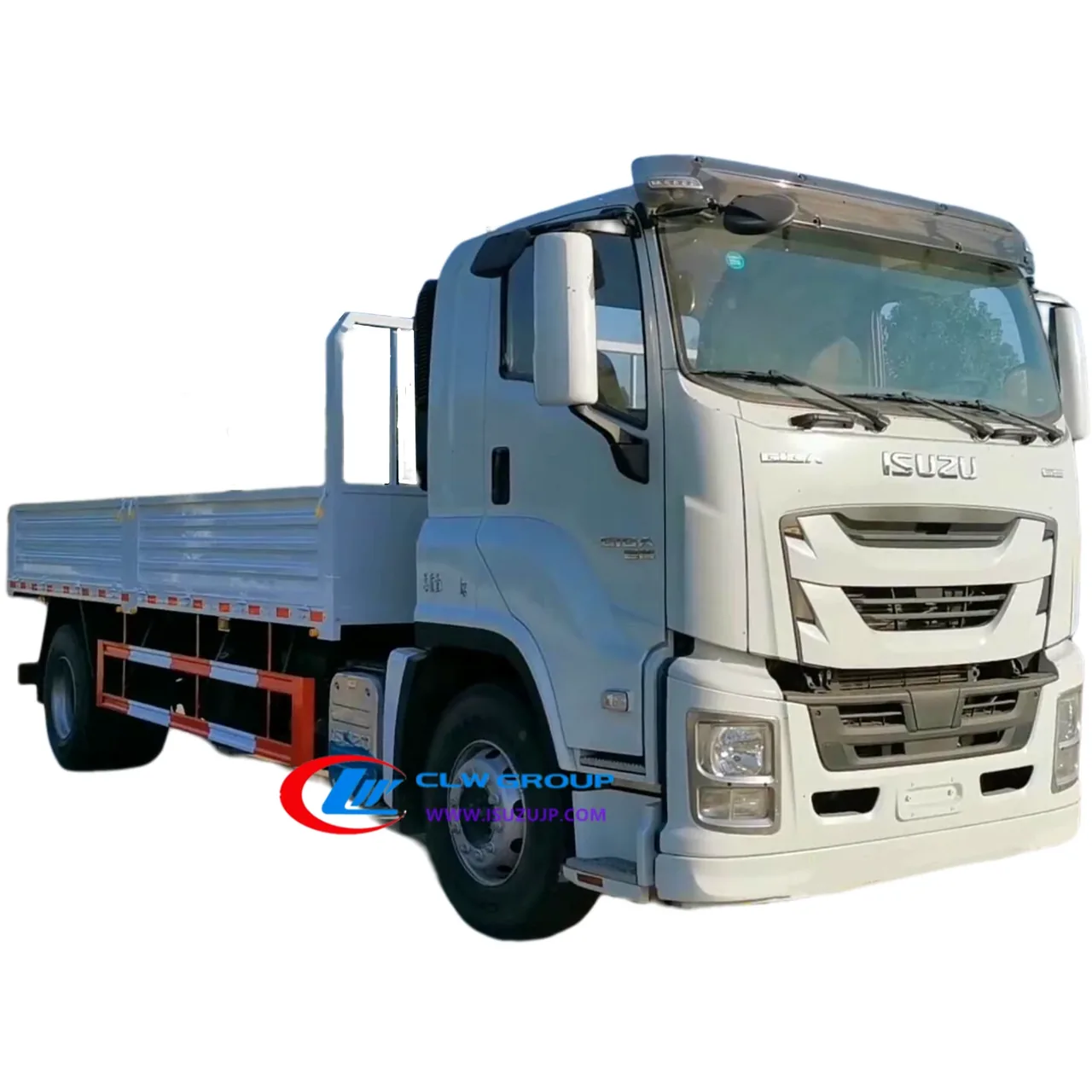

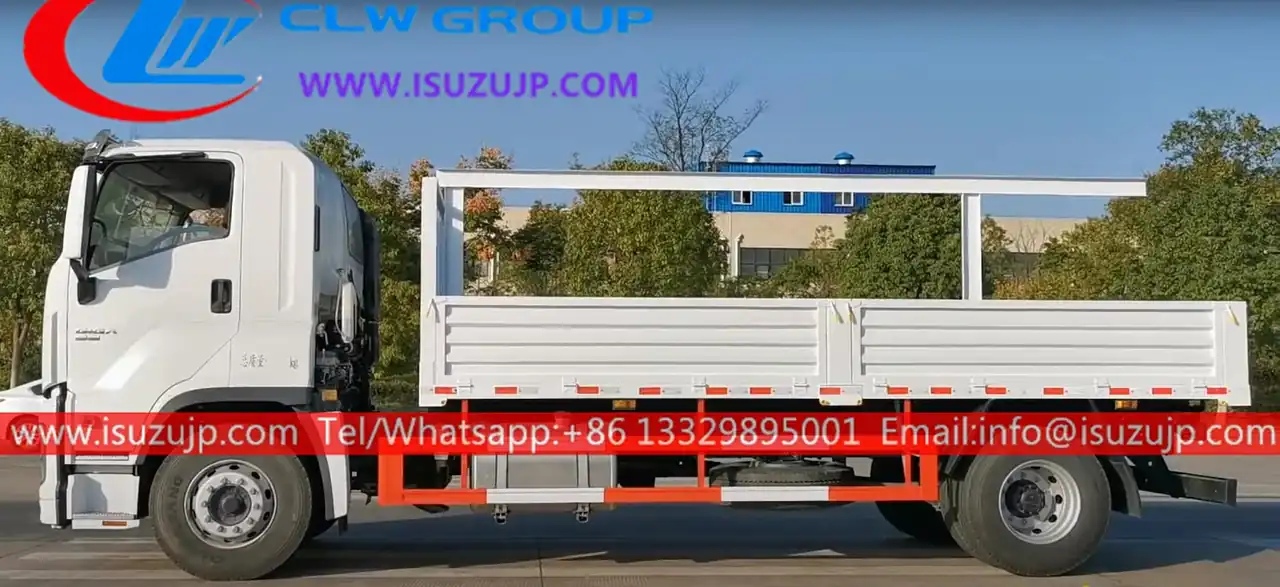

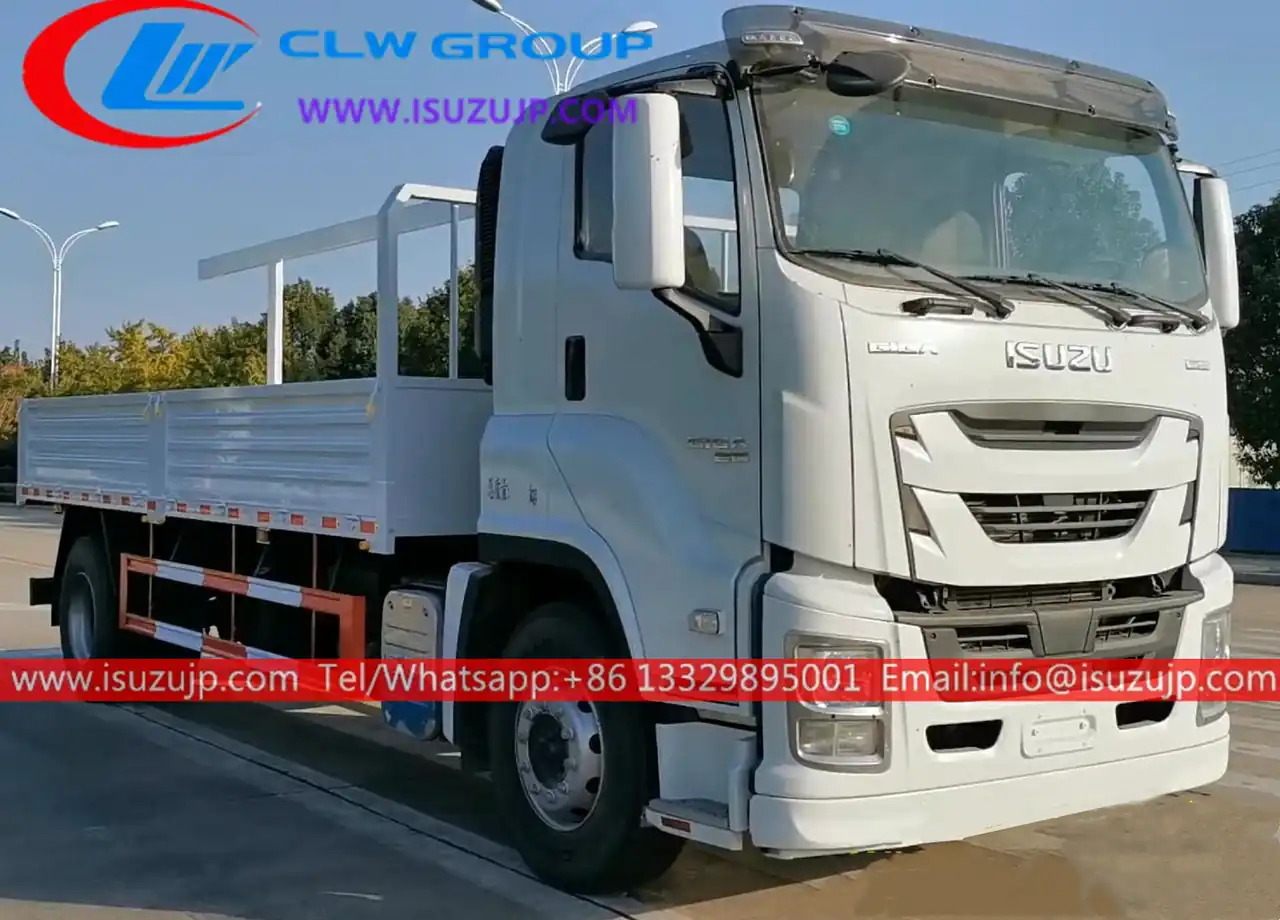

ISUZU GIGA 15 Ton Cargo Lorry Truck
ISUZU GIGA cargo truck adopt ISUZU 6UZ1-TCG51 350HP diesel engine, Manual FAST 12-shift gearbox, high strength cargo body
- Power
- 350 HP (257 KW)
- Emission
- EURO 5,6
- Loading Capacity
- 15 Tons
- Product Origin
- China
- Body Size
- 8200x2500x3100 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 27 rows.
ISUZU GIGA 15 Ton Cargo Lorry Truck Description
ISUZU GIGA 15 Ton Cargo Lorry Truck also called Cargo transport truck, freight truck suitable for the light goods transport in the city.
Advantage
- 100% custom-made
- ISUZU GIGA truck chassis, perfect performance
- ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Noise reduction van body.
- Massive, durable, long service life.
- 1 ton to 20 Tons available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
Specification
ISUZU GIGA 15 Ton Cargo Lorry Truck Specification
| Manufacturer | CHENGLI | |
|---|---|---|
| Product Name | ISUZU GIGA 15 Ton Cargo Lorry Truck | |
| Vehicle Brand Series | ISUZU | |
| Vehicle Model | CLW5216GSST5 | |
| Production Time | 30 days | |
| Chassis parameters | Overall dimensions | mm 8200X2500X3100 |
| Loding weight | kg 10,000 | |
| Kerb weight | 8,000 | |
| Wheelbase | mm 5,200 | |
| Driving type | 4*2 | |
| Chassis model | ISUZU GIGA | |
| Tire size | 315/80R22.5 | |
| Number of Tires | 6+1 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 6UZ1-TCG51 |
| Type of fuel | Diesel | |
| Power | 350 HP (257 KW) | |
| Max speed | Km/h 99 | |
| Emission standard | EURO 5,6 | |
| Cargo performance | Cargo Body | 6200x2400x500 mm |
| Loading capacity | 15 Tons | |
| Body material | Corrugated iron tile | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Aluminum alloy cargo body 2, Rear vision camera 3, Other cargo body size available |
Questions
Questions About The ISUZU GIGA 15 Ton Cargo Lorry Truck
What chassis is the ISUZU GIGA 15 Ton Cargo Lorry Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu cargo truck?
The factory table lists Loading Capacity 15 Tons. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Cargo Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU GIGA 15 Ton Cargo Lorry Truck
This build is listed as power 350 HP (257 KW) with emission EURO 5,6. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
