ISUZU Road Washing Sweeper Truck

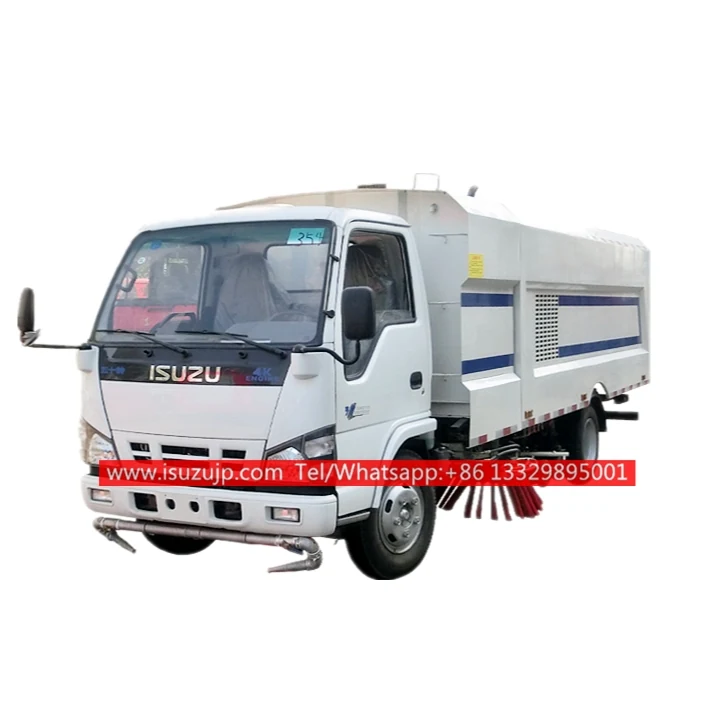

ISUZU NKR 8m3 Cleaning and Sweeping Vehicle
ISUZU 600P 4×2 chassis, MSB 5-shift manual gearbox, 120HP diesel engine, stainless steel 4m3 dust bin and 4m3 clean water body, 2 brushes system and Central suction cup
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 120 HP (88 KW)
- Overall Dimension
- 7200x 2300×2900 mm
- GVW / Kerb Weight
- 10,500 kg / 6,860 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- 6-speed forward, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 29 rows.
ISUZU NKR 8m3 Cleaning and Sweeping Vehicle Description
- ISUZU cleaning and sweeping vehicle also called road cleaning truck, street washing truck, street cleaning truck, vacuum washing truck, road washing and cleaning truck, cleaning and sweeping truck, Airport sweeper truck.
- A road washing sweeper truck is used for washing, cleaning and vacuum collecting of surface dust, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of the city, municipal roads and areas.
- Meantime, it has a high-pressure jetting function – washing and flushing the road, able to remove the stubborn stuff on the road. It is widely used in the municipal sanitation field because of its convenient operation and high efficiency.
- It is equipped with an auxiliary engine, air blower, imported high-pressure plunger pump, water tank, stainless steel dustbin, sweeping brooms, suction nozzles, sprayers, etc.
- The street washing truck has a self-cleaning system that could tip garbage and washing the dustbin automatically.
Advantage
- ISUZU NKR 600P chassis, no overhaul within 500,000 km.
- ISUZU engine, super powerful; reliable performance.
- Nice shape, rational structure
- Italy imported high-pressure pump, super powerful, efficient pump in and out Strong, durable, perfect performance.
- Road Sweeper body capacity from 2 to 16 Cubic Meter.
- Easy operation and easy maintenance.
- Virious types of refuse container lifters are available.
Specification
ISUZU NKR 8m3 cleaning and sweeping vehicle (4 CBM Dustbin and 4 CBM Water Tank)
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 7200x 2300×2900 mm | |
| GVW / Kerb Weight | 10,500 kg / 6,860 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 120 HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6-speed forward, 1 reverse | |
| No. of axle | 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | 4 CBM (1,000 gallons) |
| Dustbin Material | 4 CBM , Stainless Steel | |
| High Pressure Pump | Imported Italian high pressure water pump | |
| Working Speed | 3-13 km/h | |
| Working Width | 3150 – 3500 mm | |
| Sweeping Capacity | 63,000 m³/h | |
| Brooms | 2 sets | |
| Suction Plate | Big diameter 180mm, Hydraulic controll | |
| Auxiliary Engine | Cummins 140HP, super powerful | |
| All standard accessories: hose, high-pressure hose reel, high-pressure water gun, ground hydrant wrench, basic tool kit, English manual | ||
| Optional | Stainless steel water tank. Front snowplow. Elevating Platform. High cannon. | |
Road Sweeper Accessories,tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NKR 8m3 Cleaning and Sweeping Vehicle
What chassis is the ISUZU NKR 8m3 Cleaning and Sweeping Vehicle built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu road washing sweeper truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Road Washing Sweeper Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
ISUZU 16 Ton Airport Road Brush Sweeper
29 spec rowsView Details
ISUZU FTR 15m3 Industry Road Sweeper
29 spec rowsView Details
Quote The ISUZU NKR 8m3 Cleaning and Sweeping Vehicle
This build is listed as chassis ISUZU with engine ISUZU engine. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
