Isuzu Drinking Water Tanker

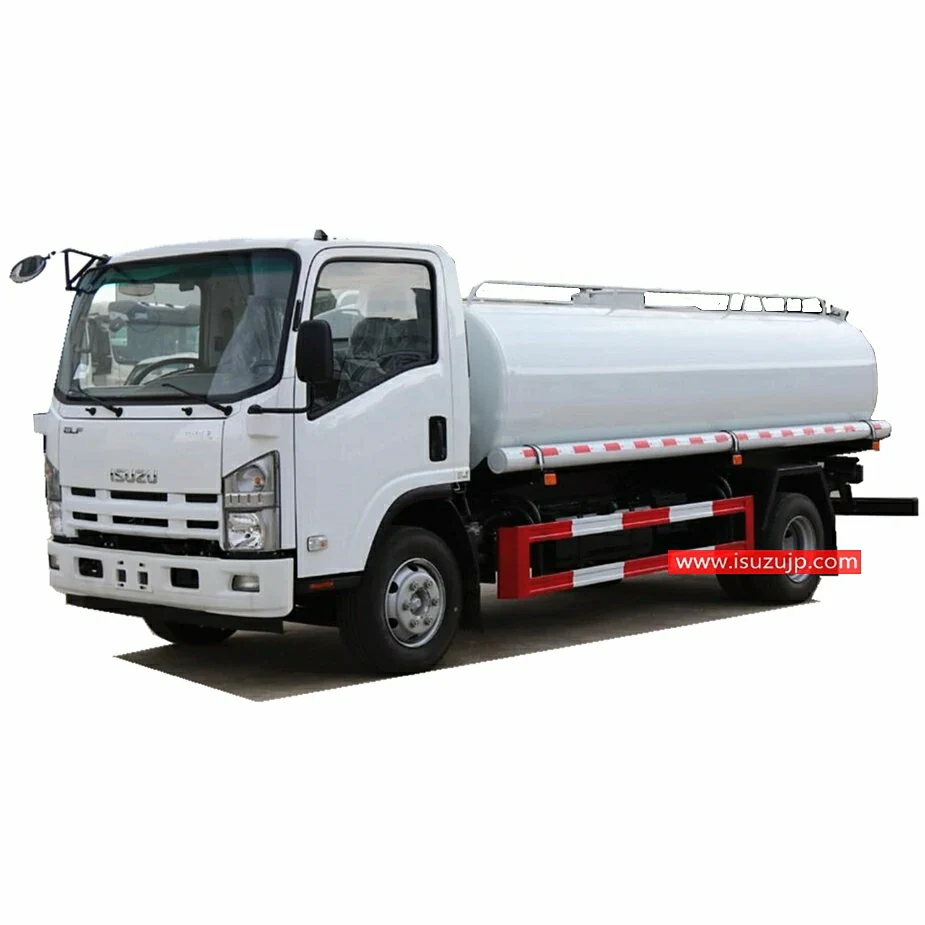

ISUZU NMR 8 Ton Fresh Water Tankers
4×2 ISUZU NMR chassis, MSB 5-shift manual gearbox, 130HP diesel engine, with 8 ton loading capacity
- ISUZU NMR 8 Ton Fresh Water Tankers
- Vehicle Brand Cheng Li
- Tank
- Made of carbon steel, cylindrical shape, Inner baffles inside the tank for prevention of longitudinal surge during moving
- International Well-known Brand Pump
- Waterway Self-priming water, fire water injection, tank topwater injection
- Product Origin
- China
- Body Size
- 7000x2200x2600mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 41 rows.
ISUZU NMR 8 Ton Fresh Water Tankers Application
- Isuzu fresh water tankers (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray to sprinkle and clean the roads, streets for environmental sanitation and protection, called a water sprinkler, water spray truck.
- With a rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called a watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Advantage
- ISUZU NMR chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification
Vehicle parameters
| Vehicle | ISUZU NMR 8 ton fresh water tankers | Vehicle Brand Cheng Li |
|---|---|---|
| Overall dimensions | 7000x2200x2600mm | Curb weight 4800 kg |
| Tank dimensions | 4000x2250x1200mm | Tank volume 8000L |
Chassis parameters
| Chassis model | QL1100A8KAY | Chassis brand ISUZU |
|---|---|---|
| Overall dimensions | 6645x1880x2160mm | Wheelbase 3815mm |
| Front/rear wheel track | 1504/1425mm | Front/rear suspension 1015/1815mm |
| Approach/departure angle | 24/14° | Maximum speed 105km/h |
| Chassis Manufacturer | Qing Ling Motors (Group) Co., Ltd. | |
| Cab | Configuration | 700P,single row cab,allowable 3passengers,car interior, air conditioner, USB radio interface, ABS |
| Color | White, other color is optional | |
| Engine | Model | 4HK1-TC51 |
| Emission | Euro 5 | |
| Type | 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine | |
| Rated power | 190hp rated power speed 2600rpm | |
| Displacement | 5193ml | |
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | |
| Tire | Size | 235/75R17.5 |
| Number | 6+1 nos | |
| Front axle | 4 tons | |
| Rear axle | 7 tons | |
| Brake | Air brake | |
| No. Of axle | 2 | |
| Drive form | 4X2 | |
| Suspension | Multi-leaf springs | |
| Rated voltage | 24V, DC | |
| Transmissions | Isuzu MLD 6 speed transmission,6 speed forward 1 reverse. | |
| Steering device | Power-assisted steering | |
| Steering wheel | Left-hand drive | |
| Selective configuration | ||
| If there is a slight change in the chassis parameters above, please take the actual product as the standard | ||
Water tank structure parameters
| Tank dimensions | 4000×2250×1200mm | Tank volume 8000L |
|---|---|---|
| Filling | Manhole | Tank thickness 5mm |
| Hose | High quality, wearable, strengthened hose | Tank inside coating Anti-corrosion coating inside the tank |
| Tank | Made of carbon steel, cylindrical shape, Inner baffles inside the tank for prevention of longitudinal surge during moving | |
| Standard configuration | Chassis, subframe, carbon steel water tank, manhole, Honda gasoline water pump |
Working Parameter
ISUZU NMR 8 Ton Fresh Water Tankers Specification
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material Carbon steel Q345/stainless steel 304 |
|---|---|---|
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Waterway Self-priming water, fire water injection, tank topwater injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device |
Truck Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NMR 8 Ton Fresh Water Tankers
What chassis is the ISUZU NMR 8 Ton Fresh Water Tankers built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu drinking water tanker?
The factory table lists ISUZU NMR 8 Ton Fresh Water Tankers Vehicle Brand Cheng Li. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Drinking Water Tanker Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NMR 8 Ton Fresh Water Tankers
This build is listed as isuzu nmr 8 ton fresh water tankers Vehicle Brand Cheng Li with tank Made of carbon steel, cylindrical shape, Inner baffles inside the tank for prevention of longitudinal surge during moving. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
