Main photo
Garbage Dump Truck

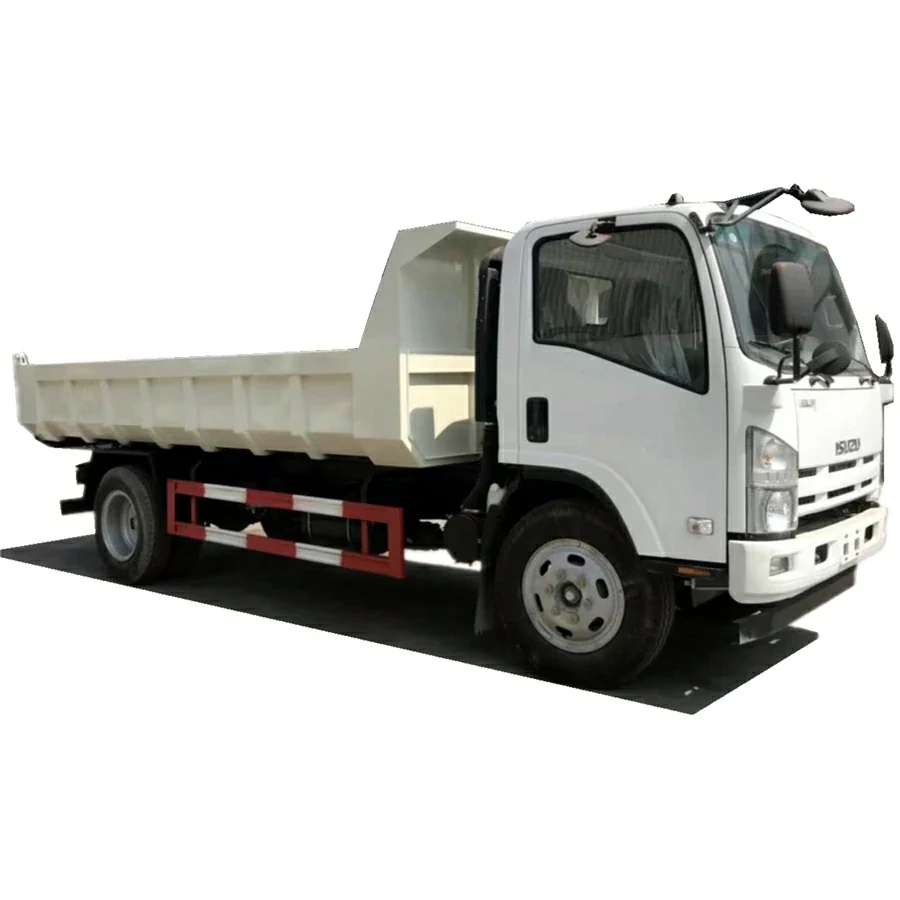

ISUZU NPR 8 Ton Garbage Dump Truck
4×2 ISUZU ELF 700P chassis, MLD 6-shift manual gearbox, 190HP diesel engine, high strength steel swing arm system, Famous brand Hydraulic control device and electric control box
- Chassis
- ISUZU NPR
- Engine
- ISUZU engine
- Power
- 190HP (140 KW)
- Overall Dimension
- 7200X2500X2600 mm
- GVW / Kerb Weight
- 12,800 kg / 4,800 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- 6 speed forward, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 22 rows.
ISUZU NPR 8 Ton Garbage Dump Truck Description
- ISUZU garbage dump truck also called refuse collection truck, waste collection vehicle, bin wagon, dustcart, bin lorry, garbage tipper, garbage transport vehicle, trash dump truck, waste management dump truck is used to collect and transport municipal solid waste.

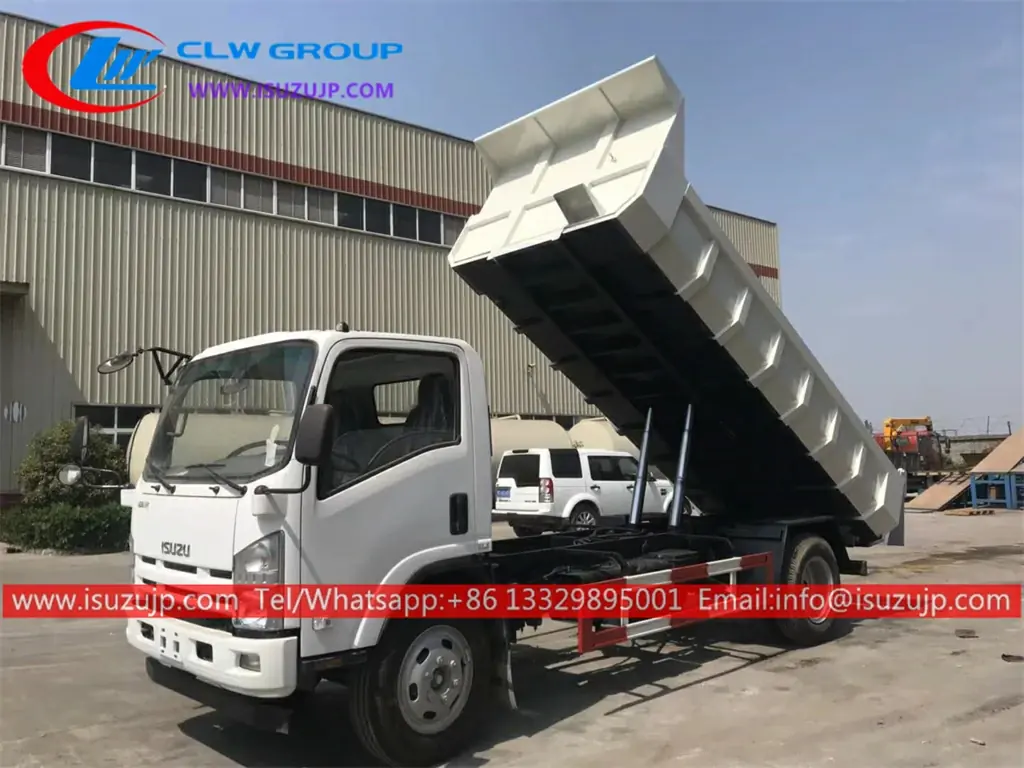

- By lifting the hydraulic cylinder, the garbage dump truck could unload the garbage by gravity. To avoid leakage of wastewater, the garbage van is totally hermetic.
Advantage
- ISUZU NPR 700P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
Specification
ISUZU NPR 8 ton garbage dump truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU NPR | |
| Overall Dimension | 7200X2500X2600 mm | |
| GVW / Kerb Weight | 12,800 kg / 4,800 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | diesel |
| Engine Brand | ISUZU engine | |
| Power | 190HP (140 KW) | |
| Displacement | 5199 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6 speed forward, 1 reverse | |
| Wheelbase/No. of axle | 4175 mm / 2 | |
| Tyre Specification | 825-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Waste Box Capacity | 8-12 CBM |
| Waste Box Material | Carbon steel | |
| All other standard accessories: Tool kit, English manual | ||
| Optional | Loading garbage from side or top. | |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NPR 8 Ton Garbage Dump Truck
What chassis is the ISUZU NPR 8 Ton Garbage Dump Truck built on?
It is built on ISUZU NPR. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this garbage dump truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Garbage Dump Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
ISUZU NKR 5cbm Front Loader Dump Truck
22 spec rowsView Details
ISUZU ELF 3 Ton Trash Dump Truck
22 spec rowsView Details
Quote The ISUZU NPR 8 Ton Garbage Dump Truck
This build is listed as chassis ISUZU NPR with engine ISUZU engine. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
