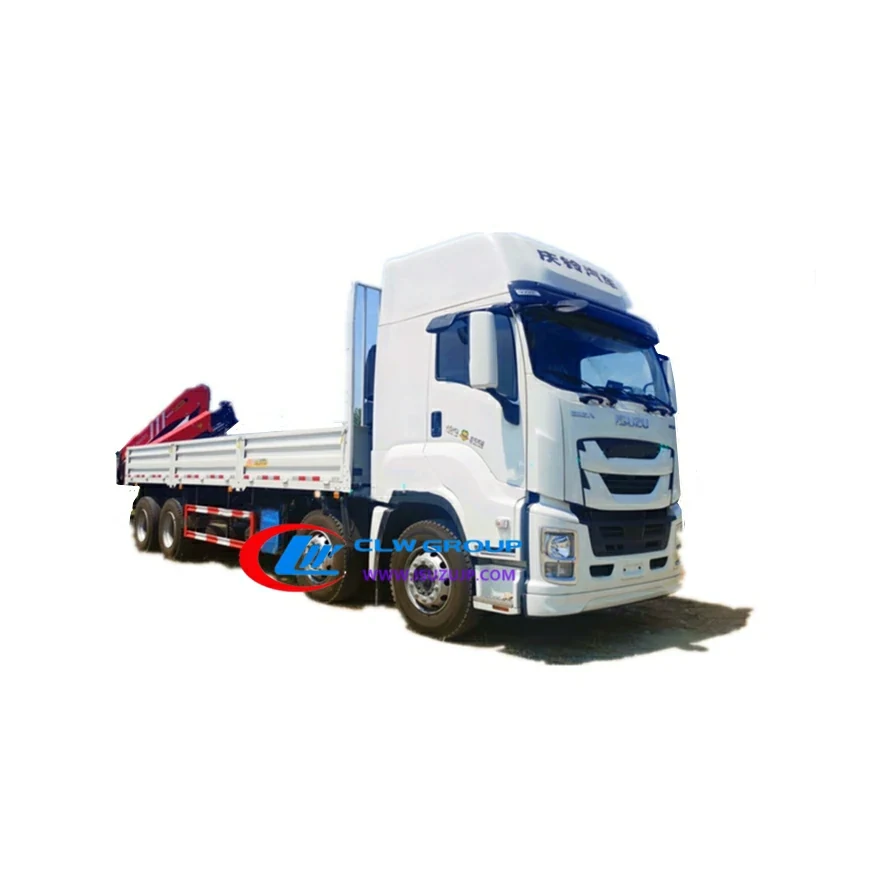

12 Wheel ISUZU GIGA Palfinger Knuckle Crane Lorry for Sale
12 WHEEL ISUZU GIGA Left Hand Drive model 8×4 chassis, FAST 12-shift manual gearbox, 400HP diesel engine, painting and logos depend on requirement. cargo box
- Overall Dimension
- 12000*2550*3750mm
- Transmission
- Manual, 12 front gears and 2 rear gear
- Loading Capacity
- 30 tons
- Product Origin
- China
- Body Size
- 11700x 2510 x 4000mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 29 rows.

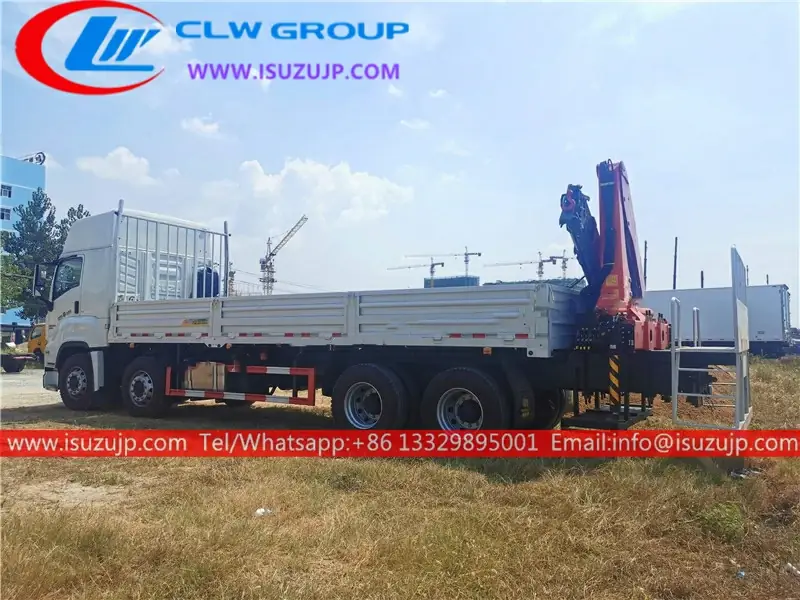

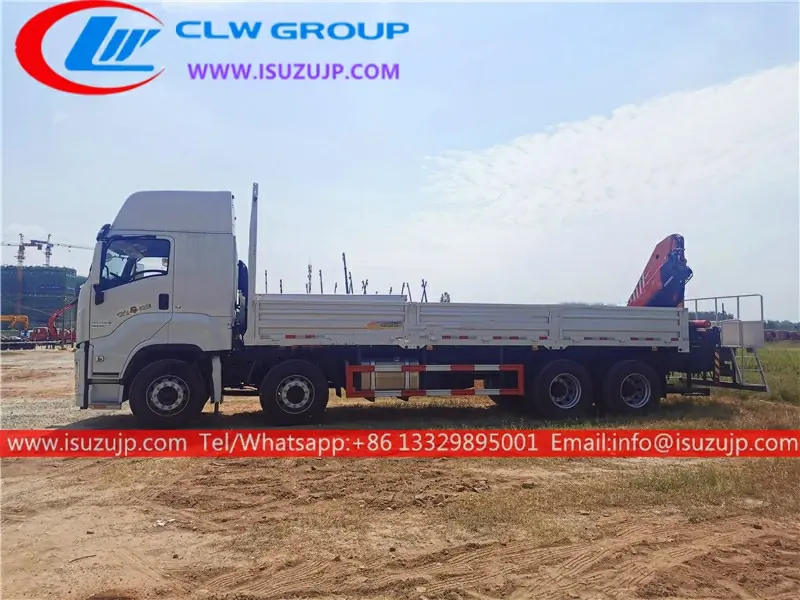

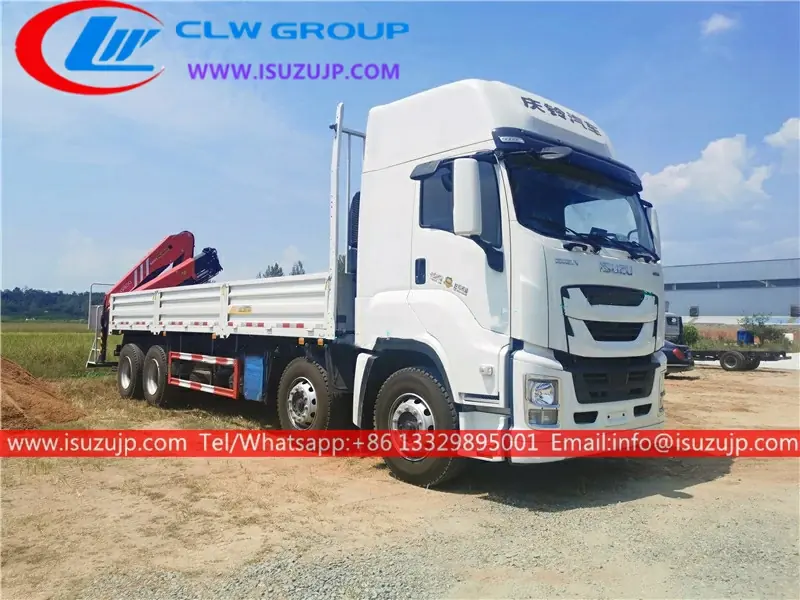

12 Wheel ISUZU GIGA Palfinger Knuckle Crane Lorry Description
- ISUZU palfinger knuckle crane lorry also called as construction crane trucks, Isuzu truck loder vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage
- 12 wheel ISUZU GIGA chassis ensures perfect performance on driving
- ISUZU technology engine, super powerful, no overhaul within 500,000 km.
- High strength cargo body, nice shape and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG or Chengli (China top brand),etc.

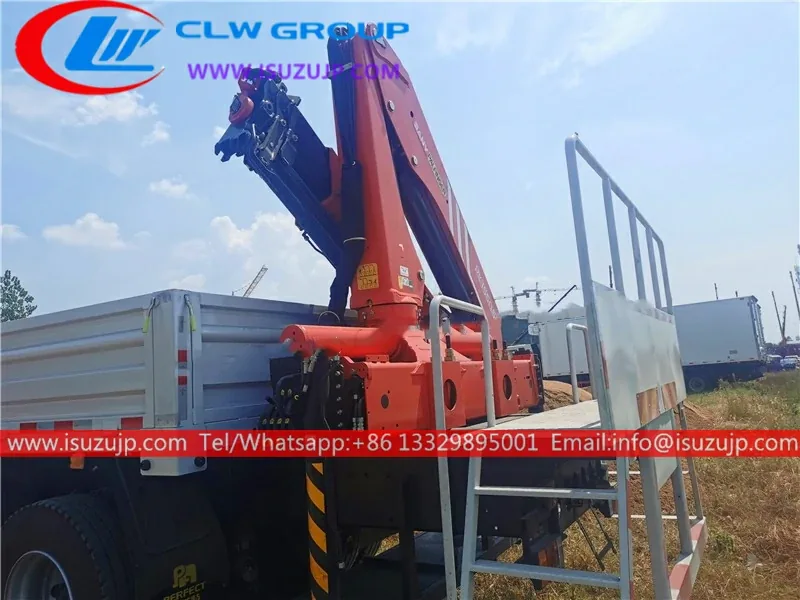

Crane Features
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means make sure that the design is very reliable.
- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
- Compact hinge point design take up smaller space
- The work is more safety after fitted over-winds alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
- Anti-slewing impulse equipment that make vehicle running safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckled boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)
Specification
Specifications of 12 wheel ISUZU GIGA palfinger knuckle crane lorry for sale
| Model | CLW5310TPBQL5 |
|---|---|
| Chassis brand & Year | Japan 1SUZU, condition new |
| Wheel Drive | 8×4, LHD |
| Overall Dimension | 12000*2550*3750mm |
| Cargo Box Dimension | 8200*2500*550mm, 3mm side wall, 4mm bottom plate |
| Gross Weight | 34000kg |
| Curb Weight | 13400kg |
| Rated Weight | 20600kg |
| Engine | Qingling 350HP/380HP/460HP options, TurboCharged, High pressure common-rail, direct injection |
| Wheelbase | 1850+4585+1370mm |
| Tires | 12+1, 315/80R22.5 |
| Axle | Front axle: 2x 7 ton front driving axle Rear axle: 26 ton double mounted rear axle |
| Cabin | Japan GIGA VC61 luxury cab, 3 seats, with a sleeper bed, with A/C, multi-function steering wheel, dashboard, etc |
| Transmission | Manual, 12 front gears and 2 rear gear |
| Brake | Air brake |
| Max Speed | 90km/h |
Main Technical Parameters
| Item | UOM | SPK15500 |
|---|---|---|
| Max lifting weight | Kg | 6200 |
| Lifting moment | T.m | 14.6 |
| Max hydraulic outreach | m | 12.4 |
| Slewing angle | . | 420 |
| Slewing torque | kNm | 17.7 |
| Operating pressure | Mpa | 30 |
| Pump capacity | L/min | 40-60 |
| Crane Moment(dynamic) | kNm | 193.7 |
| Weight of the crane(dynamic) | kNm | 23.9 |
SPK15500
| hydr.boom extensions | 1 | 2(A) 3(B) 4(C) |
|---|---|---|
| Max outreach | 6.2m | 8.1M 10.3M 12.4M |
| Crane weight | 1619KG | 1769KG 1904KG 2029KG |
Questions
Questions About The 12 Wheel ISUZU GIGA Palfinger Knuckle Crane Lorry for Sale
What chassis is the 12 Wheel ISUZU GIGA Palfinger Knuckle Crane Lorry for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu truck mounted crane?
The factory table lists Loading Capacity 30 tons. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
