Isuzu Truck Mounted Crane

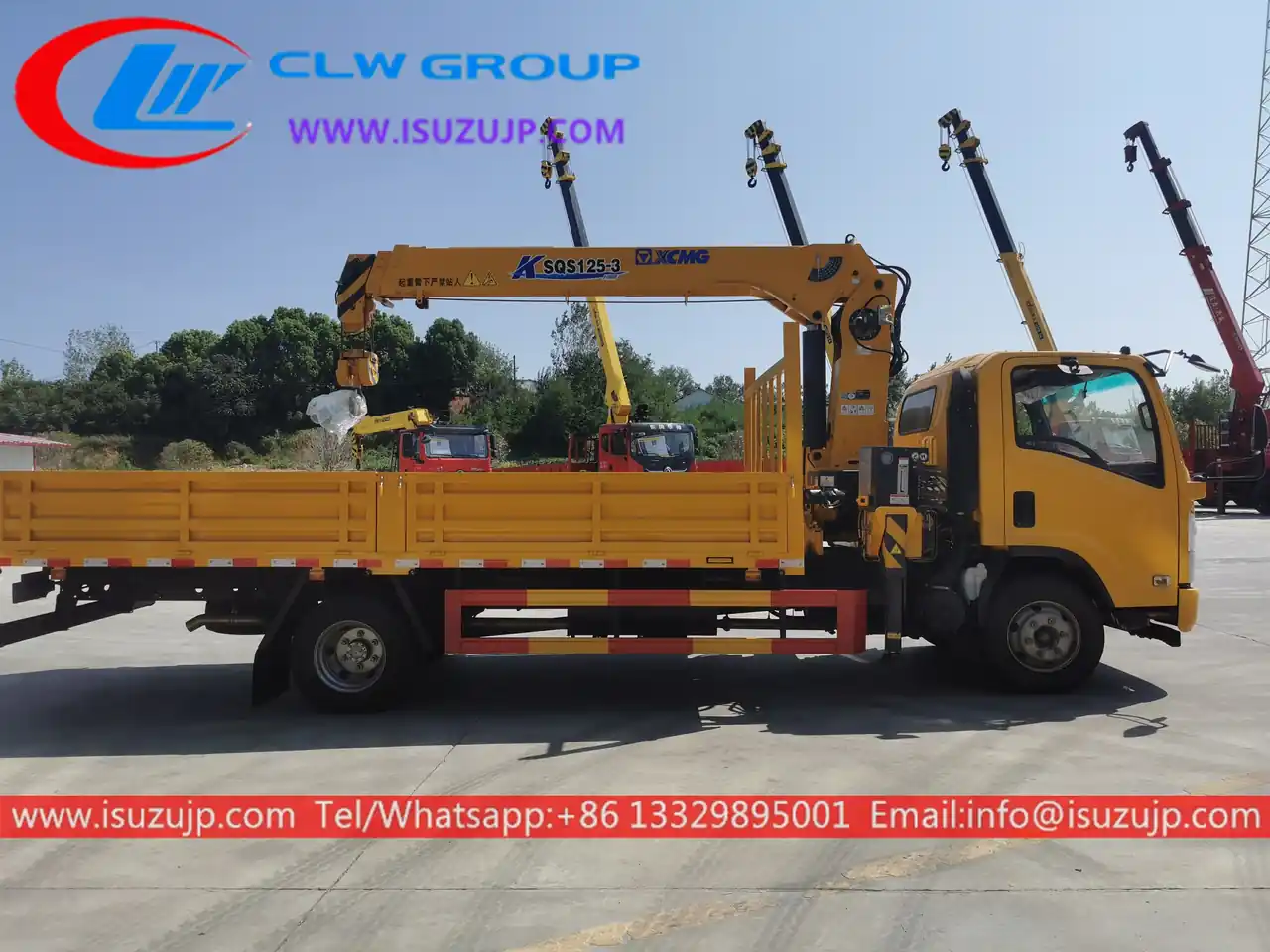

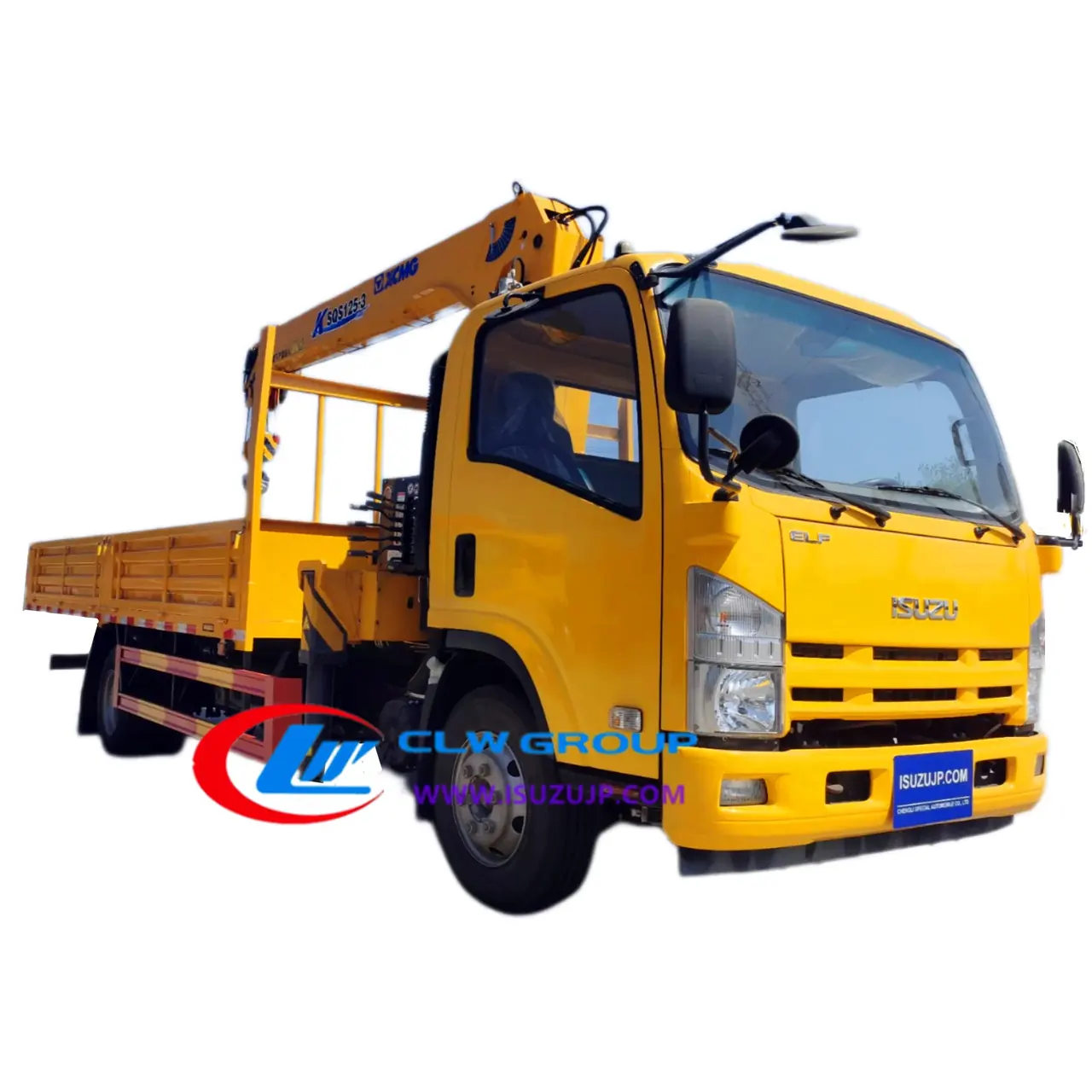

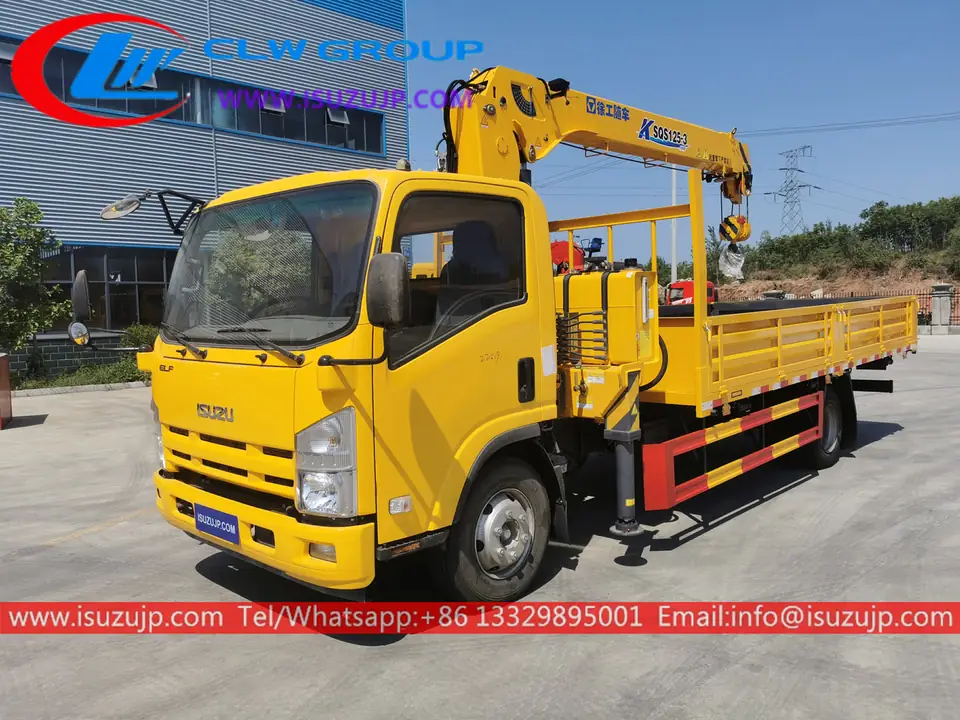

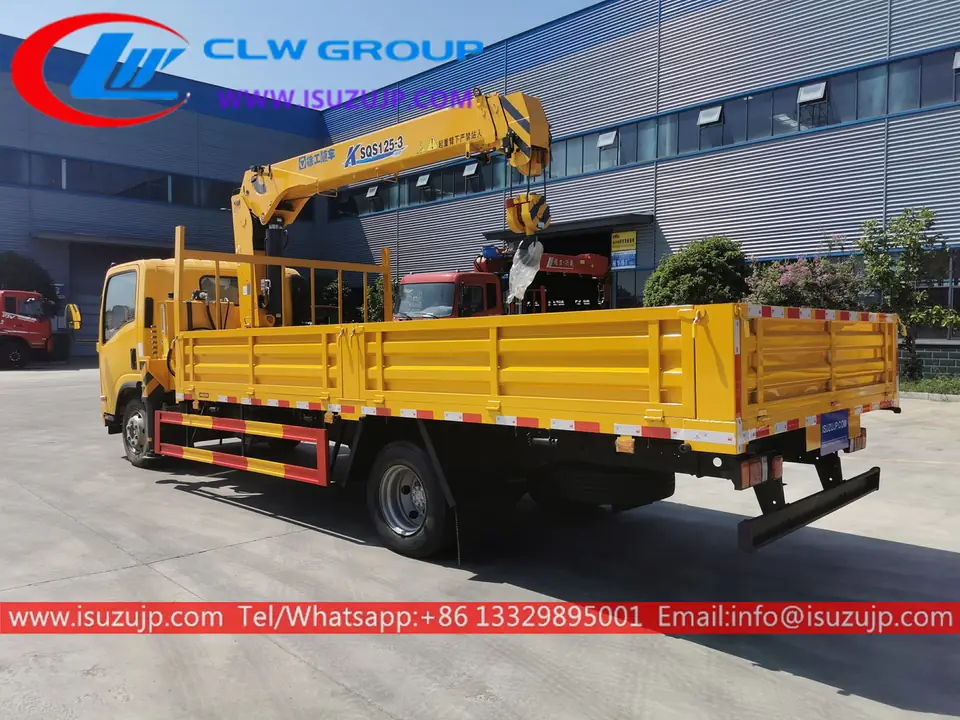

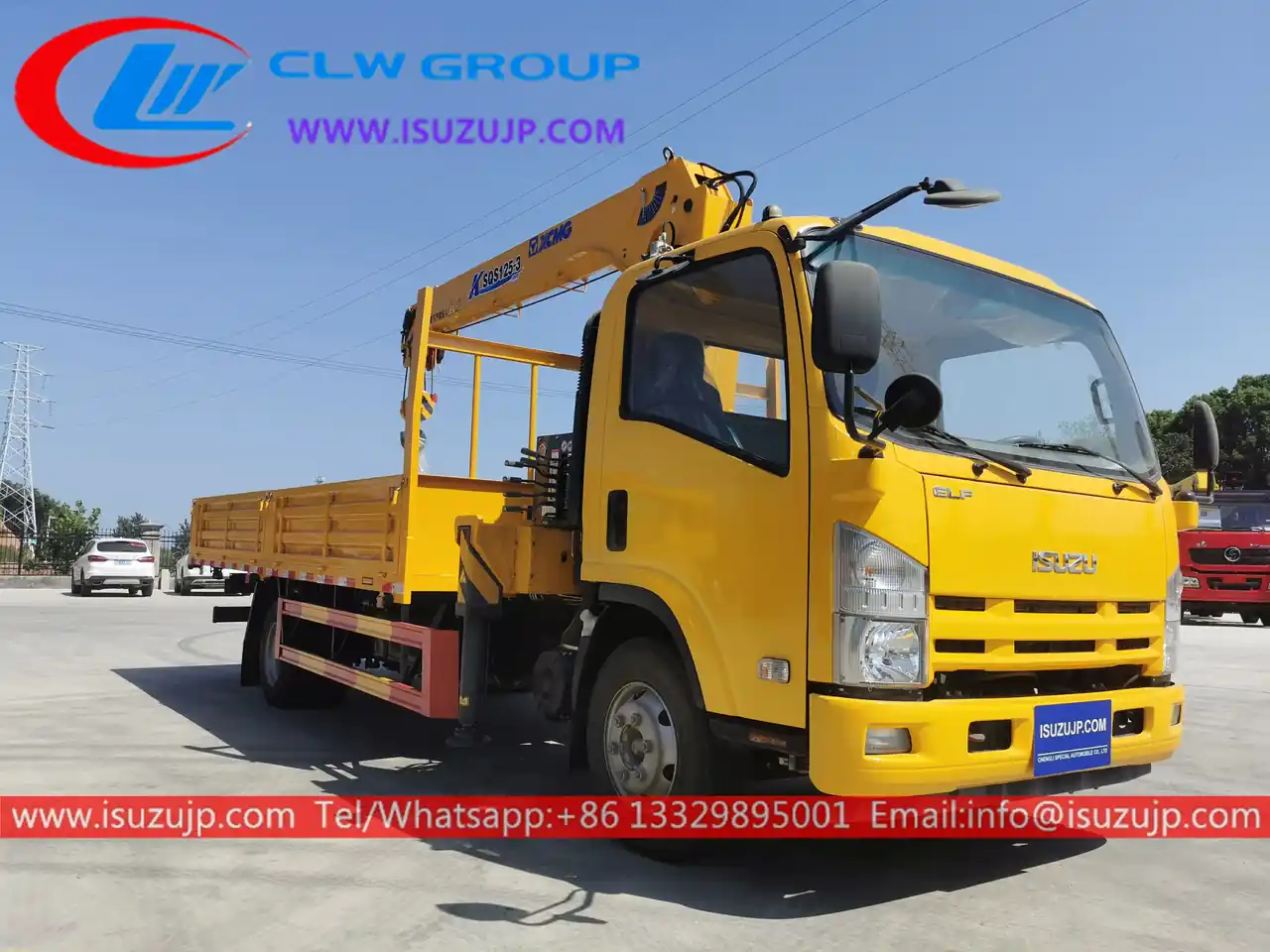

ISUZU NQR 190HP 5 Ton Lorry Crane
ISUZU NQR Left Hand Drive model 4×2 chassis, MLD 6-shift manual gearbox, 190HP diesel engine, painting and logos depend on requirement. cargo box
- Axle Loads:
- Double Axles
- Max Lifting Capacity
- KG 5000
- Oil Tank Capacity
- L 90
- Lifting Height
- MM 10500
Specification below is the factory table for this model, reproduced without edits. 48 rows.
Isuzu NQR 190hp 5 Ton Lorry Crane Description
- ISUZU NQR 190hp 5 ton lorry crane also called as construction crane trucks, Isuzu truck loader vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, making the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage
- ISUZU NPR chassis ensures perfect performance in driving
- ISUZU technology engine, super powerful, no overhaul within 500,000 km.
- High-strength cargo body, nice shape, and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG, or Chengli (China’s top brand), etc.
Crane Features
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means making sure that the design is very reliable.
- The more symmetrical center design of the pentagon & hexagon boom makes it a bigger anti-bending capacity.
- A compact hinge point design takes up smaller space
- The work is more safety after fitting over-wind alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged the work lift of the hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machines with greater drive force can meet varied requirements of working situations.
- Anti-slewing impulse equipment that makes vehicles run safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckle boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control is optional (where the Operator Seat is attached to the Main Boom)
Specification
ISUZU NQR 190HP 5 Ton Lorry Crane Specification
| Vehicle Parameters | Vehicle Model: | Isuzu NQR 190hp 5 ton lorry crane |
|---|---|---|
| Overall Dimension(L x W x H) | 8000x2500x3300mm | |
| Dropside body (L x W x H) | 5100x2300x500mm | |
| Curb Weight: | 6500Kg | |
| GVW: | 10055Kg | |
| Wheelbase: | 4175mm | |
| Drive Type: | 4×2 | |
| Engine | Engine Model: | 4HK1-TCG51 |
| Cylinder NO. | 4 | |
| Engine Power: | 141(kW) | |
| Displacement: | 5193(ml) | |
| Horsepower: | 191PS | |
| Max torque: | 510N.M | |
| Emission standard: | Euro5 | |
| Transmission | Transmission: | ISUZU MLD-6Q |
| Forward Gear: | 6 Speed Gear | |
| Backward Gear: | 1 Speed Gear | |
| Max speed | 110km/h | |
| Seats | Front Seat: | 3 |
| Cabin | ISUZU 700P, tilting cabin | |
| Chassis | Front Wheel Distance: | 1680mm |
| Rear Wheel Distance: | 1650mm | |
| Number of spring | 8/10+6 | |
| Approach/departure angle | 21/13 | |
| Front/rear overhang | 1110/2055mm | |
| Axle Loads: | Double Axles | |
| Rear Axle Ratio: | 4.1 | |
| Tires: | 7 | |
| Tire Model: | 8.25-20 16PR | |
| Configuration: | 1 | Power Steering |
| 2 | AC | |
| 3 | Retro-reflective Marking | |
| 4 | ABS | |
| 5 | Free Maintenance Battery | |
| Crane specs | ITEM | UNITS Crane model |
| SQ5SK2Q, Straight | ||
| Max lifting capacity | KG 5000 | |
| Max lifting capacity | T.M 12.5 | |
| Recommend power | KW 18 | |
| Max oil flow | L/MIN 32 | |
| Max pressure | MPA 20 | |
| Oil Tank Capacity | L 90 | |
| Crane weight | KG 2074 | |
| Installation space | MM 900 | |
| Rotation angle | DEGREE 360 | |
| Extension length | MM 8500 | |
| Lifting height | MM 10500 | |
| Max elevation | DEGREE 75 | |
Questions
Questions About The ISUZU NQR 190HP 5 Ton Lorry Crane
What chassis is the ISUZU NQR 190HP 5 Ton Lorry Crane built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu truck mounted crane?
The factory table lists Axle Loads: Double Axles. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Truck Mounted Crane Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NQR 190HP 5 Ton Lorry Crane
This build is listed as axle loads: Double Axles with max lifting capacity KG 5000. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
