- 6 Wheels Single Cab ISUZU 700P NPR 7tons Light Truck Chassis for Sale
Main photo
N-Series Light-Duty Trucks

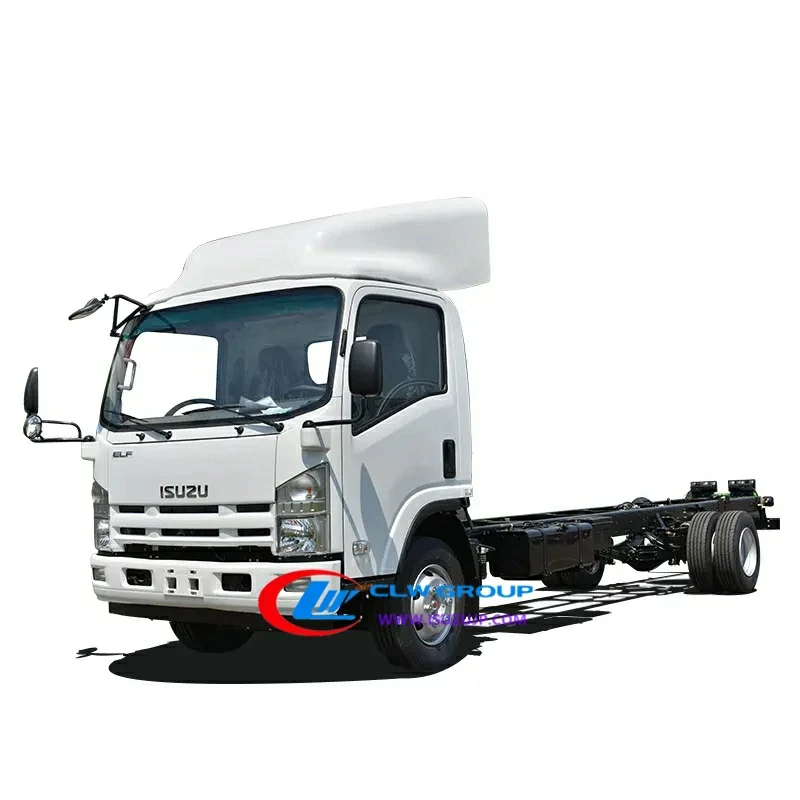

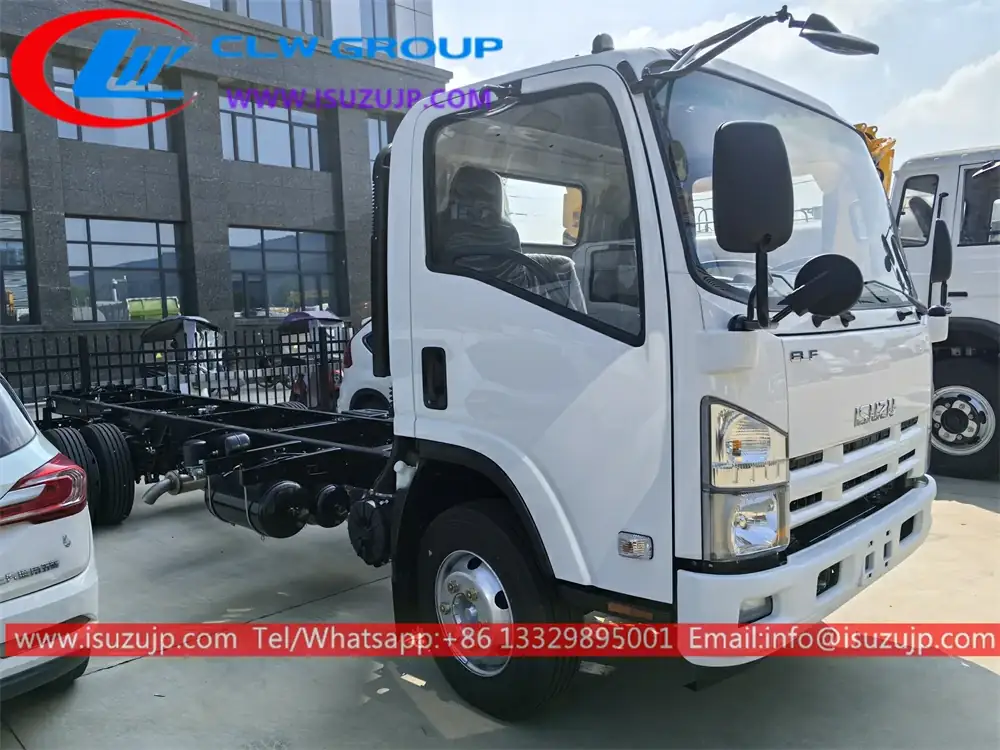

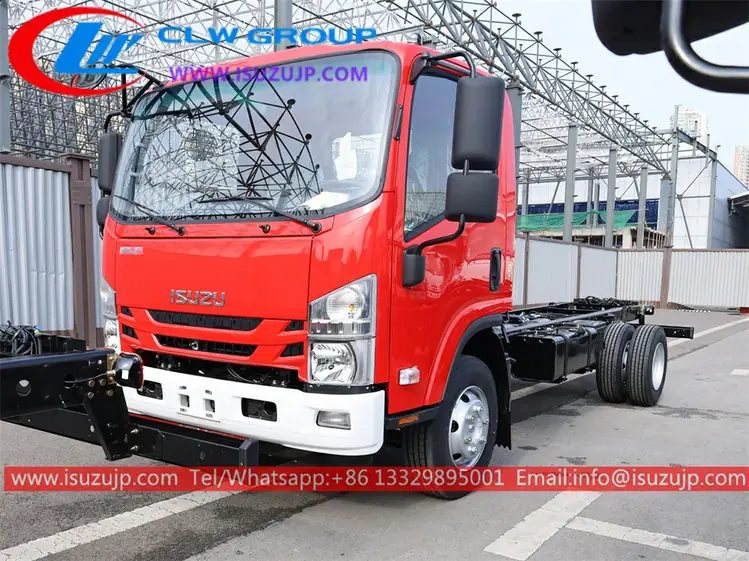

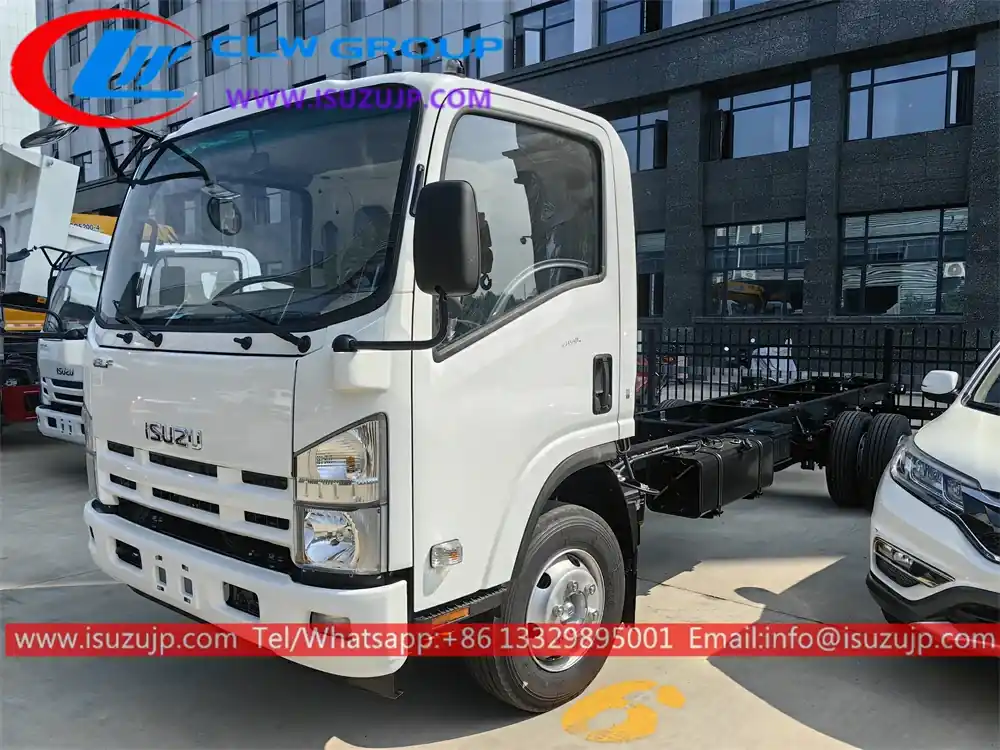

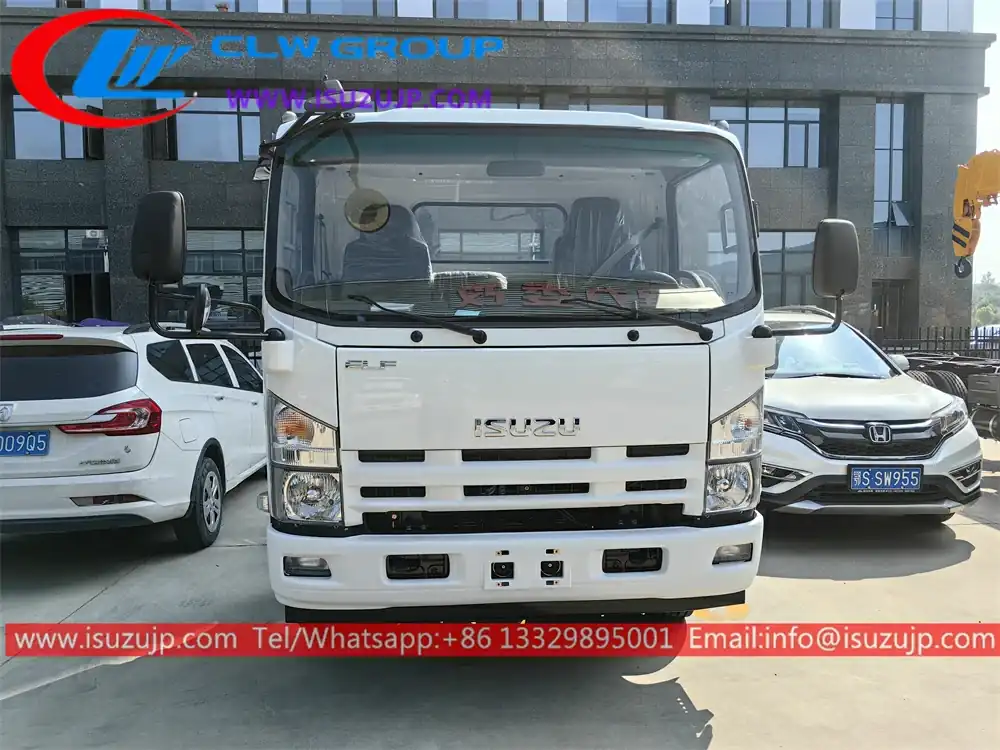

6 Wheels Single Cab ISUZU 700P NPR 7tons Light Truck Chassis for Sale
6 wheels Single cab ISUZU 700P NPR 7tons light truck chassis adopts ISUZU 190HP diesel engine, Manual MLD 6-shift gearbox
- Emission
- Euro V
- Axle Loading:
- 3350/6650Kg
- Product Origin
- China
- Body Size
- 8000x2200x2400 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 39 rows.
6 Wheels Single Cab ISUZU 700P NPR 7tons Light Truck Chassis Description
QINGLING 6 wheels Single cab ISUZU 700P NPR 7tons light truck chassis is Light Duty Truck is from China ISUZU, and its 4HK1-TC51 engine is form Japan which named 700P in China. Horsepower is 190HP. It can payload 7tons. The transmission is Manual MLD-6Q, with 6 froward gear and 1 backward gear. It has 6 wheels. Recognized for its outstanding combination of economy, safety, reliability and durability, it is a very popular light truck in many countries.
Advantage
- 100% custom-made
- ISUZU 700P truck chassis, perfect performance
- ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Noise reduction van body.
- Massive, durable, long service life.
- 5Tons available
- Short delivery time 7~30 days
- Easy operation and easy maintenance
- 15 years of spare parts and technical support
Specification
6 Wheels Single Cab ISUZU 700P NPR 7tons Light Truck Chassis for Sale Specification
| Truck Brand | QingLing 6 wheels Single cab ISUZU 700P NPR 7tons light truck chassis for sale |
|---|---|
| Driving Type | Left Hand Drive |
| Overall Dimension（L*W*H） | 6980*2170*2410mm |
| GVW | 10000Kg |
| Curb Weight | 3380Kg |
| Axle loading: | 3350/6650Kg |
| Wheelbase | 3815mm |
| F/R Track | 1680/1650mm |
| Approaching Angle/Departure Angle(o) | 20/17 |
| Tire No. | 7(Including Spare Tire) |
| Tire | 8.25R20 14PR |
| Color: | Optional |
| Max Speed（Km/h） | 110Km/h |
| Engine | |
| Engine System | 4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Emission Route | DPF |
| Model | 4HK1-TC51 |
| Fuel Type | Diesel Engine |
| Max output | 140Kw |
| Horsepower： | 192HP |
| Max Torque | 510N.m/1600rpm |
| Emission Standard | Euro V |
| Displacement: | 5193ml |
| Transmission: | |
| Model: | MLD-6Q |
| Type | Manual |
| Forward/Reverse | 6F/1R |
| Brake System: | |
| Service Brake | Dual Circuit Compressed Air Brake |
| Parking Brake | Spring Energy, Compressed Air Operating on Rear Wheels |
| Auxiliary System | Engine Exhaust Brake |
| Electrical System | |
| Battery | 2*12-70Ah |
| Alternator | 28V-70Ah |
| Starter | 24V/7.5Kw |
| Cabin | |
| Single Cabin with Air Conditioner | |
| Other Equipment: | |
| Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking | |
M100 Advantage
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Factory Advantage:
Questions
Questions About The 6 Wheels Single Cab ISUZU 700P NPR 7tons Light Truck Chassis for Sale
What chassis is the 6 Wheels Single Cab ISUZU 700P NPR 7tons Light Truck Chassis for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this n-series light-duty trucks?
The factory table lists Axle Loading: 3350/6650Kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other N-Series Light-Duty Trucks Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 6 Wheels Single Cab ISUZU 700P NPR 7tons Light Truck Chassis for Sale
This build is listed as emission Euro V with axle loading: 3350/6650Kg. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
