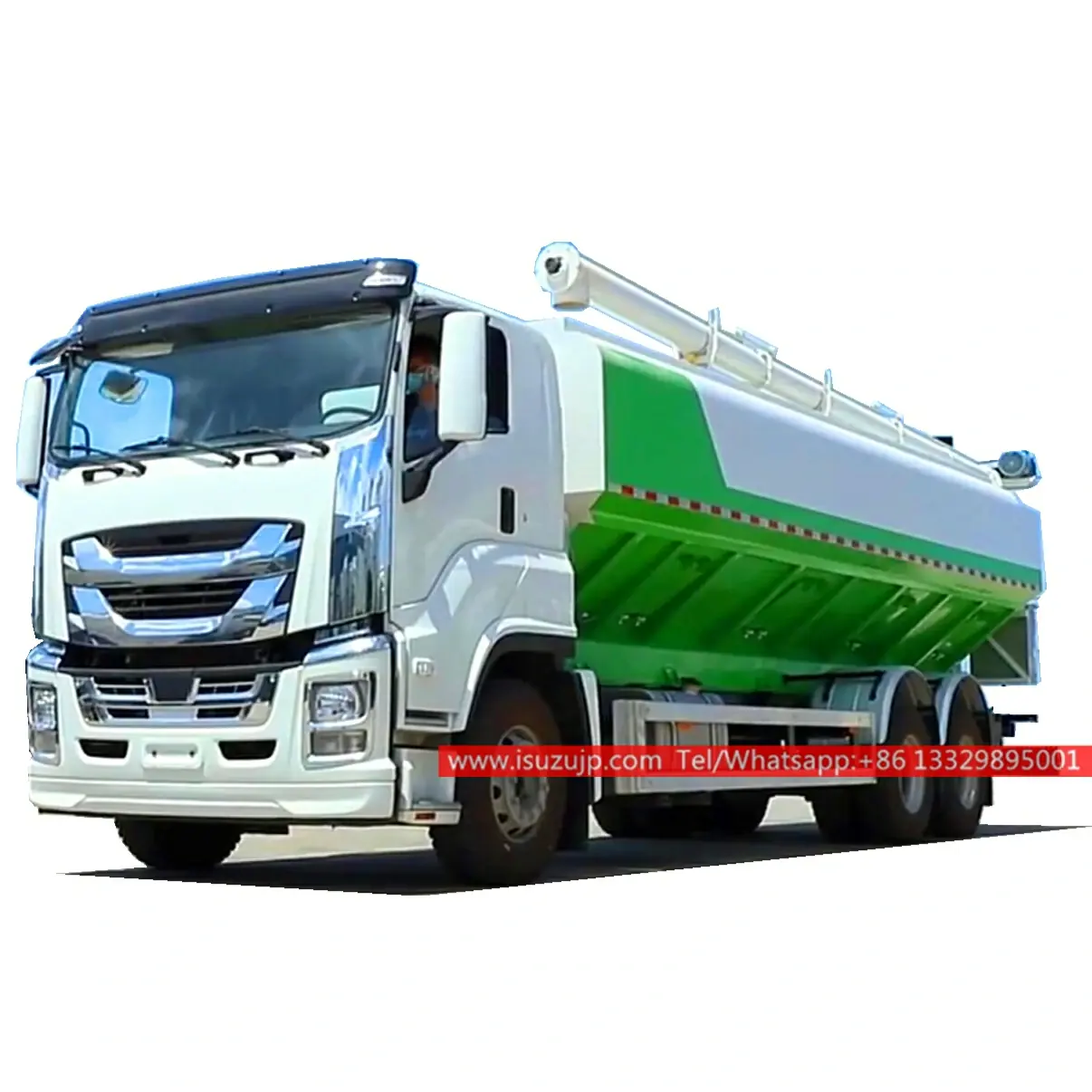

6×4 ISUZU GIGA 15 Ton Animal Feed Truck
6X4 ISUZU GIGA chassis, FAST 12-shift manual gearbox, 350HP diesel engine, with 30cbm loading capacity
- Chassis
- ISUZU GIGA
- Power
- 257kw/350HP
- Drive Type
- 6*4 left-hand drive
- Emission
- Euro V
- Tank Volume(m3)
- 30
Specification below is the factory table for this model, reproduced without edits. 27 rows.
6×4 Isuzu Giga 15 Ton Animal Feed Truck Application
- Isuzu animal feed truck also called feed delivery truck, bulk feed truck, poultry feed truck, chicken feed transport truck.
- Feed truck is mainly used to transport bulk finished feed products or raw feed production grains from feed factories to livestock farms, poultry farms and feed processing users;
- At the same time, it can also be used to transport certain non-corrosive powdery and granular raw materials, such as powder for pharmaceutical factories and grain storage turnover.
Advantage
- ISUZU GIGA chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Transporting feed in bulk not only saves labor but also has a lower cost than transporting it in bags.
- Bulk feed is sealed and transported in the tank to reduce loss, ensure quality and avoid pollution.
- Fully automatic loading and unloading, continuous operation, greatly improving production efficiency.
- Separate bins can be installed in the tank, which can simultaneously transport a variety of different types of feed or puffing media.
- The parts are standardized and easy to repair and maintain.
Specification
6×4 ISUZU GIGA 15 Ton Animal Feed Truck Specification
| Items | Descriptions | Specifications and Types |
|---|---|---|
| General | Truck Name | 6×4 Isuzu Giga 15 ton animal feed truck |
| Drive Type | 6*4 left-hand drive | |
| Gross Vehicle Weight(kg) | 26000 | |
| Curb Weight (kg) | 12800 | |
| Overall Dimensions (mm) | 10600×2500×4000 | |
| Engine | Fuel Type | Diesel |
| Power | 257kw/350HP | |
| Emission Standard | Euro V | |
| Displacement(ml) | 9800 | |
| Engine Type | 6 cylinders in line, water cooling, turbocharged diesel engine,inter-cooling | |
| Chassis | Chassis Brand | ISUZU GIGA |
| Tire No. | 10 | |
| Tire Specification | 12.00R20 Steel tire | |
| Axle No. | 2 | |
| Steering Wheel | Left-hand drive with power-assisted | |
| Gear Box | 9 speed forward with 1 reverse, manual | |
| Brake | Air brake | |
| Air Conditional | Suitable for tropical climate | |
| Tank | Tank Volume(m3) | 30 |
| Compartments No. | Depending on your requirement | |
| Discharge system | Discharge Type | Electric screw discharge or hydraulic screw |
| Discharge Speed(kg/min) | 510 | |
| Rotate angle of removable discharging system | 180° | |
| Max. elevation of removable discharging system | 60° | |
| Delivery | Max horizontal delivery distance(m) | 7.2 |
| Max Vertical delivery distance(m) | 8.5 |
Chicken Feed Transport Truck Scene Working Display
The unloading speed is 1m3 or more than 0.6 tons per minute, and the entire vehicle unloading time is 12 minutes
Questions
Questions About The 6×4 ISUZU GIGA 15 Ton Animal Feed Truck
What chassis is the 6×4 ISUZU GIGA 15 Ton Animal Feed Truck built on?
It is built on ISUZU GIGA. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this feed truck?
The factory table lists Tank Volume(m3) 30. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
