- ISUZU 600P 6tons Delivery Water Tanker
Main photo
Isuzu Water Truck

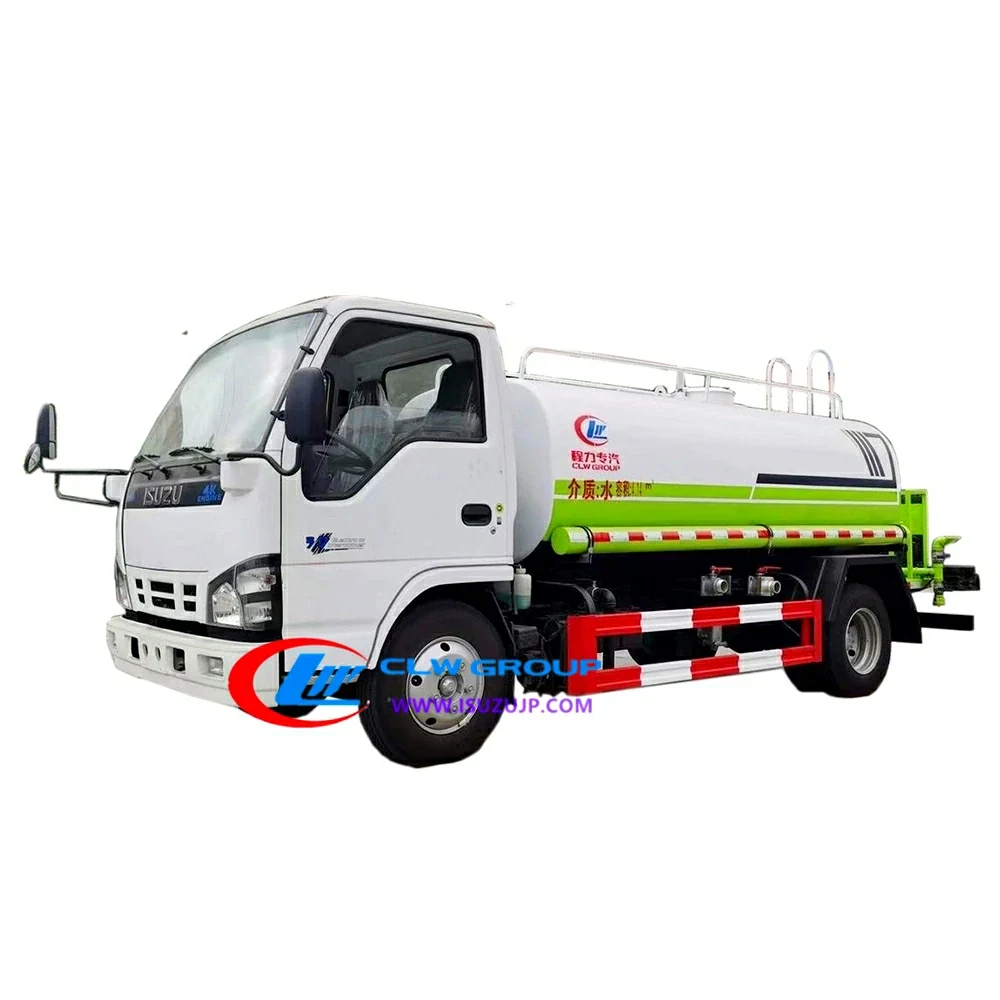

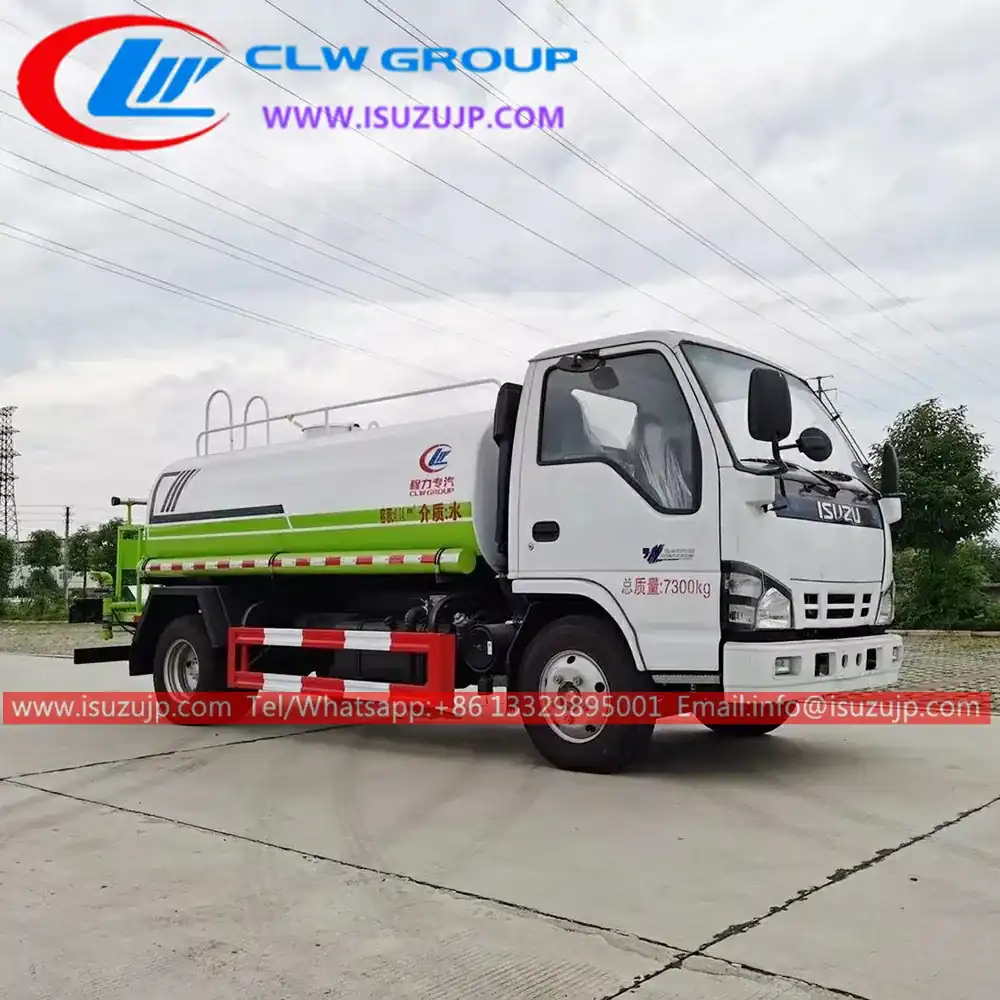

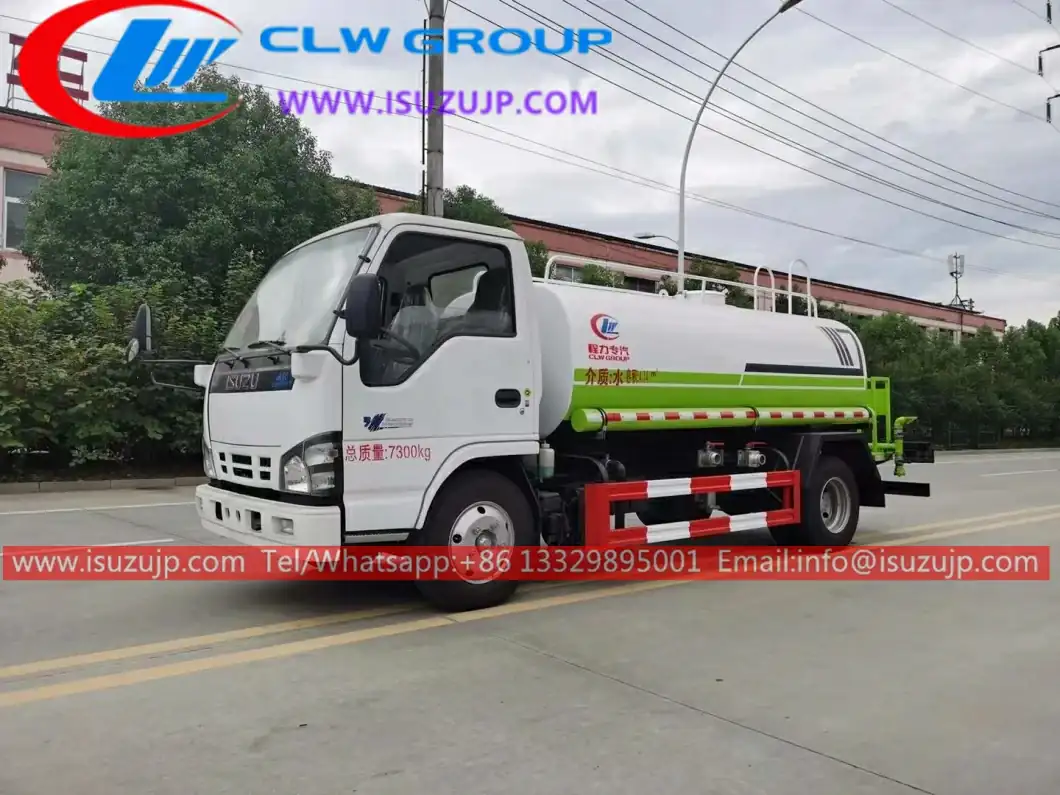

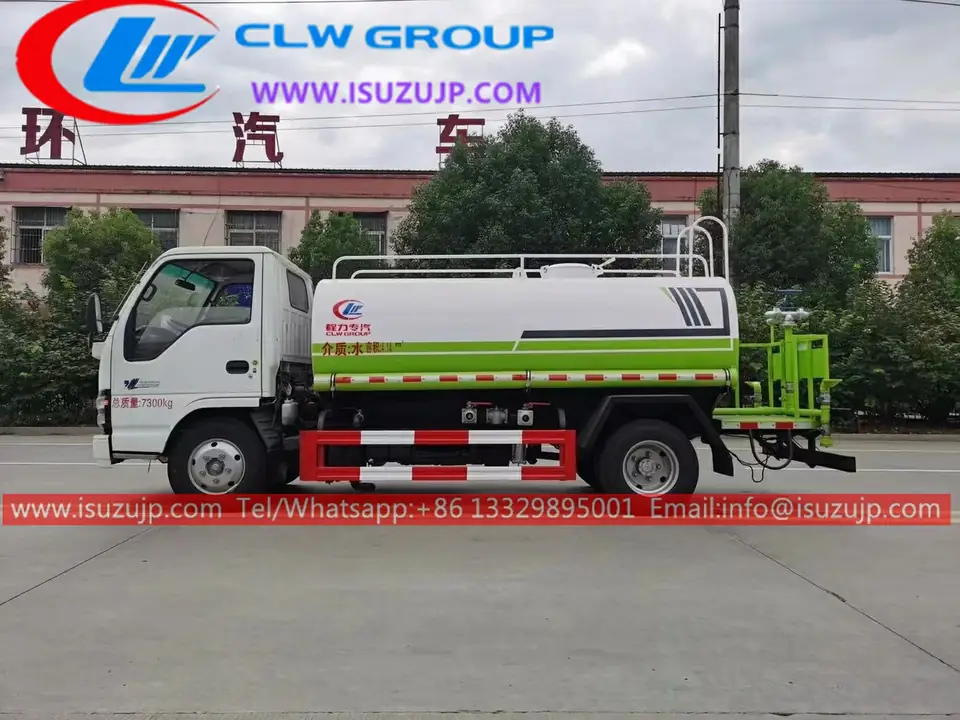

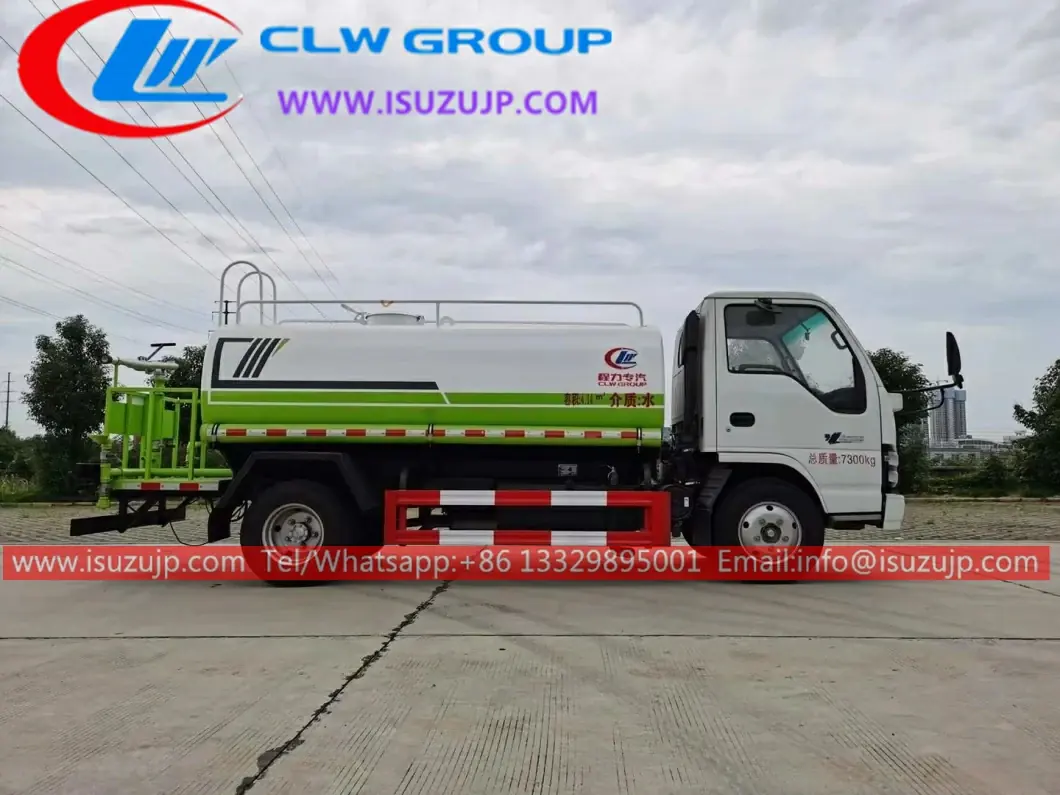

ISUZU 600P 6tons Delivery Water Tanker
4×2 ISUZU 4K-ENGINE chassis, MSB 5-shift manual gearbox, 130HP diesel engine, with 6 ton loading capacity
- Transmission
- 5 forward,1 reverse, manual operated
- Water Tank Volume (L)
- 6000
- Loading (kg)
- Appro × 6000
- International Well-known Brand Pump
- Water way Self-priming water, fire water injection, tank top water injection
Specification below is the factory table for this model, reproduced without edits. 25 rows.
ISUZU 600P 6tons Delivery Water Tanker Application
- Isuzu delivery water tanker (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agricultural water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, and side spray to sprinkle and clean the roads, and streets for environmental sanitation and protection, called water sprinklers, or water spray trucks.
- With a rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticides in agriculture pest control fields.
Advantage
- ISUZU 4K-ENGINE chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification
Complete Vehicle Parameter
| Vehicle | ISUZU 600P 6tons delivery water tanker |
|---|---|
| Overall dimensions (mm) | 6200x 2300 x 2600 |
| Water tank volume (L) | 6000 |
| Gross Vehicle Weight (kg) | Appro × 9000 |
| Net weight (kg) | Appro × 3570 |
| Loading (kg) | Appro × 6000 |
| Wheel base (mm) | 3360 |
| Max speed (Km/h) | 90 |
| ISUZU Truck Chassis Parameter | |
| Cabin | Single row cabin, power steering, air conditioner, 2 passengers, left-hand drive. |
| Drive form | 4×2 |
| Engine | Brand: ISUZU Model: 4KH1CN5HS Engine power: 130hp Fuel type: diesel. Displacement : 2999ml Emission standard: Euro V |
| Transmission | 5 forward,1 reverse, manual operated |
| Tire model | 7.00R16 |
| No.of tires | 6+1pcs |
| Water Tanker Body Parameter | |
| Standard configuration | 1) Carbon steel material water tank, thickness 5mm. 2) With a water pump. 3) With a rear working platform. 4) With a suction pipe. 5) With fire connector. 6) With gravity valve. |
| Special performance | 1) Front and rear spraying water. 2) Left and right side spraying water. 3) Platform has a sprinkler, and spraying water. 4) Water column can be adjusted to mist 5) Width of spraying water : ≥14m. 6) Distance of spraying water : ≥28m. 7) Vertical suction 6-8 m. 8) Drainage time <5min, flow rate 90m3/h. |
| Applicable scope | 1. for a variety of road cleaning 2. City green sanitation 3. Trees, green belt, and lawn watering 4. High altitude building rinse |
Working Parameter
ISUZU 600P 6tons Delivery Water Tanker Specification
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material Carbon steel Q345/stainless steel 304 |
|---|---|---|
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device |
Truck Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 600P 6tons Delivery Water Tanker
What chassis is the ISUZU 600P 6tons Delivery Water Tanker built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu water truck?
The factory table lists Water Tank Volume (L) 6000. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Water Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU 600P 6tons Delivery Water Tanker
This build is listed as transmission 5 forward,1 reverse, manual operated with water tank volume (l) 6000. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
