Isuzu Water Truck

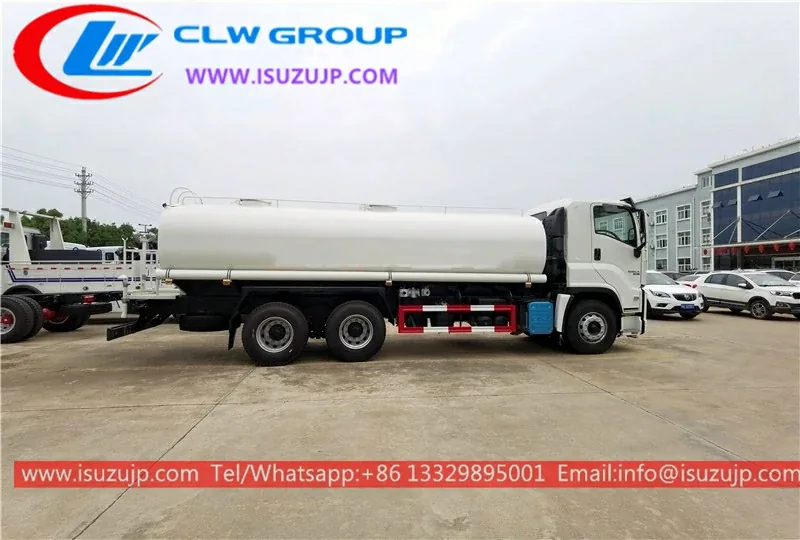

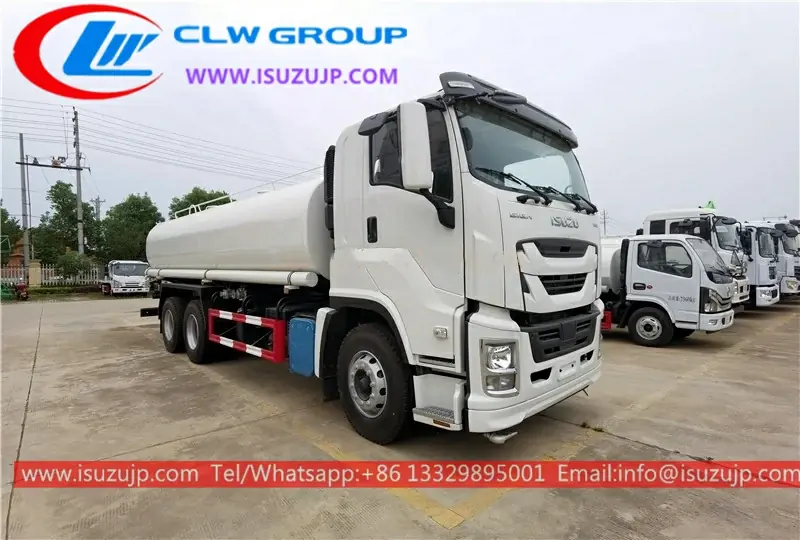

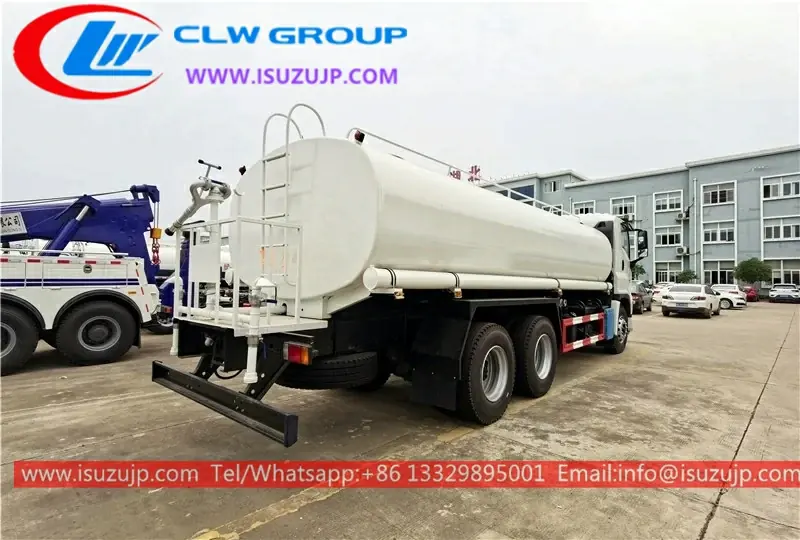

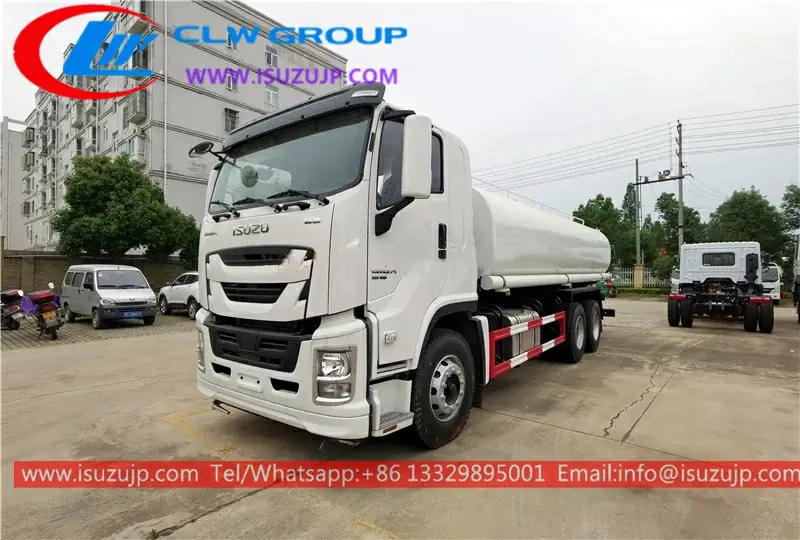

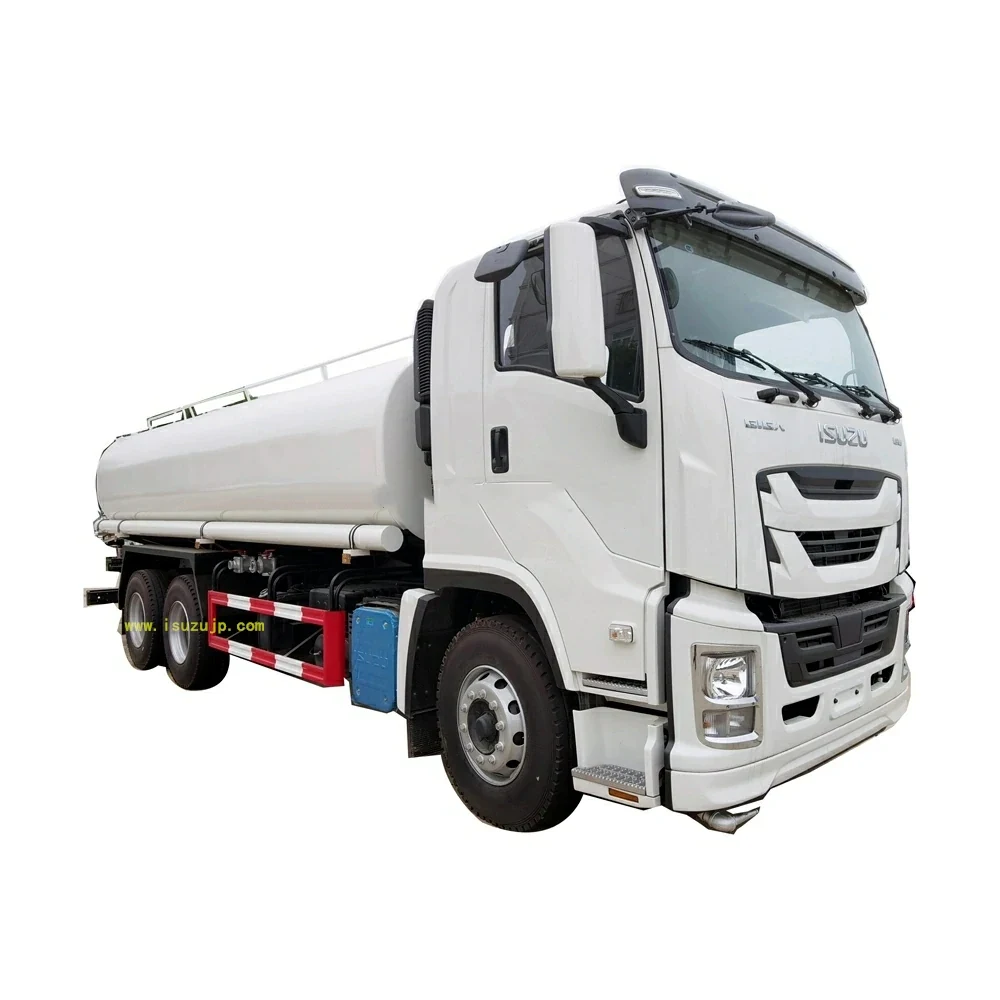

ISUZU 20cbm Tri Axle Water Hauler Truck
10 wheeler ISUZU GIGA chassis, Fast 12-shift manual gearbox, 380HP diesel engine, with 20 ton loading capacity
- Chassis
- Isuzu Giga
- Emission
- Euro 5
- Tank Volume
- 20000 Litre
- Tank Material
- 4mm Steel plate, (optional material: carbon steel, stainless steel)
- Rated Load Weight
- 12490kg
- Axle Load
- 7000/18000kg
- International Well-known Brand Pump
- Water way Self-priming water, fire water injection, tank top water injection
Specification below is the factory table for this model, reproduced without edits. 29 rows.
ISUZU 20cbm Tri-axle Water Hauler Truck Application
- Isuzu water hauler truck (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray to sprinkle and clean the roads, streets for environmental sanitation and protection, called as water sprinkler, water spray truck.
- With a rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Advantage
- 10 wheel ISUZU GIGA chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification
ISUZU 20cbm Tri Axle Water Hauler Truck Specification
| Tank volume | 20000 Litre |
|---|---|
| Tank material | 4mm Steel plate, (optional material: carbon steel, stainless steel) |
| Max spray range | 30m |
| Max sprinkler width | 15m |
| Standard configuration | water pump water cannon sprinkler water work platform Power take-off(PTO) Front and rear spray nozzle (Multi-direction) artesian valve, filter, distribution valve, sprinkler head, with self-suction and discharge function |
ISUZU 20cbm Tri Axle Water Hauler Truck Specification
| Name | 2022 new ISUZU 20cbm tri-axle water hauler truck |
|---|---|
| Dimension | 10160X2550X3055mm |
| Gross weight | 25000kg |
| Curb weight | 12380kg |
| Rated load weight | 12490kg |
| Wheelbase | 4565+1370mm |
| Axle load | 7000/18000kg |
| Max speed | 110/80 km/h |
ISUZU 20cbm Tri Axle Water Hauler Truck Specification
| Chassis brand | Isuzu Giga |
|---|---|
| Tire quantity | 10 |
| Tire specification | 12R22.5 18PR |
| Fuel | Diesel |
| Spring plate | 7/10 |
ISUZU 20cbm Tri Axle Water Hauler Truck Specification
| Engine model | 6UZ1-TCG51 |
|---|---|
| Engine manufacturer | Isuzu |
| Horsepower | 350hp |
| Displacement | 9839ml |
| Emission standard | Euro 5 |
Working Parameter
ISUZU 20cbm Tri Axle Water Hauler Truck Specification
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material Carbon steel Q345/stainless steel 304 |
|---|---|---|
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device |
Truck Parts
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 20cbm Tri Axle Water Hauler Truck
What chassis is the ISUZU 20cbm Tri Axle Water Hauler Truck built on?
It is built on Isuzu Giga. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu water truck?
The factory table lists Tank Volume 20000 Litre. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
