- 6×4 Qingling ISUZU GIGA VC61 300HP 20tons Truck Chassis
Main photo
GIGA Series Medium Heavy Duty Trucks

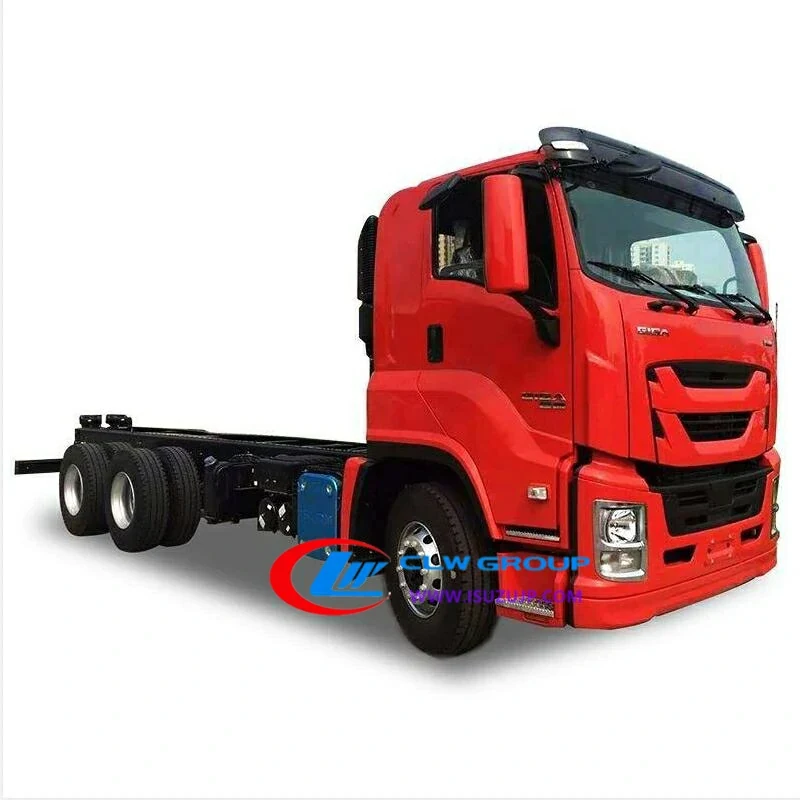

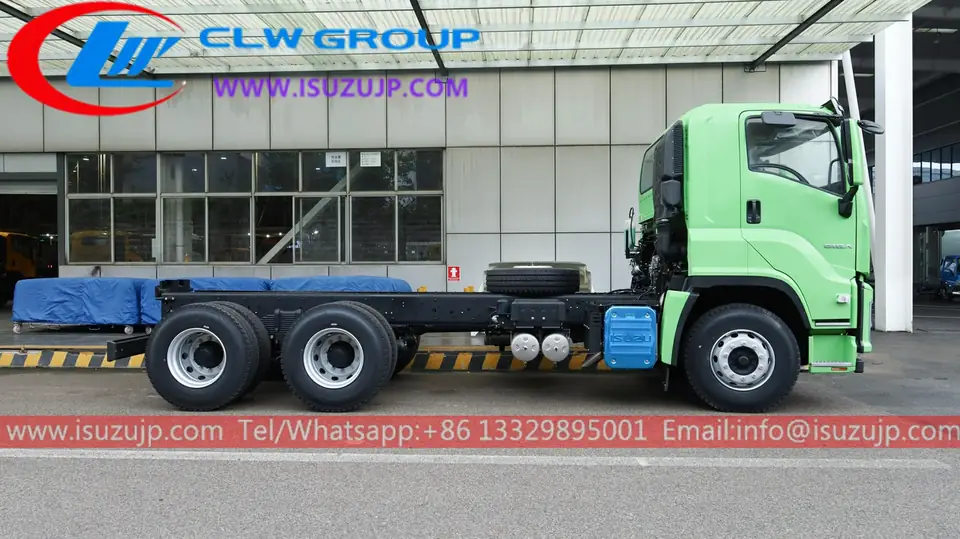

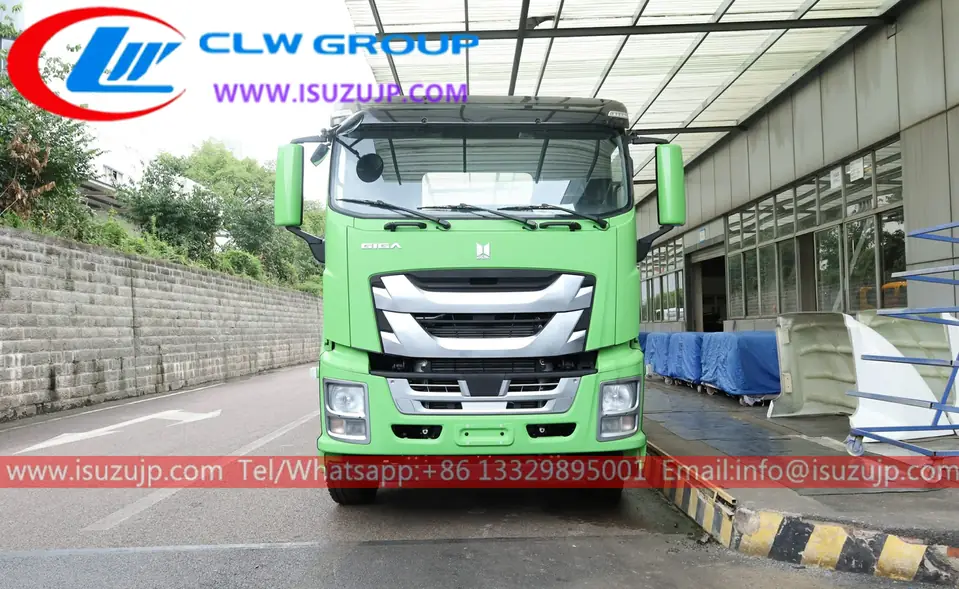

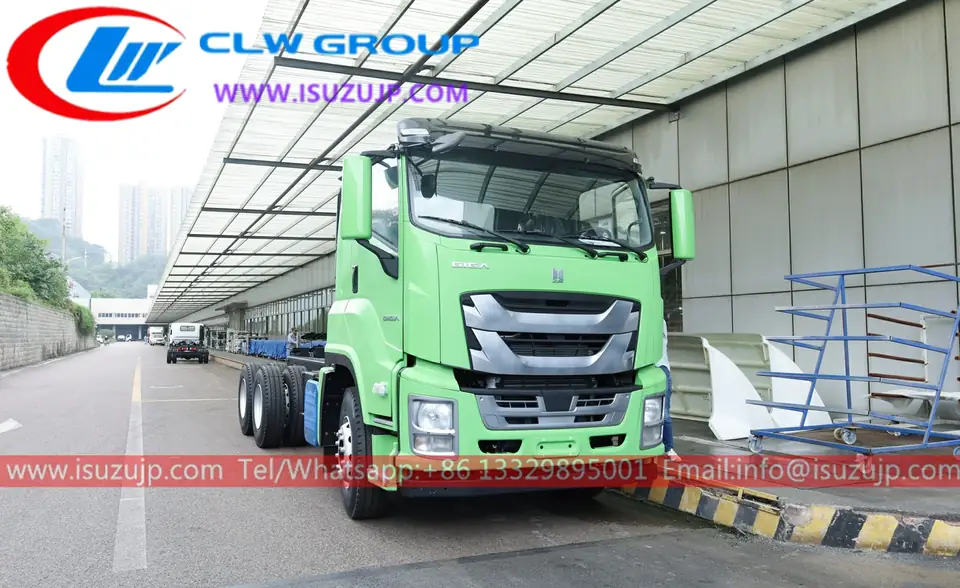

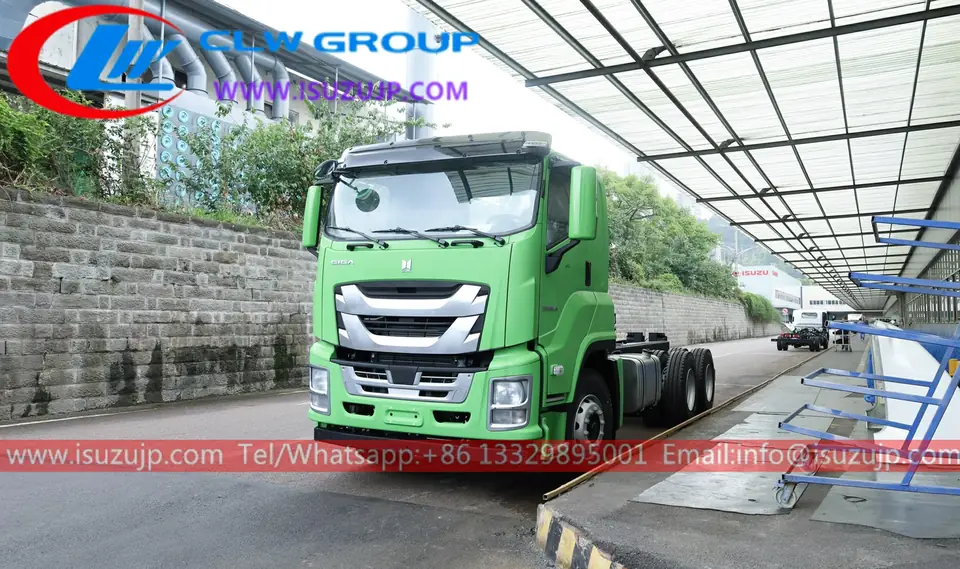

6×4 Qingling ISUZU GIGA VC61 300HP 20tons Truck Chassis
ISUZU GIGA VC61 300HP 20tons diesel truck chassis for sale adopts ISUZU 300HP diesel engine, Manual FAST 9-shift gearbox
- Axle Loads:
- 7000/20000kg (Two-Axis Group)
- Capacity
- 300L
- Product Origin
- China
- Body Size
- 12000x2500x3100 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 31 rows.
6×4 Qingling ISUZU GIGA VC61 300HP 20tons Truck Chassis Description
6×4 Qingling ISUZU GIGA VC61 300HP 20tons truck chassis has a simple design, is lightweight, and fuel-efficient as quality. The streamlined shape of the front of the cabin effectively reduces the wind resistance and reduces fuel consumption. This VC61 truck chassis uses a 6HK1 engine model with a maximum of 300 horsepower. 6×4 drive type and 12 wheels. The interior of the cabin is spacious and comfortable, we focus on reducing fatigue in driving.
Advantage
- 100% custom-made
- ISUZU GIGA truck chassis, perfect performance
- ISUZU series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Noise reduction van body.
- Massive, durable, long service life.
- 18Tons available
- Short delivery time 7~30 days
- Easy operation and easy maintenance
- 15 years of spare parts and technical support
- The new FTR model is based on Isuzu’s original world-leading quality 6HK1-TCG60 with Japanese technology and has developed a Euro VI emission 4HK1-TCG60 engine.
- The in-line four-cylinder diesel engine has a maximum output of 205 horsepower and a maximum torque of 650 Nm. MLD-6Q six-speed manual gearbox adopts Isuzu technology, high-pressure common rail, precision electronic control, multi-stage injection, optimized combustion, exhaust gas recirculation, and two-stage fuel filtration to achieve high power, high torque, low fuel consumption, low emissions, and noise.
Specification
6×4 Qingling ISUZU GIGA VC61 300HP 20tons Truck Chassis Specification
| Vehicle Model | QL1250FTFZY | |
|---|---|---|
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 10000-12000×2540×3055mm |
| Wheelbase: | 4350/4650/5700/5820+1370mm | |
| Front Wheel Distance: | 2065mm | |
| Rear Wheel Distance: | 1855/1855mm | |
| Front/Rear Suspension | 1370/2590mm | |
| Weights and Capacities | Curb Weight: | 9300kg |
| GVW: | 25000kg | |
| Axle Loads: | 7000/20000kg (Two-Axis Group) | |
| Engine | Engine Model: | 6HK1-TCG60 |
| Max output: | 221Kw | |
| Displacement: | 7790ml | |
| Horsepower: | 300Ps | |
| Exhaust Gas Treatment Technology： | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin type | Standard Roof 1 Berth | |
| Chassis | Drive Type: | 6×4 |
| Tires: | 11(Including Spare Tire) | |
| Fuel tank | Capacity | 300L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | Central Lock | |
| 4 | Power Window | |
| 5 | ABS | |
| 6 | Driving Data Recorder | |
| 7 | Tubeless Tire | |
| 8 | Free Maintenance Battery | |
| 9 | Aluminum Alloy Gas Tank | |
| 10 | Air Suspension Cabin | |
| 11 | Air Suspension Seat | |
| 12 | Widened Bumper |
ISUZU TRUCK CHASSIS Advantage
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Factory Advantage:
Questions
Questions About The 6×4 Qingling ISUZU GIGA VC61 300HP 20tons Truck Chassis
What chassis is the 6×4 Qingling ISUZU GIGA VC61 300HP 20tons Truck Chassis built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this giga series medium heavy duty trucks?
The factory table lists Axle Loads: 7000/20000kg (Two-Axis Group). Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other GIGA Series Medium Heavy Duty Trucks Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 6×4 Qingling ISUZU GIGA VC61 300HP 20tons Truck Chassis
This build is listed as axle loads: 7000/20000kg (Two-Axis Group) with capacity 300L. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
