Main photo
ISUZU Bitumen Distributor Truck

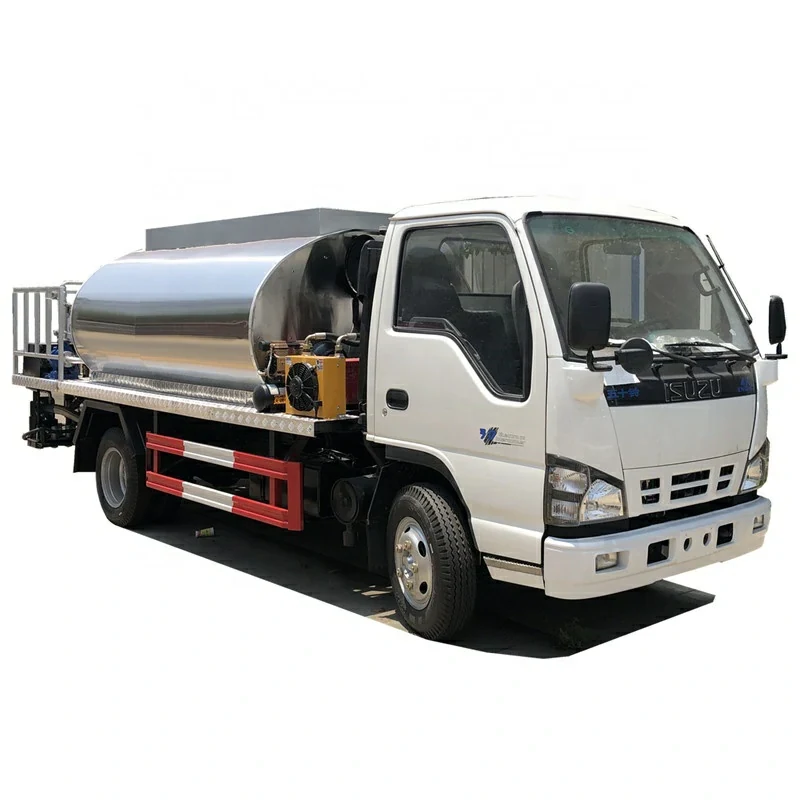

ISUZU 3 Ton Asphalt Distributor Truck for Sale
3 ton Asphalt Spreader truck adopt NKR truck chassis, 4HK1 engine with 120HP, Manual MSB 5-shift gearbox, intelligent bitumen spraying system
- Chassis
- ISUZU
- Engine
- ISUZU 4HK1
- Power
- 120 HP (88 KW)
- Overall Dimension
- 6000X2300X2500 mm
- GVW / Kerb Weight
- 7,300kg / 4,250kg
- Drive Type
- 4X2, (left-hand drive)
- Transmission
- Manual 5-speed levers with 1 reverse
- Emission
- Euro 5
Specification below is the factory table for this model, reproduced without edits. 28 rows.
ISUZU 3 Ton Asphalt Distributor Truck Description
- ISUZU Asphalt distributor truck is equipment that is widely used in road construction. It is an intelligent high-tech product that can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt, and high viscosity modified asphalt. Asphalt distributor is basically made up of chassis, asphalt tank, asphalt pump, spray system, heat conduction oil heating system, hydraulic system, electric control system, distribution control system, and rinsing series. And the distribution system has two main types: hand-controlled and computer-controlled.
Advantage
- ISUZU FTR truck chassis, perfect performance
- ISUZU 4HK1 series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Spray width can be adjusted flexibly from 2m to 6m.
- Easy operation and easy maintenance.
- Automatic asphalt distributor truck boasts three layers. It can adjust the spray amount according to its operational speed.
- The whole asphalt spraying process can be finished in the cab.
- Each nozzle is controlled by a separate computer. The spray width can be adjusted at random.
- The control procedure is equipped with two control systems, cab, and post-operational platform to ensure the reliability of asphalt spray.
- The computer control system adopts a modular design for lower accident rates and maintenance.
- The temperature of asphalt in the tank is kept below or equal to two degrees per hour
- distributor is equipped with an automatic blowing device to shift the asphalt outside to the tank
Chassis:
Asphalt distributor System:
Specification
ISUZU 3 ton asphalt distributor truck for sale
| General | Vehicle Brand | CHENG LI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 6000X2300X2500 mm | |
| GVW / Kerb Weight | 7,300kg / 4,250kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU 4HK1 | |
| Power | 120 HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 4X2, (left-hand drive) |
| Transmission | Manual 5-speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tire Specification | 700-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Bitumen Tank Volume | 4,000L |
| Spray Width | 2000-6,000mm | |
| Spray Volume | 0.2-3.0 kg/m2 | |
| Asphalt heating mode | Imported diesel oil burner | |
| Spray media | Asphalt Rubber, hot (modified) asphalt, diluted asphalt, emulsified asphalt, etc. | |
| Spray Precision | ±1.5% | |
| Control | English | |
| Color & Logo | According to wish | |
| All standard accessories: All tools. Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual…… | ||
| Optional | The back alarm and Camera can be equipped. Other body capacities can be chosen. Other materials and plate thicknesses can be chosen. | |
Questions
Questions About The ISUZU 3 Ton Asphalt Distributor Truck for Sale
What chassis is the ISUZU 3 Ton Asphalt Distributor Truck for Sale built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu bitumen distributor truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
