Isuzu Road Sweeper Truck

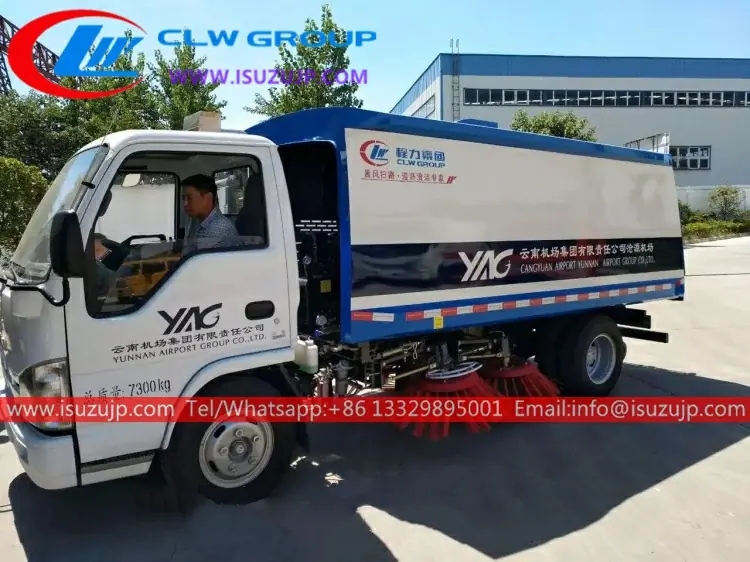

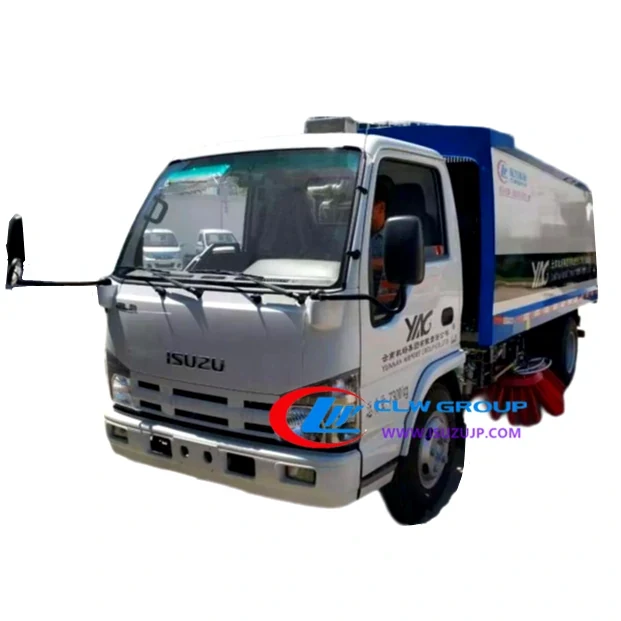

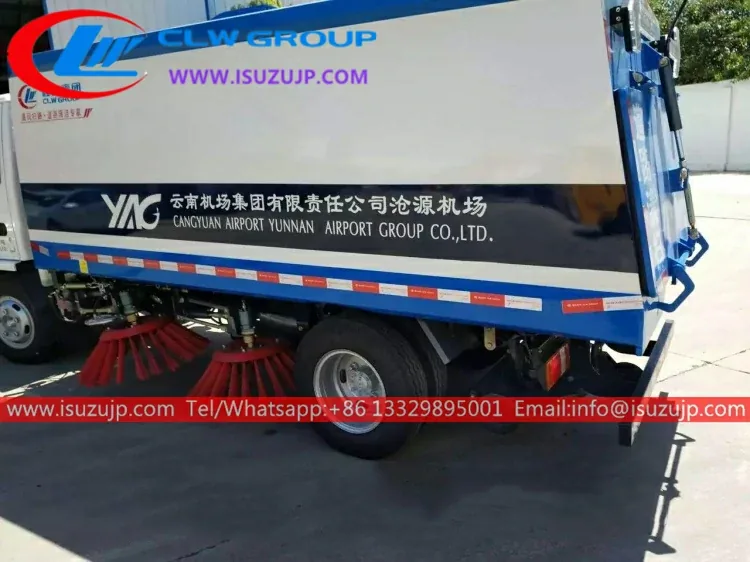

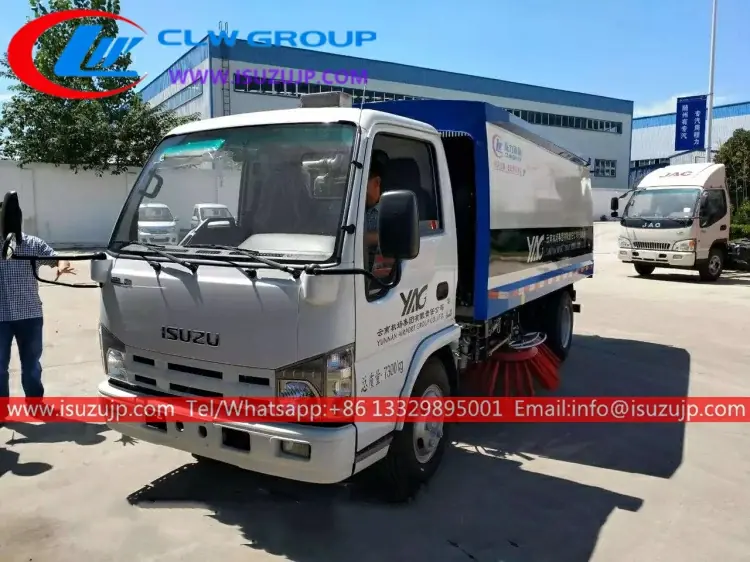

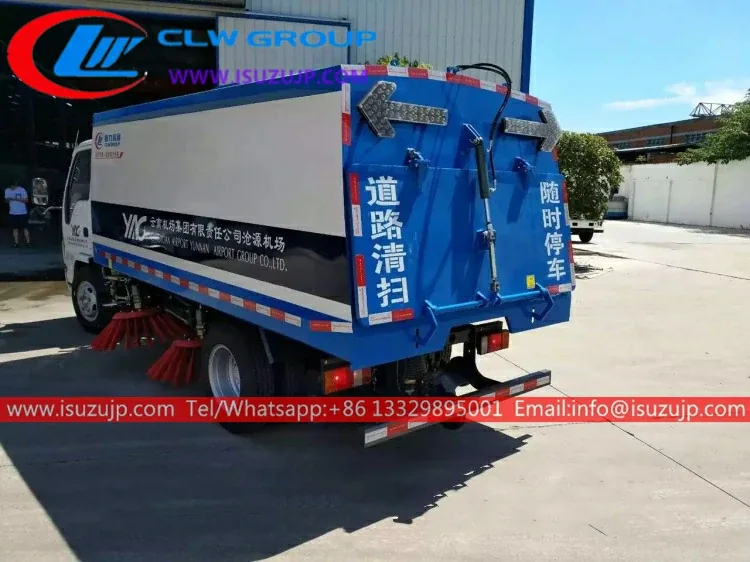

ISUZU 3 Ton Mini Street Sweeper
ISUZU ELF 100P 4×2 chassis, MSB 5-shift manual gearbox, 98HP diesel engine, stainless steel 3m3 dust bin and 1m3 clean water body, 4 brushes system
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 98 HP (72 KW)
- Overall Dimension
- 6000X 2000X2600 mm
- GVW / Kerb Weight
- 7,300kg / 4,500kg
- Drive Type
- 4X2, (left hand drive)
- Transmission
- MSB 5 speed levers with 1 reverse
- Emission
- Euro 4 or 5
Specification below is the factory table for this model, reproduced without edits. 27 rows.
ISUZU 3 Ton Mini Street Sweeper Description
- ISUZU mini street sweeper also called street sweeper, vacuum sweeper, road sweeping truck, street sweeping truck, road cleaning vehicle
- A road sweeper is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas.
- This unit shall be suitable for dry-type cleaning job as well as dust suppression with water spray in the roadside and narrow lanes.
- CHENGLI road sweeper truck uses whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU auxiliary engine, efficiently avoiding secondary pollution.
Advantage
- ISUZU ELF 100P chassis, no overhaul within 500,000 km.
- ISUZU engine, super powerful; reliable performance.
- Nice shape, rational structure
- Italy imported high-pressure pump, super powerful, efficient pump in and out Strong, durable, perfect performance.
- Road Sweeper body capacity from 2 to 16 Cubic Meter.
- Easy operation and easy maintenance.
- Virious types of refuse container lifters are available.
Specification
ISUZU 3 ton mini street sweeper
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 6000X 2000X2600 mm | |
| GVW / Kerb Weight | 7,300kg / 4,500kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 98 HP (72 KW) | |
| Displacement | 2771 ml | |
| Emission Standard | Euro 4 or 5 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | MSB 5 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tire Specification | 7.00-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 3.5 cbm dust tank & 0.5 cbm water tank |
| Tanker material | Stainless steel | |
| Sweeping capacity | 42,000 cbm/h | |
| Sweeping speed | 3-15 km/h | |
| Max. sweeping width | 3200 mm | |
| Brooms | 2 set at each side, at diameter 800 mm | |
| Auxiliary engine | ISUZU engine, 77HP (57kw), super powerful JMC engine, 77HP (57kw), super powerful | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual… | ||
| Optional | Back alarm and Camera can be equipped. Italy Brevini motor can be optional. Air blower can be of stainless steel | |
Road Sweeper Accessories,tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 3 Ton Mini Street Sweeper
What chassis is the ISUZU 3 Ton Mini Street Sweeper built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu road sweeper truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
