Main photo
Isuzu Road Sweeper Truck

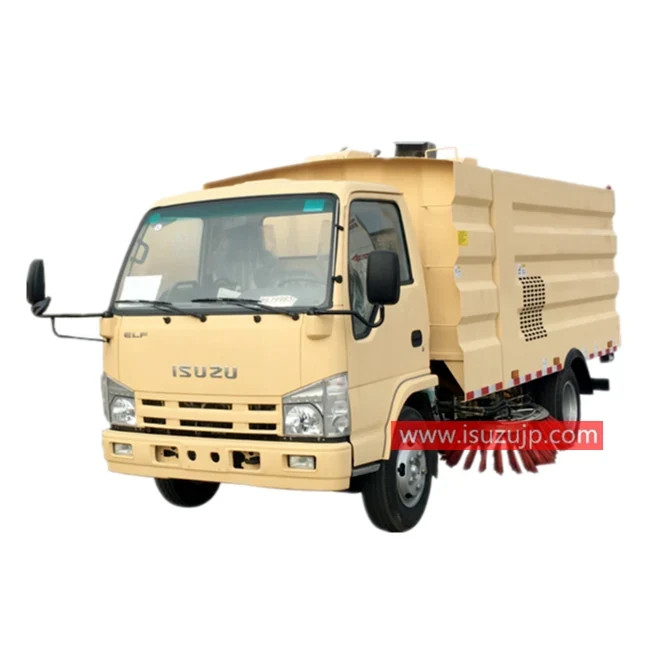

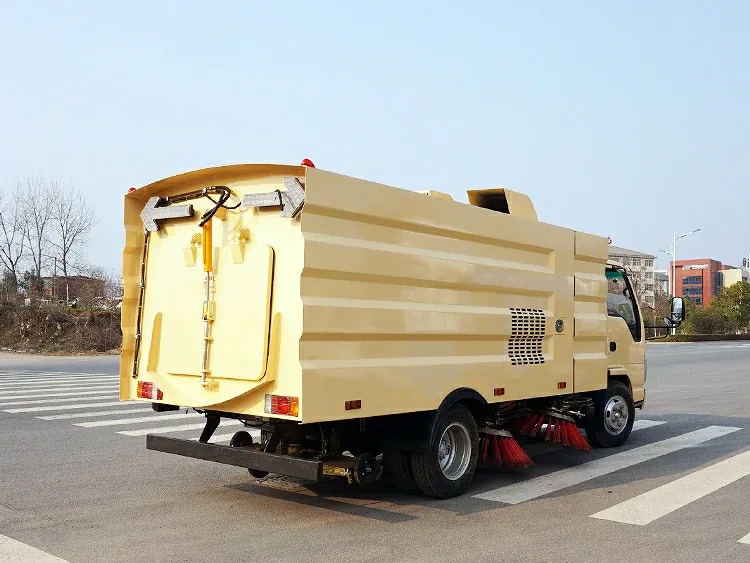

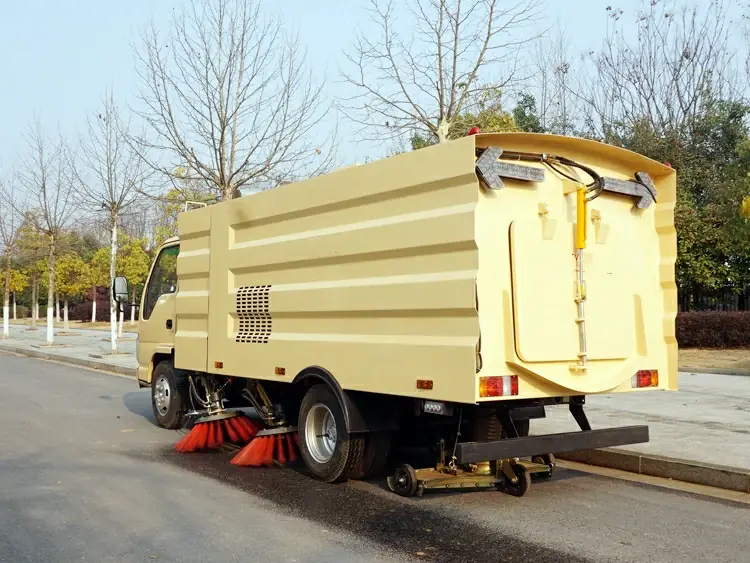

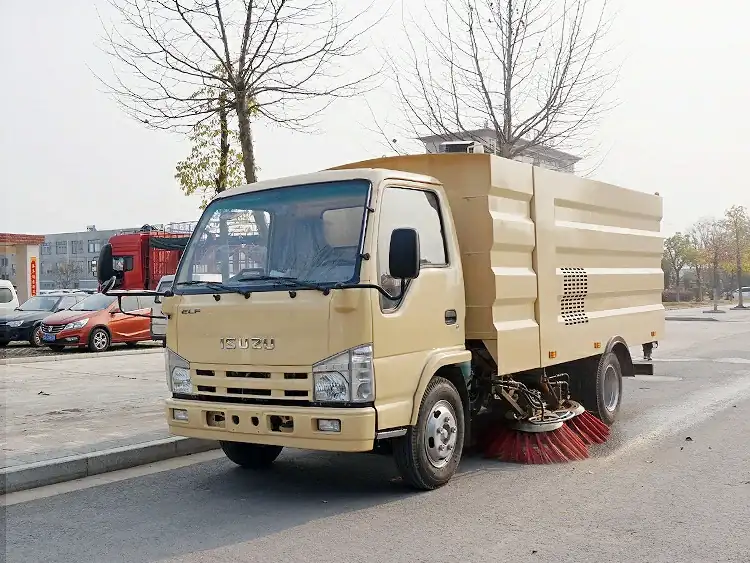

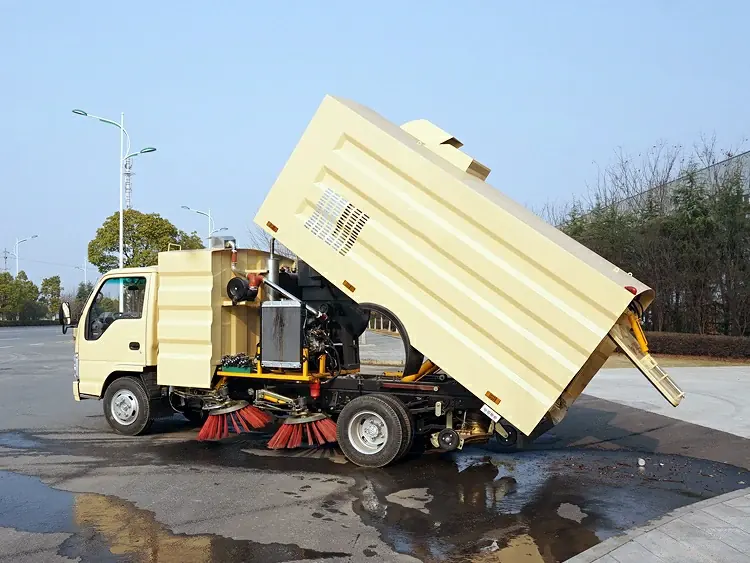

ISUZU 4cbm Small Road Sweeper
ISUZU ELF 100P 4×2 chassis, MSB 5-shift manual gearbox, 98HP diesel engine, stainless steel 4m3 dust bin and 1.5m3 clean water body, 4 brushes system
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 120HP (88 KW)
- Overall Dimension
- 6200X 2200X2500 mm
- GVW / Kerb Weight
- 7,300 kg / 5,770 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- ISUZU gear box, 5 speed forward, 1 reverse
- Emission
- Euro IV
Specification below is the factory table for this model, reproduced without edits. 29 rows.
ISUZU 4cbm Small Road Sweeper Description
- ISUZU small road sweeper also called street sweeper, vacuum sweeper, road sweeping truck, street sweeping truck, road cleaning vehicle
- A road sweeper is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas.
- This unit shall be suitable for dry-type cleaning job as well as dust suppression with water spray in the roadside and narrow lanes.
- CHENGLI road sweeper truck uses whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU auxiliary engine, efficiently avoiding secondary pollution.
Advantage
- ISUZU ELF 100P chassis, no overhaul within 500,000 km.
- ISUZU engine, super powerful; reliable performance.
- Nice shape, rational structure
- Italy imported high-pressure pump, super powerful, efficient pump in and out Strong, durable, perfect performance.
- Road Sweeper body capacity from 2 to 16 Cubic Meter.
- Easy operation and easy maintenance.
- Virious types of refuse container lifters are available.
Specification
ISUZU 4cbm small road sweeper ( 4m3 dustbin & 1.5m3 water tank )
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 6200X 2200X2500 mm | |
| GVW / Kerb Weight | 7,300 kg / 5,770 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 120HP (88 KW) | |
| Displacement | 5900 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, 5 speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-15 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | Stainless Steel |
| Dustbin Capacity | 4 CBM | |
| Dustbin Material | Stainless Steel | |
| Water Tank Capacity | 1,500 Liters | |
| Sweeping Capacity | 42,000 m³/h | |
| Sweeping Speed | 3-15 km/h | |
| Max Sweeping Width | 2800 mm | |
| Brooms | 2 sets at each side, at diameter 900 mm | |
| Auxiliary Engine | JMC engine (ISUZU technology) 77HP (57KW), super powerful | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | Backup alarm can be equipped. Camera can be equipped. Air blower can be of stainless steel. | |
Road Sweeper Accessories,tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 4cbm Small Road Sweeper
What chassis is the ISUZU 4cbm Small Road Sweeper built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu road sweeper truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
