- ISUZU 4K-Engine 5 Ton Sewer Tanker Sale in Dubai
Main photo
Isuzu Sewage Suction Truck

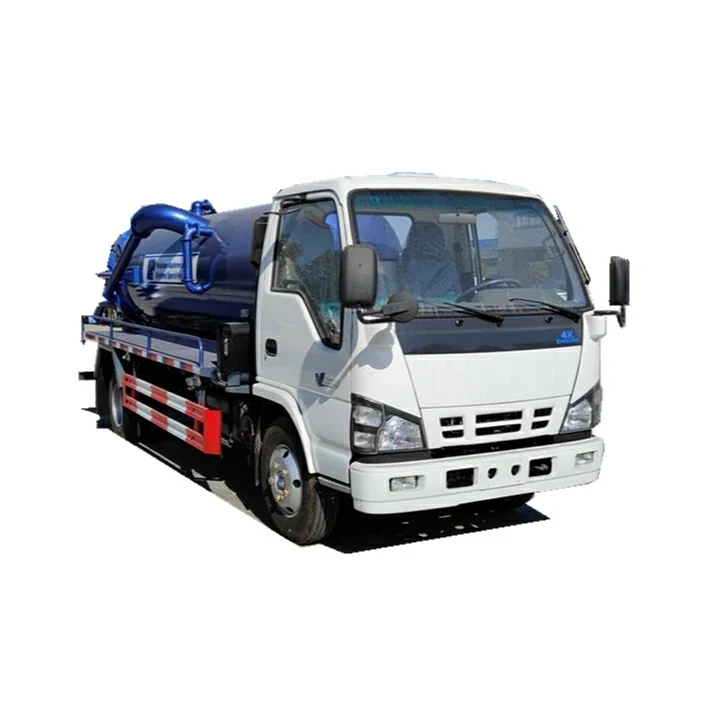

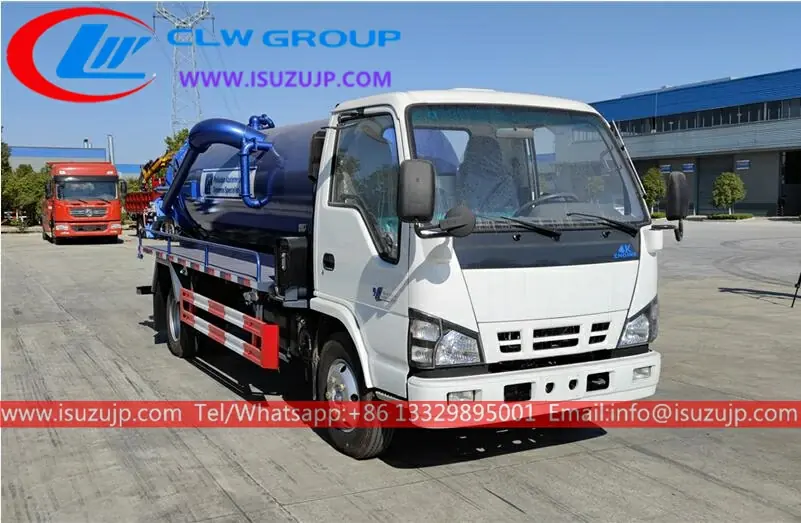

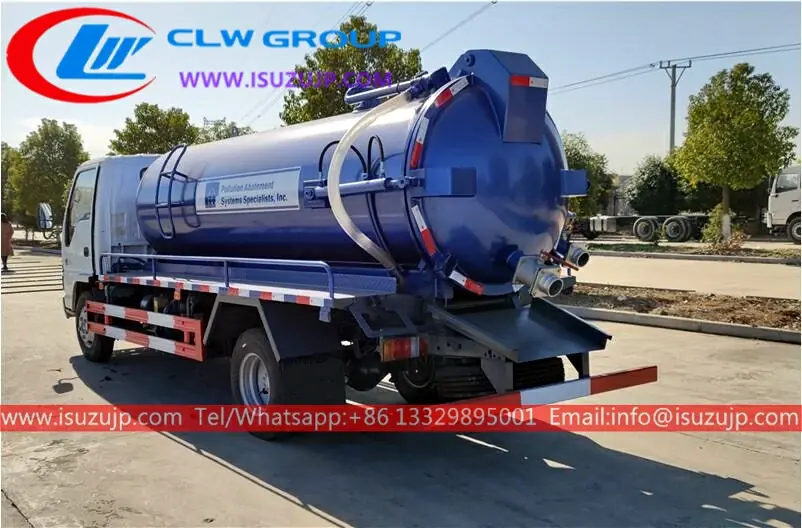

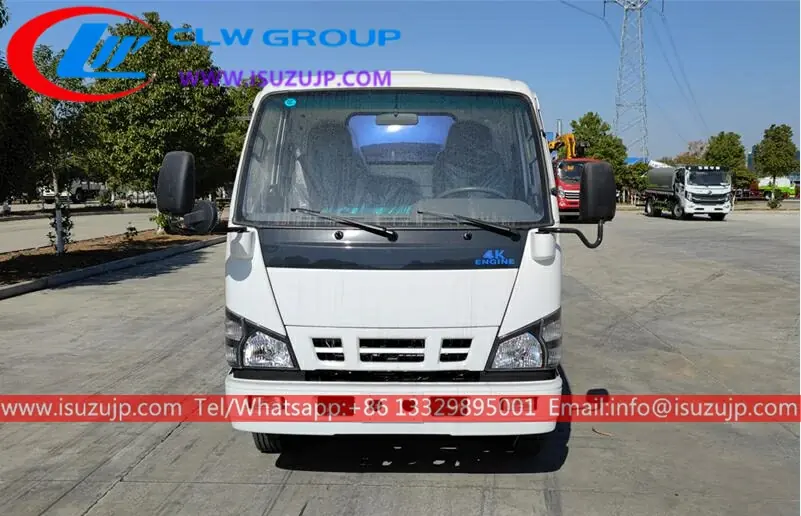

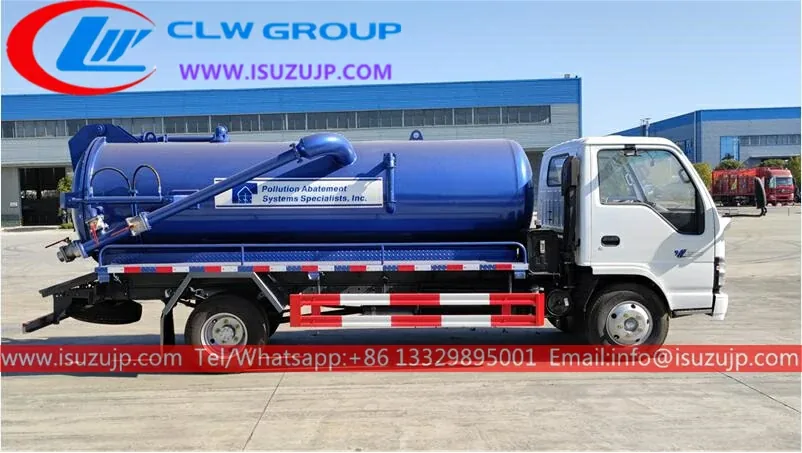

ISUZU 4K-Engine 5 Ton Sewer Tanker Sale in Dubai
Best 6m3 sewage suction truck, ISUZU 4K-ENGINE 600P Left Hand Drive model 4×2 chassis, MSB 5-shift manual gearbox, ISUZU 4HK1 130 HP diesel engine
- Chassis
- ISUZU – 600P model
- Capacity
- 5,000L
- External Tank Treatment
- Rustproofing treatment as standard
- Loading Capacity
- 5 tons
- Product Origin
- China Cheng
- Body Size
- 6720X2050X2500mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 41 rows.
ISUZU 4K-Engine 5 Ton Sewer Tanker Description
- ISUZU 4K-Engine 5 ton sewer tanker also called suction vacuum truck, vacuum vehicle, sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks,sewer tanker trucks.
- A vacuum sewage suction truck is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Advantage
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU ELF 700P chassis, perfect performance
- ISUZU technology engine option, super-powerful, no overhaul within 500,000 km.
Specification
ISUZU 4K-Engine 5 ton sewer tanker sale in dubai
| Function | ||
| Function: It is designed for cleaning sludge, mud, sedimentation from sewage, rainwater wells, inspection wells, septic tanks and a variety of channels. It is useful for cleaning the city sewer, pipeline sediment, mud ditch dredge, can also be used for cleaning industrial drainage pipes, wall and so on. | ||
| Vehicle description | ||
| Overall Dimension mm (LxWxH) | 6,720×2,050×2,500 (mm) | |
|---|---|---|
| Max.Weight | 11,495 (kg) | |
| Curb weight | 4,150 (kg) | |
| Suction tanker description | ||
| Tanker | Capacity | 5,000L |
| Material | High-quality carbon steel, 6mm thickness | |
| Thickness | 6mm for tanker body and rear cover | |
| External tank treatment | Rustproofing treatment as standard | |
| Structure | Machine welding automatically, cylindrical tank | |
| Hydraulic dump system | The tank lift angle could be higher up to 45° | |
| Rear door hydraulic open Hydraulic lock with mechanical interlocking | ||
| Painting as previous order | ||
Chassis Description
| Chassis brand | ISUZU – 600P model | |
|---|---|---|
| Chassis condition | Brand new – the year of 2021 | |
| Cab | Exporting standard – 600P cab | |
| Two-seat with A/C | ||
| Driving type | Left-hand driving, 4×2 – 6wheeler | |
| Tire | 7.00R16 tire, 6+1(pcs) | |
| Engine | Brand | ISUZU – 4KH1-CN5HD |
| Fuel | Diesel | |
| Emission standard | Euro V – without ad blue | |
| Displacement | 3000cc | |
| Horsepower | 130hp / 96kW | |
| Number of cylinders | 4 | |
| Maximum torque | 290 N.m at 1500-1900rpm | |
| Gear box | Brand | ISUZU – MSB |
| Number of gears | 5 Forwards gear & 1 reverse gear | |
| Axle | Front | 2.5T |
| Rear | 4.8T | |
Working Parameter
ISUZU 4K-Engine 5 Ton Sewer Tanker Sale in Dubai Specification
| Suction speed | Fill up in 10 minutes | Tank material Carbon steel Q345, stainless steel 304 |
|---|---|---|
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | |
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | |
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | |
Sewage Tanker Truck Part,tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 4K-Engine 5 Ton Sewer Tanker Sale in Dubai
What chassis is the ISUZU 4K-Engine 5 Ton Sewer Tanker Sale in Dubai built on?
It is built on ISUZU – 600P model. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu sewage suction truck?
The factory table lists Capacity 5,000L. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Sewage Suction Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU 4K-Engine 5 Ton Sewer Tanker Sale in Dubai
This build is listed as chassis ISUZU – 600P model with capacity 5,000L. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
