- ISUZU GIGA 420HP 20m3 Vacuum Tank Truck for Sale
Main photo
Isuzu Sewage Suction Truck

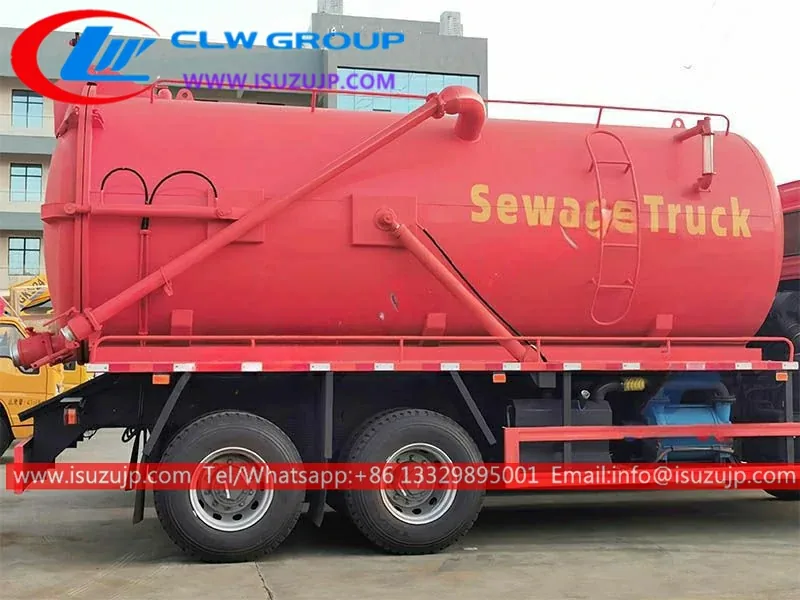

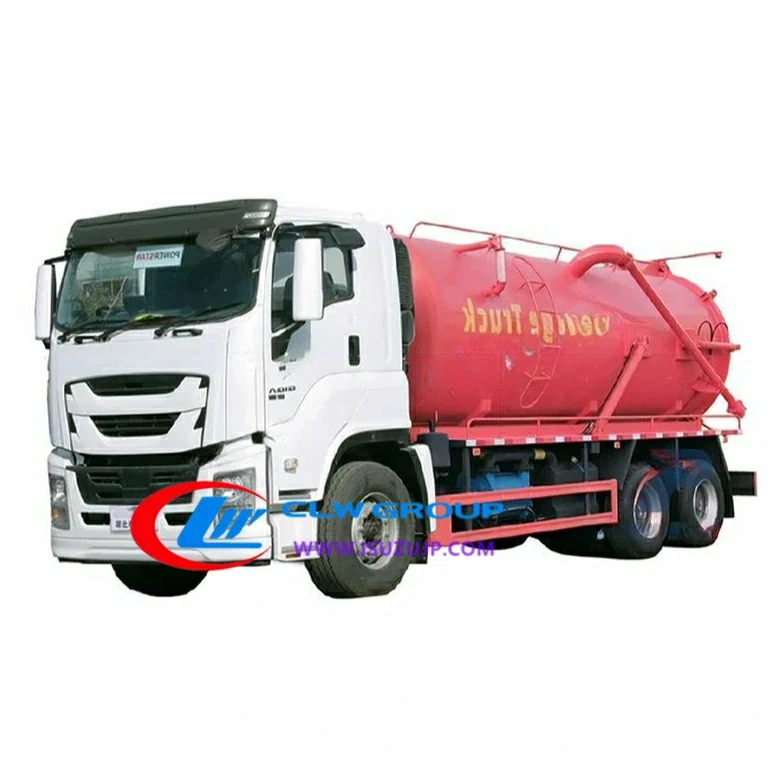

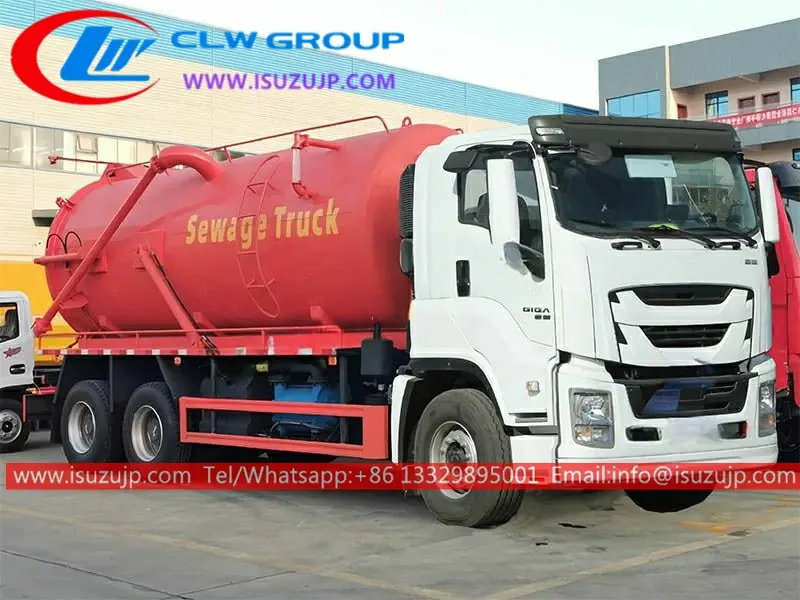

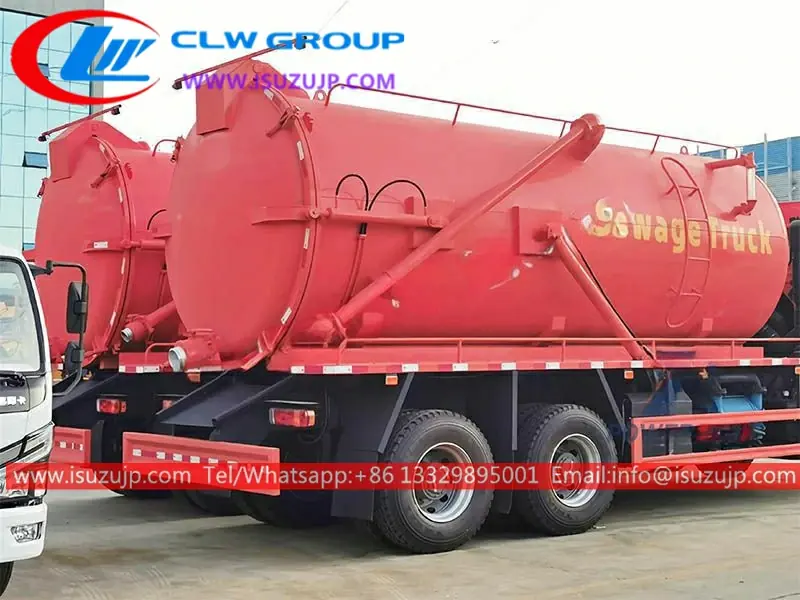

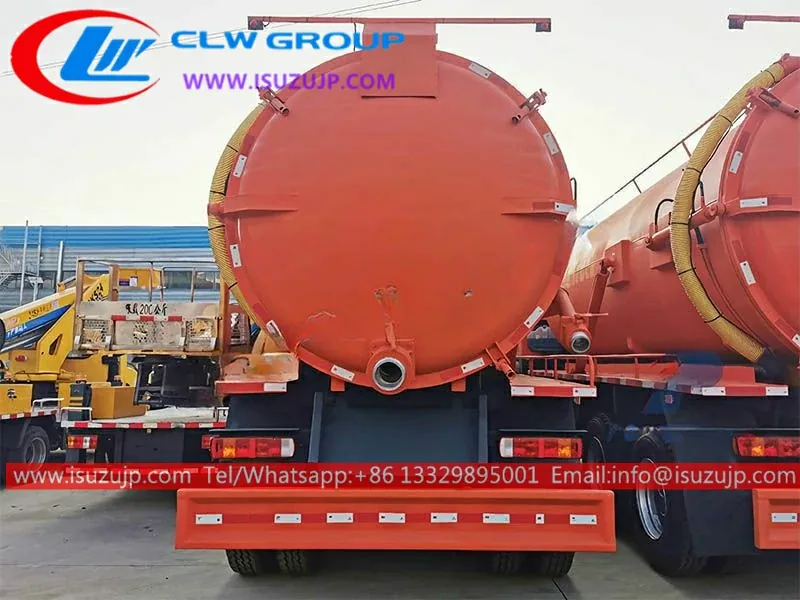

ISUZU GIGA 420HP 20m3 Vacuum Tank Truck for Sale
Best 20000-liters sewage suction truck, 10 wheel ISUZU GIGA Left Hand Drive model chassis, FAST 12-shift manual gearbox, ISUZU 6WG1 420HP diesel engine
- Power
- 420 HP
- Tank Capacity
- 20,000L
- Tank Material
- 6mm carbon steel with antiseptic treatment
- Vacuum Pump
- Original Italy Import famous MORO brand
- Tank Lifting Angle
- ≥45°
Specification below is the factory table for this model, reproduced without edits. 44 rows.
ISUZU GIGA 420HP 20m3 Vacuum Tank Truck Description
- ISUZU GIGA 20m3 vacuum tank truck also called suction vacuum truck, vacuum vehicle, sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks,sewer tanker trucks.
- Vacuum sewage suction truck is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Advantage
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
Specification
ISUZU GIGA 420HP 20m3 Vacuum Tank Truck for Sale Specification
| Manufacturer | CHENGLI Trucks | |
|---|---|---|
| Item | ISUZU GIGA 420hp 20m3 vacuum tank truck for sale | |
| Brand | ISUZU GIGA | |
| Model | CLW5190TSSD6 | |
| Production Time | 30 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 9800*2550*3600 mm |
| Gross weight | 25,000 kg | |
| Kerb weight | 12,500 kg | |
| Wheelbase | 4,565+1370 mm | |
| Driving type | 6*4 | |
| Chassis model | QINGLING GIGA Heavy-duty | |
| Tire size | 315/80R22.5 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 6WG1-TCG52 |
| Type of fuel | Diesel | |
| Power | 420 HP | |
| Gearbox | FAST 12-shift gearbox | |
| Upper Structure | ||
| Water Tanker performance | Tank Capacity | 20,000L |
| Tank Material | 6mm carbon steel with antiseptic treatment | |
| Vacuum Pump | Original Italy Import famous MORO brand | |
| PM110W model, flow rate 16400Liters/min | ||
| Suction Time | 250 s | |
| Tank lifting angle | ≥45° | |
| Self-suction height | 7 m | |
| Suction hose | 7m length with DN 100 mm | |
| Rear cover | Hydraulic control | |
| Control Panel | English | |
| Discharging system | Gravity discharge or pump out from tank body. | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent | |
Working Parameter
ISUZU GIGA 420HP 20m3 Vacuum Tank Truck for Sale Specification
| Suction speed | Fill up in 10 minutes | Tank material Carbon steel Q345, stainless steel 304 |
|---|---|---|
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | |
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | |
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | |
Sewage Tanker Truck Part,tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU GIGA 420HP 20m3 Vacuum Tank Truck for Sale
What chassis is the ISUZU GIGA 420HP 20m3 Vacuum Tank Truck for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu sewage suction truck?
The factory table lists Tank Capacity 20,000L. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Sewage Suction Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU GIGA 420HP 20m3 Vacuum Tank Truck for Sale
This build is listed as power 420 HP with tank capacity 20,000L. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
