Main photo
Aircraft Refueling Truck

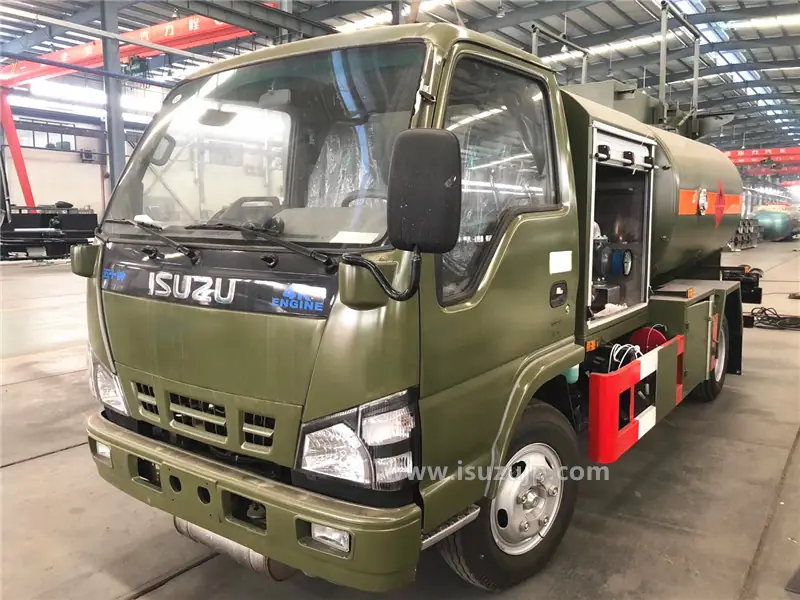

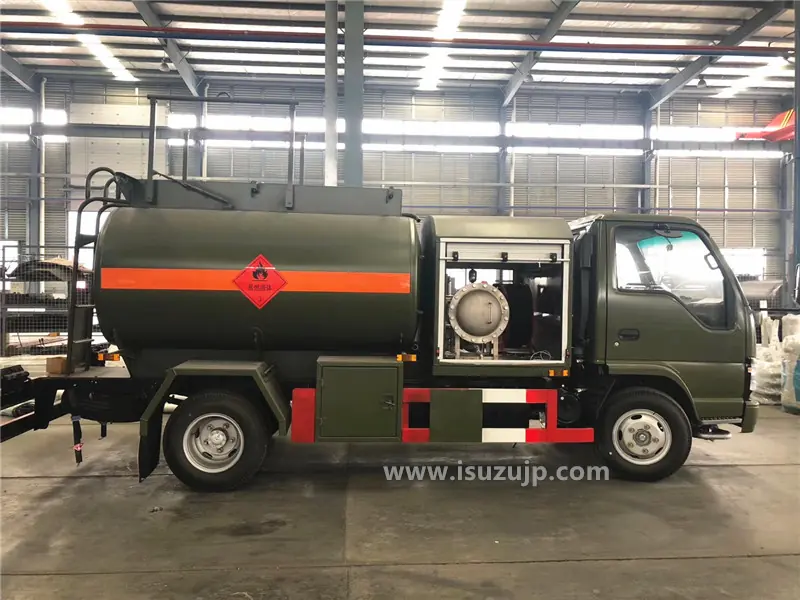

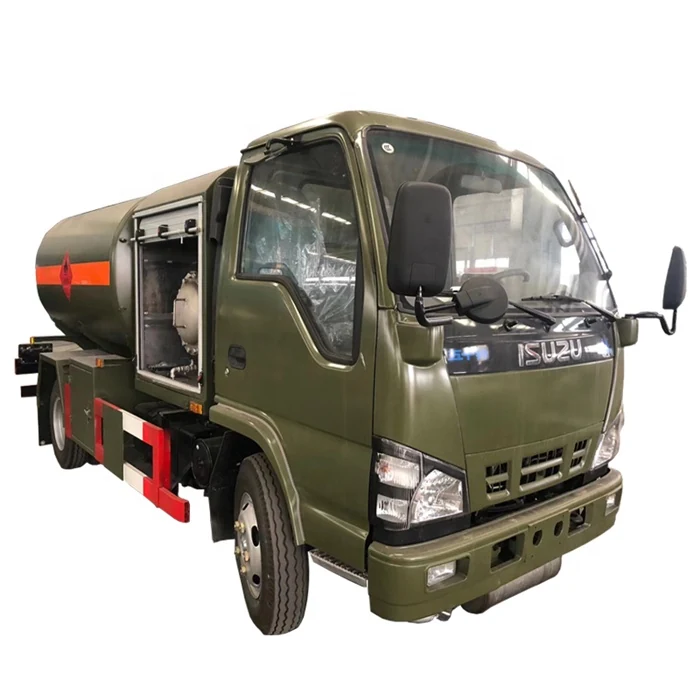

ISUZU 4K-ENGINE 5000liters Helicopter Refueling Truck
Equipped Isuzu 4K-ENGINE 600P cabin 130HP engine, Five-speed gearbox, double circuit oil brake, and direction assistance
- Chassis
- ISUZU
- Engine
- ISUZU engine, 4HK1N5S
- Power
- 130HP (88 KW)
- Overall Dimension
- 6900X2200X2700 mm
- GVW / Kerb Weight
- 8,700 kg / 3,870 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- 6 speed forward, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 32 rows.
Introduction
ISUZU 4K-ENGINE 5000liters Helicopter refueling truck suitable for helicopter kerosene transportation. with high capacity, reasonable structure, excellent and stable performance, easy loading and discharge, convenient operation and high safety enhancement.
Advantage
- ISUZU chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cublic Meter.
- Easy operation and easy maintenance.
- Euro V ,Euro VI engine meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two year warranty, after the warranty period, we only charge the cost price.
Specifications
ISUZU 4K-ENGINE 5000liters Helicopter refueling truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 6900X2200X2700 mm | |
| GVW / Kerb Weight | 8,700 kg / 3,870 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1N5S | |
| Power | 130HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6 speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000 Litres (1,300 gallons) |
| Tank Material | Aluminium | |
| Liquid to be loaded | Helicopter Kerosene for helicopter | |

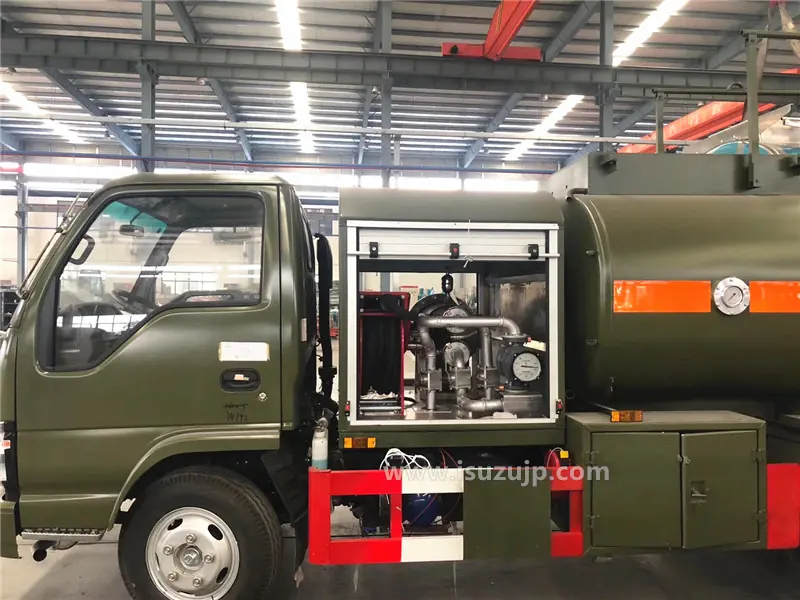

| Tank Top | 1. Top Euro-standard Explosion Proof Manhole, preventing fuel leakage in case the tanker is over rolled. 2. Pressure/vacuum vent integrated, adjusting air pressure in the tank to keep tank safe. 3. Anti-fill sensor. Aluminium handrail on tank top. | |
| Loading | From top manhole or bottom loading system API. With vapor recovery system. | |
| Tank Bottom | Emergent bottom valve(stainless stee) equipped. Preventing fuel leakage in case of accident. | |

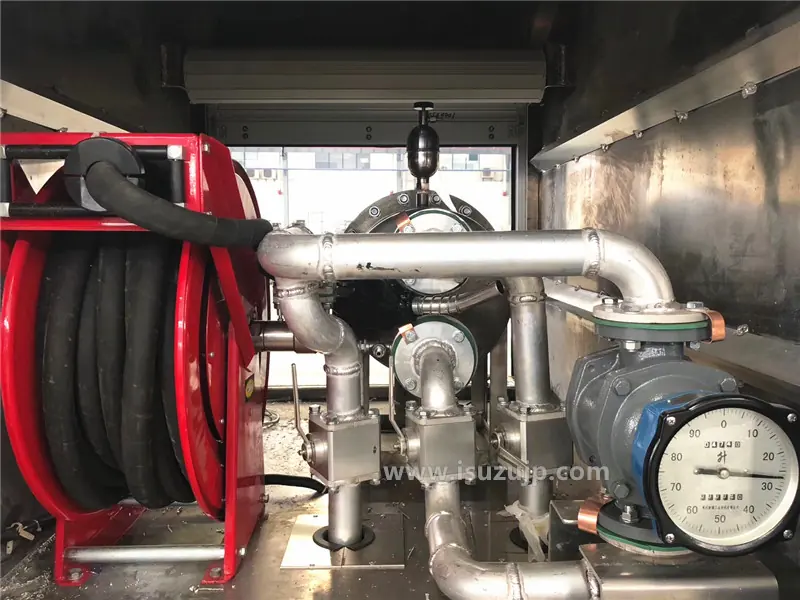

| Pump | Aluminium Fuel pump | |
| Filters | 5 sets filters | |
| Sampler | 1 set | |
| Hose Reel | 1.5″ * 20 meters hose reel with gravity refueling nozzle | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | Tank material could be stainless steel, aluminum (aluminum tanker)…… Imported American mechnical pump Blackmer USA electrical pump Fillrite…. | |
Questions
Questions About The ISUZU 4K-ENGINE 5000liters Helicopter Refueling Truck
What chassis is the ISUZU 4K-ENGINE 5000liters Helicopter Refueling Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this aircraft refueling truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Aircraft Refueling Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU 4K-ENGINE 5000liters Helicopter Refueling Truck
This build is listed as chassis ISUZU with engine ISUZU engine, 4HK1N5S. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
