- ISUZU NJR 3000liters Airport Fuel Truck
Main photo
Aircraft Refueling Truck

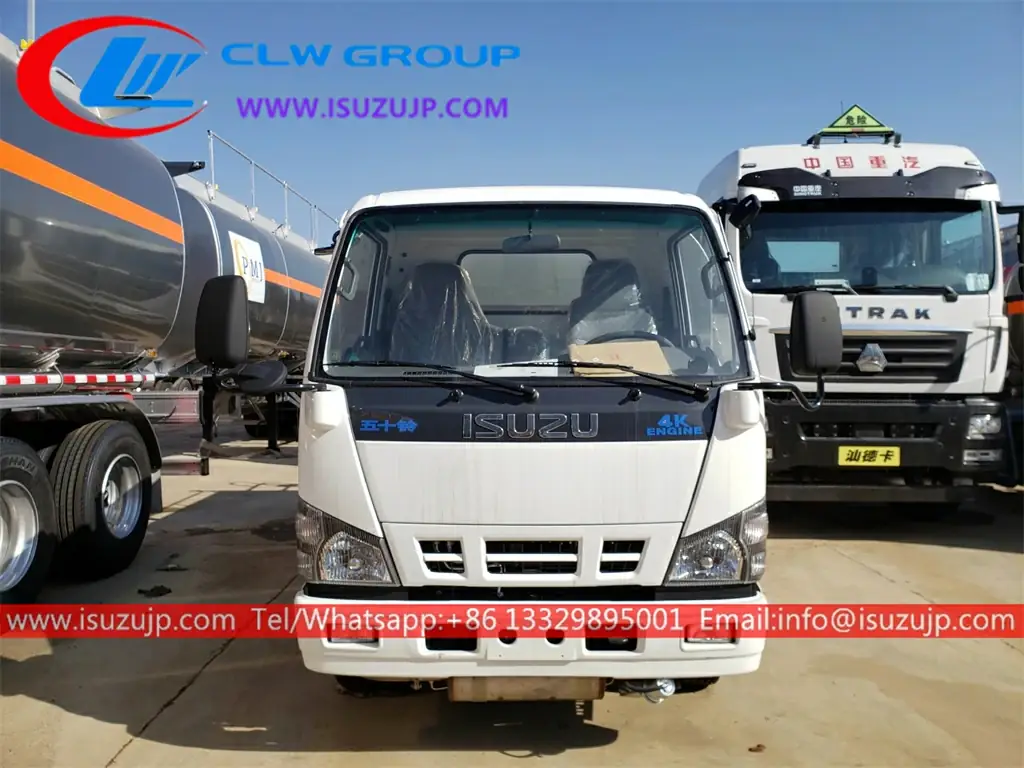

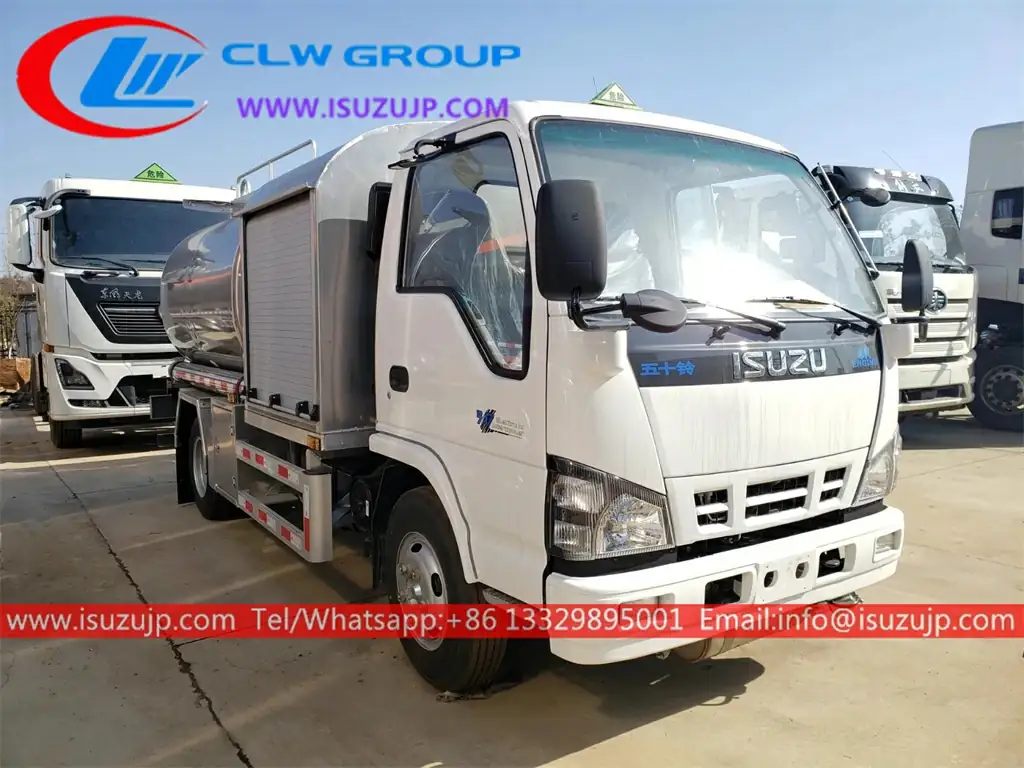

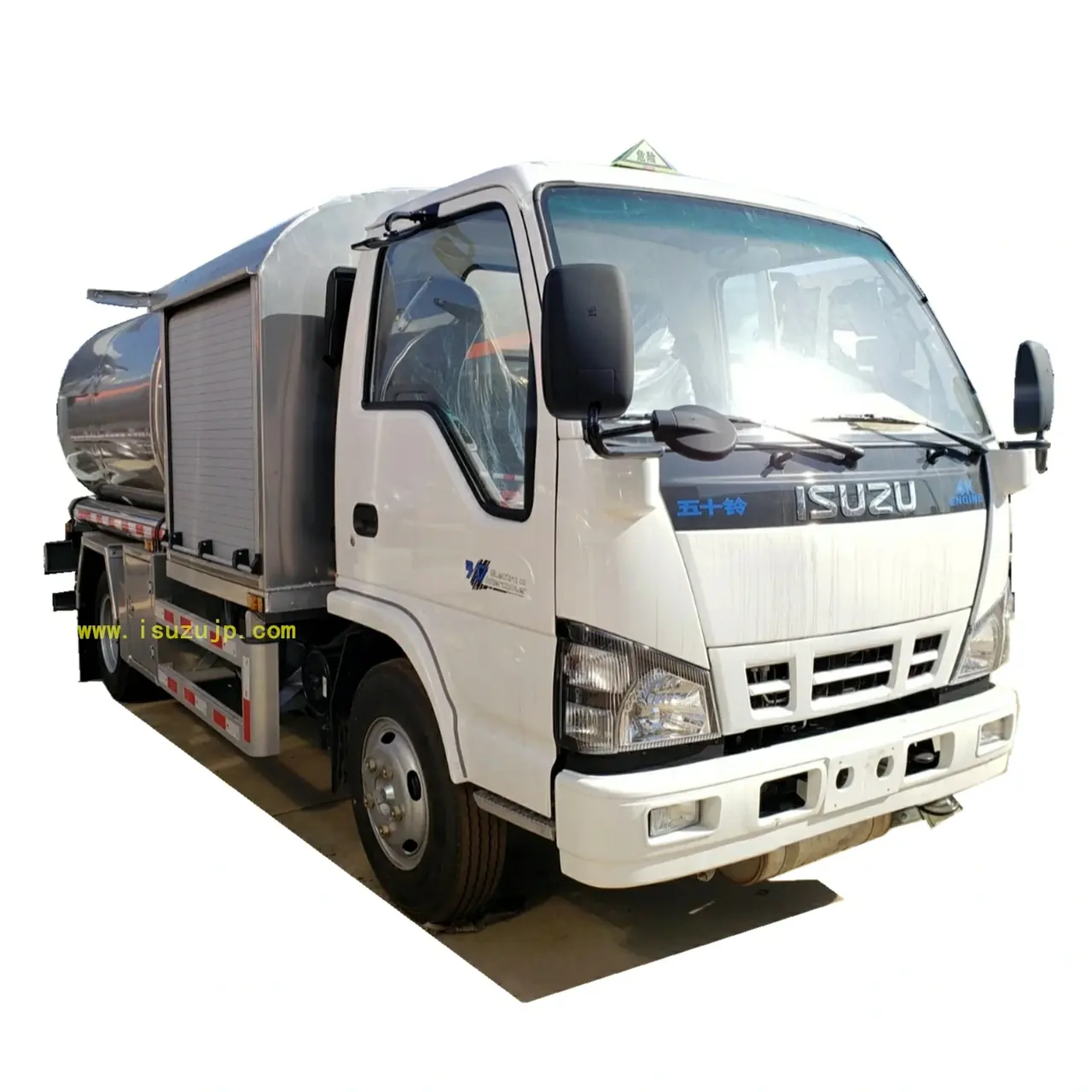

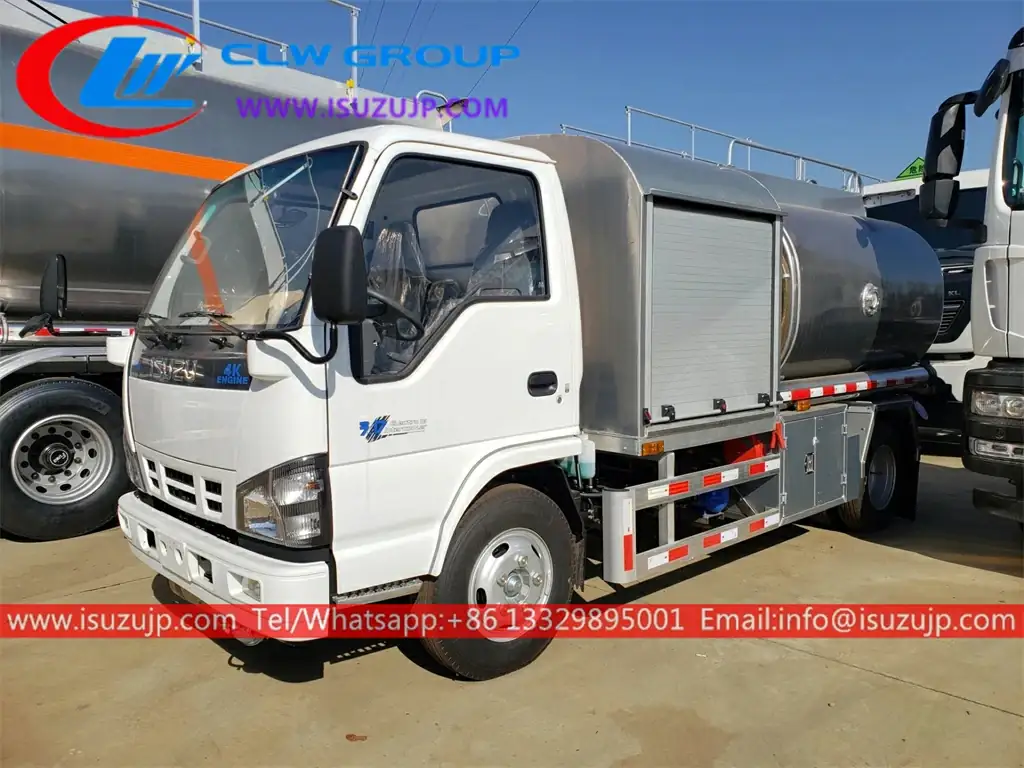

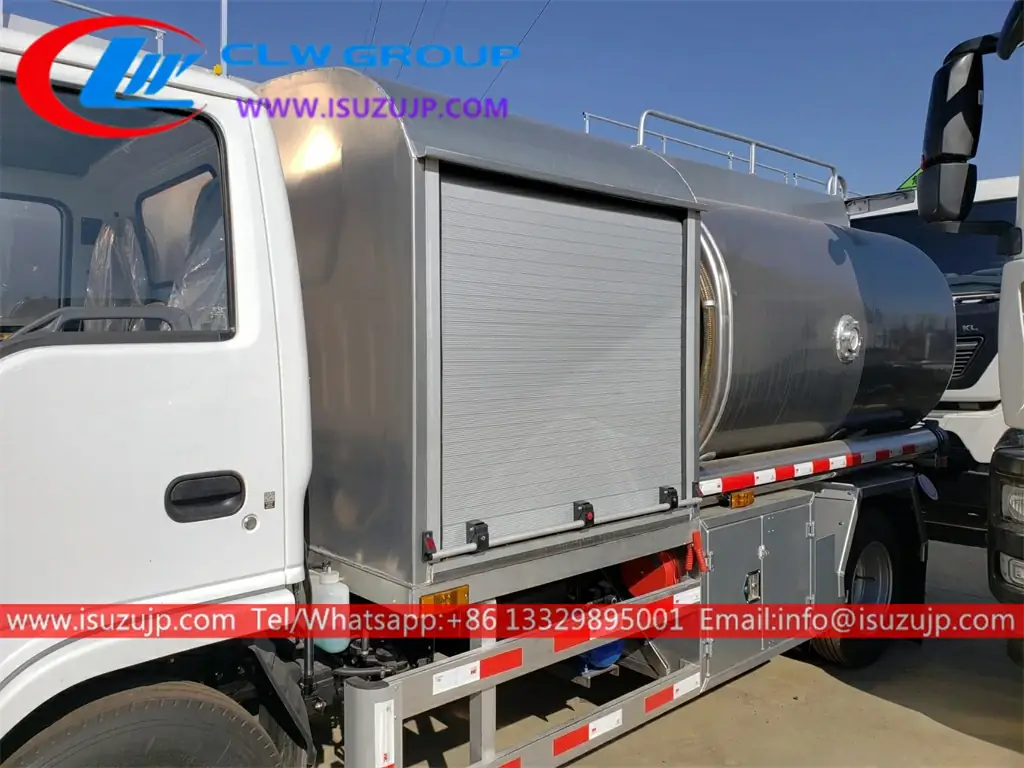

ISUZU NJR 3000liters Airport Fuel Truck
Equipped Isuzu 4K-ENGINE 600P cabin 120HP engine, Five-speed gearbox, double-circuit oil brake, and direct assistance
- Transmission
- Manual type, 6 Forwards and 1 reverse
- Emission
- Euro V
- Front/Rear Axle Loading(kg)
- 2500/4800 kg
- Capacity(cbm/liters)
- 4~5cbm/4000~5000Liters
- Tank Material
- Tank material: Q235 high tensile strength steel.
Specification below is the factory table for this model, reproduced without edits. 37 rows.
Introduction
ISUZU NJR 3000liters airport fuel truck suitable for helicopter kerosene transportation. with high capacity, reasonable structure, excellent and stable performance, easy loading and discharge, convenient operation and high safety enhancement.
Advantage
- ISUZU chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cubic meters.
- Easy operation and easy maintenance.
- Euro V, Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Specifications
ISUZU NJR 3000liters Airport Fuel Truck Specification
| Condition | New condition/LHD/4X2 | |
|---|---|---|
| Chassis | Brand | ISUZU NJR 3000liters airport fuel truck |
| Curb weight(kg) | 5260kg | |
| Wheelbase(mm) | 3360 mm | |
| Dimensions(mm) | 5300X2000X2400 mm | |
| Front/Rear Axle loading(kg) | 2500/4800 kg | |
| Wheel track (front/rear) (mm) | 1880/1800 mm | |
| Front/Rear overhang(mm) | 1430/2370 mm | |
| Approach/Departure angle(°) | 26/20 | |
| Max. driving speed(km/h) | 95 km/h | |
| Clutch | Reinforced diaphragm clutch | |
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Tire | Quantity 6 pcs with one spare tire | |
| Specifications | 700R16 | |
| Transmission | Manual type, 6 Forwards and 1 reverse | |
| Cab | It can accommodate three people. With Air Conditioner | |
| Engine | Brand | Isuzu engine |
| Model | 4KH1-TCG40 | |
| Fuel type | Diesel | |
| Displacement(ml) | 2999 ml | |
| Power(kw) | 88kw | |
| Horsepower(HP) | 120HP | |
| Cylinder number | 4 | |
| Emission standard | Euro V | |
| Fuel Tank | ||
| Fuel tank | Capacity(cbm/liters) | 4~5cbm/4000~5000Liters |
| Tank material | Tank material: Q235 high tensile strength steel. | |
| Thickness(mm) | 5mm of the tank and 6mm of endplate | |
| Compartment No. | 1 | |
| Baffle | 1 No,4 mm carbon steel | |
| Manhole cover | 1 manhole cover, ∮500mm 1 set with breather valve | |
| Bottom Valve | 1 set of API Pneumatic Bottom Valve | |
| Discharging valve | 1 set ∮ discharging valve | |
| Handrail | Two sides | |
| Ladder | At rear of the tank | |
| Painting | Color and design as customer’s requirement | |
Questions
Questions About The ISUZU NJR 3000liters Airport Fuel Truck
What chassis is the ISUZU NJR 3000liters Airport Fuel Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this aircraft refueling truck?
The factory table lists Front/Rear Axle Loading(kg) 2500/4800 kg. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Aircraft Refueling Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NJR 3000liters Airport Fuel Truck
This build is listed as transmission Manual type, 6 Forwards and 1 reverse with emission Euro V. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
