Main photo
Side Loader Garbage Truck

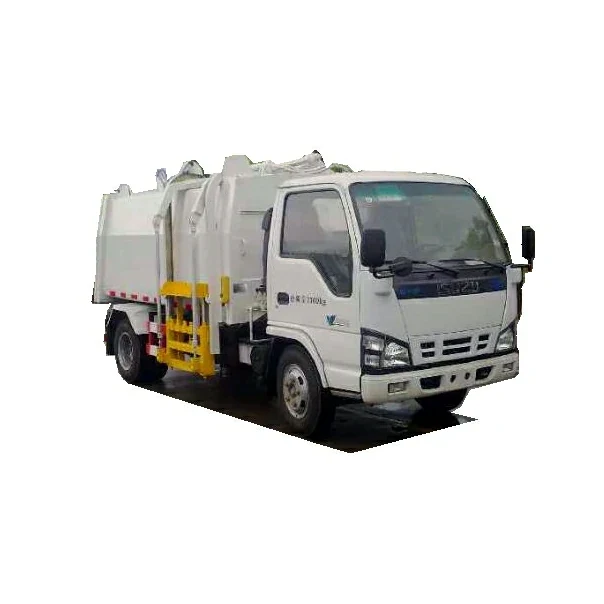

ISUZU 5t Side Loader Rubbish Truck
4×2 ISUZU 4k-engine chassis, MSB 5-shift manual gearbox, 120HP diesel engine, high strength steel swing arm system, Famous brand Hydraulic control device and electric control box
- Chassis
- ISUZU 4K-ENGINE
- Engine
- Dongfeng Chaoyang engine
- Power
- 120 Hp (88 KW)
- Overall Dimension
- 6000X2000X2500 mm
- GVW / Kerb Weight
- 7,300 kg / 3,500 kg
- Drive Type
- 4X2, left hand or right hand drive
- Transmission
- 5 speed forward, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 25 rows.
ISUZU 5t Side Loader Rubbish Truck Description
- ISUZU side loader rubbish truck is mainly used in various environmental sanitation municipalities and large factories and mines departments to carry all kinds of garbage. It can also transport ash, sand, stone, soil and other bulk construction materials, and it can also transport ore or coal in mines or coal mines.
- It consists of a sealed garbage compartment, a hydraulic system and an operating system. Lifting oil cylinders (2) trash compartments can be lifted up and down, and the next working cycle time is less than or equal to 50S.
Advantage
- ISUZU 4K-ENGINE chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- A truck can be equipped with dozens of trash cans, which can realize the joint operation of one truck and multiple trash cans, and circular transportation, which fully improves the transportation capacity of the vehicle.
- It is especially suitable for short-distance transportation, such as the cleaning and transportation of urban garbage by the environmental sanitation department.
- It can also be equipped with other functions, side-mounted compactor garbage truck, Kitchen Waste Disposal Truck, Waste Food Collection Truck, food waste truck.
Specification
ISUZU 5t side loader rubbish truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU 4K-ENGINE | |
| Overall Dimension | 6000X2000X2500 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,500 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Dongfeng Chaoyang engine | |
| Power | 120 Hp (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand or right hand drive |
| Transmission | 5 speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Waste Box Capacity | 5m³ |
| Waste Box Material | Carbon steel | |
| All other standard accessories: Tool kit, English manual | ||
| Optional | Left side loading or Right side loading. Automated side loading equipment could be designed according to the size of dustbin. | |
Working Parameter
ISUZU 5t Side Loader Rubbish Truck Specification
| Optional volume | 3-15 cubic | Bucket time Less than 10 seconds |
|---|---|---|
| Bucket type | Plastic bucket or iron bucket | Unloading time Less than 15 seconds |
| Hanging bucket size | 120 liters, 240 liters | Operating position Car right |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 5t Side Loader Rubbish Truck
What chassis is the ISUZU 5t Side Loader Rubbish Truck built on?
It is built on ISUZU 4K-ENGINE. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this side loader garbage truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Side Loader Garbage Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU 5t Side Loader Rubbish Truck
This build is listed as chassis ISUZU 4K-ENGINE with engine Dongfeng Chaoyang engine. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
