- ISUZU NKR 5m3 Kitchen Food Waste Disposal Truck

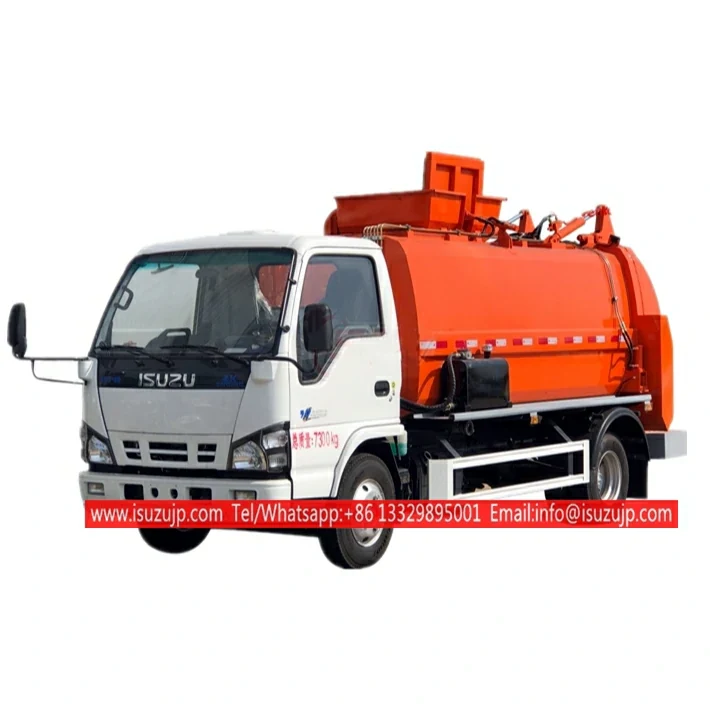

Main photo
Side Loader Garbage Truck
ISUZU NKR 5m3 Kitchen Food Waste Disposal Truck
5m3 kitchen food waste disposal truck, 4×2 ISUZU NKR chassis, MSB 5-shift manual gearbox, 120HP diesel engine, high strength steel swing arm system, Famous brand Hydraulic control device and electric control box
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 130 Hp (95 KW)
- Overall Dimension
- 6650X2200X2680 mm
- GVW / Kerb Weight
- 7,300 kg / 4,600 kg
- Drive Type
- 4X2 left-hand drive
- Transmission
- ISUZU gearbox, no overhaul within 500,000km
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 36 rows.
ISUZU NKR 5m3 Kitchen Food Waste Disposal Truck Description
- ISUZU kitchen food waste disposal truck also called waste food collection truck, food waste collection vehicle, kitchen swill collection vehicle, etc. is designed to collect and disposal food waste from the kitchen.
- Appears because of strict requirements in garbage sorting. Food waste is a kind of special garbage mixing with liquid and solid, which needs to be transported by a sealed container. Food waste garbage truck has sealed tank and lifting device to lift dustbin.
- Stainless steel tanker is optional; the heating system is optional to suit cold winter.
Advantage
- ISUZU NKR 600P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- A truck can be equipped with dozens of trash cans, which can realize the joint operation of one truck and multiple trash cans, and circular transportation, which fully improves the transportation capacity of the vehicle.
- It is especially suitable for short-distance transportation, such as the cleaning and transportation of urban garbage by the environmental sanitation department.
- It can also be equipped with other functions, side-mounted compactor garbage truck, Kitchen Waste Disposal Truck, Waste Food Collection Truck, food waste truck.
Specification
ISUZU NKR 5m3 kitchen food waste truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 6650X2200X2680 mm | |
| GVW / Kerb Weight | 7,300 kg / 4,600 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 130 Hp (95 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2 left-hand drive |
| Transmission | ISUZU gearbox, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5 m³ |
| Lifting Device | Hydraulic controlled, suitable for lifting 240 L square dustbin | |
| Rear Lid | Hydraulic open to the discharge | |
| Discharging | Ejection plate pushing waste out | |
| Waste Water Tank | Under tank(filter screen at bottom of the tank to separate solid and liquid waste.) | |
| Cleaning System | With water tank and motor controlled water pump, to clean tank | |
| Heating system | Optional for use in cold winter | |
| All other standard accessories: Tool kit, English manual…… | ||
| Optional | Various rear loading mechanisms: container lifting; hopper flip; skip loader… Electronic operating system | |
Working Parameter
【Vehicle technical parameters】
| Tank volume (m3) | 3-12 cubic meters optional | Tank material Carbon steel Q235, stainless steel 304 |
|---|---|---|
| The structure inside the tank | Dry-wet solid-liquid separation | The thickness of tank (mm) 4-6mm |
| Unloading method | Self-unloading, pushing plate, twisting dragon | Feeding method Hydraulic bucket flip |
| Tailgate leakproof | Thickened rubber + hydraulic lock | Bucket method Chain lifting, lever lifting |
| Control position | Cab, right side of the body | Hydraulic pressure (MPa) 16 |
| control method | Manual + electric control, PLC automatic control | Hydraulic pump brand Long source and large flow |
| Cleaning device | Hydraulic pump + plunger high-pressure pump + 7-meter cleaning gun | Multi-way valve brand Jiangsu Electromagnetic |
| safety devices | Rear door lock and rear cover switch interlock to prevent misoperation | Hydraulic cylinder brand Yantai future |
| Optional configuration | PLC one-button operation, optional 304 stainless steel box, optional sealed twisted dragon discharge, etc. barrel weighing function can count the number of barrels, single barrel weighing, set the company name of the barrel collection, GPS positioning of the barrel collection, data background upload, display screen cab monitoring, and other functions. If customers have other unconventional requirements, they can organize technical solutions and customize production according to requirements. |
Structure Diagram
Round tank process: cylindrical tank body with tie rod hoist, double cylinder hydraulic lifting and self-unloading at the bottom of the tank body, hydraulic opening and locking of the tank tail door + manual locking device, solid and liquid separation device inside At the end of the tank, a liquid self-flow valve, a liquid level window, a toolbox and a handwashing device are installed.
Square tank process: square box body, equipped with chain hoist, no lifting of the box body, standard use of hydraulic push plate discharge, the tank tail door is opened hydraulically, the standard hydraulic motor with high pressure cleaning pump, equipped with 7 meters mobile cleaning The gun and the box are equipped with a solid-liquid separation filter plate, with a lower discharge valve, and a clean water tank.
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NKR 5m3 Kitchen Food Waste Disposal Truck
What chassis is the ISUZU NKR 5m3 Kitchen Food Waste Disposal Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this side loader garbage truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
