Main photo
ISUZU Wrecker Tow Truck
ISUZU 6 Tons One Towing Three Wrecker Truck

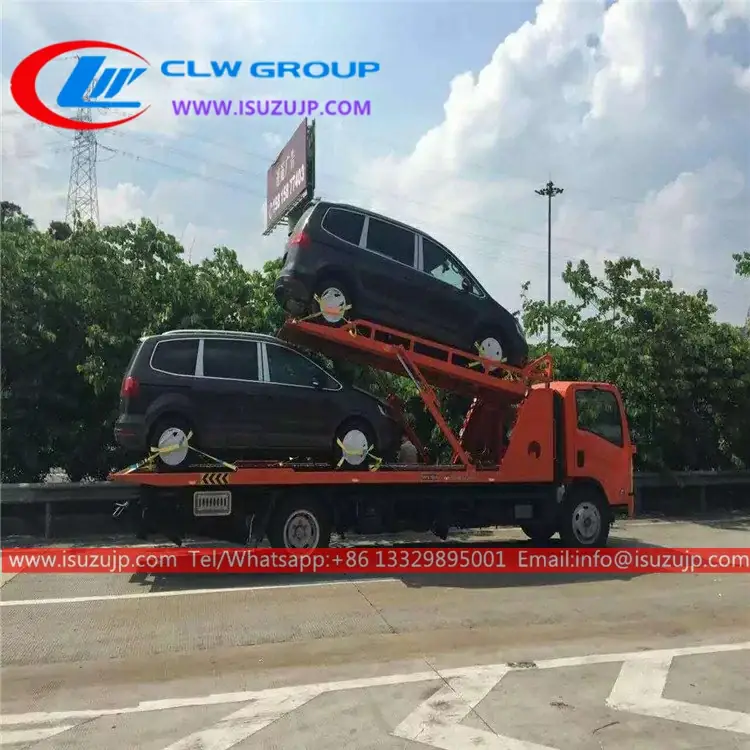

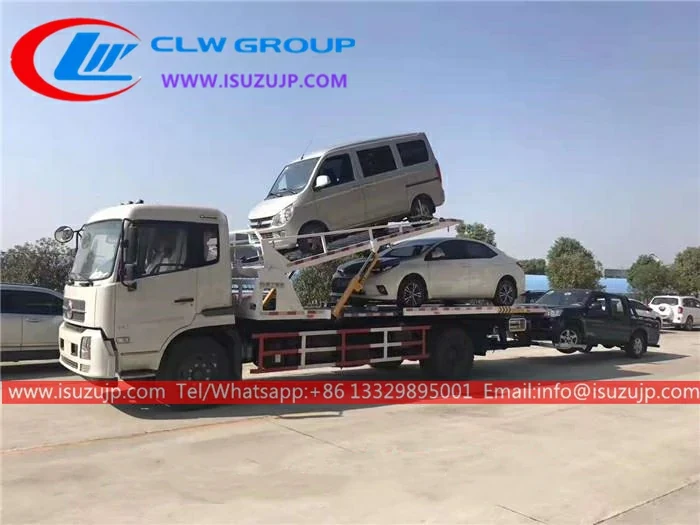

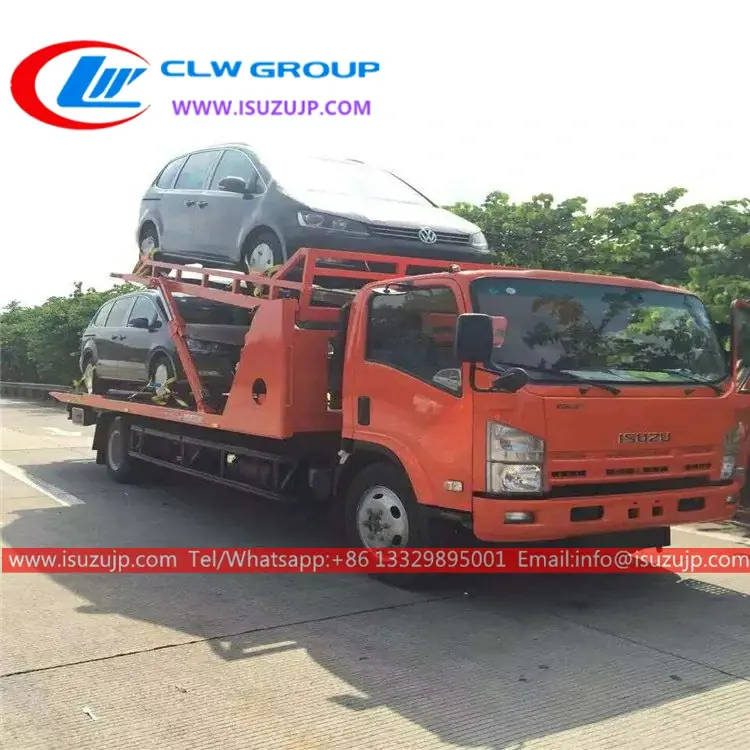

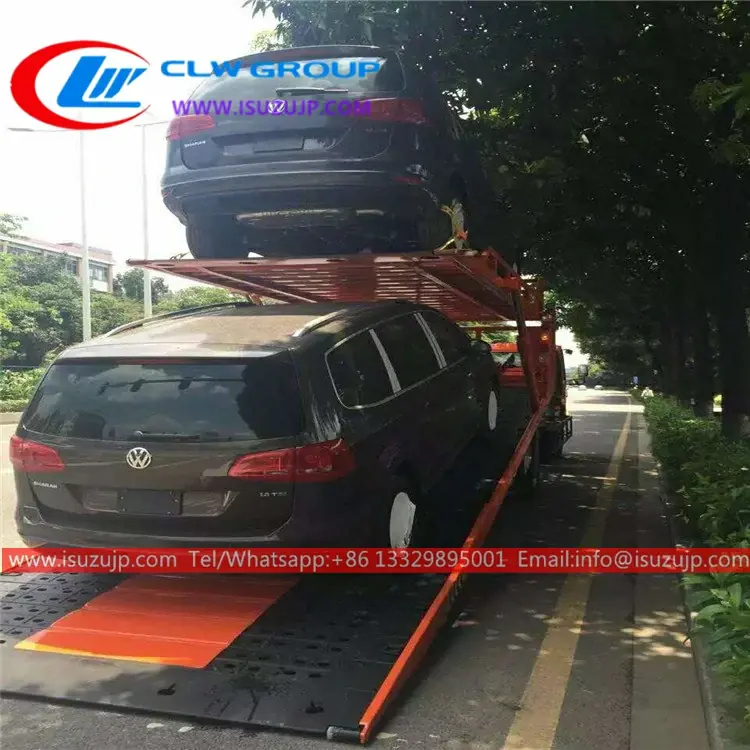

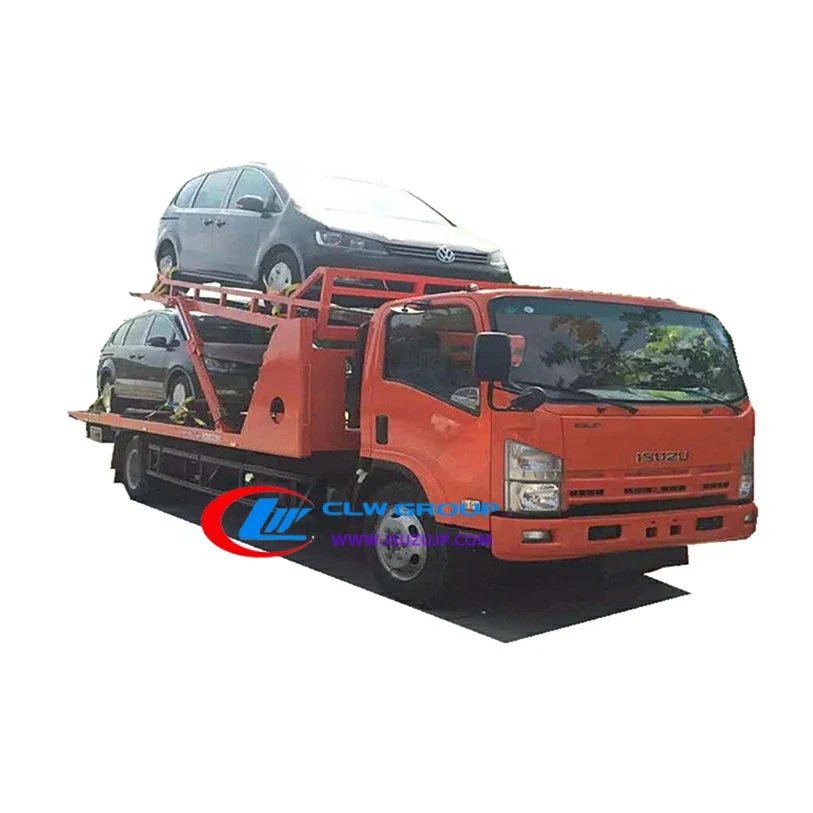

ISUZU 6 tons one towing three wrecker truck, Left Hand Drive model 4×2 chassis, MLD 6-shift manual gearbox, ISUZU 190 HP diesel engine, the long platform with hydraulic cylinder working
- Transmission
- MLD 6 forward,1 reverse, manual operated
- Rear Boom Towing Weight (kg)
- Appro × 5000
- Product Origin
- China
- Body Size
- 960x2550x2800mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 20 rows.
ISUZU 6 Tons One Towing Three Wrecker Truck Description
- ISUZU one towing three wrecker truck also called tow wrecker truck, Flatbed recovery vehicle, Wrecker towing trucks used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road.
- It is suitable for medium and small-sized cargo, cars, and other special vehicles, which are allowed within the technical parameters of this kind.
Advantage
- 100% custom-made
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- 3 Ton to 50 Tons available
- Short delivery time 7~30 days
- A telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency systems, etc.
- Easy operation & Easy maintenance
Specification
Complete Vehicle Parameter
| Vehicle | ISUZU 6 tons one towing three wrecker truck |
|---|---|
| Overall dimensions (mm) | 9600×2550×2800 |
| Top platform size (mm) | 4600×2200 |
| Bottom platform size (mm) | 7200×2400 |
| Gross Vehicle Weight (kg) | Appro × 12800 |
| Net weight (kg) | Appro × 7500 |
| Flatbed towing weight (kg) | Top platform 3tons Bottom platform 6tons |
| Rear Boom towing weight (kg) | Appro × 5000 |
| Wheel base (mm) | 5200 |
| Max speed (Km/h) | 99 |
| Standard configuration | – 6 tons hydraulic winch 1 set – Auxiliary wheel 2pcs – Rear towing boom assembly 1 set（5tons） – Steel wire rope 25m – Bundle belt 4pcs – Rear tail lights LED,both sides electronic lights. – Tool box |
| Special performance | 1. Towing three vehicle. 2. Hydraulic operation lever control flatbed and carriage arm. 3. Winch speed : 8m/min. 4. Flatbed minimum tilt angle: 8° |
| Chassis Parameter | |
| Cabin | Row and a half cab , power steering, air conditioner, 2-3 passengers,left hand drive. |
| Traction system | 4×2 |
| Engine | Brand: ISUZU Model: 4HK1-TC51, 190hp Fuel type: diesel Displacement: 5199ml Emission standard : Euro V |
| Transmission | MLD 6 forward,1 reverse, manual operated |
| Tire model | 235/75R17.5 （Optional 825R20 tire add $597） |
| No.of tires | 6pcs, and a spare tire |
| Note | Cruise control is standard for Euro 6, and Euro 5 does not have cruise control |
ISUZU Flatbed Tow Truck Flatbed Recovery Vehicle Advantage
- Loading surface of the platform is formed by stamping die once.
- Endurance is strong and the shape is not deformed.
- Plate surface is smoother, the structure is more professional and the strength is higher.
- Hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
- It integrates multiple functions such as lifting, carrying, dragging, pulling and so on.
- Hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
Questions
Questions About The ISUZU 6 Tons One Towing Three Wrecker Truck
What chassis is the ISUZU 6 Tons One Towing Three Wrecker Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu wrecker tow truck?
The factory table lists Rear Boom Towing Weight (kg) Appro × 5000. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
