ISUZU Wrecker Tow Truck

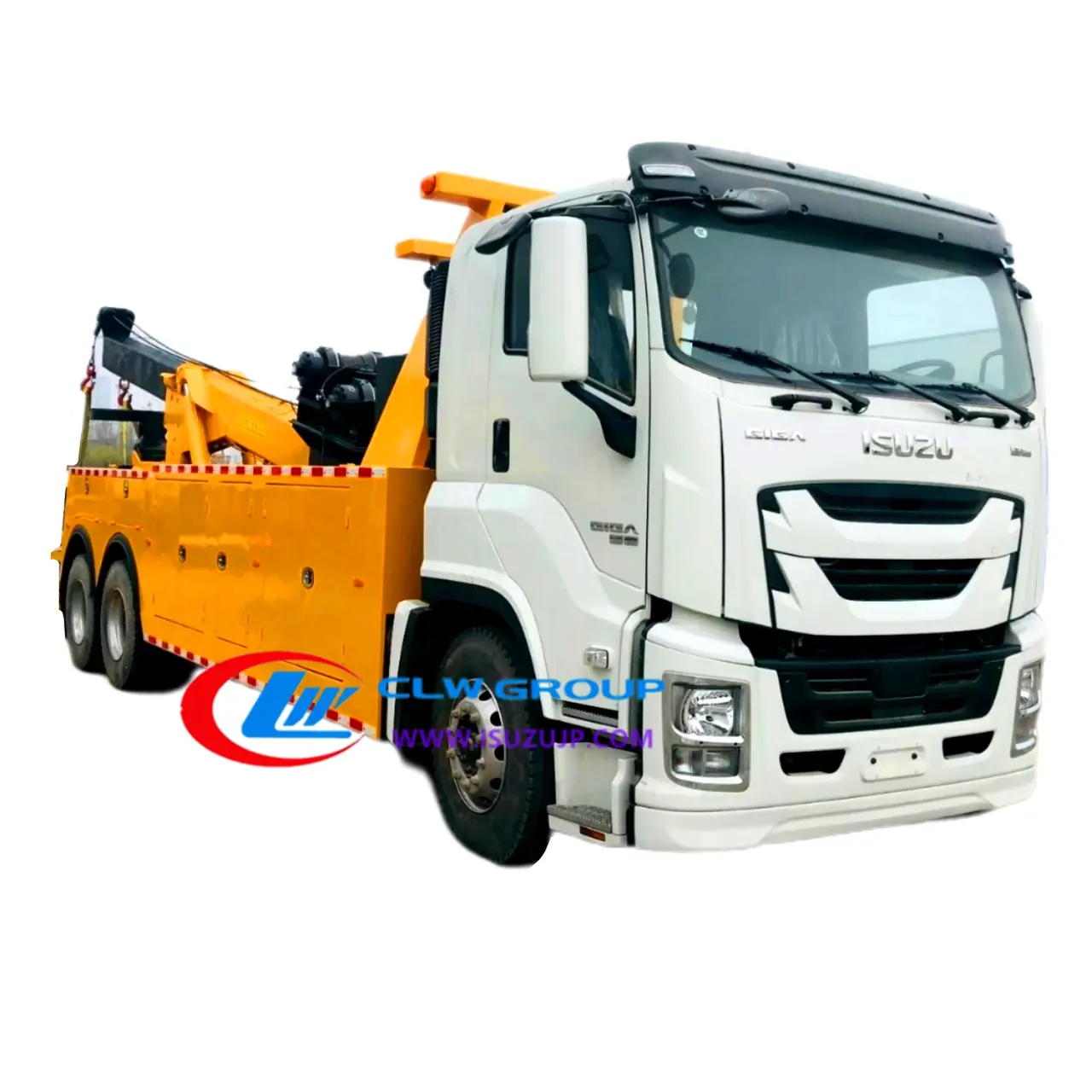

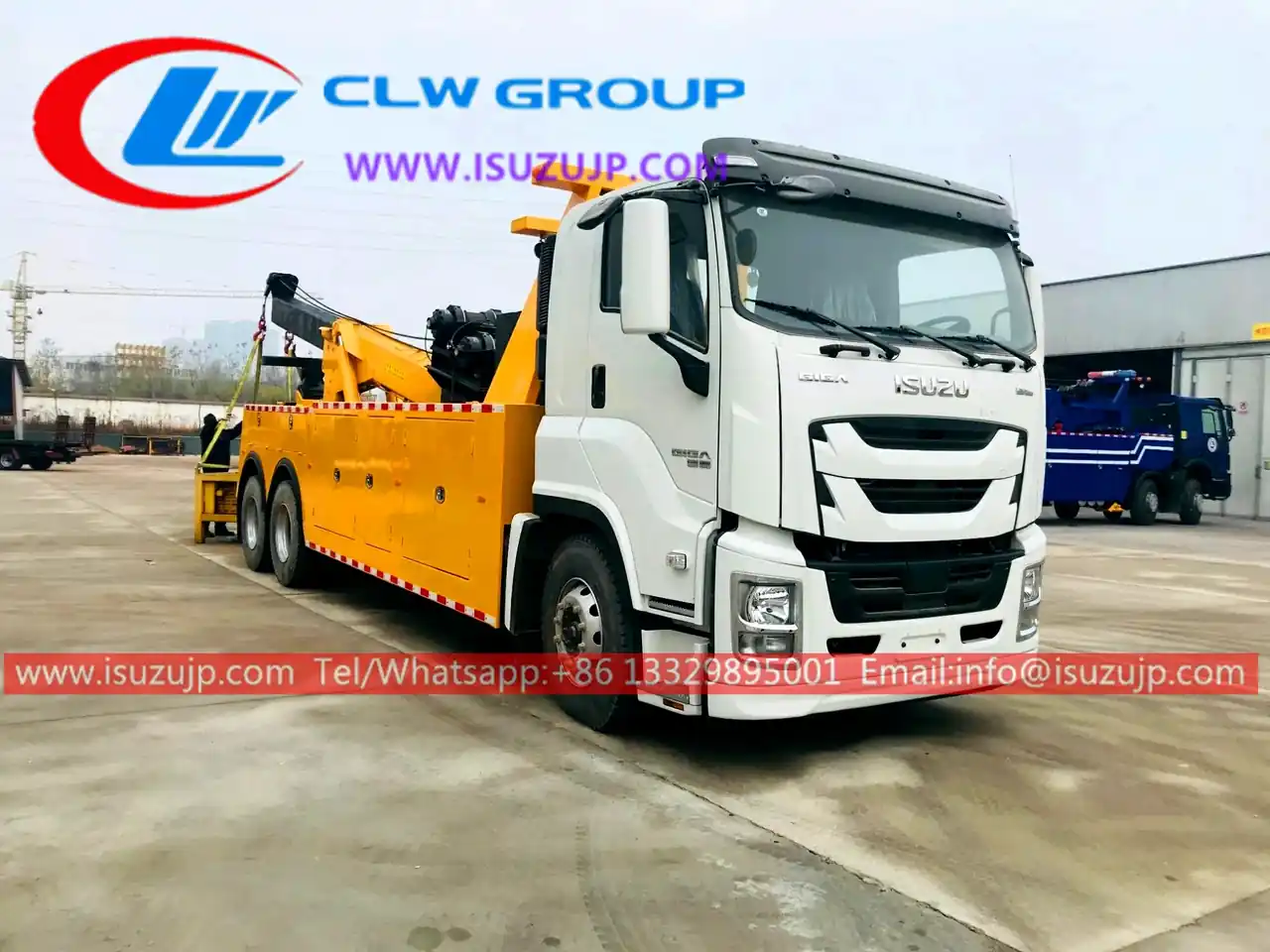

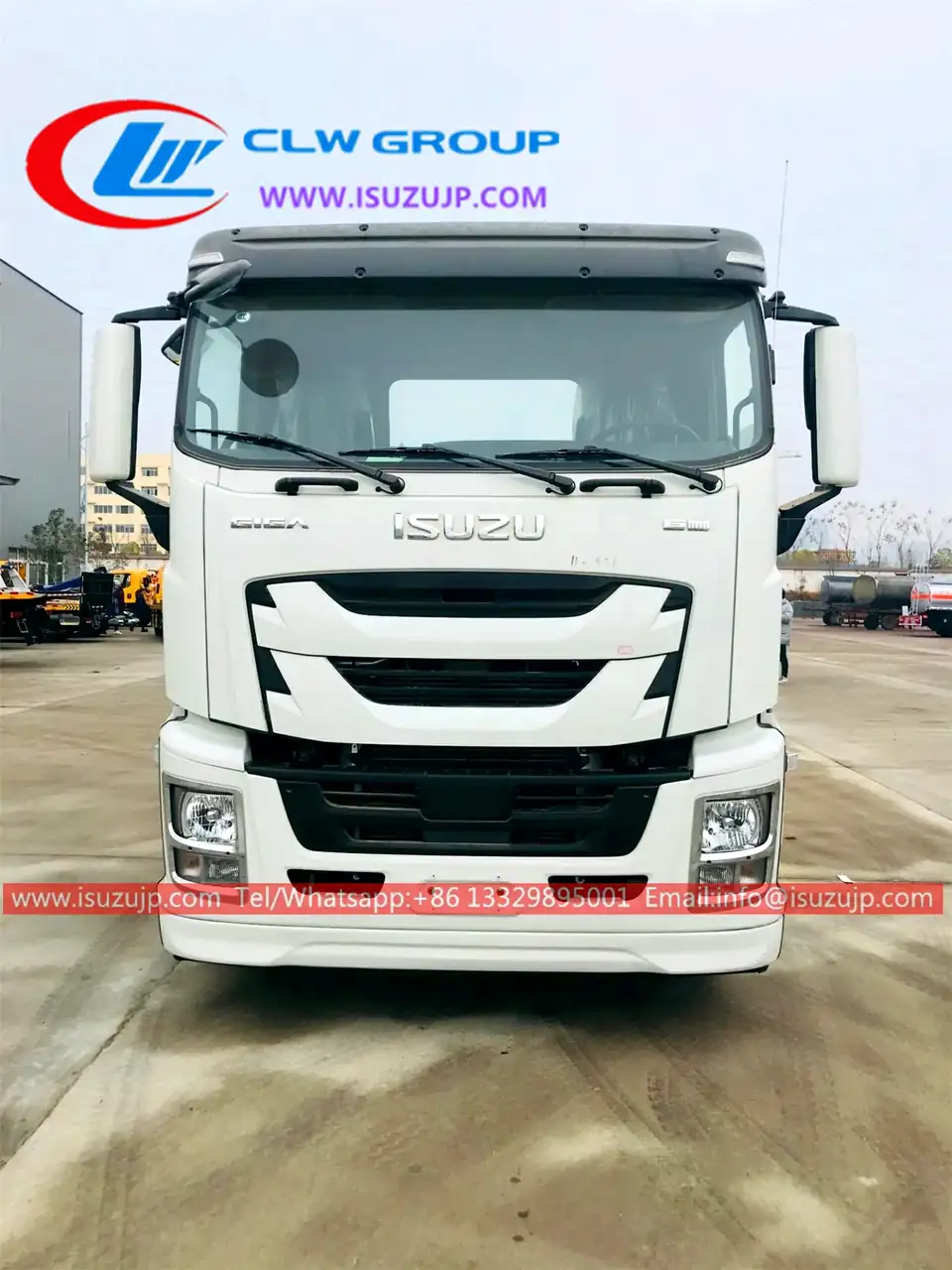

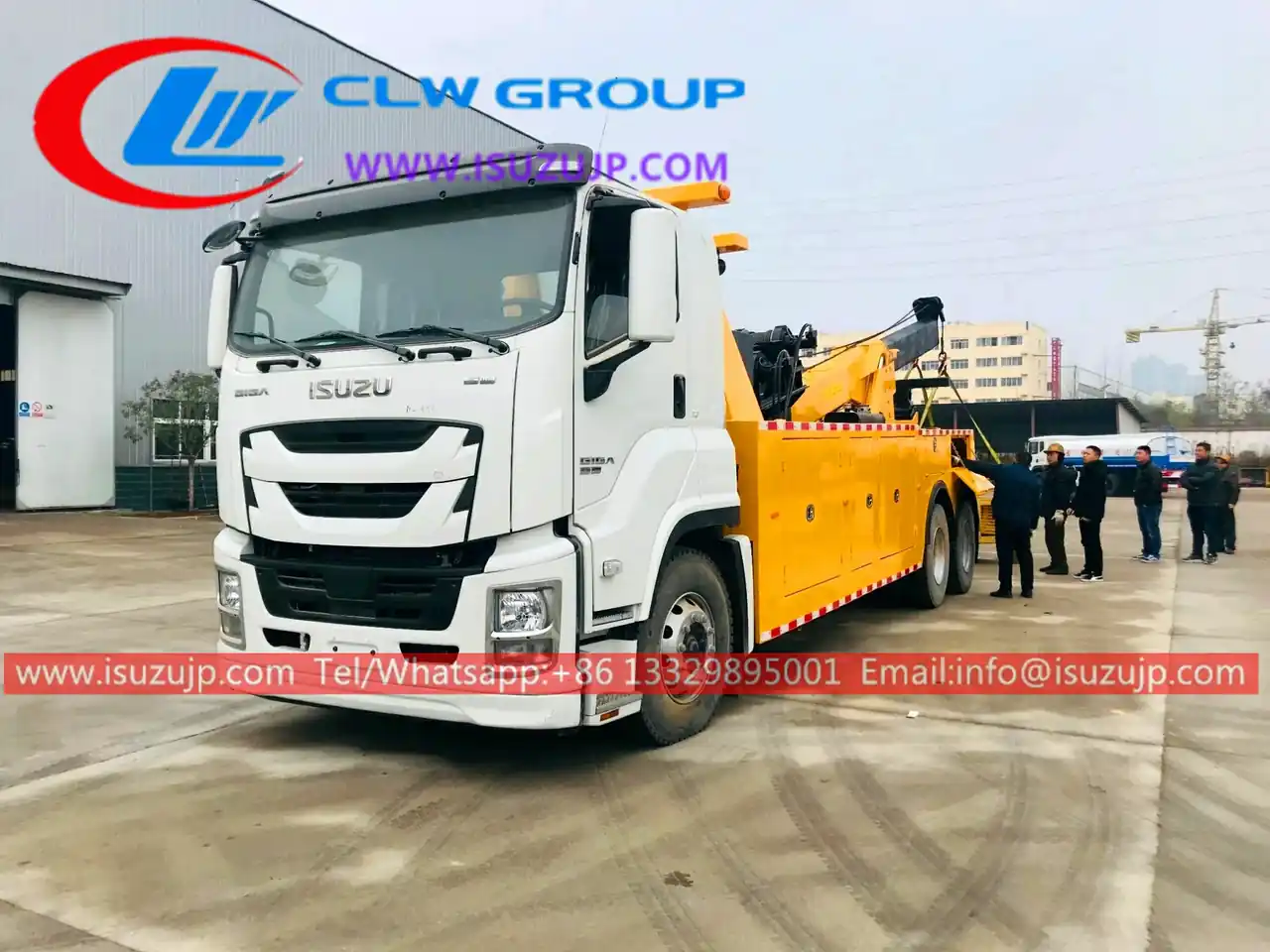

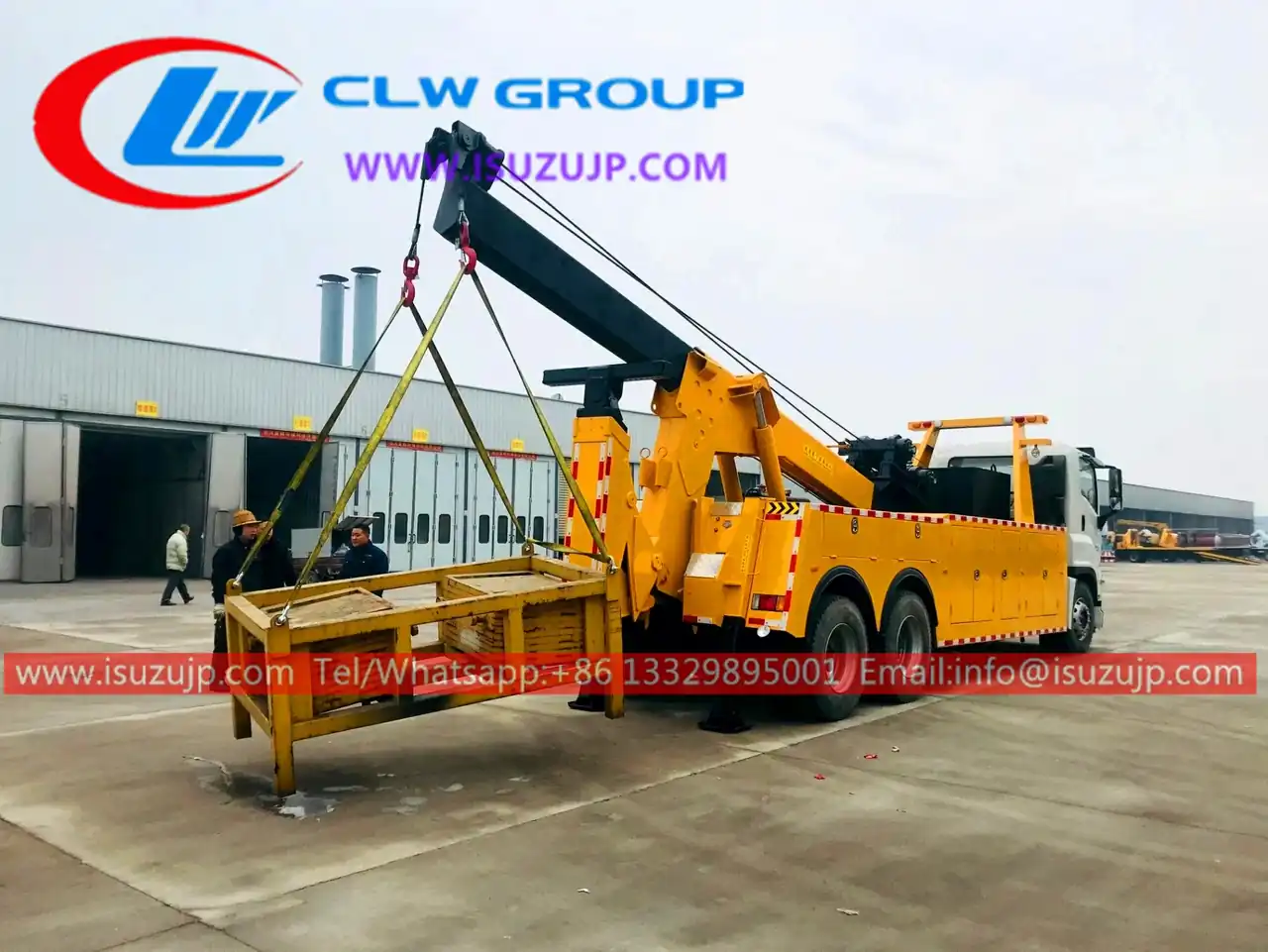

ISUZU GIGA 20 Ton Rotator Wrecker for Sale
ISUZU GIGA 20-ton wrecker towing truck, Left Hand Drive model 6×4 chassis, FAST 12-shift manual gearbox, ISUZU 350 HP diesel engine,wheel-lift units
- Max Lifting Capacity(kg)
- 20000
- Max. Lifting Height (mm)
- 6060
- Max. Tilting Angle of Boom (°)
- 30
- Max. Lifting Mass (kg)
- 20000
- Rating Lifting Mass (kg)
- 7500
- Rating Lifting Mass Fully Extended(kg)
- 4600
- Dimension(Lx W XH)(unloaded)(mm)
- 10370×2496×3250
- Fuel Tanker Capacity(L)
- 400L aluminum oil tank
Specification below is the factory table for this model, reproduced without edits. 33 rows.
ISUZU GIGA 20 Ton Rotator Wrecker Description
- ISUZU GIGA 20 ton rotator wrecker also called multi-function towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker
- is used to transport motor vehicles or vehicles that are broken down.
- can supply recovery trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30ton,40ton,50tons.Towing capacity is optional.
Advantage
- 100% custom-made
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- 3 Ton to 50 Tons available
- Short delivery time 7~30 days
- A telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency systems, etc.
- Easy operation & Easy maintenance
Specification
SPECIFICATION FOR BOOM
| Max Lifting Capacity(kg) | 20000 | |
|---|---|---|
| Max. lifting height (mm) | 6060 | |
| Max. tilting angle of boom (°) | 30 | |
| Rating pulling force of winch(Ton) | 20 | |
| Quantity of winch (unit) | 2 | |
| SPECIFICATION FOR UNDERLIFT | ||
| Max. lifting mass (kg) | 20000 | |
| Rating lifting mass (kg) | 7500 | |
| Rating lifting mass fully extended(kg) | 4600 | |
| Max effective length of underlift(mm) | 3775 | |
| Extension stroke(mm) | 2090 | |
| SPECIFICATION FOR CHASSIS | ||
| Dimension(Lx W xH)(unloaded)(mm) | 10370×2496×3250 | |
| Approaching angle/Departure angle(°) | 16/18 | |
| Overhang(front/rear) (mm) | 1500/1670 | |
| Wheel base (mm) | 5800+1400 | |
| Max speed(km/h) | 102 | |
| Curb weight(kg) | 19170 | |
| Engine(Steyr technology, made in China) | Model | 6UZ1-60,water-cooled,four strokes,6 cylinders in line with water cooling, turbocharged and intercooling, directly injection |
| Fuel type | Diesel | |
| Power, max(kw/rpm) | 350HP | |
| Emission | EURO V | |
| Fuel tanker capacity(L) | 400L aluminum oil tank | |
| Transmission | Model | FAST 12 speeds forward and 1 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Steering system | Model ZF8118 | |
| Front axle | 7T | |
| Rear axle | 26T | |
| Tire | 12.00R20 (Radial Tyre) | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cabin | GIGA New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | |
ISUZU Flatbed Tow Truck Flatbed Recovery Vehicle Advantage
- Loading surface of the platform is formed by stamping die once.
- Endurance is strong and the shape is not deformed.
- Plate surface is smoother, the structure is more professional and the strength is higher.
- Hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
- It integrates multiple functions such as lifting, carrying, dragging, pulling and so on.
- Hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
Questions
Questions About The ISUZU GIGA 20 Ton Rotator Wrecker for Sale
What chassis is the ISUZU GIGA 20 Ton Rotator Wrecker for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu wrecker tow truck?
The factory table lists Max Lifting Capacity(kg) 20000. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Wrecker Tow Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU GIGA 20 Ton Rotator Wrecker for Sale
This build is listed as max lifting capacity(kg) 20000 with max. lifting height (mm) 6060. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
