Isuzu Road Sweeper Truck

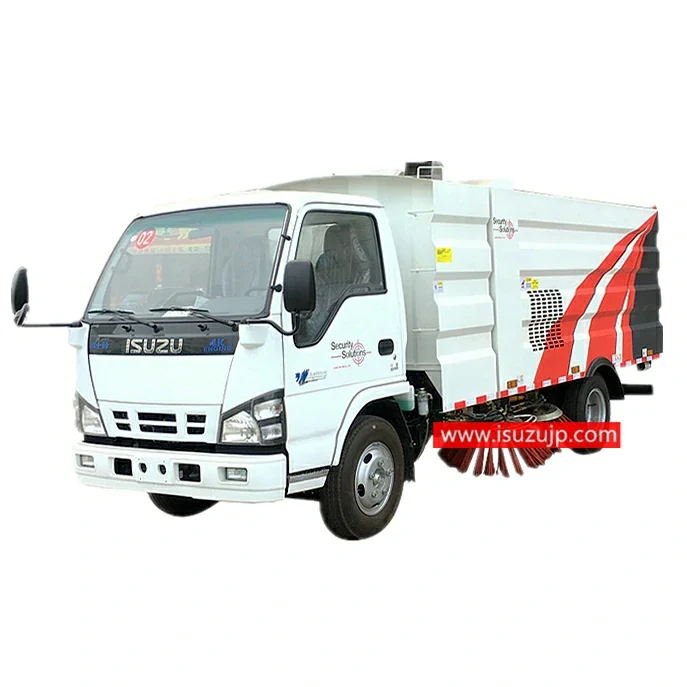

ISUZU 7cbm Street Sweeper Vacuum Truck
ISUZU 600P 4×2 chassis, MSB 5-shift manual gearbox, 120HP diesel engine, stainless steel 5m3 dust bin and 2m3 clean water body, 4 brushes system
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 120HP (88 KW)
- Overall Dimension
- 7000X2300X2800 mm
- GVW / Kerb Weight
- 10,800 kg / 6,870 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- ISUZU gear box, no overhaul within 500,000 km
- Emission
- Euro IV
Specification below is the factory table for this model, reproduced without edits. 29 rows.
ISUZU 7cbm Street Sweeper Vacuum Truck Description
- ISUZU street sweeper vacuum truck also called street sweeper, vacuum sweeper, road sweeping truck, street sweeping truck, road cleaning vehicle
- A road sweeper is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas.
- This unit shall be suitable for dry-type cleaning job as well as dust suppression with water spray in the roadside and narrow lanes.
- CHENGLI road sweeper truck uses whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU auxiliary engine, efficiently avoiding secondary pollution.
Advantage
- ISUZU 4K-ENGINE 600P chassis, no overhaul within 500,000 km.
- ISUZU engine, super powerful; reliable performance.
- Nice shape, rational structure
- Italy imported high-pressure pump, super powerful, efficient pump in and out Strong, durable, perfect performance.
- Road Sweeper body capacity from 2 to 16 Cubic Meter.
- Easy operation and easy maintenance.
- Virious types of refuse container lifters are available.
Specification
ISUZU 7cbm street sweeper vacuum truck ( 5 CBM dustbin & 2 CBM water tank )
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 7000X2300X2800 mm | |
| GVW / Kerb Weight | 10,800 kg / 6,870 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 120HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000 km | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | Stainless Steel |
| Dustbin Capacity | 5 CBM | |
| Dustbin Material | Stainless Steel | |
| Water Tank Capacity | 2,000 Litres (500 gallons) | |
| Sweeping Capacity | 42,000 m³/h | |
| Sweeping Speed | 3-15 km/h | |
| Max Sweeping Width | 2800 mm | |
| Brooms | 2 sets at each side | |
| Auxiliary Engine | JMC engine (ISUZU technology) 77 HP (57 KW), super powerful | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | Backup alarm can be equipped. Camera can be equipped. Air blower can be of stainless steel. | |
Road Sweeper Accessories,tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU 7cbm Street Sweeper Vacuum Truck
What chassis is the ISUZU 7cbm Street Sweeper Vacuum Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu road sweeper truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
