Main photo
ISUZU Aerial Platform Truck

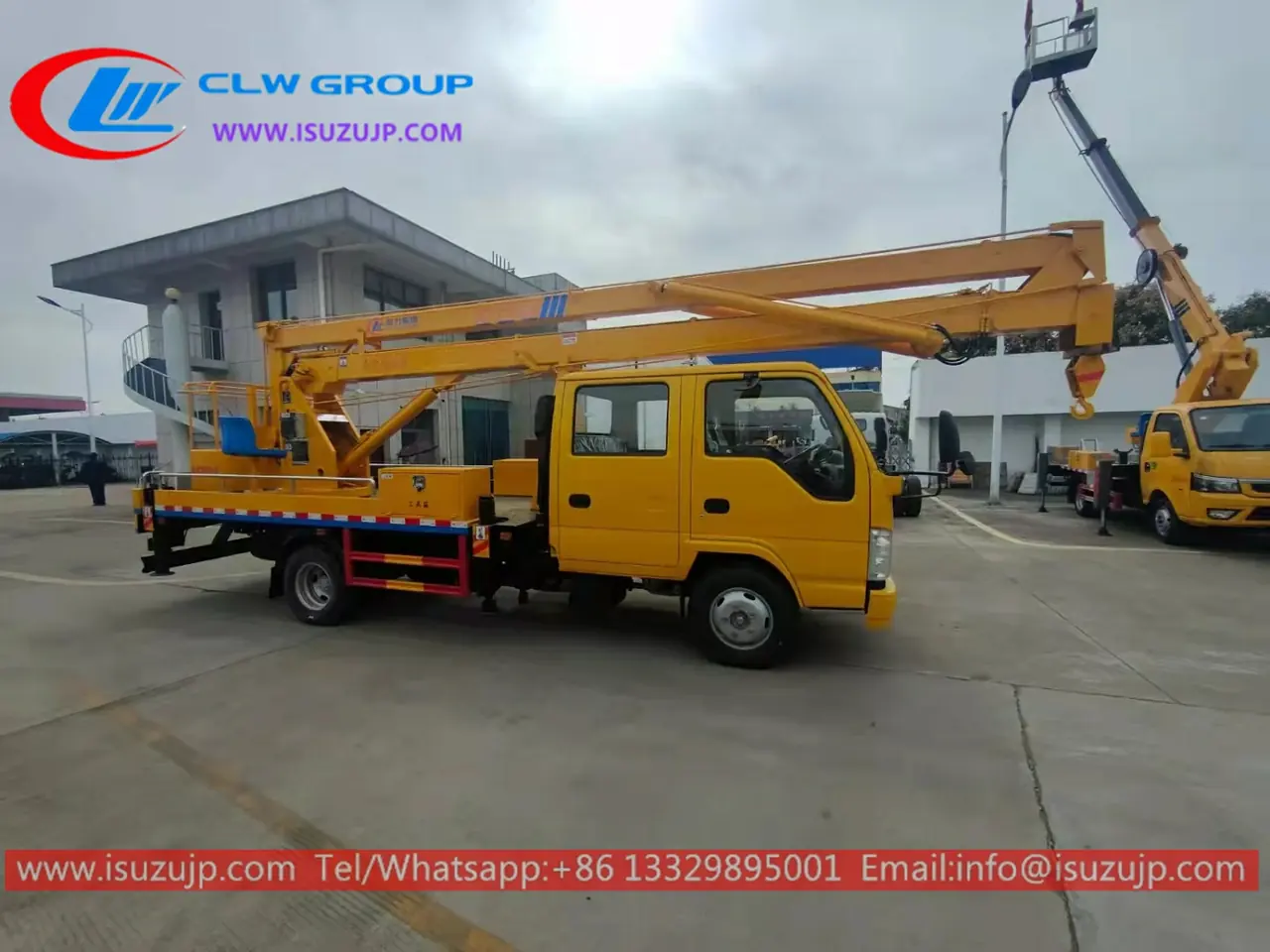

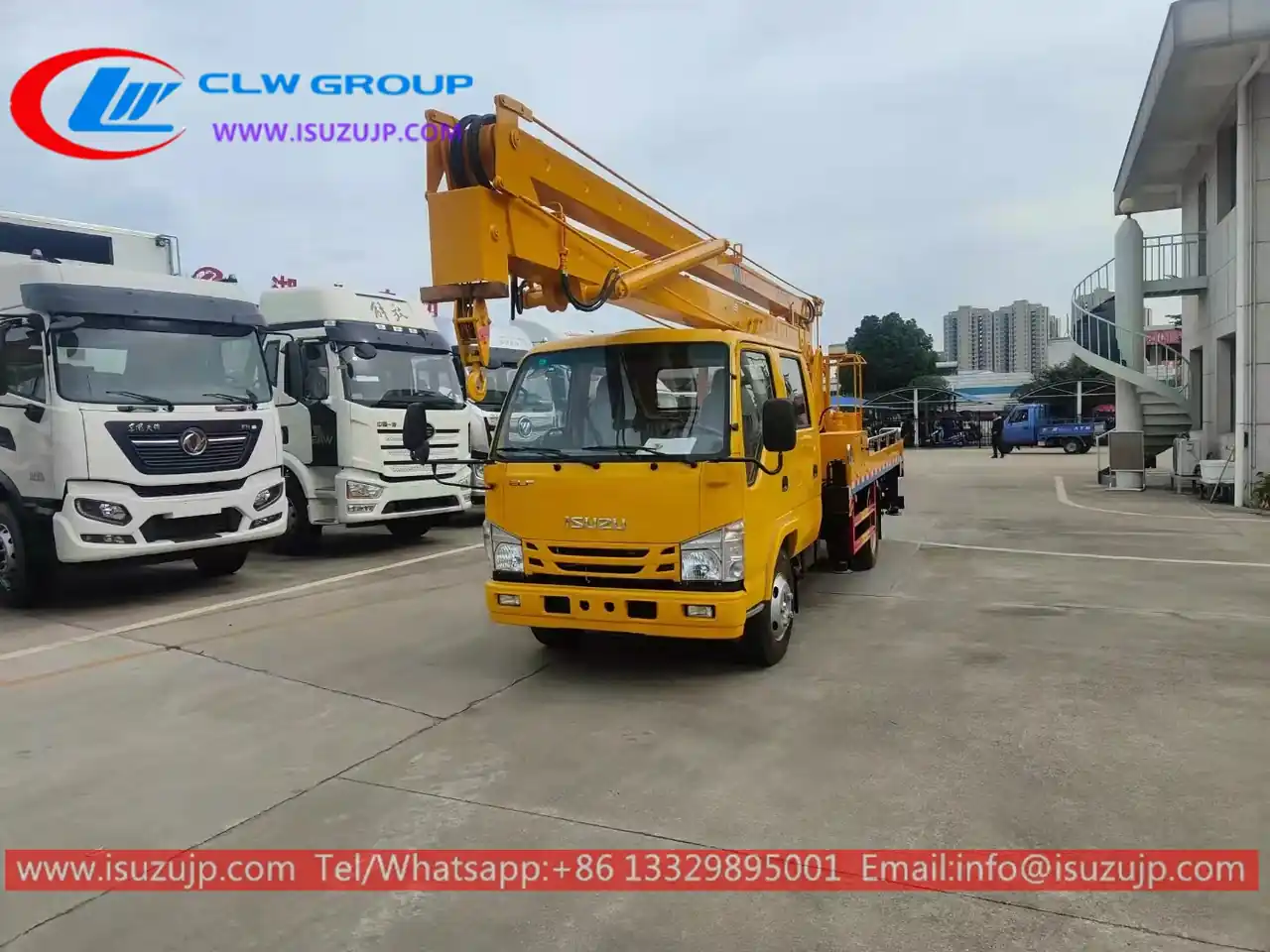

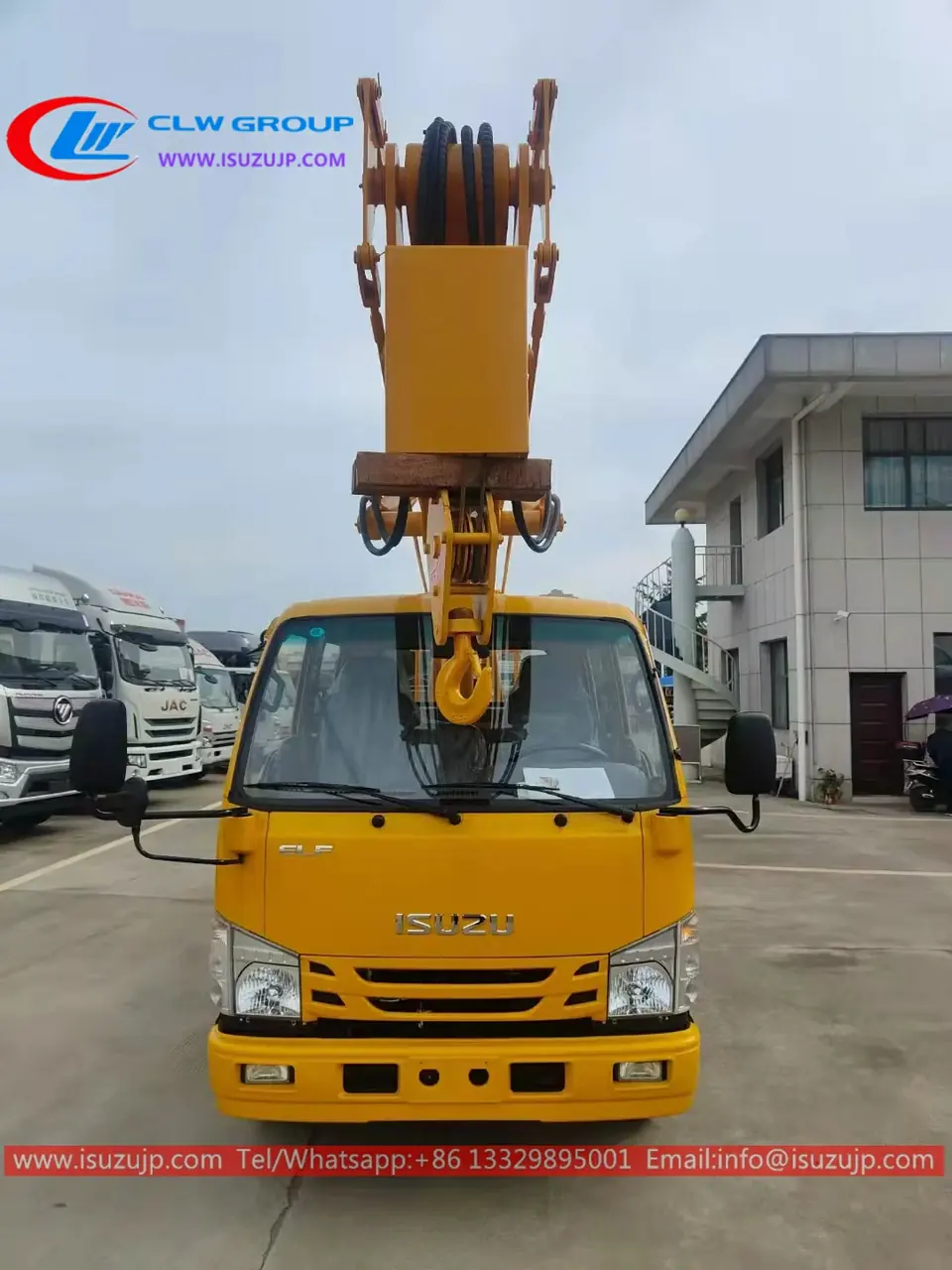

ISUZU Double Cabin 18m Cherry Picker Truck
Euro VI ISUZU ELF 100P chassis, MSB 5-shift manual gearbox, 130HP diesel engine
- Chassis
- ISUZU
- Engine
- ISUZU engine, 4HK1
- Power
- 130HP (96 KW)
- Overall Dimension
- 7500X2400X3250 mm
- GVW / Kerb Weight
- 9,300 kg / 6,875 kg
- Drive Type
- 4X2 left-hand drive
- Transmission
- ISUZU gearbox, no overhaul within 500,000 km
- Emission
- Euro IV
Specification below is the factory table for this model, reproduced without edits. 25 rows.
ISUZU Double Cabin 18m Cherry Picker Truck Description
- Isuzu cherry picker truck also called Overhead working truck, Basket crane truck, Aerial lift working truck, Manlift boom truck, Hydraulic telescopic boom truck, Truck-mounted aerial platform.
- Aerial lift Man truck is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Advantage
- 100% custom-made
- 8m to 45m available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Working cage can be made of steel structure or reinforced fiberglass (insulated cage); can rotate 90 degrees in left and right;
- 4pcs outriggers and front support improve operation stability and safety;
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
- The wireless remote control system is available.
Specification

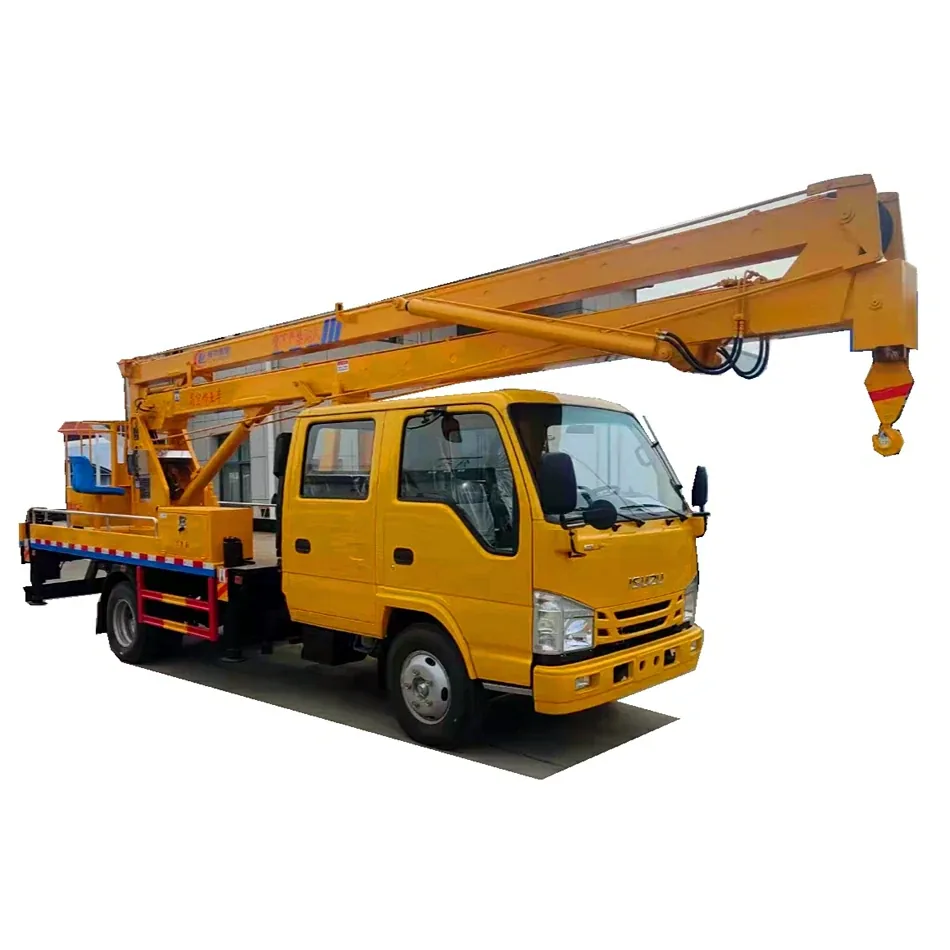

ISUZU Double cabin 18m cherry picker truck
| General | Vehicle Brand | CHENG LI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 7500X2400X3250 mm | |
| GVW / Kerb Weight | 9,300 kg / 6,875 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1 | |
| Power | 130HP (96 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2 left-hand drive |
| Transmission | ISUZU gearbox, no overhaul within 500,000 km | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 700R16 | |
| Tyre Number | 6 tires and 1 spare tire | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Working Cage | 200 kg capacity, anti-slip floor |
| Working Height | ≤18 M | |
| Slewing | 360° continuous rotation with base turntable | |
| Control | Control both on the ground and in the cage | |
| An emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. | ||
| Emergency stop switches at base and operator’s cage. | ||
| Optional | A hoist hook with cables can be equipped for the function of a crane. | |

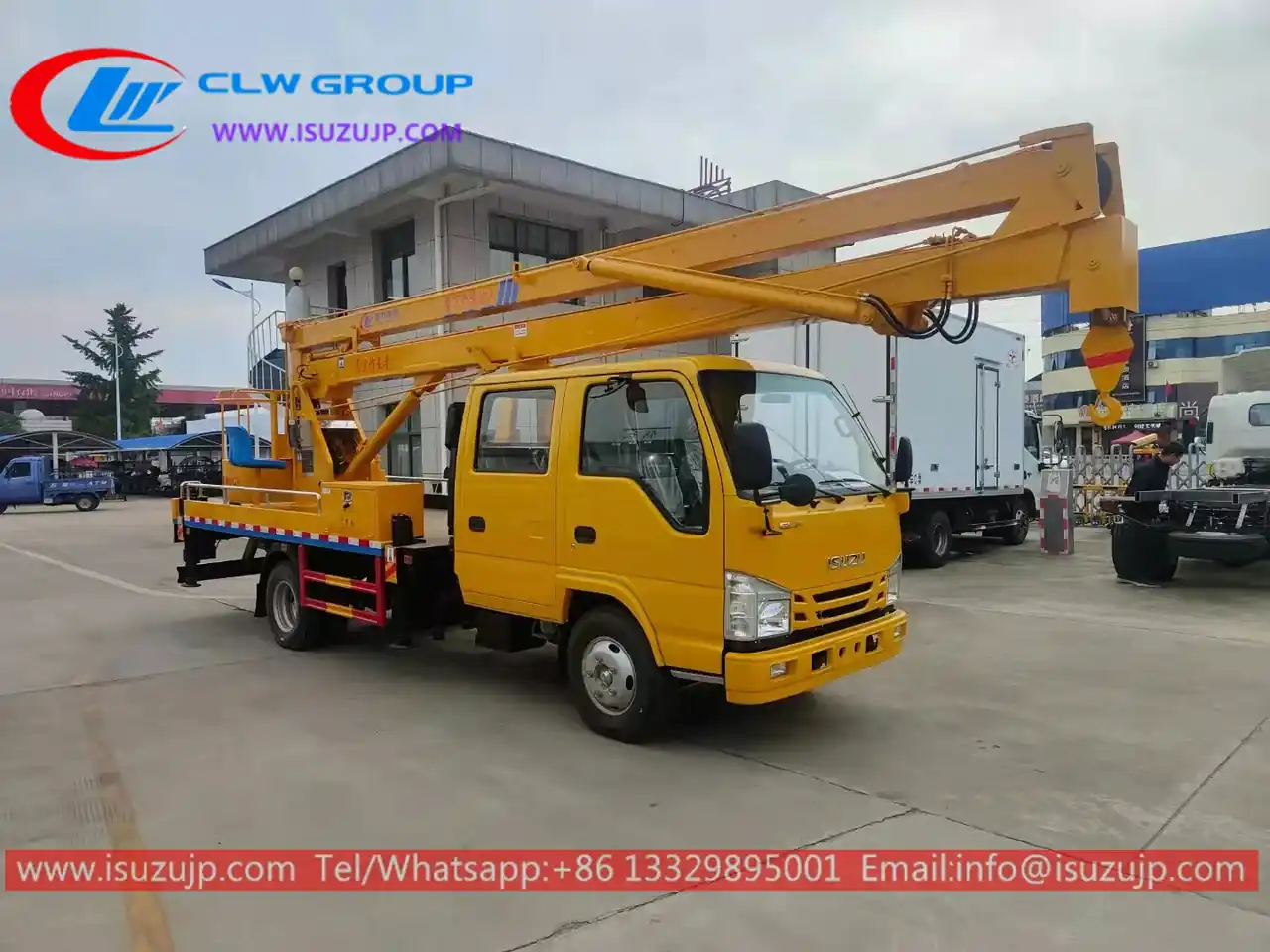

ISUZU Aerial Platform Truck Features
- The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
- Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
- The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
- Fully telescopic working arm, high operating efficiency, wide operating range
- Octagonal cross section of working arm, good love, made of high strength material, good reliability
- There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
- Remote control system of engine speed, easy to operate and high efficiency
- The support legs can be operated on both sides of the cab, which is convenient and efficient.
- The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
- 360-degree turntable rotation, wide operating range, improve efficiency.
Questions
Questions About The ISUZU Double Cabin 18m Cherry Picker Truck
What chassis is the ISUZU Double Cabin 18m Cherry Picker Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu aerial platform truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Aerial Platform Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU Double Cabin 18m Cherry Picker Truck
This build is listed as chassis ISUZU with engine ISUZU engine, 4HK1. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
