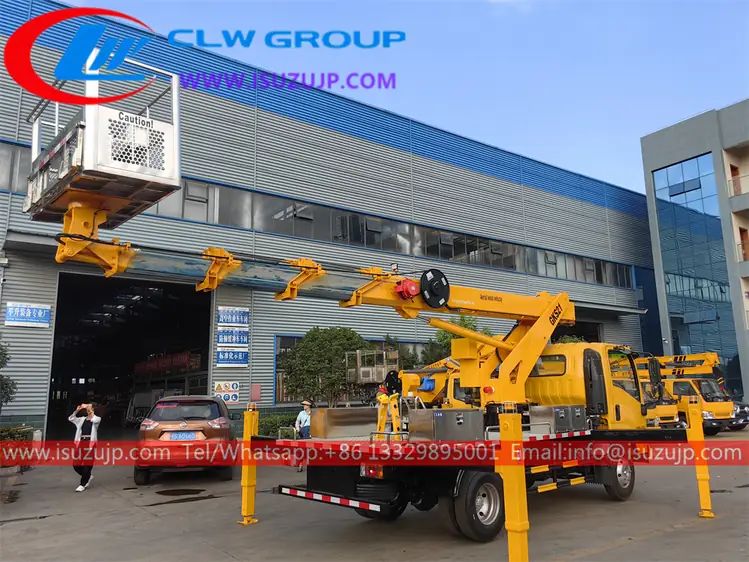

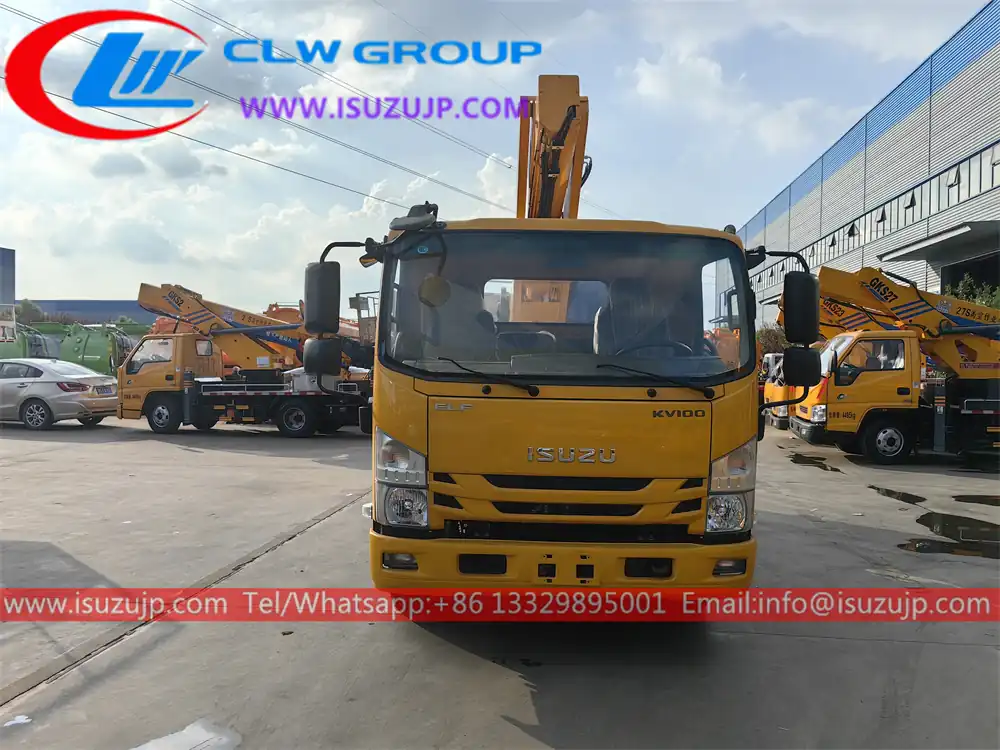

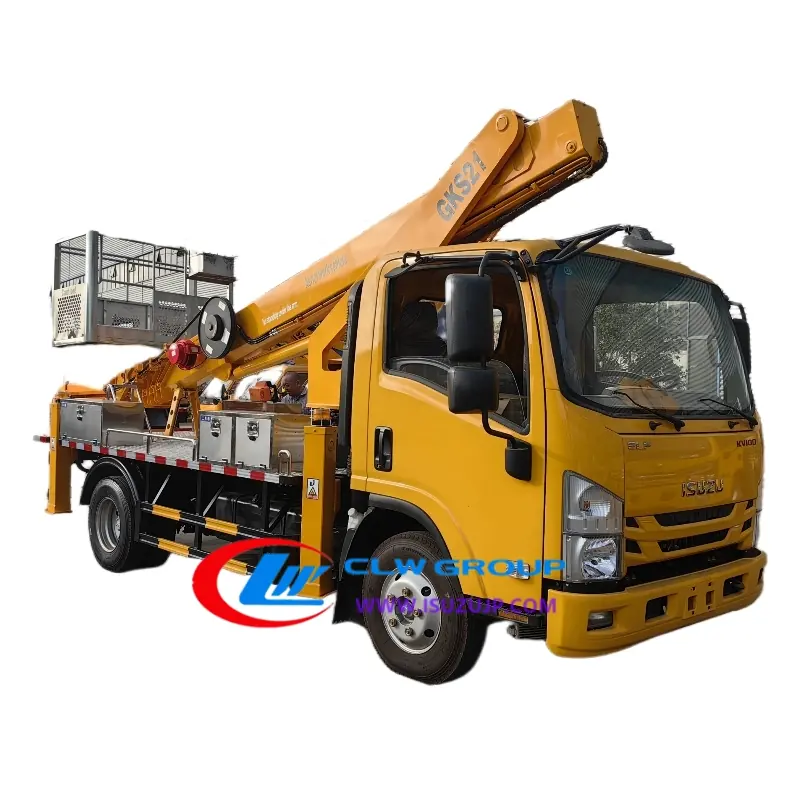

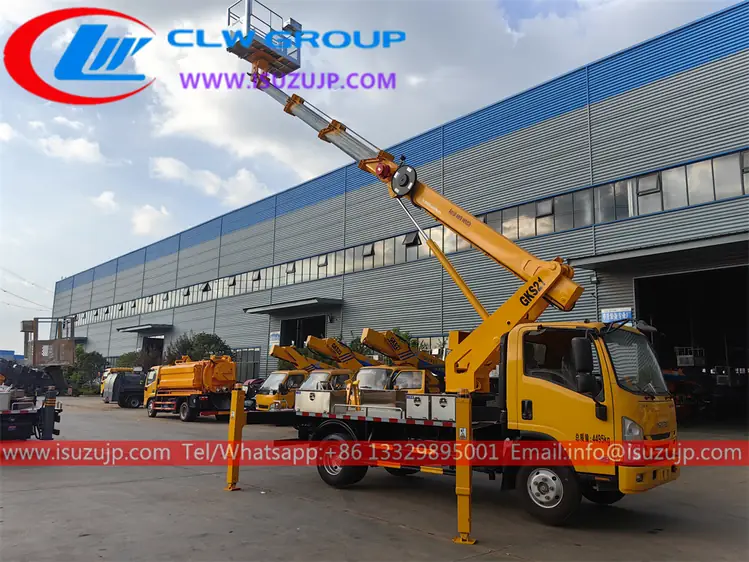

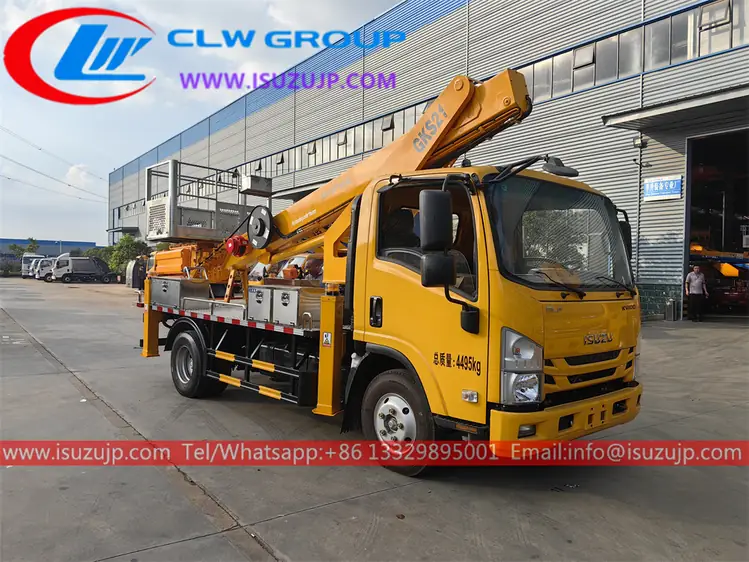

ISUZU NMR 19m 20m 21m Boom Lift Truck

ISUZU NMR 19m 20m 21m Boom Lift Truck Description

• ISUZU NMR 19m 20m 21m boom lift truck also called Overhead working truck, Basket crane truck, Aerial lift working truck, Manlift boom truck,Hydraulic telescopic boom truck , Truck mounted aerial platform.
• Aerial lift Man truck is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

Advantage

• 100% custom-made
• 8m to 45m available
• Short delivery time 7~30 days
• Easy operation & Easy maintenance
• 15 years of spare parts & Technical support
• ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
• Working cage can be made of steel structure or reinforced fibreglass (insulated cage); can rotate 90 degrees in left and right;
• 4pcs outriggers and front support improve operation stability and safety;
• Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
• The wireless remote control system is available.

Specification

ISUZU NMR 19m 20m 21m boom lift truck Chassis brand ISUZU Chassis Model NMR Work capacity 24 meters Truck model CLW5070GSSD Engine power 120 HP Axle drive 4×2 Gear box Isuzu MSB5S Remarks Double cabin, A/C Overall dimensions 6100X2100X3020mm Wheel base 4500mm Chassis Manufacturer ISUZU Cab Configuration air conditioner allowable 3 passengers Color Yellow.other color is optional Engine Model 4KH1 Emission Euro 6 Rated power 120hp Displacement 2999ml Tire Size 7.00R16 Tire, With one spare tyre Number 6+1 nos Front axle 3 tons Rear axle 4 tons Transmissions MSB 5 speed transmission, 5 speed forward 1 reverse Technical Parameters Working condition Maximum operating height 24m Max operating range 18.6m Max range at max height 11.8m Max height at max range 9.6m Rotation 360° Boom Type 5Sections telescopic boom Outrigger type Outrigger type Front V Rear H type. Controlled independently Outrigger span (Vertical x Vertical 5370.5385mm horizontal) horizontal 4975, 5195mm Rear Outrigger flash lights 2pcs Basket Rated loading weight 220kgs L*W*H(mm) 1500x700x1150 Bucket material Stainless steel fence and antiskid platform. Operation system Operation Electrical operation of working platform and ground remote control. Control system Load sensitive proportional system can realize double actiorsynchronization and stepless speed regulation Power take-off system Pneumatic operation Leveling system Hydraulic automatic leveling

ISUZU Aerial Platform Truck Features

• The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
• Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
• The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
• Fully telescopic working arm, high operating efficiency, wide operating range
• Octagonal cross section of working arm, good love, made of high strength material, good reliability
• There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
• Remote control system of engine speed, easy to operate and high efficiency
• The support legs can be operated on both sides of the cab, which is convenient and efficient.
• The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
• 360-degree turntable rotation, wide operating range, improve efficiency.
