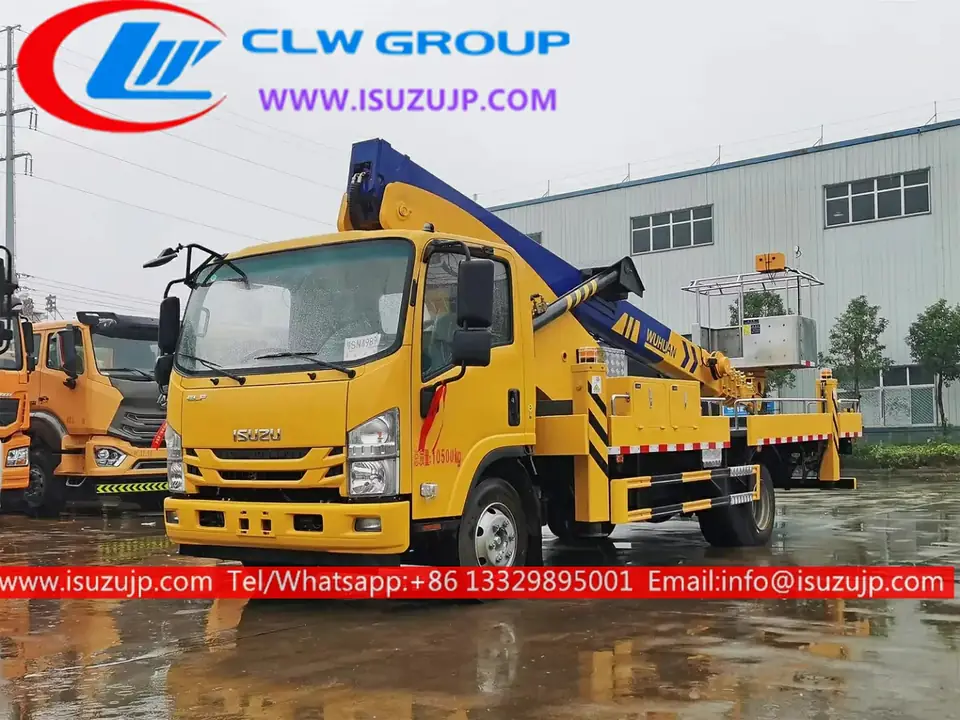

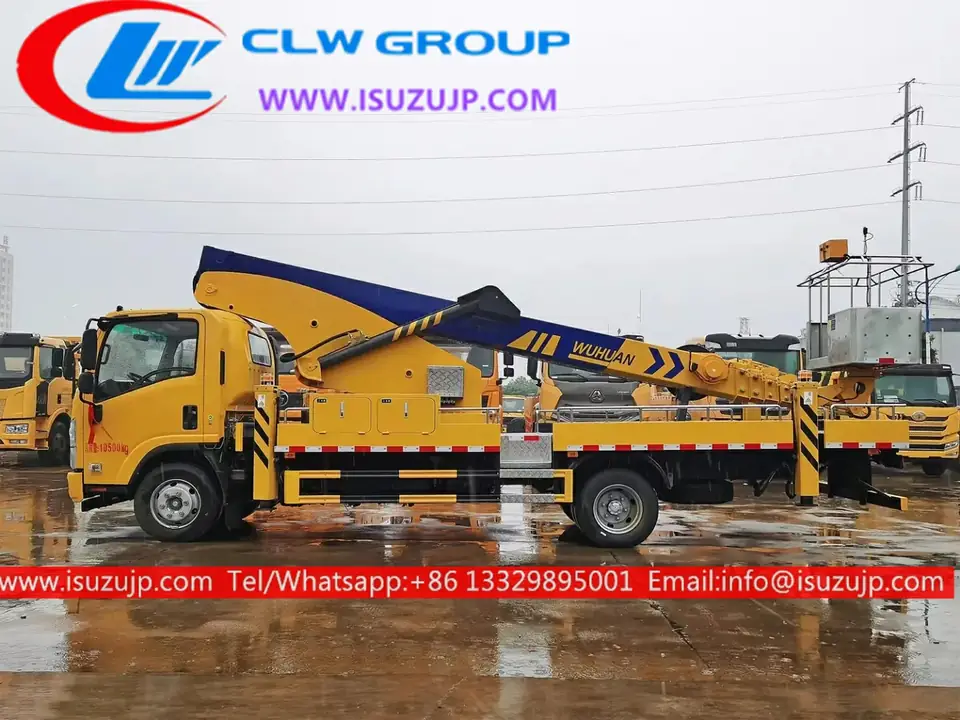

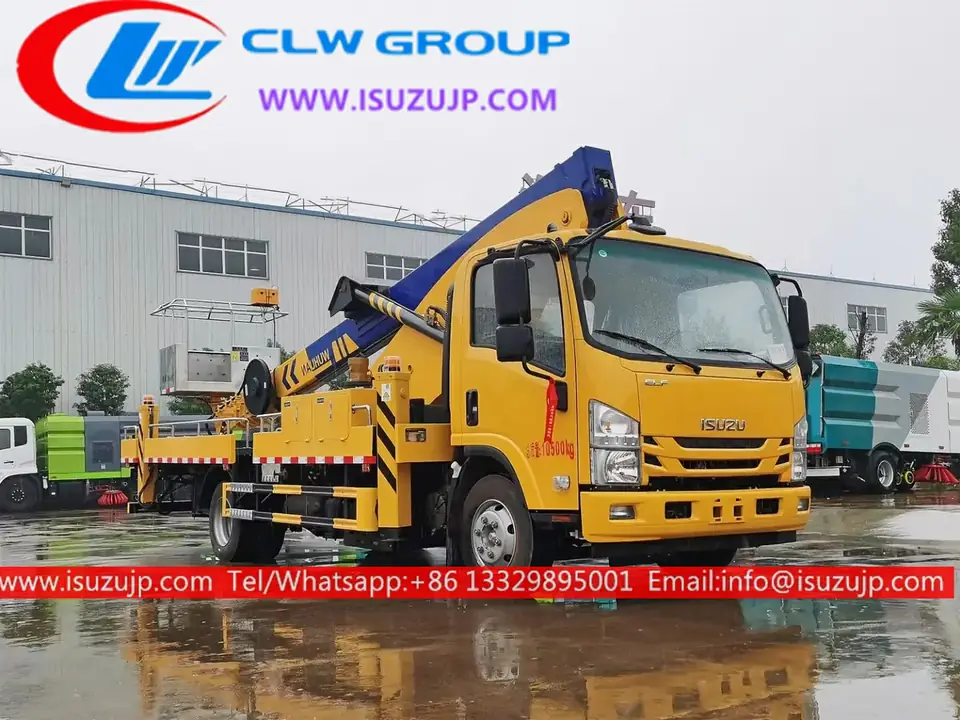

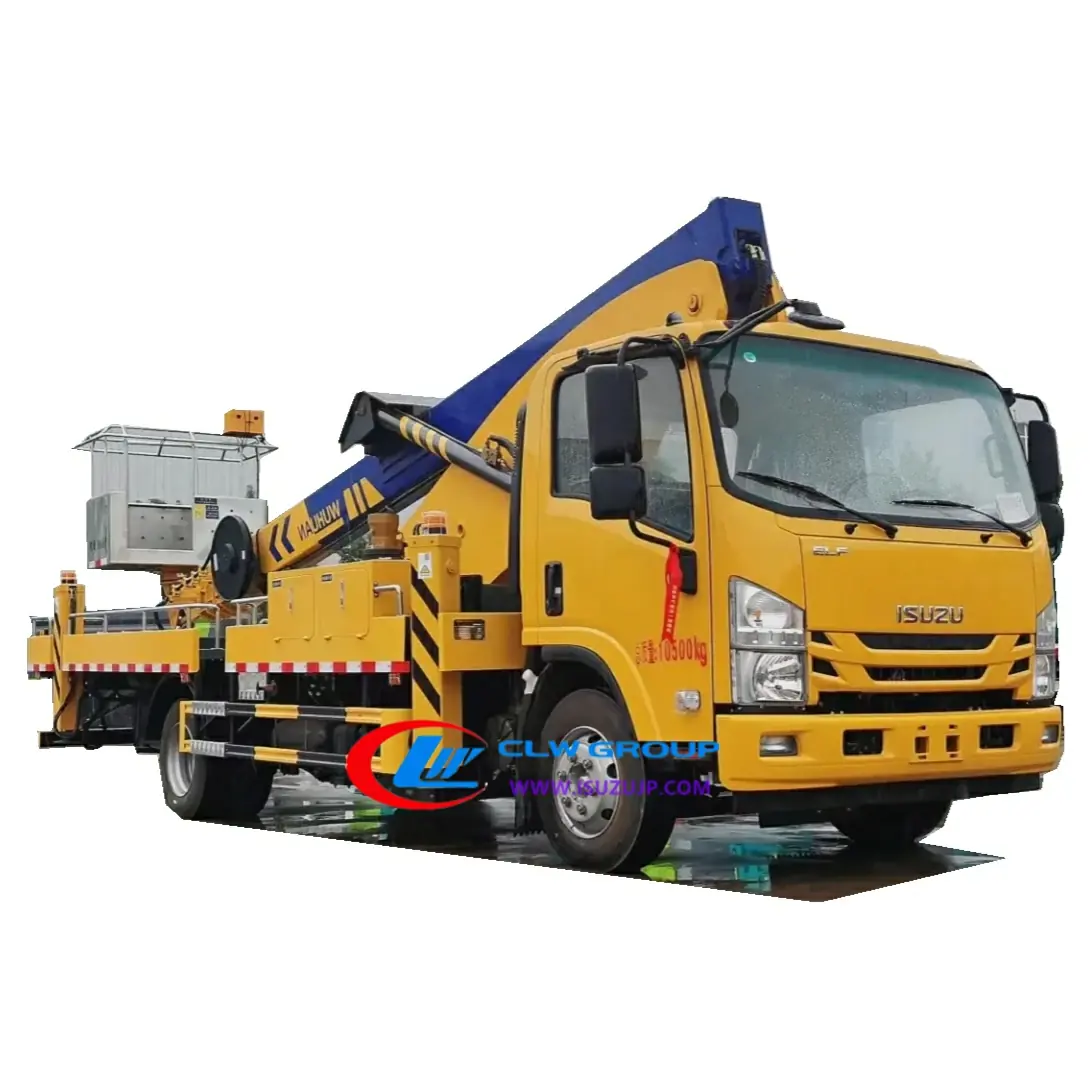

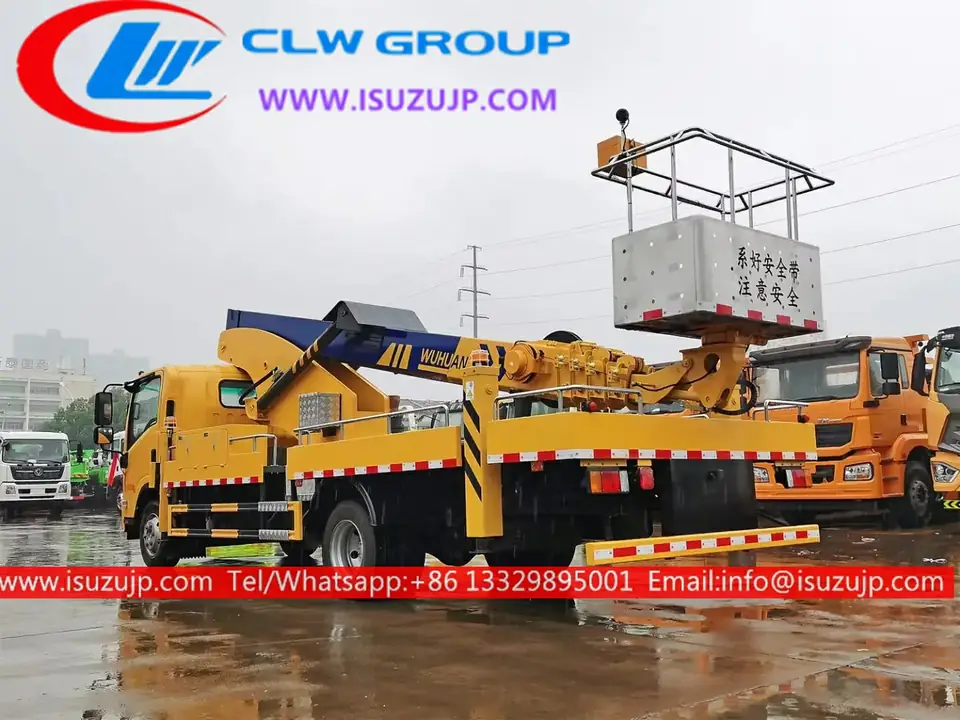

ISUZU ELF 26m boom truck with man basketMain photo
ISUZU Aerial Platform Truck

ISUZU ELF 26m Boom Truck with Man Basket

4×2 ISUZU NPR 700P chassis, MLD 6-shift manual gearbox, 190HP diesel engine

Chassis
ISUZU
Engine
ISUZU
Power
190HP (141KW)
Overall Dimension
8520 x 2250 x 3400 mm
GVW / Kerb Weight
10,100 kg / 7,485 kg
Drive Type
4X2, left-hand drive
Transmission
ISUZU MLD transmission, 6-forward gears & 1 reverse, no overhaul within 500,000km
Emission
Euro 5
Email This Model

Specification below is the factory table for this model, reproduced without edits. 26 rows.

ISUZU ELF 26m Boom Truck with Man Basket Description

  • Isuzu boom truck with man basket also called Overhead working truck, Basket crane truck, Aerial lift working truck, Manlift boom truck,Hydraulic telescopic boom truck , Truck mounted aerial platform.
  • Aerial lift Man truck is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

Advantage

  • 100% custom-made
  • 8m to 45m available
  • Short delivery time 7~30 days
  • Easy operation & Easy maintenance
  • 15 years of spare parts & Technical support
  • ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
  • Working cage can be made of steel structure or reinforced fibreglass (insulated cage); can rotate 90 degrees in left and right;
  • 4pcs outriggers and front support improve operation stability and safety;
  • Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
  • The wireless remote control system is available.

Specification

ISUZU ELF 26m boom truck with man basket

GeneralVehicle BrandCHENG LI
Chassis BrandISUZU
Overall Dimension8520 x 2250 x 3400 mm
GVW / Kerb Weight10,100 kg / 7,485 kg
CabCab Capacity2+3 persons allowed
Air ConditionerWith air conditioner
EngineFuel TypeDiesel
Engine BrandISUZU
Power190HP (141KW)
Displacement5193 ml
Emission StandardEuro 5
ChassisDrive Type4X2, left-hand drive
TransmissionISUZU MLD transmission, 6-forward gears & 1 reverse, no overhaul within 500,000km
Wheelbase/No. of axle4175 mm / 2
Tyre Specification235/75R17.5
Tyre Number6 tyres and 1 spare tyre
Max Speed110 km/h
PaintMetallic paint
SuperstructureCage Rated Capacity200 kg
Working Height20m
BeamThe beam is articulated & telescopic extension type, hydraulic actuated and controlled
SlewingSlewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
ControlControl both on the ground and remote control in cage
Safety DeviceRelief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
Leveling SystemHydraulic stabilizer to level the vehicle on uneven ground
OptionalInsulated cage; Wireless remote control system

ISUZU Aerial Platform Truck Features

  • The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
  • Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
  • The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
  • Fully telescopic working arm, high operating efficiency, wide operating range
  • Octagonal cross section of working arm, good love, made of high strength material, good reliability
  • There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
  • Remote control system of engine speed, easy to operate and high efficiency
  • The support legs can be operated on both sides of the cab, which is convenient and efficient.
  • The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
  • 360-degree turntable rotation, wide operating range, improve efficiency.
Questions

Questions About The ISUZU ELF 26m Boom Truck with Man Basket

What chassis is the ISUZU ELF 26m Boom Truck with Man Basket built on?

It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.

What is the capacity of this isuzu aerial platform truck?

Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.

Can it be built to our own specification?

Yes, we can produce according to the customer's technical drawings and specifications.

How long before it is ready to ship?

Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

How do we pay and what do we see before the balance?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.

Is the truck tested before delivery?

Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.

What support is available after it arrives?

Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
