Main photo
Skip Loader

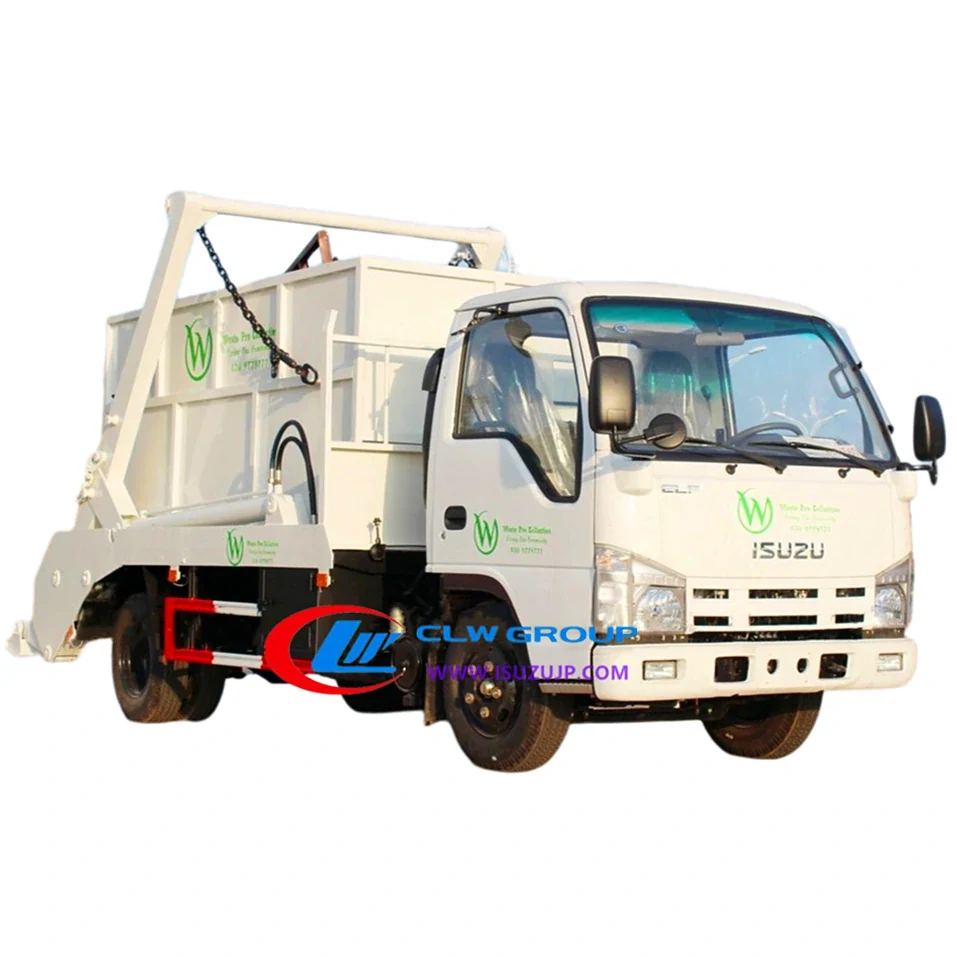

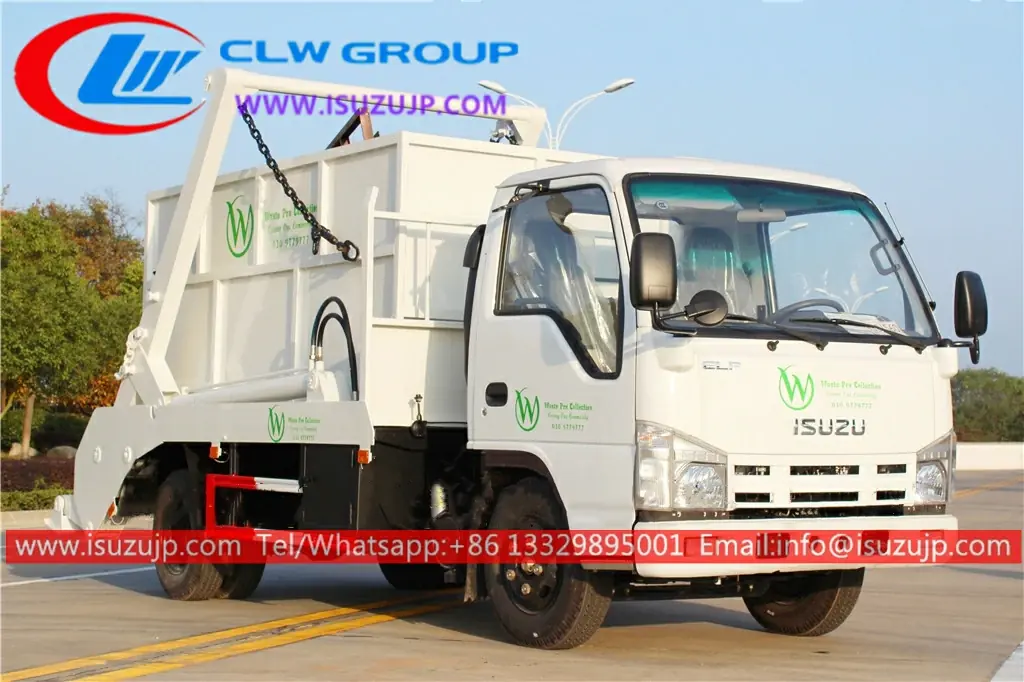

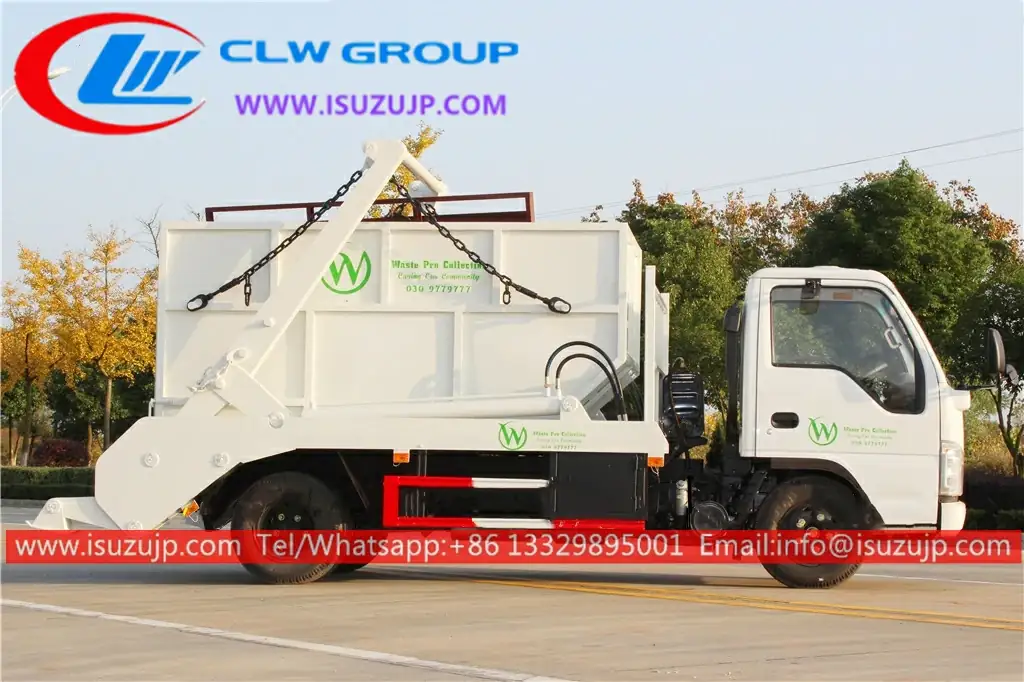

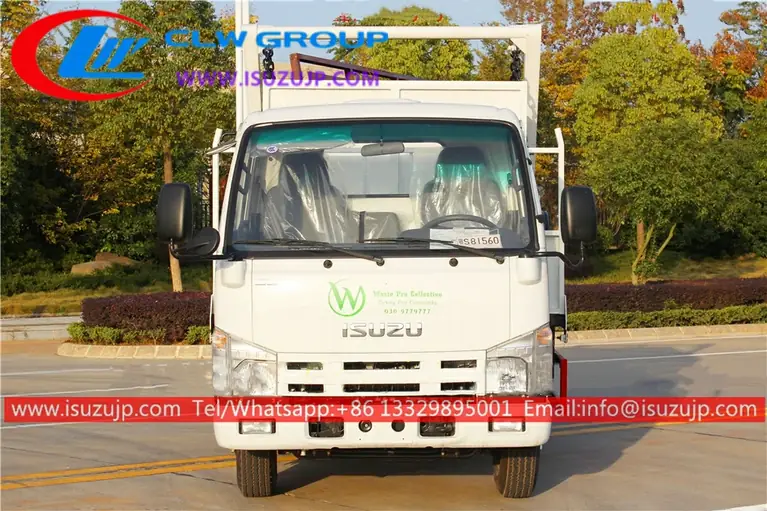

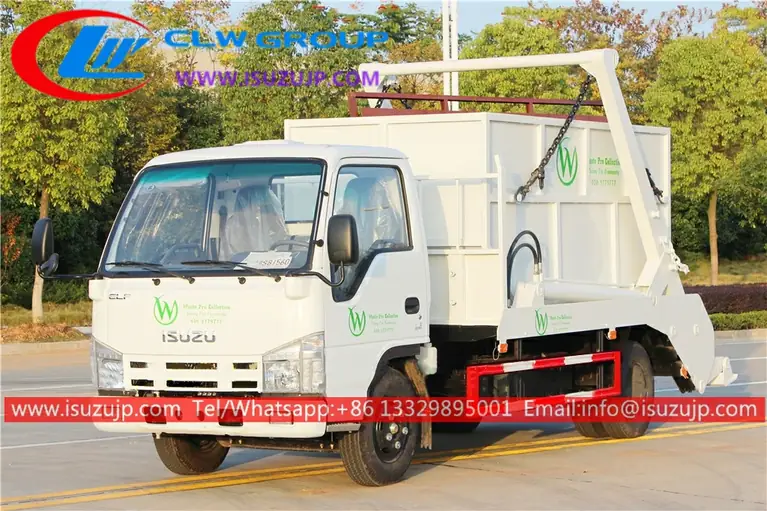

ISUZU ELF 4cbm Mini Skip Loader Truck
4cbm skip refuse garbage truck, 4×2 ISUZU ELF 100P chassis, MSB 5-shift manual gearbox, 98HP diesel engine, high strength steel swing arm system, Famous brand Hydraulic control device and electric control box
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 98 HP (72 KW)
- Overall Dimension
- 6000x2000x2900 mm
- GVW / Kerb Weight
- 7,300kg / 3,850kg
- Drive Type
- 4X2, (left-hand drive)
- Transmission
- ISUZU MSB 5 speed levers with 1 reverse
- Emission
- Euro IV or V
Specification below is the factory table for this model, reproduced without edits. 27 rows.
ISUZU ELF 4cbm Mini Skip Loader Truck Description
- Isuzu skip loader truck is also called Swing Arm Garbage Truck, skip refuse truck, skip collection truck, skip loader garbage truck.
- Skip Loader is a garbage truck with a detachable body container. Which could enable one truck with several garbage containers for recycle use.
- It could be equipped with a cover to prevent dropping any rubbish.
Advantage
- ISUZU ELF 100P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- The dust bin material of carbon steel Q235A, more types and more specifications to meet various customers’ needs in different regions.
- Designed sewage collecting box in the bottom of fill device, the sewage directly flow into the box, avoid to re-pollution.
- Hydraulic systems: two separate kinds of hydraulic control–electric control and manual control, makes the operation more simple and convenient.
- Skip garbage trucks with detachable containers can realize the function of garbage bins and truck body separate, which means that one vehicle can work with more than one garbage cargo bodies, to recycle transport, improve the transport capacity.
- Ranges of types for your customized choice. Type of garbage box: sealed, semi-enclosed. The shape of garbage box: rectangular shape, trapezoidal.
Specification
ISUZU ELF 4cbm mini skip loader truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 6000x2000x2900 mm | |
| GVW / Kerb Weight | 7,300kg / 3,850kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 98 HP (72 KW) | |
| Displacement | 2777 ml | |
| Emission Standard | Euro IV or V | |
| Chassis | Drive Type | 4X2, (left-hand drive) |
| Transmission | ISUZU MSB 5 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tire Specification | 7.00-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 4 cbm |
| Lifting device | Two swing arm lifting system | |
| Rear legs | Two hydraulic rear legs for support | |
| Lifting cycle time | 20~25 s | |
| Match model | One truck match with several containers | |
| Control system | Electrically Hydraulic control Manual hydraulic control | |
| Control panel | English or Your language | |
| All standard accessories: Basic tool kit, English manual | ||
| Optional | Container material could be stainless steel. A sealed cover for the container. A truck with several containers. | |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU ELF 4cbm Mini Skip Loader Truck
What chassis is the ISUZU ELF 4cbm Mini Skip Loader Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this skip loader?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
