- ISUZU ELF Mini Mobile Full Color LED Screen Truck
Main photo
ISUZU Led Truck

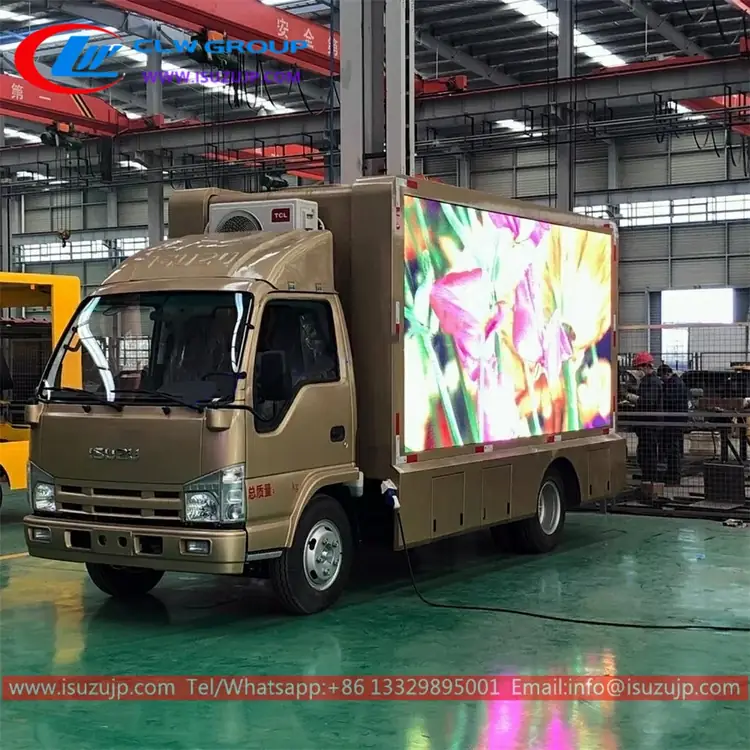

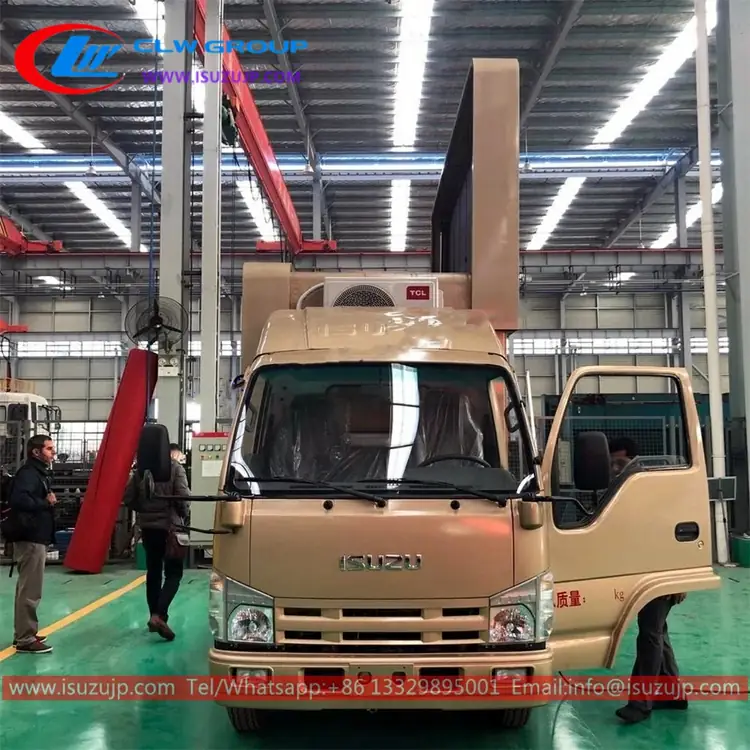

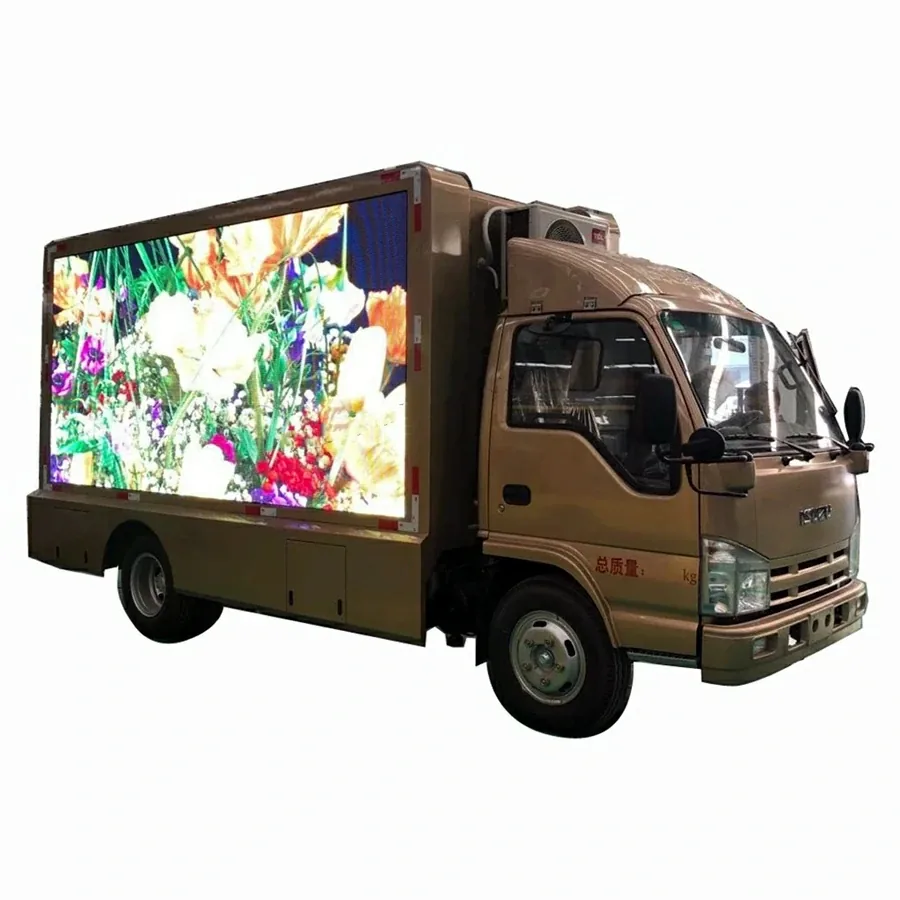

ISUZU ELF Mini Mobile Full Color LED Screen Truck
ISUZU ELF 100P left-hand drive model 4×2 chassis, MSB 5 -shift manual gearbox, ISUZU 98HP engine. Equipped with 2 Sided full-color led screen
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 120 HP (88 KW)
- Overall Dimension
- 6000X2000X2900 mm
- GVW / Kerb Weight
- 4,475 kg / 4,345 kg
- Drive Type
- 4X2, left-hand drive
- Transmission
- ISUZU MSB 5 speed forward gearbox, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 40 rows.
ISUZU ELF Mini Mobile Full Color Led Screen Truck Description
- ISUZU led screen truck also called mobile billboard truck, LED video truck, digital LED vehicle, LED advertising truck, LED digital display truck, mobile video truck, outdoor advertising truck
- LED advertising truck is a new design for advertising. It is widely used in new products promotion, products live sales, mini-show, concerts, etc. The LED trucks could get the best effect with live video displays.
- Based on different situations, LED trucks could be designed with a single screen, double screen, triple screen.
- As for the screen, there has several options: P3, P4, P5, P6. (P6 means 6mm pixels, smaller number, clearer picture.)
Advantage
- ISUZU chassis, perfect performance.
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- High-quality hydraulic system
- Massive, durable, perfect performance
- Prolonged service life
- 1P6, P8, and P10 full color led screen for optional meet all customer’s requirement. Brightness can be adjusted automatically according to different surroundings

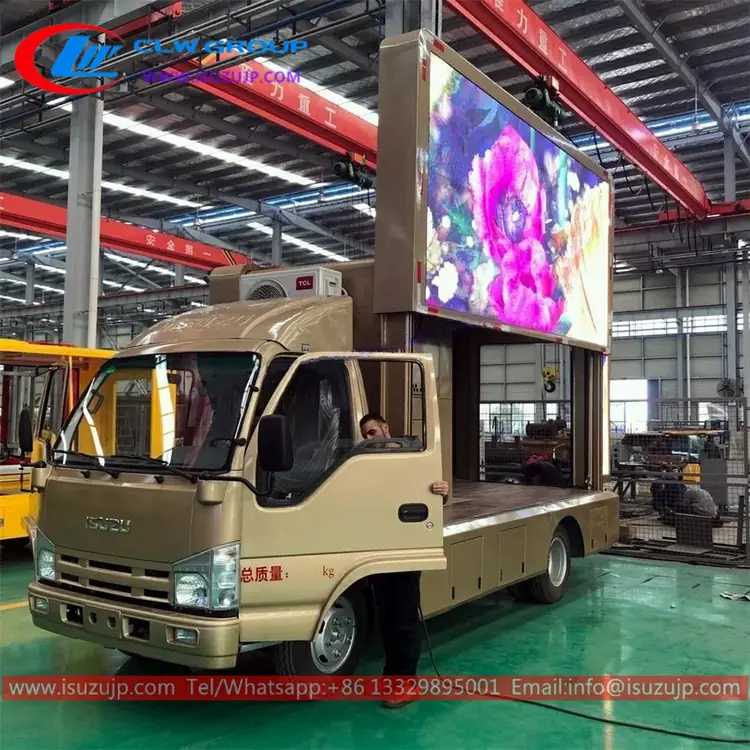

- Side screen can be lifted 1.5m for stage performance, good visual effect, Multi-media Control System, High definition 15625pixels/sqm, good uniformity, HD nice video advertising effect.

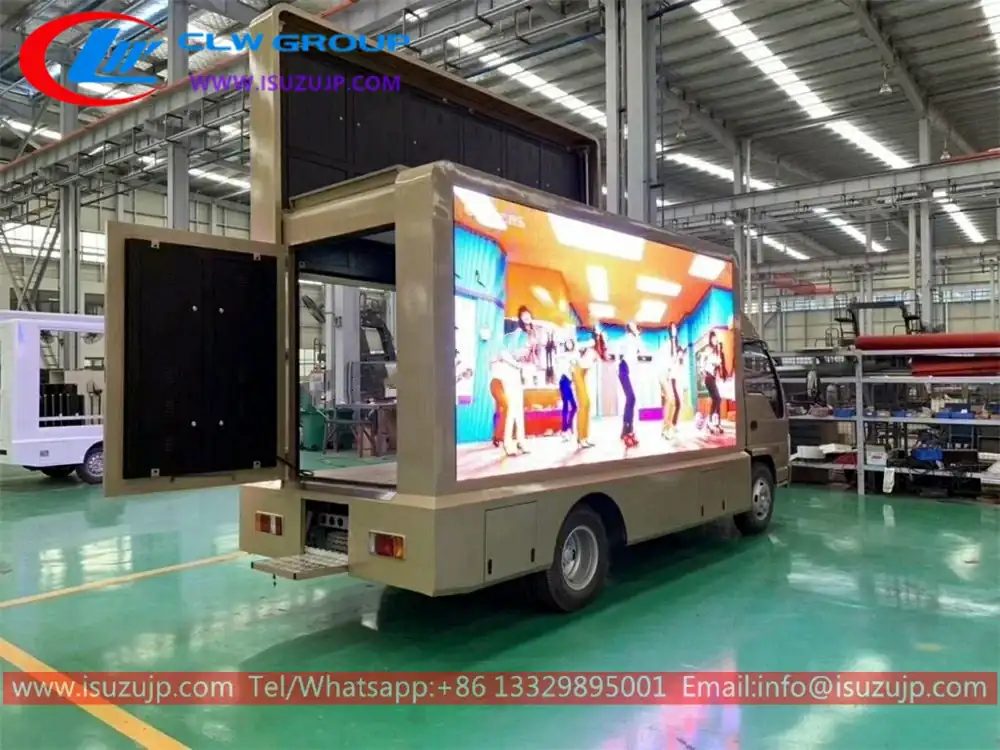

- Double color scrolling marquee on the rear door. Equipped with high-quality play devices. perfect listening effect.
- Super-silent generator, save electricity, environmental protection. Luxury wood floor with plastic flooring.
- LED Screen takes imported EPISTAR chips, automatically control open& close. High level of illumination, waterproof IP65 anti-corrosion or oxidation resistance, long lifespan, and high refresh frequency, and easy to maintain.
- DIP LED encapsulation confirms the high brightness even under strong sunlight.
Chassis：
Bodywork：
Specification
ISUZU ELF mini mobile full color led screen truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 6000X2000X2900 mm | |
| GVW / Kerb Weight | 4,475 kg / 4,345 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 120 HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left-hand drive |
| Transmission | ISUZU MSB 5 speed forward gearbox, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-15 | |
| Tyre Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Side A | LED Screen – P5, Dimension: 3840 X 1760 mm |
| Side B | Rolling Advertising Picture | |
| Rear Board | LED Screen – P5, Dimension: 1280 X 1440 mm | |
| All other standard accessories: Anti-water wood floor, Ouma diesel generator, speaker box, amplifier, industrial control computer…… | ||
| Optional | One screen, double, triple screen, rolling advertising picture. Side Screen with lifting function, lifting height: 1.5 m. It can be extended to a show stage. | |
Led Car Body Box Configuration
ISUZU ELF Mini Mobile Full Color LED Screen Truck Specification
| ⑴Box material: | 5CM conforms to the steel frame box | ⑵ Interior materials: Optional aluminum pattern plate or FRP |
|---|---|---|
| ⑶Electronic control system: | Safe and intelligent internal and external network automatic switching | ⑷Ventilation system: Power exhaust fan exhaust skylight |
| ⑸Amplifier brand: | Yvette Broadcast Amplifier | ⑹Audio brand: Wanda waterproof column |
| ⑺ LED color screen: | Imported wick outdoor HD waterproof and shockproof | ⑻Monochrome subtitle screen: Shenzhen Meiyadi P5 screen |
| ⑼Screen cabinet: | Waterproof and heat-proof ventilation safety box | ⑽Screen power supply: High temperature brand power box |
| ⑾Roller light box: | 3C grade tempered glass + remote roller | ⑿ Screen cable: Bold copper wire |
| ⒀Hydraulic stage: | Optional 4-10 square meters | ⒁Lifting system : Optional hydraulic lifting or electronically controlled lifting |
| ⒂Media playback system: | Optional Amethyst, Nova, Carlet | ⒃ Floor material: Optional wooden floor or aluminum pattern board |
| ⒄Optional power supply system: | Optional generator or battery power supply | ⒅ Industrial control system: Optional industrial control computer or video player |
| ⒆External power supply: | Military fast interface and copper wire cable | ⒇Operating platform: Optional fixed suspension cab operation |
Optional Parameter of LED Screen(according to Box Dimension)
ISUZU ELF Mini Mobile Full Color LED Screen Truck Specification
| Wheelbase(mm) | Screen size |
|---|---|
| 2765 | P8:2304*1408=3.24m2,P6:2304*1345=3.1m2 |
| 2800 | P8:2560*1536=3.93m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
| 2900 3070 | P8:2304*1536=3.54m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
| 3300,3308,3360 | P8:3840*1792=6.88m2,P6:3840*1728=6.65m2 rear monochromatic screen:1280*1440=1.84m2 |
| 3800 | P8:4864*2048=10m2,P6:4800*2112=10.13m2 rear monochromatic screen:1600*1600=2.56m2 |
| 4700 | P8:5376*2304=12.38m2,P6:5376*2304=12.38m2 rear monochromatic screen:1600*1600=2.56m2 |
Questions
Questions About The ISUZU ELF Mini Mobile Full Color LED Screen Truck
What chassis is the ISUZU ELF Mini Mobile Full Color LED Screen Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu led truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
