Main photo
ISUZU Led Truck

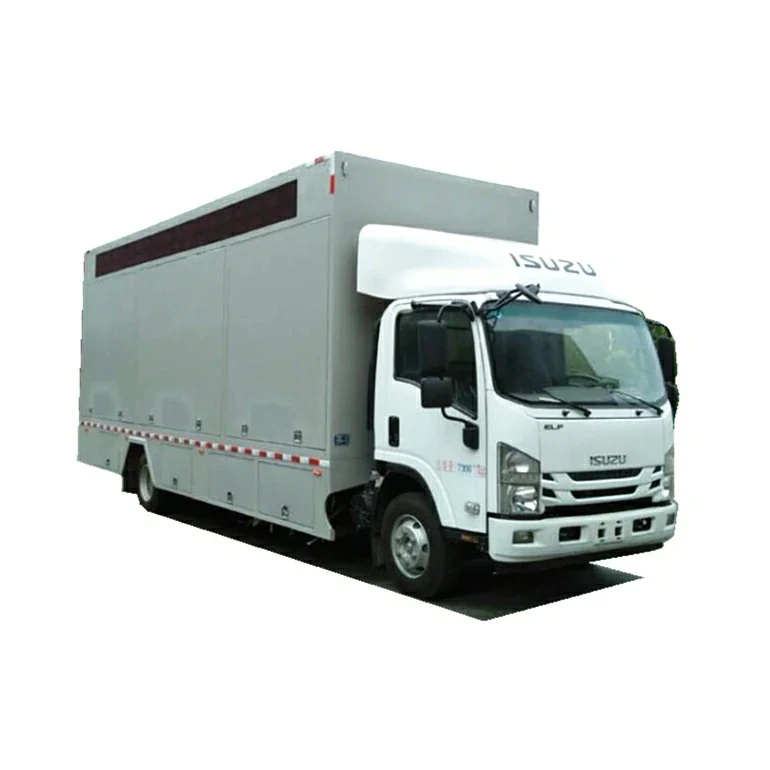

ISUZU NQR Large Outdoor LED Truck
ISUZU NQR left-hand drive model 4×2 chassis, MLD 6 -shift manual gearbox, ISUZU 190HP engine. Equipped with 2 Sided full-color led screen
- Product Origin
- China
- Body Size
- 7200X2300X3800 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 28 rows.
ISUZU NQR Large Outdoor Led Truck Description
- ISUZU outdoor led truck also called mobile billboard truck, LED video truck, digital LED vehicle, LED advertising truck, LED digital display truck, mobile video truck, outdoor advertising truck
- LED advertising truck is a new design for advertising. It is widely used in new products promotion, products live sales, mini-show, concerts, etc. The LED trucks could get the best effect with live video displays.
- Based on different situations, LED trucks could be designed with a single screen, double screen, triple screen.
- As for the screen, there has several options: P3, P4, P5, P6. (P6 means 6mm pixels, smaller number, clearer picture.)
Advantage
- ISUZU chassis, perfect performance.
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- High-quality hydraulic system
- The massive, durable, perfect performance
- Prolonged service life
- 1P6, P8, and P10 full color led screen for optional meet all customer’s requirement. Brightness can be adjusted automatically according to different surroundings

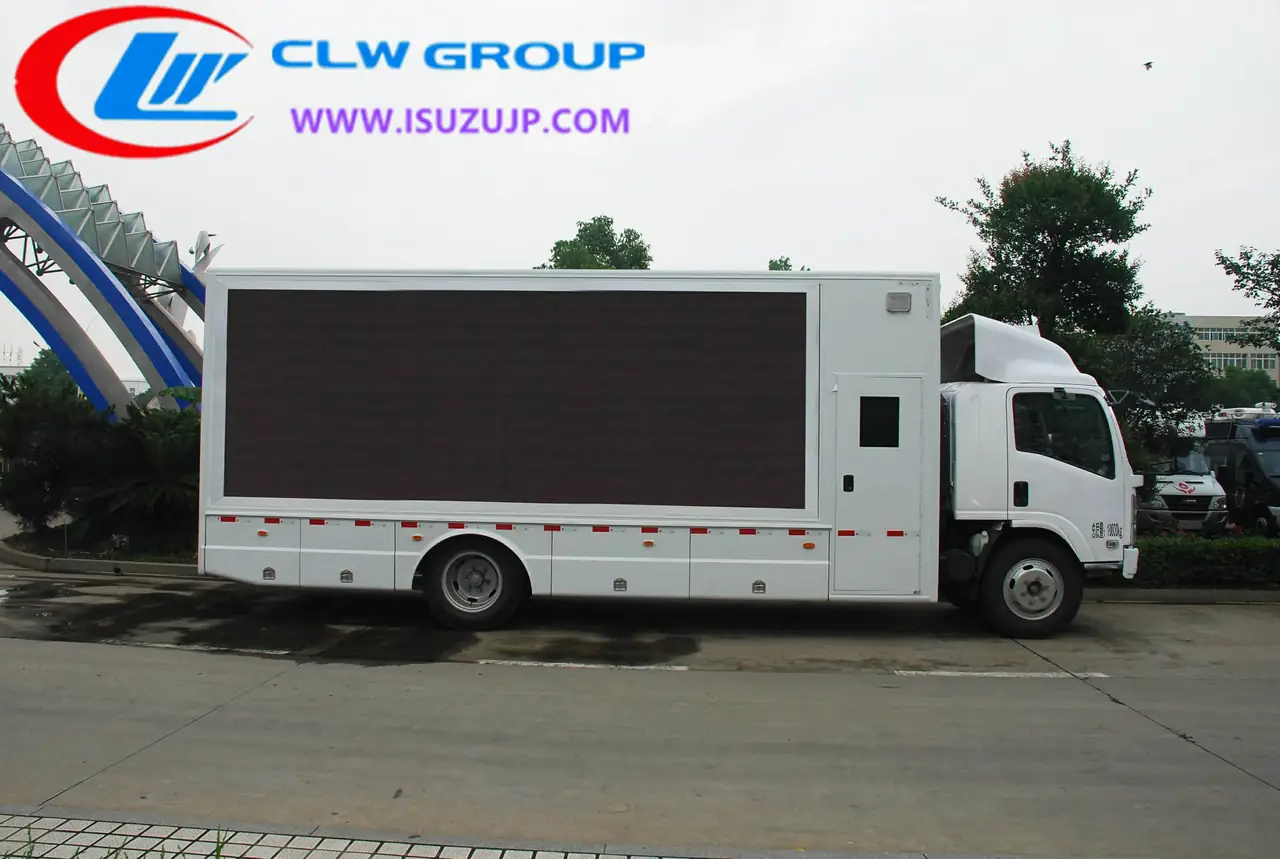

- Side screen can be lifted 1.5m for stage performance, good visual effect, Multi-media Control System, High definition 15625pixels/sqm, good uniformity, HD nice video advertising effect.

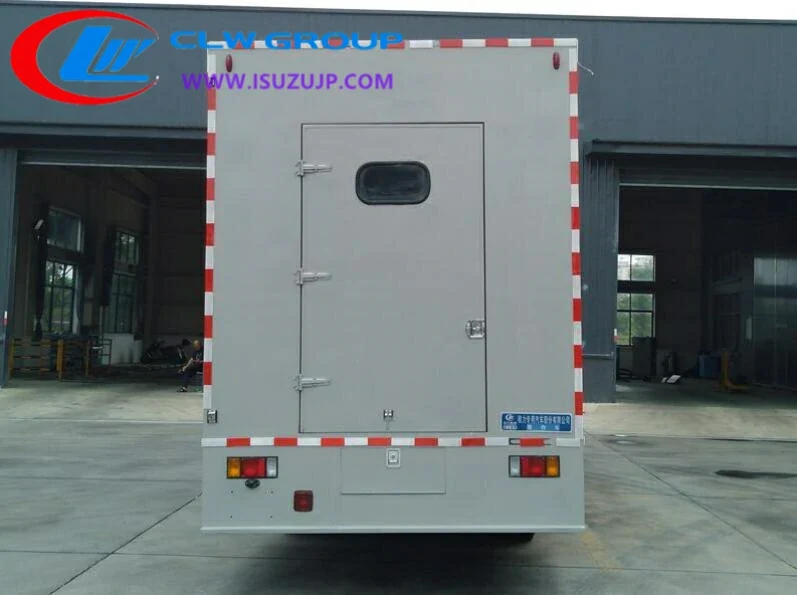

- Double color scrolling marquee on the rear door. Equipped with high-quality play devices. perfect listening effect.
- Super-silent generator, save electricity, environmental protection. Luxury wood floor with plastic flooring.
- LED Screen takes imported EPISTAR chips, automatically controlling open& close. High level of illumination, waterproof IP65 anti-corrosion or oxidation resistance, long lifespan, and high refresh frequency, and easy to maintain.
- DIP LED encapsulation confirms the high brightness even under strong sunlight.
Chassis：
Bodywork：
Specification
Basic configuration parameters
| Vehicle name | ISUZU NQR Large outdoor led truck | Side screen size (mm) 3200*1760(mm) |
|---|---|---|
| Dimensions (mm) | 8998×2448×3520,3800 | Tail screen size (mm) – |
| Total mass (kg) | 10000 | Rated mass (kg) – |
| Curb weight (kg) | 9805 | Maximum speed (km/h) 95 |
| Fuel type | diesel fuel | Emission Standards Country five |
| Wheelbase (m) | 4475 | Tire specifications 235/75R17.5 14PR |
| Chassis brand/model | Isuzu/QL1100A8MAY | Engine brand/model Qingling Isuzu/4HK1-TC51 |
| Power/Horsepower (kW/ps) | 141/192 | Displacement (ml) 5193 |
| Upload configuration parameters | ||
| The standard configuration | Three layers of anti-rust primer at the bottom of the car body; double vent design on the right side of the car body; the rear door of the car body is a flip-up door panel, which is assisted by gas springs and equipped with a built-in door lock; the rear panel of the car body is equipped with heat-dissipating shutters; Equipped with an exhaust fan; the console is installed in the cab for easy control; the power supply is 220V, equipped with power quick connectors; 30 meters of power cords, equipped with waterproof and explosion-proof quick connectors; beautiful large enclosures are installed under the carriage, front and rear guards; | |
| Optional configuration | The side screen lift of the carriage adopts electronic control hydraulic operation (optional). An automatic stage or a simple stage can be equipped with a vehicle control system and a playback system (military computer, waterproof speaker, high-frequency amplifier). | |
Led Car Body Box Configuration
ISUZU NQR Large Outdoor LED Truck Specification
| ⑴Box material: | 5CM conforms to the steel frame box | ⑵ Interior materials: Optional aluminum pattern plate or FRP |
|---|---|---|
| ⑶Electronic control system: | Safe and intelligent internal and external network automatic switching | ⑷Ventilation system: Power exhaust fan exhaust skylight |
| ⑸Amplifier brand: | Yvette Broadcast Amplifier | ⑹Audio brand: Wanda waterproof column |
| ⑺ LED color screen: | Imported wick outdoor HD waterproof and shockproof | ⑻Monochrome subtitle screen: Shenzhen Meiyadi P5 screen |
| ⑼Screen cabinet: | Waterproof and heat-proof ventilation safety box | ⑽Screen power supply: High temperature brand power box |
| ⑾Roller light box: | 3C grade tempered glass + remote roller | ⑿ Screen cable: Bold copper wire |
| ⒀Hydraulic stage: | Optional 4-10 square meters | ⒁Lifting system : Optional hydraulic lifting or electronically controlled lifting |
| ⒂Media playback system: | Optional Amethyst, Nova, Carlet | ⒃ Floor material: Optional wooden floor or aluminum pattern board |
| ⒄Optional power supply system: | Optional generator or battery power supply | ⒅ Industrial control system: Optional industrial control computer or video player |
| ⒆External power supply: | Military fast interface and copper wire cable | ⒇Operating platform: Optional fixed suspension cab operation |
Optional Parameter of LED Screen(according to Box Dimension)
ISUZU NQR Large Outdoor LED Truck Specification
| Wheelbase(mm) | Screen size |
|---|---|
| 2765 | P8:2304*1408=3.24m2,P6:2304*1345=3.1m2 |
| 2800 | P8:2560*1536=3.93m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
| 2900 3070 | P8:2304*1536=3.54m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
| 3300,3308,3360 | P8:3840*1792=6.88m2,P6:3840*1728=6.65m2 rear monochromatic screen:1280*1440=1.84m2 |
| 3800 | P8:4864*2048=10m2,P6:4800*2112=10.13m2 rear monochromatic screen:1600*1600=2.56m2 |
| 4700 | P8:5376*2304=12.38m2,P6:5376*2304=12.38m2 rear monochromatic screen:1600*1600=2.56m2 |
Questions
Questions About The ISUZU NQR Large Outdoor LED Truck
What chassis is the ISUZU NQR Large Outdoor LED Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu led truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
