Main photo
ISUZU Led Truck

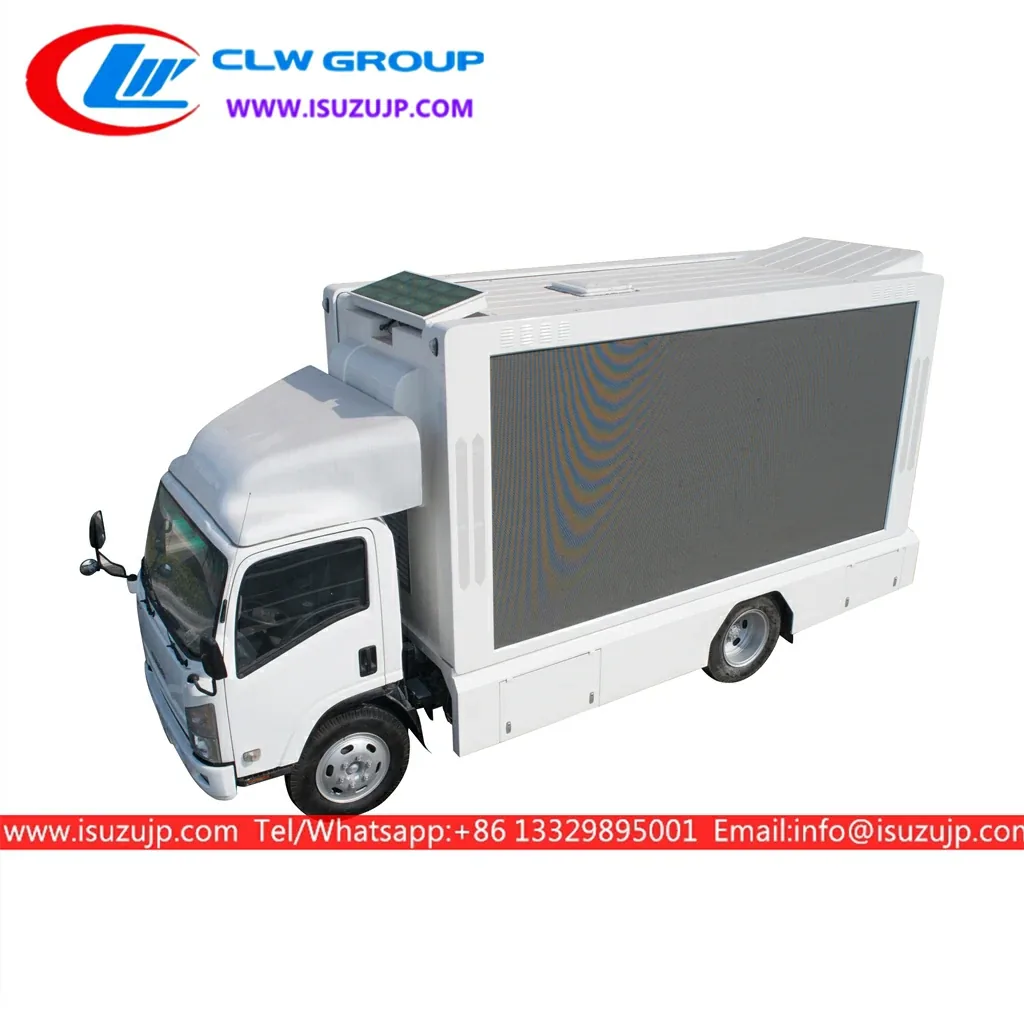

ISUZU NPR Outdoor Mobile LED Stage Truck for Sale
ISUZU ELF 100P left-hand drive model 4×2 chassis, MSB 5 -shift manual gearbox, ISUZU 98HP engine. Equipped with 2 Sided full-color led screen
- Product Origin
- China
- Body Size
- 7200X2300X3800 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 51 rows.
ISUZU NPR Outdoor Mobile Led Stage Truck Description
- ISUZU mobile led stage truck also called mobile billboard truck, LED video truck, digital LED vehicle, LED advertising truck, LED digital display truck, mobile video truck, outdoor advertising truck
- LED advertising truck is a new design for advertising. It is widely used in new products promotion, products live sales, mini-show, concerts, etc. The LED trucks could get the best effect with live video displays.
- Based on different situations, LED trucks could be designed with a single screen, double screen, triple screen.
- As for the screen, there has several options: P3, P4, P5, P6. (P6 means 6mm pixels, smaller number, clearer picture.)
Advantage
- ISUZU chassis, perfect performance.
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- High-quality hydraulic system
- Massive, durable, perfect performance
- Prolonged service life
- 1P6, P8, and P10 full color led screen for optional meet all customer’s requirement. Brightness can be adjusted automatically according to different surroundings

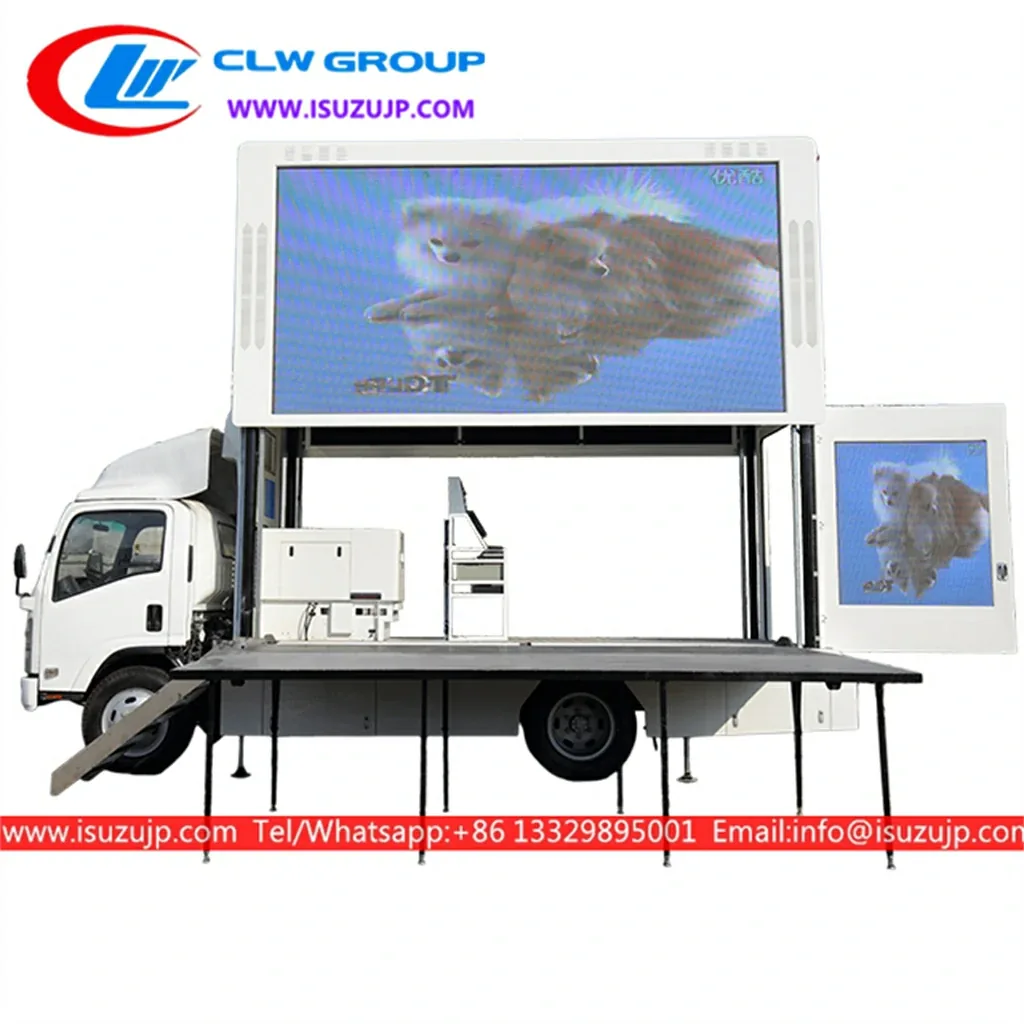

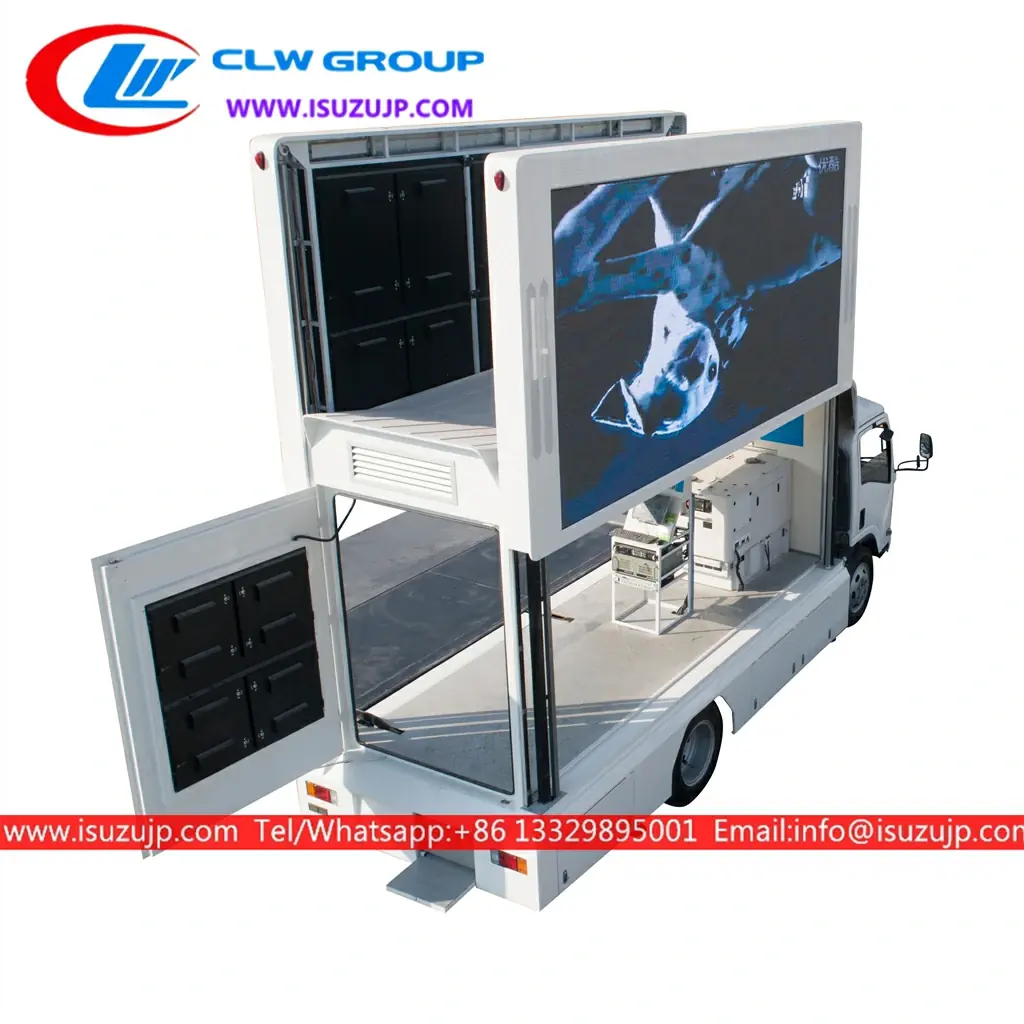

- Side screen can be lifted 1.5m for stage performance, good visual effect, Multi-media Control System, High definition 15625pixels/sqm, good uniformity, HD nice video advertising effect.
- Double color scrolling marquee on the rear door. Equipped with high-quality play devices. perfect listening effect.
- Super-silent generator, save electricity, environmental protection. Luxury wood floor with plastic flooring.
- LED Screen takes imported EPISTAR chips, automatically control open& close. High level of illumination, waterproof IP65 anti-corrosion or oxidation resistance, long lifespan, and high refresh frequency, and easy to maintain.
- DIP LED encapsulation confirms the high brightness even under strong sunlight.
Chassis：
Bodywork：
Specification
Chassis
| Brand | ISUZU NPR outdoor mobile led stage truck for sale | External 7200mm x 2300mm x 3800mm |
|---|---|---|
| Emission standards | Euro V | Total weight 8200kgs |
| Seat | Single row 3 seats | Wheelbase 3815mm |
| Generator model | 4KH1-TCG40 | Displacement and power（ml/kw) 5193 / 139 |
| Screen Lifting and Supporting System | ||
| Hydraulic Lifting System: lifting range 2000mm, bearing 3000KGS，Double lift system | ||
| Wind-against Level: Against level 8 wind after screen lift up 2 meters | ||
| Support Legs: Stretch distance 300mm | ||
| Silence generator group | ||
| External | 1950x900x1050mm | Power 24kw |
| Generator Engine | Brand LEES of generator set | Number of cylinders Water-cooled inline 4 |
| Displacement | 3.31L | Bore x stroke 84mm x 90mm |
| LED Screen Full color (left side and right side) | ||
| Left side and Right side: | 4480mm x 2240mm | Module Size 320mm(W) x 320mm(H) |
| Chip brand | RGB Epistar | Dot pitch 6 mm |
| Brightness | 6500cd/㎡–8000cd/㎡ | Max Power consumption 700 w/㎡ |
| Lifespan | 100,000 hours | Average power consumption 300w/㎡ |
| LED Screen Full color (rear side) | ||
| Rear Side: | 1280mm x 1600mm | Module Size 320mm(W) x320mm(H) |
| Chip brand | RGB Epistar | Dot pitch 6 mm |
| Brightness | 6500cd/㎡ | Max Power consumption 700 w/㎡ |
| Lifespan | 100,000 hours | Average power consumption 300w/㎡ |
| Single color LED strip (front side) | ||
| LED strip screen size: | 1280mm x 480mm | Dot pitch 10mm |
| Chip brand | Opto Red Color | Module Resolution 32pixel(W)*16pixel(H) |
| Power parameter | ||
| Input Voltage | Three phases five wires 380V | Output Voltage 220V |
| Current | 70A | Power : Average power consumption 0.3kwh/㎡ |
| Sound System | ||
| Speaker | Max Power consumption: 120W | Power Amplifier Unilateral power output 200W |
| Player System | ||
| Video processor | NOVA | Model VX2U |
| Hydraulic stage | ||

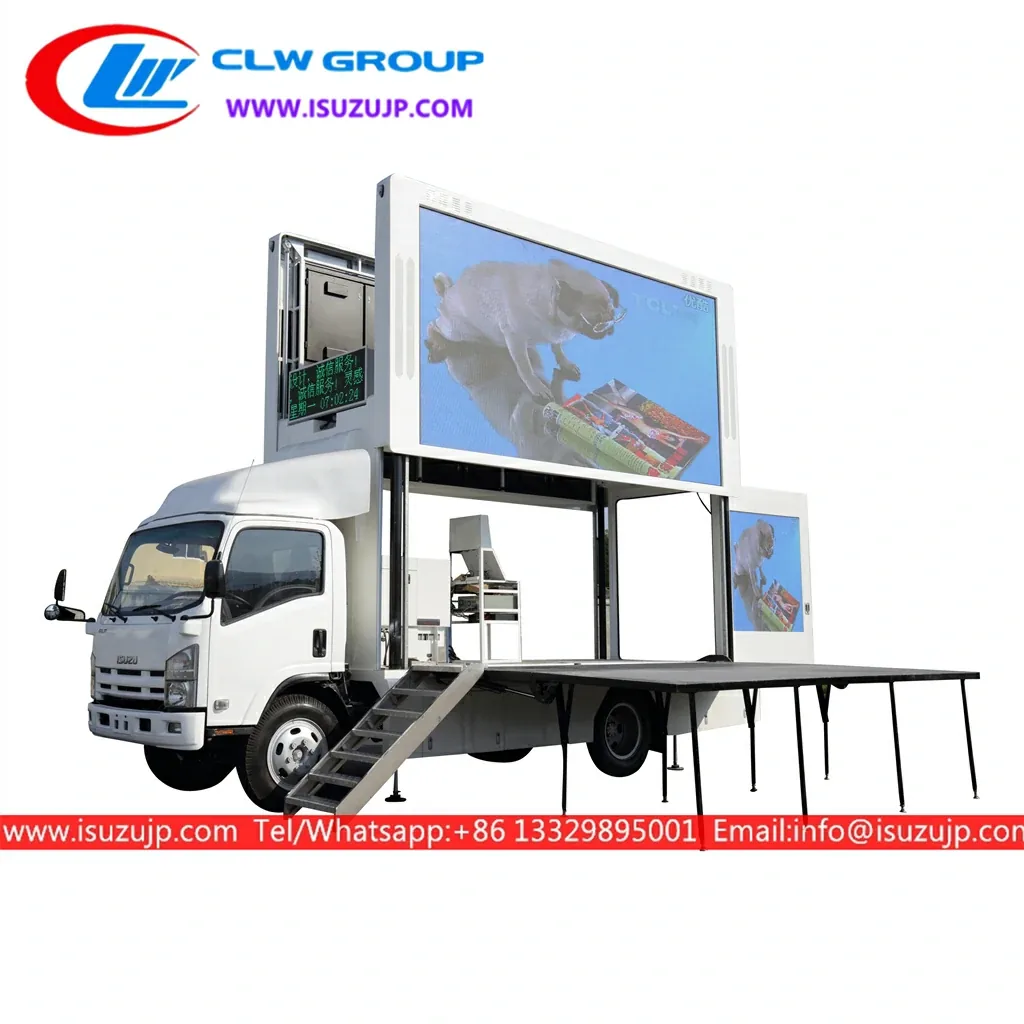

| Stage size: | 5000 * 3000 | Open the way Hydraulic folding |
Led Car Body Box Configuration
ISUZU NPR Outdoor Mobile LED Stage Truck for Sale Specification
| ⑴Box material: | 5CM conforms to the steel frame box | ⑵ Interior materials: Optional aluminum pattern plate or FRP |
|---|---|---|
| ⑶Electronic control system: | Safe and intelligent internal and external network automatic switching | ⑷Ventilation system: Power exhaust fan exhaust skylight |
| ⑸Amplifier brand: | Yvette Broadcast Amplifier | ⑹Audio brand: Wanda waterproof column |
| ⑺ LED color screen: | Imported wick outdoor HD waterproof and shockproof | ⑻Monochrome subtitle screen: Shenzhen Meiyadi P5 screen |
| ⑼Screen cabinet: | Waterproof and heat-proof ventilation safety box | ⑽Screen power supply: High temperature brand power box |
| ⑾Roller light box: | 3C grade tempered glass + remote roller | ⑿ Screen cable: Bold copper wire |
| ⒀Hydraulic stage: | Optional 4-10 square meters | ⒁Lifting system : Optional hydraulic lifting or electronically controlled lifting |
| ⒂Media playback system: | Optional Amethyst, Nova, Carlet | ⒃ Floor material: Optional wooden floor or aluminum pattern board |

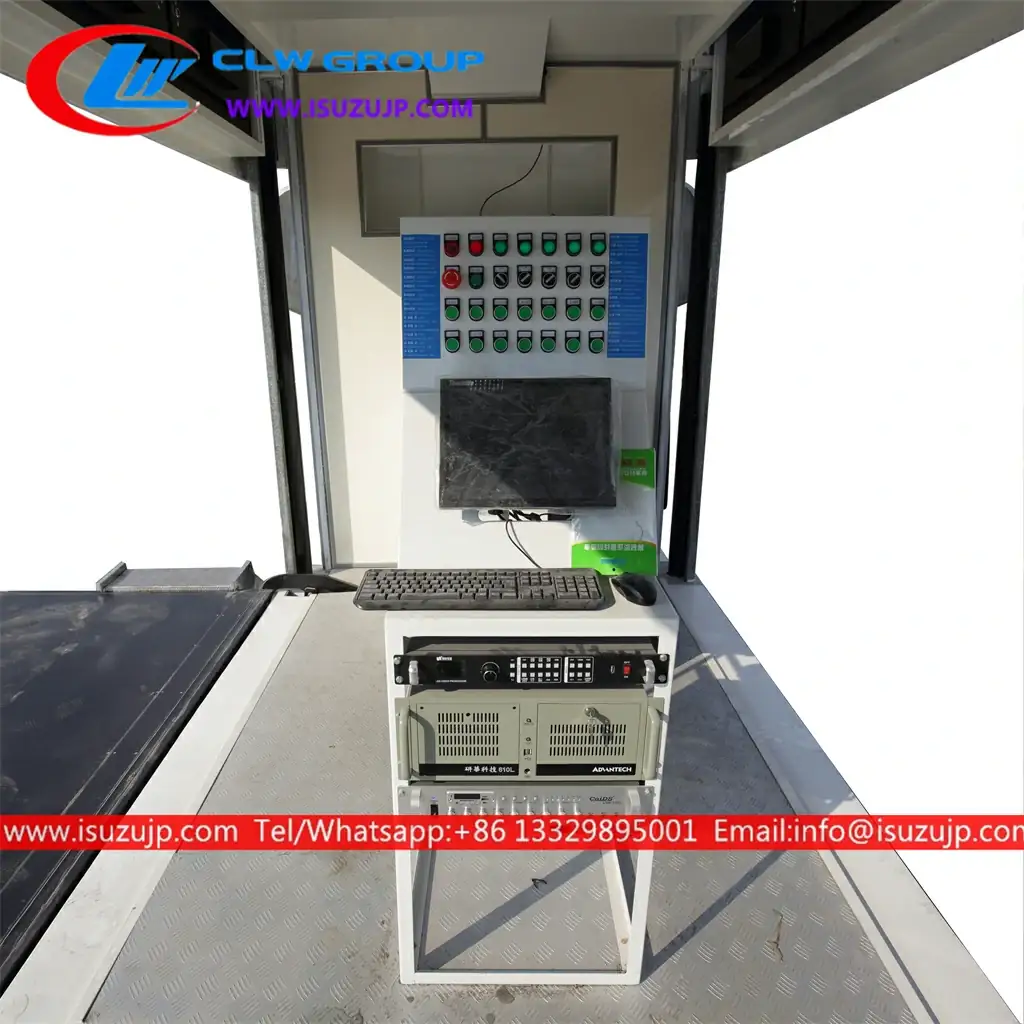

| ⒄Optional power supply system: | Optional generator or battery power supply | ⒅ Industrial control system: Optional industrial control computer or video player |
| ⒆External power supply: | Military fast interface and copper wire cable | ⒇Operating platform: Optional fixed suspension cab operation |
Optional Parameter of LED Screen(according to Box Dimension)
ISUZU NPR Outdoor Mobile LED Stage Truck for Sale Specification
| Wheelbase(mm) | Screen size |
|---|---|
| 2765 | P8:2304*1408=3.24m2,P6:2304*1345=3.1m2 |
| 2800 | P8:2560*1536=3.93m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
| 2900 3070 | P8:2304*1536=3.54m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
| 3300,3308,3360 | P8:3840*1792=6.88m2,P6:3840*1728=6.65m2 rear monochromatic screen:1280*1440=1.84m2 |
| 3800 | P8:4864*2048=10m2,P6:4800*2112=10.13m2 rear monochromatic screen:1600*1600=2.56m2 |
| 4700 | P8:5376*2304=12.38m2,P6:5376*2304=12.38m2 rear monochromatic screen:1600*1600=2.56m2 |
Questions
Questions About The ISUZU NPR Outdoor Mobile LED Stage Truck for Sale
What chassis is the ISUZU NPR Outdoor Mobile LED Stage Truck for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu led truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
