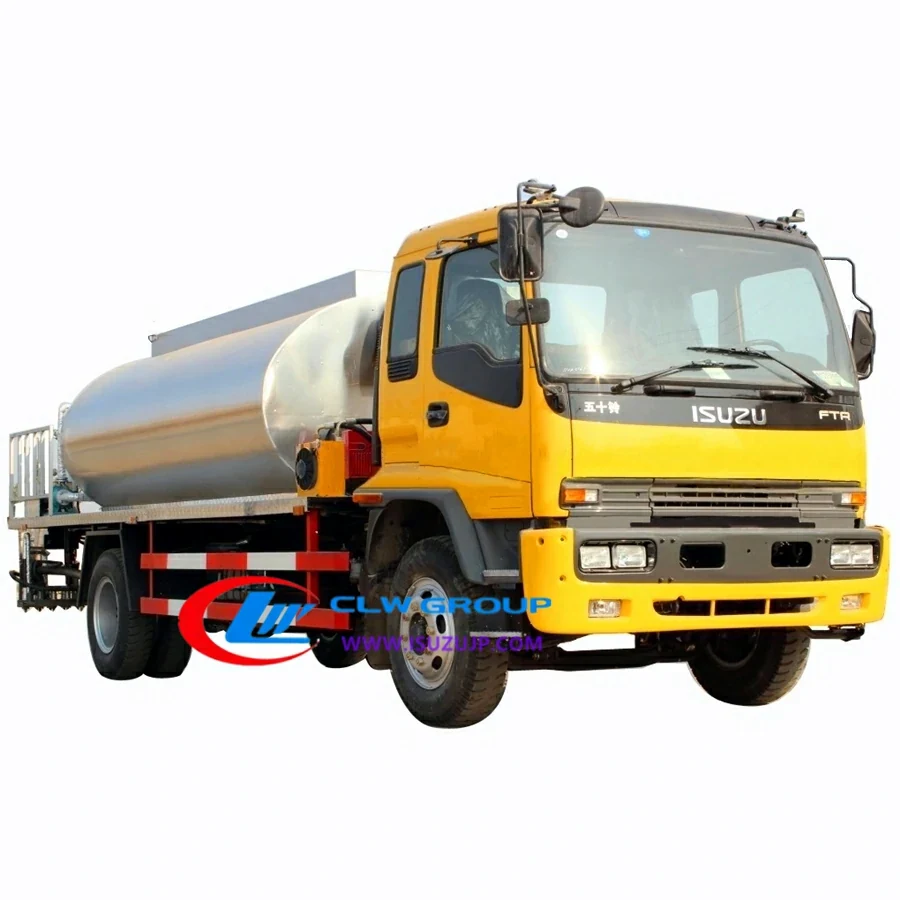

ISUZU FTR 12m3 Bitumen Distributor TruckMain photo

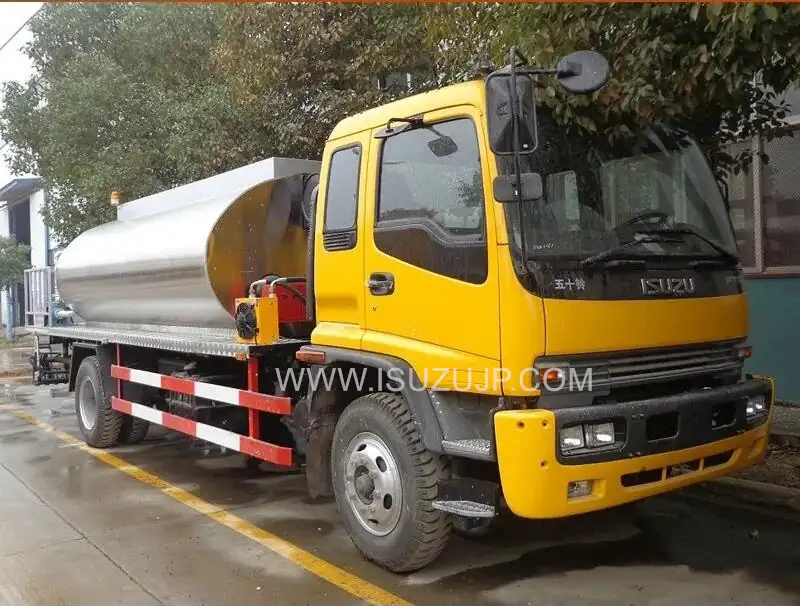

ISUZU Bitumen Distributor Truck

ISUZU FTR 12m3 Bitumen Distributor Truck

12 ton Asphalt Spreader truck adopt FTR truck chassis, 4HK1 engine with 190HP, Manual MLD 6-shift gearbox, intelligent bitumen spraying system

Chassis
ISUZU
Engine
ISUZU 4HK1
Power
190 HP (140 KW)/205HP
Overall Dimension
9000X2500X3070 mm
GVW / Kerb Weight
18,000kg / 10,850kg
Drive Type
4X2, (left-hand drive)
Transmission
Manual 6-speed levers with 1 reverse
Emission
Euro 4 or 5
Email This Model

Specification below is the factory table for this model, reproduced without edits. 28 rows.

ISUZU FTR 12m3 Bitumen Distributor Truck Description

  • ISUZU Bitumen distributor truck is equipment that is widely used in road construction. It is an intelligent high-tech product that can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt, and high viscosity modified asphalt. Asphalt distributor is basically made up of chassis, asphalt tank, asphalt pump, spray system, heat conduction oil heating system, hydraulic system, electric control system, distribution control system, and rinsing series. And the distribution system has two main types: hand-controlled and computer-controlled.

Advantage

  • ISUZU FTR truck chassis, perfect performance
  • ISUZU 4HK1 series engine, super powerful; reliable performance, no overhaul within 500,000 km.
  • Spray width can be adjusted flexibly from 2m to 6m.
  • Easy operation and easy maintenance.
  • Automatic Bitumen Distributor Truck boasts three layers. It can adjust the spray amount according to its operational speed.
  • The whole asphalt spraying process can be finished in the cab.
  • Each nozzle is controlled by a separate computer. The spray width can be adjusted at random.
  • The control procedure is equipped with two control systems, cab, and post-operational platform to ensure the reliability of asphalt spray.
  • The computer control system adopts a modular design for lower accident rates and maintenance.
  • The temperature of asphalt in the tank is kept below or equal to two degrees per hour
  • distributor is equipped with an automatic blowing device to shift the asphalt outside to the tank

Chassis:

Asphalt distributor System:

Specification

ISUZU FTR 12m3 bitumen distributor truck

GeneralVehicle BrandCHENG LI
Chassis BrandISUZU
Overall Dimension9000X2500X3070 mm
GVW / Kerb Weight18,000kg / 10,850kg
CabCab Capacity3 persons allowed
Air ConditionerHeating/cooling air conditioner
EngineFuel TypeDiesel
Engine BrandISUZU 4HK1
Power190 HP (140 KW)/205HP
Displacement5193 ml
Emission StandardEuro 4 or 5
ChassisDrive Type4X2, (left-hand drive)
TransmissionManual 6-speed levers with 1 reverse
Wheelbase/No. of axle4500 mm / 2
Tire Specification10.00-20
Tire Number6 tires and 1 spare tire
Max Speed95 km/h
PaintMetallic paint
SuperstructureBitumen Tank Volume12,000L
Spray Width2000-6,000mm
Spray Volume0.2-3.0 kg/m2
Asphalt heating modeImported diesel oil burner
Spray mediaAsphalt Rubber, hot (modified) asphalt, diluted asphalt, emulsified asphalt, etc.
Spray Precision±1.5%
ControlEnglish
Color & LogoAccording to wish
All standard accessories: All tools. Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual……
OptionalThe back alarm and Camera can be equipped. Other body capacities can be chosen. Other materials and plate thicknesses can be chosen.
Questions

Questions About The ISUZU FTR 12m3 Bitumen Distributor Truck

What chassis is the ISUZU FTR 12m3 Bitumen Distributor Truck built on?

It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.

What is the capacity of this isuzu bitumen distributor truck?

Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.

Can it be built to our own specification?

Yes, we can produce according to the customer's technical drawings and specifications.

How long before it is ready to ship?

Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

How do we pay and what do we see before the balance?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.

Is the truck tested before delivery?

Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.

What support is available after it arrives?

Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
