ISUZU Concrete Mixer Truck

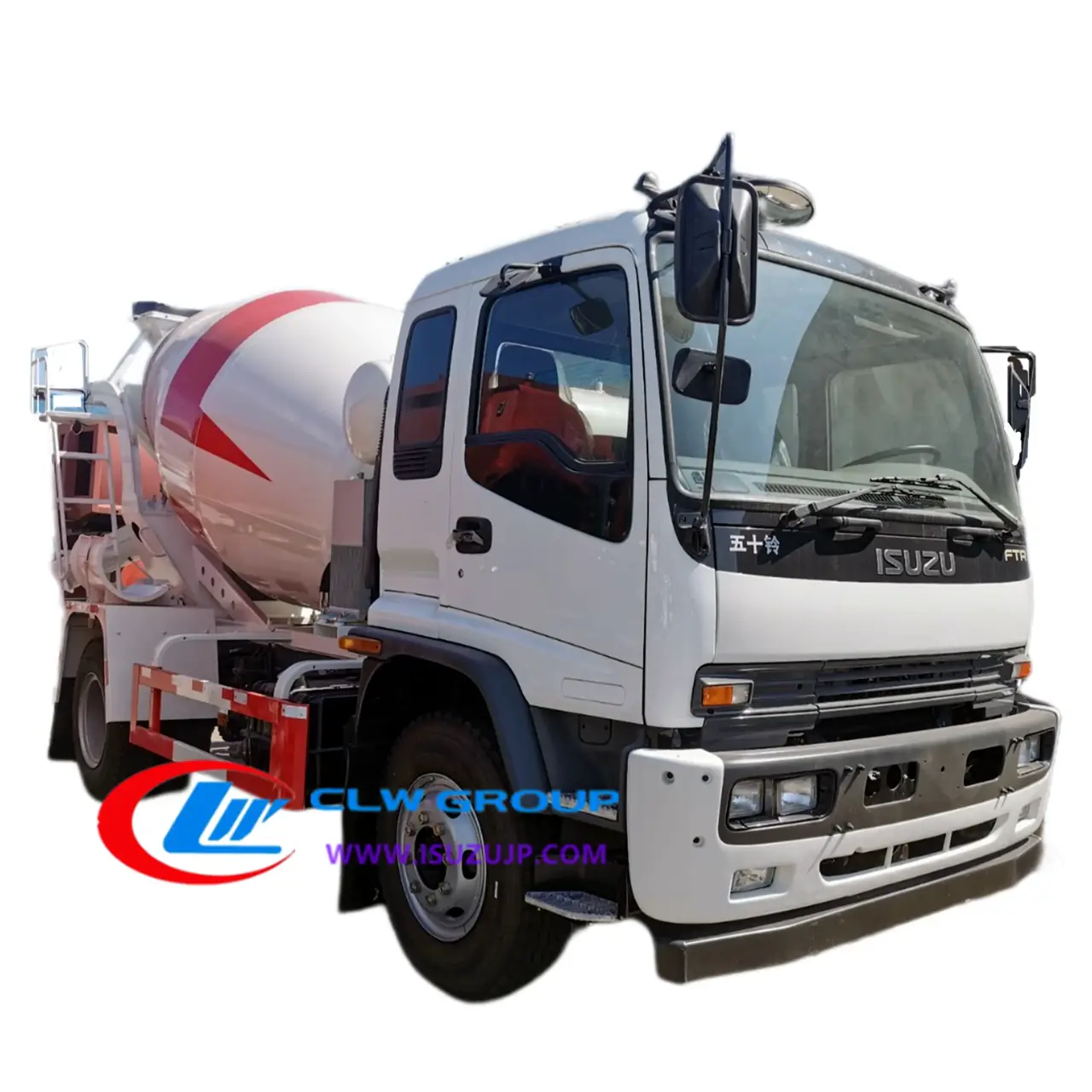

ISUZU FTR 7cbm Transit Mixer Truck
Hot sale ISUZU 7m3 concrete mixer truck, ISUZU FTR LHD chassis, ISUZU 205HP diesel engine, mld 6-shift manual gearbox
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 205HP (151 KW)
- Overall Dimension
- 8600x2500x3800 mm
- GVW / Kerb Weight
- 16,000 kg / 12,000 kg
- Drive Type
- 4×2 left-hand drive
- Transmission
- 9-speed front, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 29 rows.
ISUZU FTR 7cbm Transit Mixer Truck Description
- ISUZU transit mixer truck also called Concrete mixer truck, self-loading Mixer truck, Concrete mixer drum truck, or transit mixer vehicle is made to transport and mix concrete up to the construction site.
- The concrete mixing transport truck maintains the material’s liquid state through agitation, or turning of the drum, until delivery.
- Our mixer truck is mainly used in cement mixing stations, the construction field, and other places. The capacity ranges from 2m3 to 18m3, meeting customers’ various needs.
- It is can be loaded and unloaded by itself. After discharging the concrete, the mixer drum will be cleaned automatically by its water-supplying system.
Advantage
- ISUZU FTR chassis, perfect performance
- 6UZ1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Mixer drum capacity from 3cbm to 18cbm.
- Easy operation and easy maintenance.
- Various types of Hydraulic main parts are available.
- Hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;
- Pneumatic Water Supply System. The pressure is provided by the air tank on the chassis with pressure protection devices. The Water inlet connector fits both normal water pipe and fire fitting.
- New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;
- Equipped with the large diameter hopper, it can realize quickly feed, not plugging and spilling, and it is easy to clean;
- The optimized design of the mixing drum ensures the concrete residue ratio is less than 1%;
- Colors can be customized.
Specification
ISUZU FTR 7cbm transit mixer truck
| General | Vehicle Brand | CHENG LI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 8600x2500x3800 mm | |
| GVW / Kerb Weight | 16,000 kg / 12,000 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 205HP (151 KW) | |
| Displacement | 5199 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4×2 left-hand drive |
| Transmission | 9-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4500mm / 3 | |
| Tyre Specification | 900R20 | |
| Tyre Number | 10 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Mixing Capacity | 10 m³ |
| Drum Material | Alloy steel | |
| Hydraulic Motor | Imported Brand | |
| hydraulic pump | Imported Brand | |
| Reduction Box | Imported Brand | |
| Radiator | High-Class Chinese Brand | |
| Rest Rate | ≤0.5% | |
| Water Supply System | Air pressure | |
| Water Tank Volume | 400 L | |
| All other standard accessories: manhole, ladder, inlet, discharge……. | ||
| Optional | Hydraulic system brands could be PMP, ZF, Eaton, Rexroth, etc., Or other pointed brands. | |
Questions
Questions About The ISUZU FTR 7cbm Transit Mixer Truck
What chassis is the ISUZU FTR 7cbm Transit Mixer Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu concrete mixer truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
