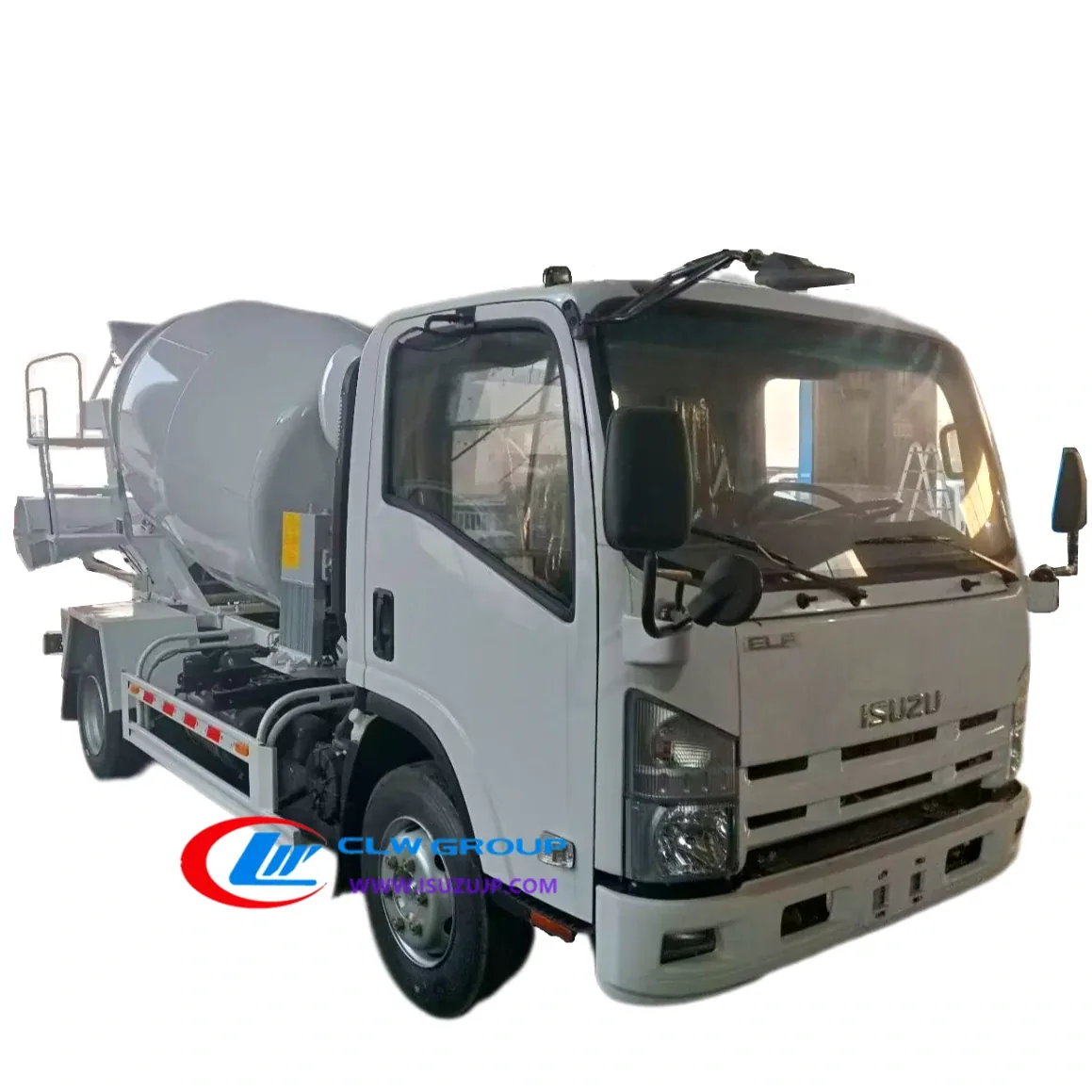

Main photo
ISUZU Concrete Mixer Truck
ISUZU NPR 3-5cbm Mini Ready Mix Concrete Truck Philippines
Hot sale ISUZU 5m3 concrete mixer truck, ISUZU NPR LHD chassis, ISUZU 190HP diesel engine, MLD 6-shift manual gearbox
- Chassis
- ISUZU NPR
- Drive Type
- 4×2
- Emission
- Euro V
- Rated Capacity
- 3495kgs
- Agitation Volume (m3)
- 5
- Hydraulic Pump
- made in China
- Water Tank Volume (L)
- 400
Specification below is the factory table for this model, reproduced without edits. 48 rows.
ISUZU NPR 3-5cbm Mini Ready Mix Concrete Truck Description
- ISUZU NPR 3-5cbm mini ready mix concrete truck also called Concrete mixer truck, self-loading Mixer truck, Concrete mixer drum truck, or transit mixer vehicle is made to transport and mix concrete up to the construction site.
- The concrete mixing transport truck maintains the material’s liquid state through agitation, or turning of the drum, until delivery.
- Our mixer truck is mainly used in cement mixing stations, the construction field, and other places. The capacity ranges from 2m3 to 18m3, meeting customers’ various needs.
- It is can be loaded and unloaded by itself. After discharging the concrete, the mixer drum will be cleaned automatically by its water-supplying system.
Advantage
- ISUZU NPR chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Mixer drum capacity from 3cbm to 18cbm.
- Easy operation and easy maintenance.
- Various types of Hydraulic main parts are available.
- Hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;
- Pneumatic Water Supply System. The pressure is provided by the air tank on the chassis with pressure protection devices. The Water inlet connector fits both normal water pipe and fire fitting.
- New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;
- Equipped with the large diameter hopper, it can realize quickly feed, not plugging and spilling, and it is easy to clean;
- The optimized design of the mixing drum ensures the concrete residue ratio is less than 1%;
- Colors can be customized.
Specification
ISUZU NPR 3-5cbm Mini Ready Mix Concrete Truck Philippines Specification
| Product Name | ISUZU NPR 3-5cbm mini ready mix concrete truck Philippines | |
|---|---|---|
| Main parameters | Overall size(L*W*H) | 6680,6780*2300*3130mm |
| Gross weight | 9290kgs | |
| Rated capacity | 3495kgs | |
| Curb weight | 5600kgs | |
| Approaching/Departure Angle | 24/19(°) | |
| Front/Rear suspension | 1275/2005mm | |
| Max.speed | 80km/h | |
| Chassis | Chassis Brand | ISUZU NPR |
| Chassis model | QL1100A8 | |
| Drive type | 4×2 | |
| Fuel Type | Diesel | |
| Tire Specification | 8.25-16,8.25R16 | |
| Tire No. | 6 | |
| Wheelbase | 4175mm | |
| Alex No. | 2 | |
| Leaf Spring No. | 11/11+9 | |
| Gearbox | 6-speed | |
| Front trend | 1770mm | |
| Rear trend | 1640mm | |
| Engine | Manufacturer | ISUZU |
| Model | 4HK1-TC51 | |
| Horse Power | 190HP | |
| Displacement/Power | 5193ml/141kw | |
| Emission standard | Euro V | |
| System | Item | Reference Data |
| Parameters of mixing drum | agitation volume (m3) | 5 |
| charging rate (m3/min) | ≥2.8 | |
| discharging rate (m3/min) | ≥1.2 | |
| residual rate (%) | ≤0.5 | |
| rotating speed of | 0~12 | |
| mixing drum (rpm) | ||
| Driving system | speed reducer | made in China |
| hydraulic pump | made in China | |
| hydraulic motor | made in China | |
| radiator | made in China | |
| Water supply | water tank volume (L) | 400 |
| type of water supply | air pressure water supply | |
| Control system | control mode | connecting rod control |
| structure features | 1, mixing drum and mixer blade using special | |
| wear-resisting material Q345, mixing drum material | ||
| thickness is 4mm, mixer blade material thickness is 3mm. | ||
| 2, the material of blowpit and feed hopper | ||
| scaleboard is just the same as the mixing drum; | ||
| 3, humanizing operating system, connecting rod operation, concise safe and reliable; | ||
| 4, using imported brand-name hydraulic system; | ||
| 5, flushing water back control; | ||
| 6, The product with quick discharging, no residual | ||
Questions
Questions About The ISUZU NPR 3-5cbm Mini Ready Mix Concrete Truck Philippines
What chassis is the ISUZU NPR 3-5cbm Mini Ready Mix Concrete Truck Philippines built on?
It is built on ISUZU NPR. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu concrete mixer truck?
The factory table lists Rated Capacity 3495kgs. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
