ISUZU Road Cleaning Truck

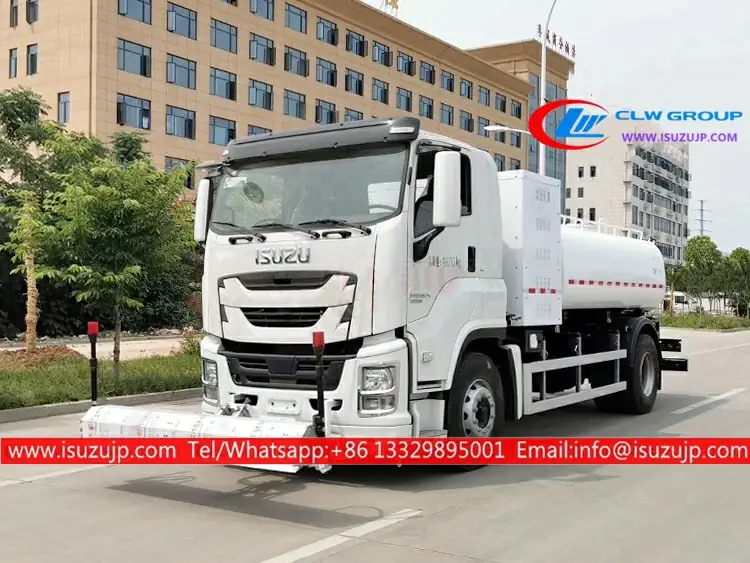

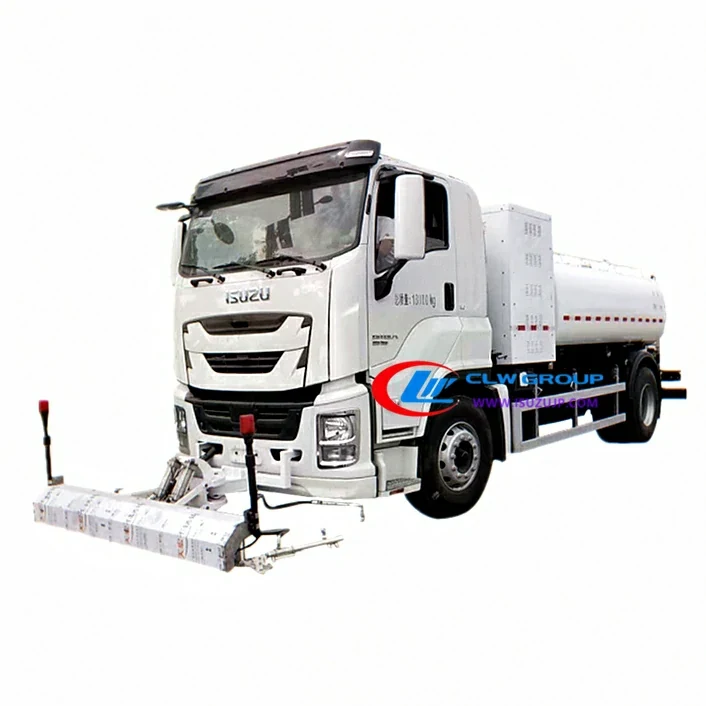

ISUZU GIGA 10cbm Road Cleaning Truck
ISUZU GIGA 4×2 Left Hand Drive chassis, FAST 9-shift manual gearbox, ISUZU 300 HP diesel engine, Germany PINFL brand High pressure pump, loading capacity:10000Lliters
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 300HP (120 KW)
- Overall Dimension
- 9900X2550X3200 mm
- GVW / Kerb Weight
- 18,000 kg / 10,900 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- 9-speed forward, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 41 rows.
ISUZU GIGA 10cbm Road Cleaning Truck Description
- ISUZU road cleaning truck also called street washing vehicle, high pressure washing truck, jet cleaning truck, road jetting truck, street cleaning vehicle, road cleaning truck, high pressure jetting vehicle, road washing truck
- road jetting truck is designed for high pressure washing and sanitation of roads. It’s able to remove the stubborn stuff and reduce dust on the road.
- The basic accessories for a ISUZU road washing truck are: front stainless steel high pressure washing beam, rear spri
Advantage
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- 4X2 ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
- Optional Italy imported high pressure pump, super powerful, efficient pump in and out
- High pressure cleaning hose with automatic reel
- Strong, durable, perfect performance
Specification
ISUZU GIGA 10cbm road cleaning truck (10000liters)
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 9900X2550X3200 mm | |
| GVW / Kerb Weight | 18,000 kg / 10,900 kg | |
| Cab | Cab Capacity | 2 persons seats with 1 sleeper |
| Air Conditioner | Equippped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 300HP (120 KW) | |
| Displacement | 9679 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 9-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tyre Specification | 10.00R20, Radial tyres | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | 10,000 Litres (About 2,500 gallons) |
| High Pressure Pump | Imported Germany high pressure plunge pump | |
| Max. Water Pressure | 10 MPa | |
| Water Flow Speed | 40 L/min @ 10MPa | |
| Cleaning Speed | 5-10 km/h | |
| Road Flushing Width | 3.5 m | |
| Deflection Angle | 30°(left and right) | |
| Auxiliary Engine | CUMMINS engine (American brand) 170 Hp / 125 KW | |
| Sprinkling | Another water pump equipped for sprinkling on the road. Sprinkling width: 24 M. Cannon shot: 36 M. | |
| All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual | ||
| Optional | Stainless steel water tank. Elevating Platform. High cannon. | |
Working Parameter
ISUZU GIGA 10cbm Road Cleaning Truck Specification
| Serial number | project name | unit Specifications / Technical parameters |
|---|---|---|
| 1 | Effective volume of tank | m3 6-15 |
| 2 | Sprinkler cleaning width | m 2.5-3.5 |
| 3 | Working speed | Km/h 5-20 |
| 4 | Low pressure flushing width | m ≥21 |
| 5 | High pressure cleaning width | m 3.5 |
| 6 | Water spray | L/m2 0.2-2.0 |
| 7 | High pressure flushing system pressure | MPa ≥10 |
| 8 | High-pressure flushing water flow | L/min ≥138 |
| 9 | Spray flow | L/min ≥129 |
| 10 | Water cannon range | m ≥35 |
| 11 | Self-priming height | m 6.5 |
Part, Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU GIGA 10cbm Road Cleaning Truck
What chassis is the ISUZU GIGA 10cbm Road Cleaning Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu road cleaning truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
