ISUZU Sewer Jetting Truck

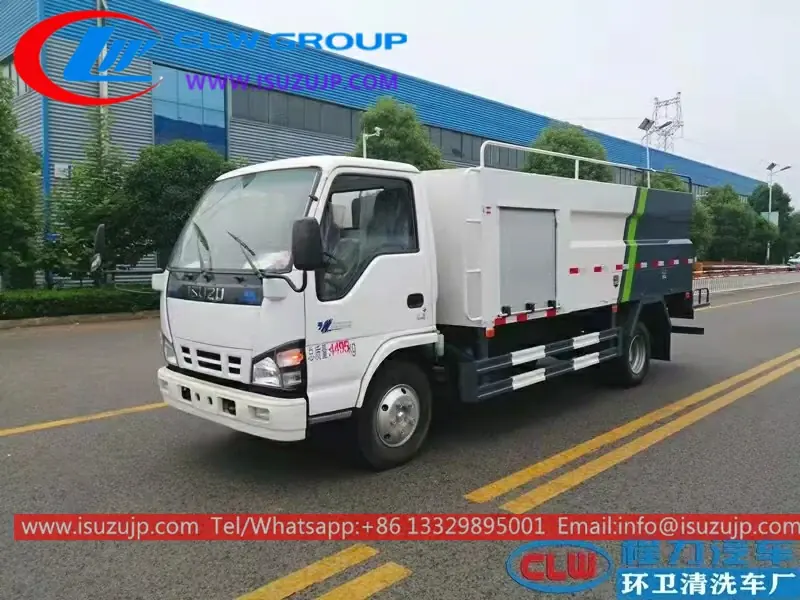

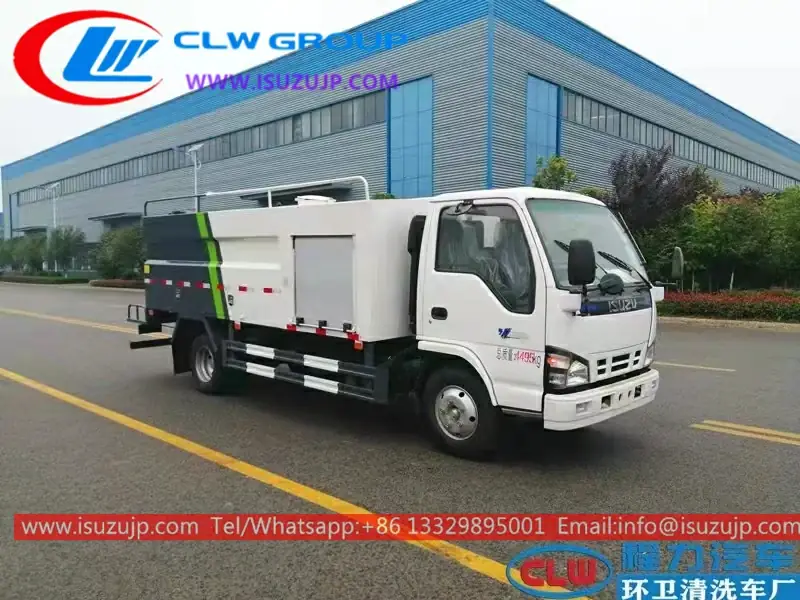

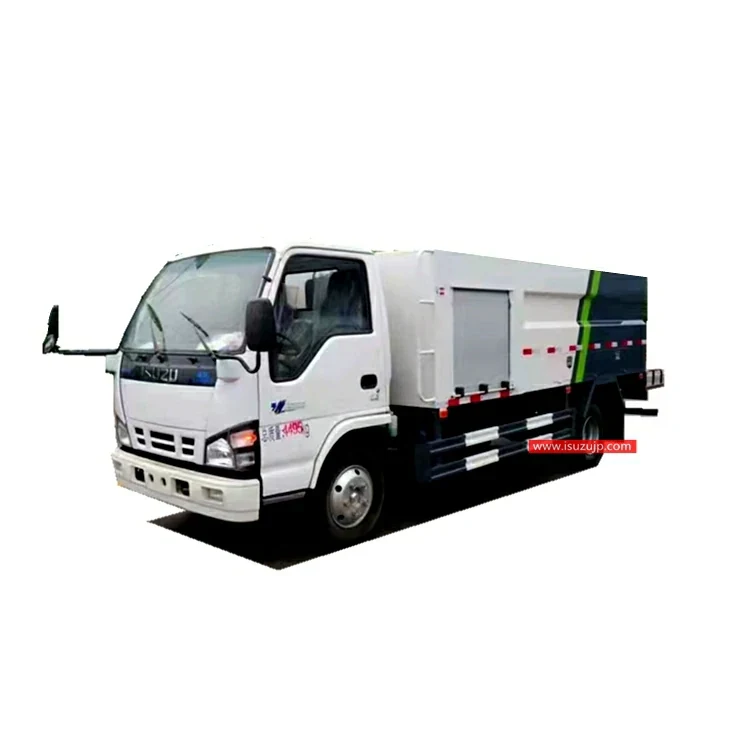

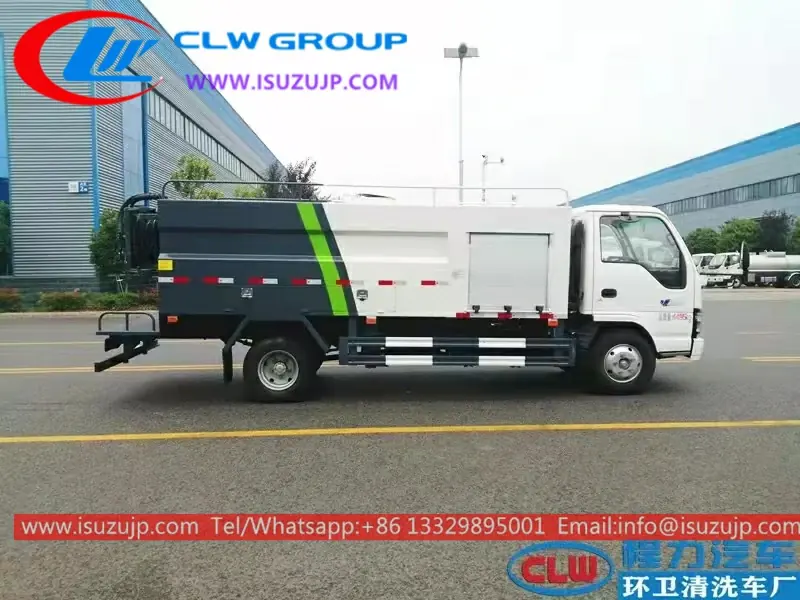

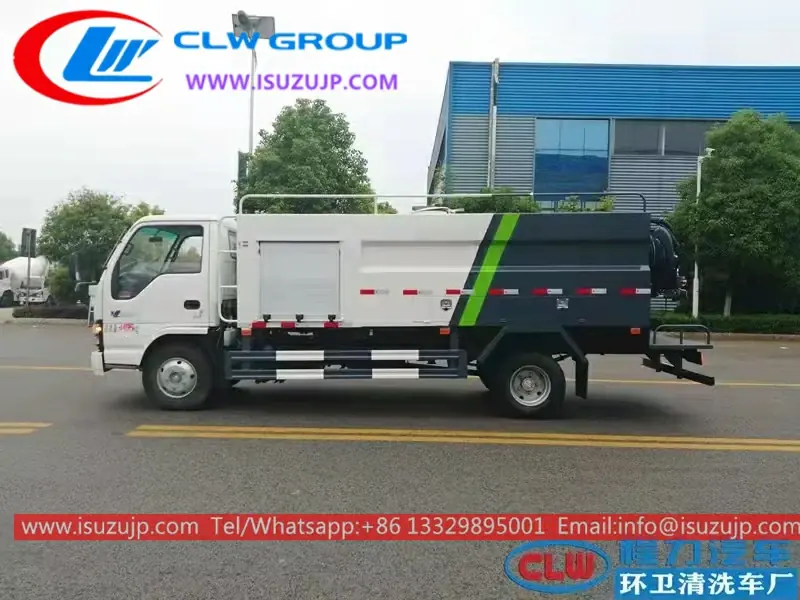

ISUZU ELF 5 Ton Pressure Washing Truck
ISUZU ELF Left Hand Drive chassis, MSB 5-shift manual gearbox, ISUZU 98 HP diesel engine, Germany PINFL brand High pressure pump, loading capacity:4000Lliters
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 98 (72 KW)
- Overall Dimension
- 5995X2000X2500 mm
- GVW / Kerb Weight
- 7,300 kg / 3,200 kg
- Drive Type
- 4X2, left-hand drive
- Transmission
- 5-speed forward, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 41 rows.
ISUZU ELF 5 Ton Pressure Washing Truck Description
- ISUZU pressure washing truck also called street washing vehicle, high-pressure flusher truck, jet cleaning truck, road jetting truck, street cleaning vehicle, road cleaning truck, high pressure jetting vehicle, road washing truck
- road jetting truck is designed for high-pressure washing and sanitation of roads. It’s able to remove the stubborn stuff and reduce dust on the road.
- The basic accessories for an ISUZU road washing truck are front stainless steel high-pressure washing beam, rear spring.
Advantage
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- 6X4 ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super-powerful, no overhaul within 500,000 km.
- Optional Italy imported high-pressure pump, super powerful, efficient pump in and out
- High-pressure cleaning hose with automatic reel
- The strong, durable, perfect performance
Specification
ISUZU ELF 5 ton pressure washing truck
| General | Vehicle Brand | CHENG LI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 5995X2000X2500 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,200 kg | |
| Cab | Cab Capacity | 2 person seats with 1 sleeper |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 98 (72 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left-hand drive |
| Transmission | 5-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 3 | |
| Tyre Specification | 700R16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | 4,000 Liters (1,000 gallons) |
| High-Pressure Pump | Imported Germany high-pressure plunger pump | |
| Max. Water Pressure | 10 MPa | |
| Water Flow Speed | 40 L/min @ 10MPa | |
| Cleaning Speed | 5-10 km/h | |
| Road Flushing Width | 3.5 m | |
| Deflection Angle | 30°(left and right) | |
| Auxiliary Engine | Yuchai engine (American brand) 75 Hp / 55 KW | |
| Sprinkling | Another water pump is equipped for sprinkling on the road. Sprinkling width: 24 M. Cannon shot: 36 M. | |
| All standard accessories: hose, high-pressure hose reel, high-pressure water gun, ground hydrant wrench, basic tool kit, English manual | ||
| Optional | Stainless steel water tank. Elevating Platform. High cannon. | |
Working Parameter
ISUZU ELF 5 Ton Pressure Washing Truck Specification
| Serial number | project name | unit Specifications / Technical parameters |
|---|---|---|
| 1 | Effective volume of tank | m3 6-15 |
| 2 | Sprinkler cleaning width | m 2.5-3.5 |
| 3 | Working speed | Km/h 5-20 |
| 4 | Low-pressure flushing width | m ≥21 |
| 5 | High-pressure cleaning width | m 3.5 |
| 6 | Water spray | L/m2 0.2-2.0 |
| 7 | High-pressure flushing system pressure | MPa ≥10 |
| 8 | High-pressure flushing water flow | L/min ≥138 |
| 9 | Spray flow | L/min ≥129 |
| 10 | Water cannon range | m ≥35 |
| 11 | Self-priming height | m 6.5 |
Part, Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU ELF 5 Ton Pressure Washing Truck
What chassis is the ISUZU ELF 5 Ton Pressure Washing Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu sewer jetting truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
