- ISUZU NKR 5000 Liters Sewer Jetting Trucks
Main photo
ISUZU Sewer Jetting Truck

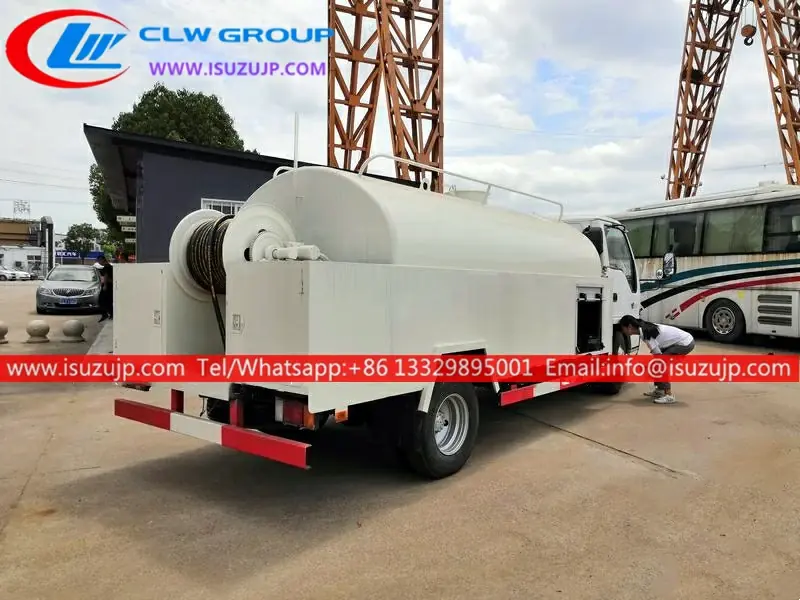

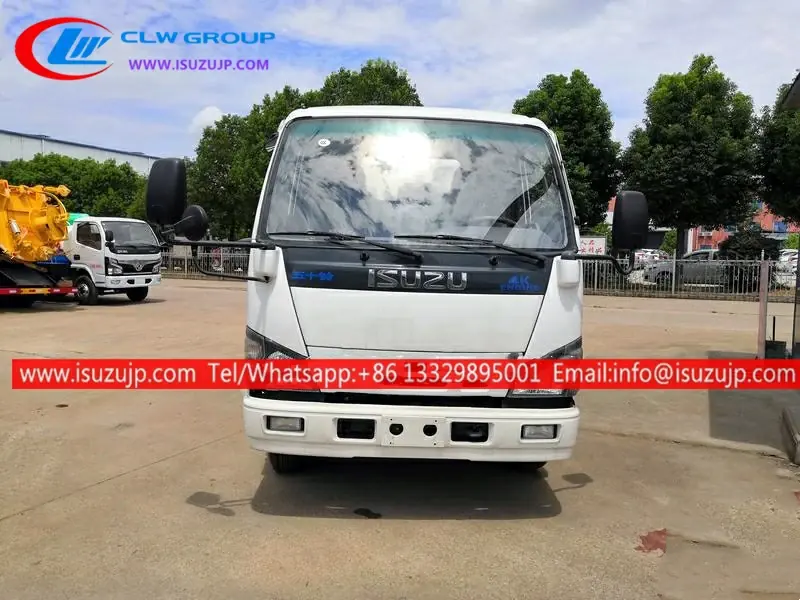

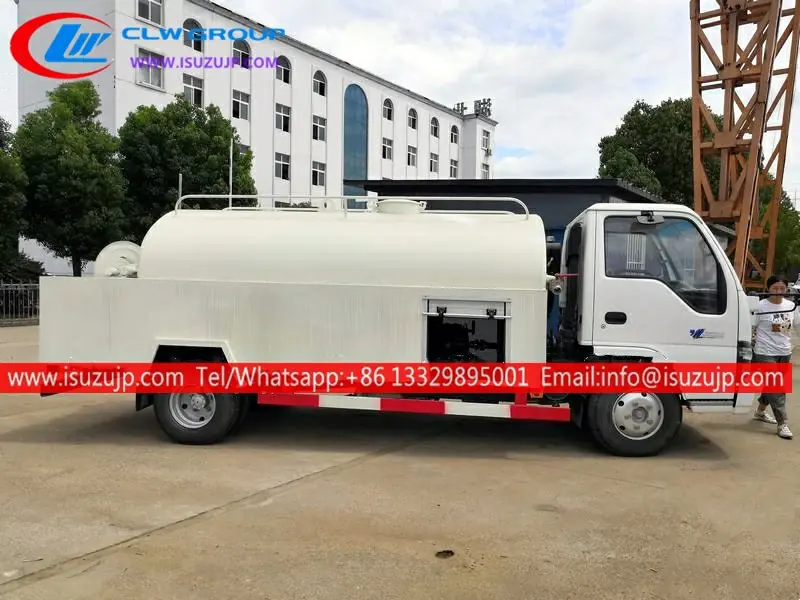

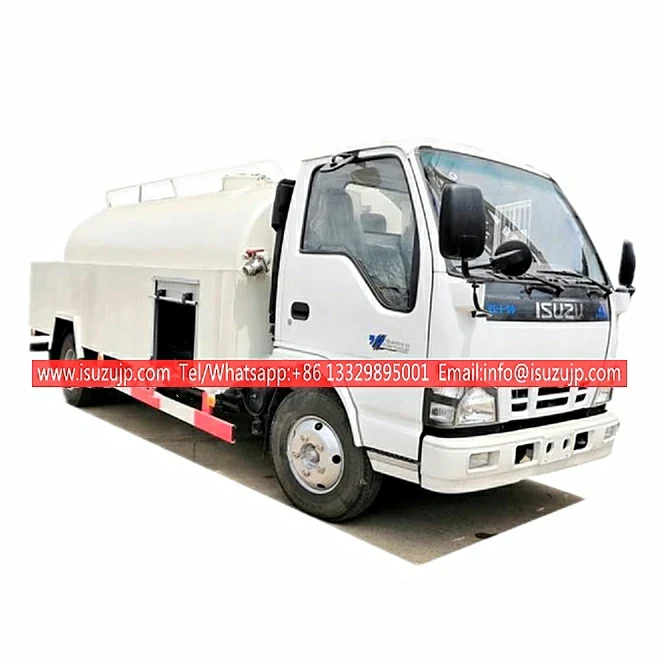

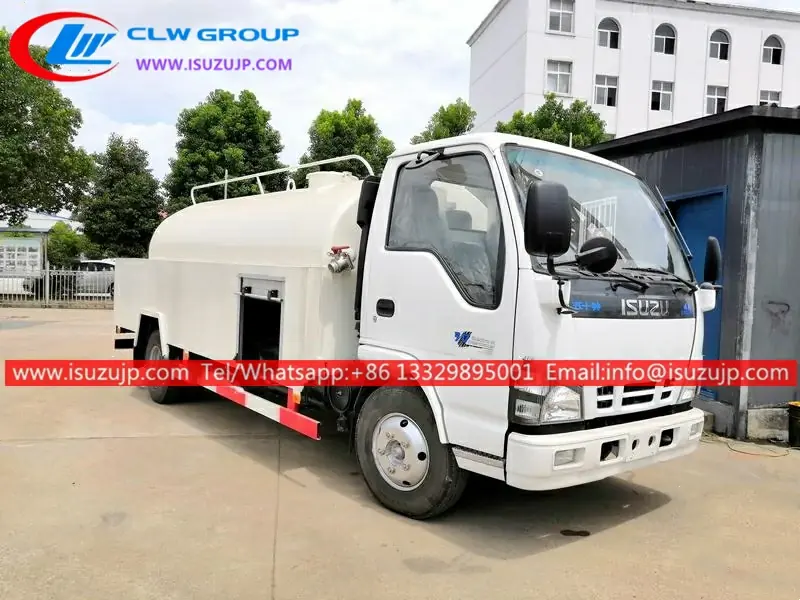

ISUZU NKR 5000 Liters Sewer Jetting Trucks
ISUZU NKR 600P 4×2 Left Hand Drive chassis, MLD 6-shift manual gearbox, ISUZU 120 HP diesel engine, Germany PINFL brand High pressure pump, loading capacity:5000Lliters
- Body Size
- 6000X2300X2600mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 26 rows.
ISUZU NKR 5000 Liters Sewer Jetting Trucks Description
- ISUZU sewer jetting trucks also called drain cleaning truck, high pressure jetter, high pressure jetting truck, sewer flushing truck, water jetting vehicle, sewer cleaning truck, high pressure water truck,water jet truck
- jet water truck is ideal for removing stones, bottles, cans, grease, sludge, a debris from sanitary sewer and storm drain lines by the flushing action of high-pressure water.
- ISUZU sewer flushing truck carry a high pressure pump, a water tank, high-pressure hoses and nozzles. The nozzle will get impulsion and make a move forward by jetting high-pressure water.
Advantage
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU NKR chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
- Optional Italy imported high pressure pump, super powerful, efficient pump in and out
- High pressure cleaning hose with automatic reel
- Strong, durable, perfect performance
Specification
To Mongolia 5000L ISUZU sewer jetting truck
| Outline size(L×W×H) (mm) | 7000*2250*2400 | tank size(L×W×H)(mm)： 3000x1900x1000 |
|---|---|---|
| Rated load (kg) | / | Empty mass(Kg)： 4400 |
| Total weight(kg) | 7300 | Emission standard Euro 5 |
| Engine Information | ||
| Model | 4KH1-TCG40 | Type Diesel engine |
| Power/displacement(KW/ML) | 120HP/2999ML | Manufacture ISUZU |
| Chassis Information | ||
| Wheelbase(mm)： | 3360 | Axle load(kg) F/R 2580/4720 |
| Tire | 7.00R16 | Max speed (km/h)： 95 |
| Front overhang(mm) | 1015 | Rear overhang(mm) 1715 |
| Front track(mm) | 1504 | Rear track(mm) 1425 |
| Approach angel(°) | 24 | Departure angle(°) 25 |
| Steering | Power steering | Brake Air brake |
| Cabin | Straight head 1 rows 2 doors ,allowable 2-3 persons | |
| Special function | ||
| Tank capacity | 5000L | Tank Material Q235A Carbon steel |
| Configuration : | 5mm tank thickness, with German imported PINFL high pressure pump, pressure 16-20mpa, flow: 170L/min, hose length: 60m,hose diameter: 19mm.Equipped with 60 meters automatic returnable coil, full power sandwich extractor and a set of 10 high-pressure nozzle. | |
Working Parameter
ISUZU NKR 5000 Liters Sewer Jetting Trucks Specification
| Suction speed | Fill up in 10 minutes | Tank material Carbon steel Q345, stainless steel 304 |
|---|---|---|
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | |
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | |
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | |
Vacuum Fecal Trucks Part, Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NKR 5000 Liters Sewer Jetting Trucks
What chassis is the ISUZU NKR 5000 Liters Sewer Jetting Trucks built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu sewer jetting truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
