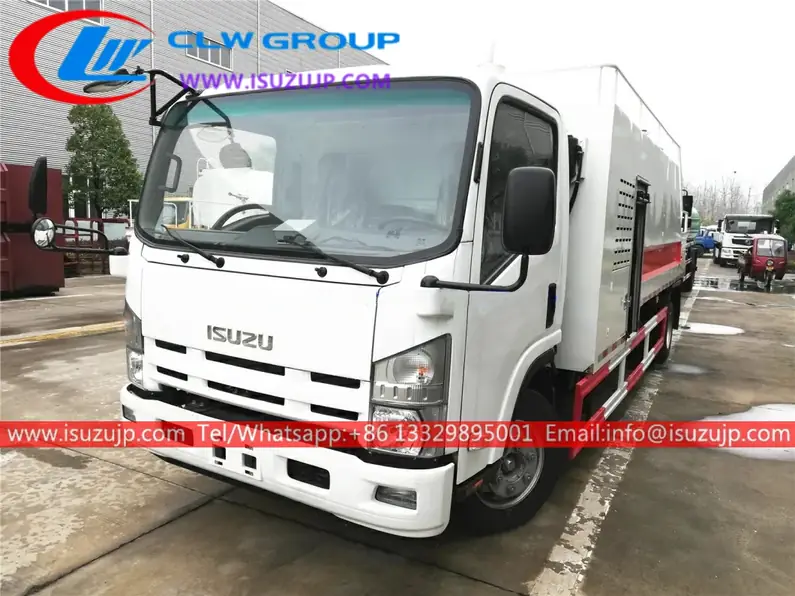

Main photo
ISUZU Sewer Jetting Truck
ISUZU ELF 5000L High Pressure Water Jetting Truck
ISUZU NPR 4×2 Left Hand Drive chassis, MLD 6-shift manual gearbox, ISUZU 190 HP diesel engine, Germany PINFL brand High pressure pump, loading capacity:5000Lliters
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 190 HP (140 KW)
- Overall Dimension
- 6600X2200X2860 mm
- GVW / Kerb Weight
- 11,000kg / 5,800kg
- Drive Type
- 4X2, (left hand drive)
- Transmission
- ISUZU MLD 6 speed levers with 1 reverse
- Emission
- Euro IV or V
Specification below is the factory table for this model, reproduced without edits. 41 rows.
ISUZU 5000L High Pressure Water Jetting Truck Description
- ISUZU water jetting truck also called drain cleaning truck, high pressure jetter, high pressure jetting truck, sewer flushing truck, water jetting vehicle, sewer cleaning truck, high pressure water truck,water jet truck
- jet water truck is ideal for removing stones, bottles, cans, grease, sludge, a debris from sanitary sewer and storm drain lines by the flushing action of high-pressure water.
- ISUZU sewer flushing truck carry a high pressure pump, a water tank, high-pressure hoses and nozzles. The nozzle will get impulsion and make a move forward by jetting high-pressure water.
Advantage
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU ELF 700P chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
- Optional Italy imported high pressure pump, super powerful, efficient pump in and out
- High pressure cleaning hose with automatic reel
- Strong, durable, perfect performance
Specification
ISUZU ELF 5000L high pressure water jetting truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 6600X2200X2860 mm | |
| GVW / Kerb Weight | 11,000kg / 5,800kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190 HP (140 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro IV or V | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | ISUZU MLD 6 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tire Specification | 8.25-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000 Liters |
| Tank material | Carbon steel | |
| High pressure pump | Optional 1: China brand pump 24Mpa Optional 2: Italy import pump 16Mpa | |
| Flow speed | 120L/min | |
| Hose | High pressure hose 60m long | |
| Hose reel | Auto hose reel | |
| Suction head | 6m | |
| Nozzles | A cluster of nozzles included | |
| Front spraying nozzle | Optional | |
| Middle spraying nozzle | Optional | |
| Rear spraying nozzle | Optional | |
| Control panel | English or Your language | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | Backup alarm can be equipped. Camera can be equipped. Operation language can be English or Appointed language. | |
Working Parameter
ISUZU ELF 5000L High Pressure Water Jetting Truck Specification
| Suction speed | Fill up in 10 minutes | Tank material Carbon steel Q345, stainless steel 304 |
|---|---|---|
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | |
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | |
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | |
Vacuum Fecal Trucks Part, Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU ELF 5000L High Pressure Water Jetting Truck
What chassis is the ISUZU ELF 5000L High Pressure Water Jetting Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu sewer jetting truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Sewer Jetting Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
ISUZU ELF 5 Ton Pressure Washing Truck
41 spec rowsView Details
ISUZU GIGA 12000L Sewer Flushing Truck
33 spec rowsView Details
Quote The ISUZU ELF 5000L High Pressure Water Jetting Truck
This build is listed as chassis ISUZU with engine ISUZU. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
