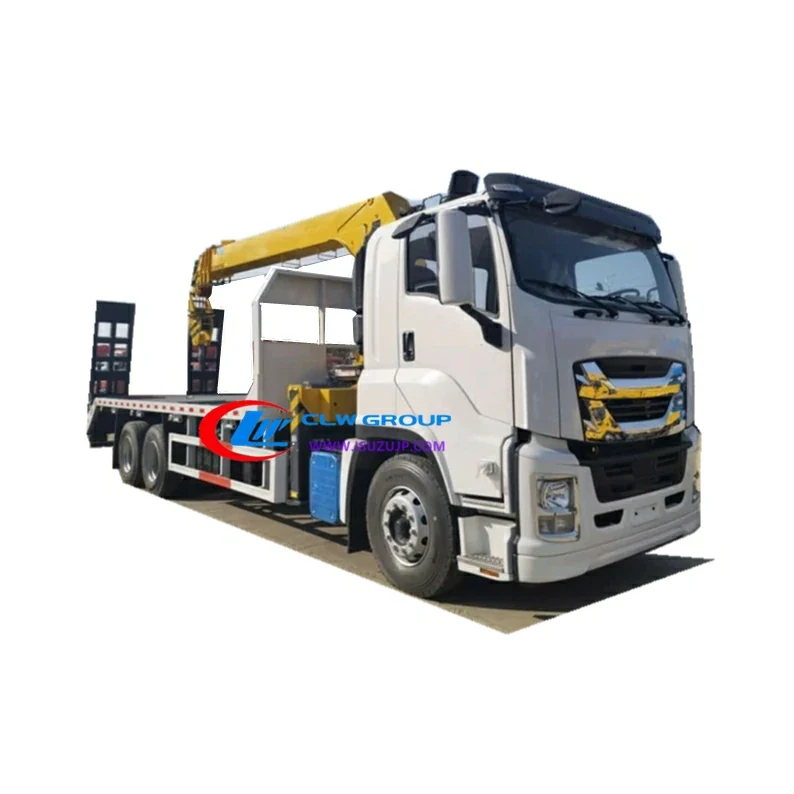

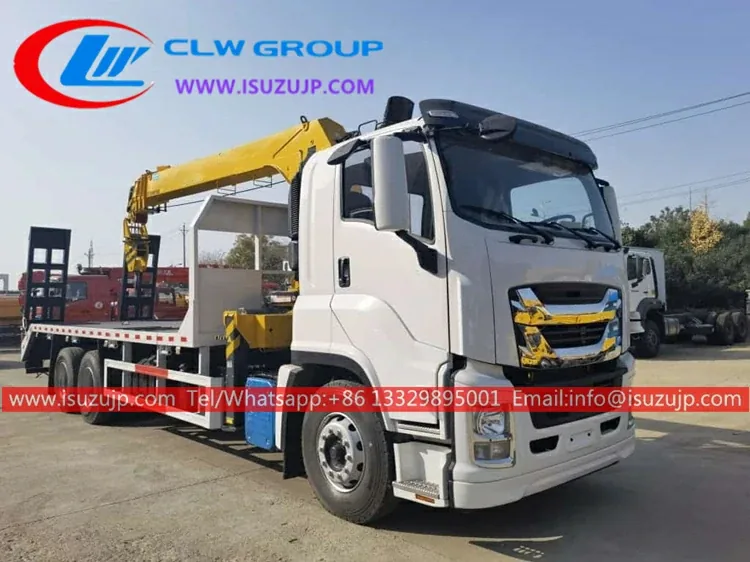

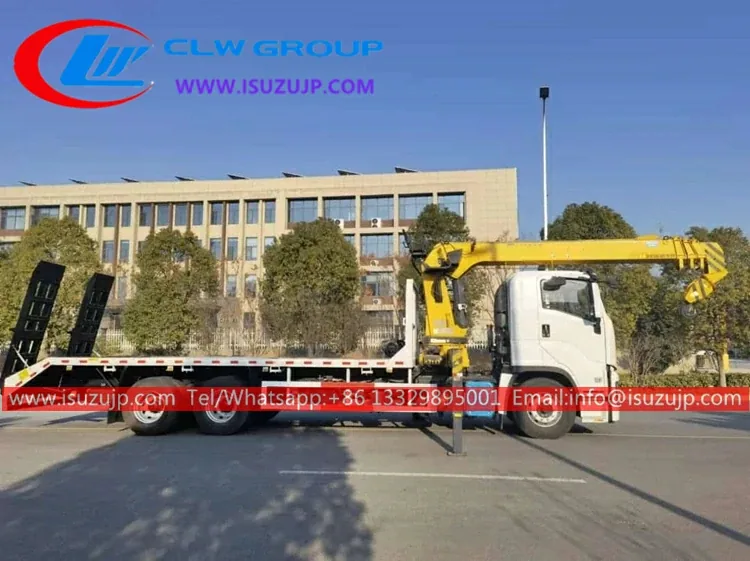

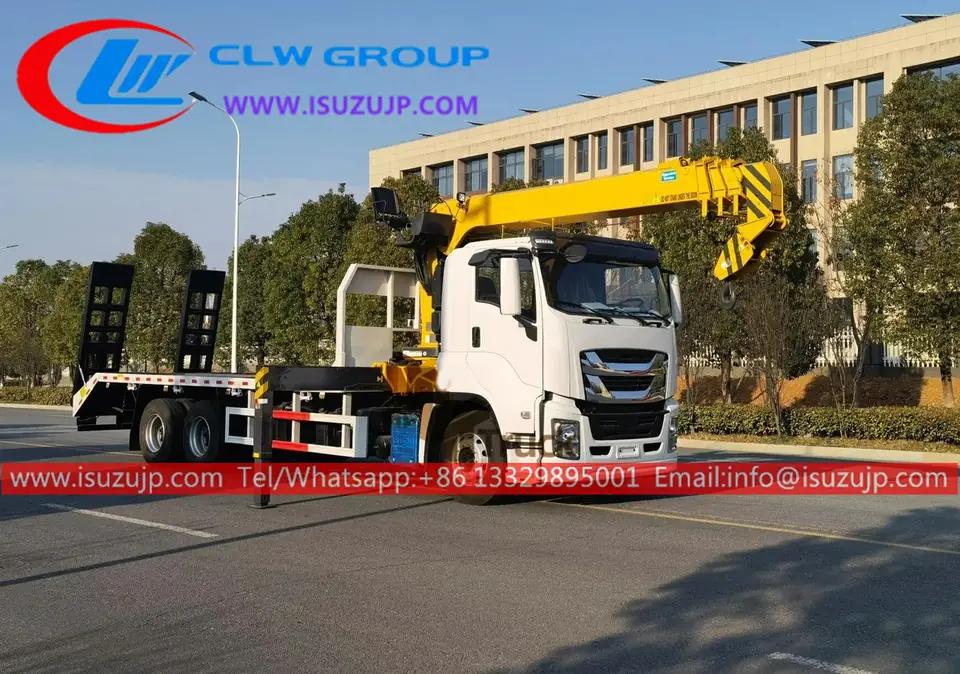

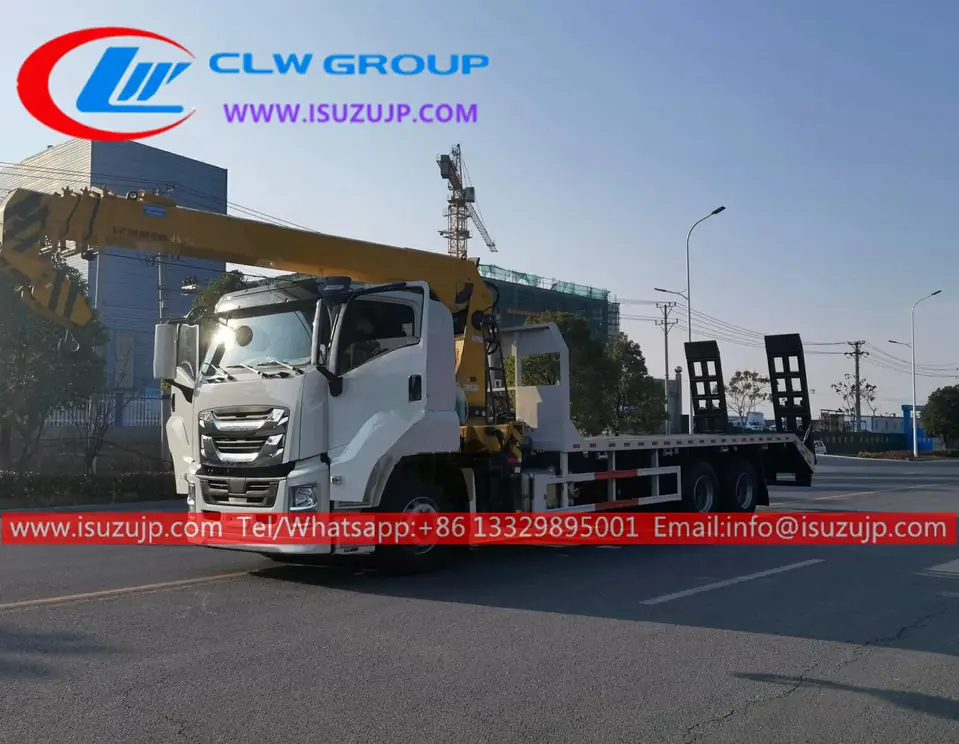

ISUZU GIGA 16T Flatbed Truck with Crane for Sale
Isuzu GIGA 16T flatbed truck with crane, Left Hand Drive model 6×4 chassis, FAST 12-shift manual gearbox, ISUZU 380 HP diesel engine with Hydraulic ladder
- Power
- 300HP
- Emission
- EURO 4
- Loading Capacity
- 20Ton
- Product Origin
- China
- Body Size
- 10500x2500x4000 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 28 rows.
Isuzu GIGA 16T Flatbed Truck with Crane Description
- ISUZU GIGA 16T flatbed truck with crane also called Low flatbed vehicle, excavator carrier truck, machinery transport vehicle, excavator transport truck, lorry carrier truck, excavator dump truck, etc
- is used for transporting machine that is non-removable or machinery that can’t be driven on road, such as excavator, loader, harvester, machine equipment, etc. It’s widely used in the construction, and agriculture fields.
- Chengli Company produced excavator carrier trucks that are easy to load machinery, there is a hydraulic ladder at the rear of the platform.
- As for the flatbed carrier trucks, the driving type could be 4×2. 4×4, 6×4, 6×6, 8×4, etc.
Advantage
- 100% custom-made
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- 3 Ton to 40 Tons available
- Short delivery time 7~30 days
- A telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency systems, etc.
- Easy operation & Easy maintenance
Specification
ISUZU GIGA 16T Flatbed Truck with Crane for Sale Specification
| Manufacturer | CHENGLI COMPANY | |
|---|---|---|
| Product Name | Isuzu GIGA 16T flatbed truck with crane for sale | |
| Vehicle Brand Series | ISUZU | |
| Vehicle Model | CLW5456GSSD6 | |
| Production Time | 25 days | |
| Chassis parameters | Overall dimensions | mm 10500X2500X4000 |
| Gross weight | kg 25,000 | |
| Kerb weight | 11,830 | |
| Wheelbase | mm 5,100+1300 | |
| Driving type | 6X4 | |
| Chassis model | ISUZU VC46 | |
| Tire size | 11.00-20-16PR | |
| Number of Tires | 10+1 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 6UZ1-TCG51 |
| Type of fuel | Diesel | |
| Power | 300HP | |
| Max speed | Km/h 95 | |
| Emission standard | EURO 4 | |
| Cargo Body | Platform | 7000x2300mm |
| Loading capacity | 20Ton | |
| Standard | Equipped with double spring ladder | |
| Equipped with rear landing leg | ||
| Crane | 10-16tons XCMG stiff boom crane | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Rotating Lamp, Handholds, Mudguards and rubber flaps | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Palfinger, HIAB, XCMG, UNIC or chinese brand 2, Rear vision camera 3, Optional stainless steel toolbox | |
Questions
Questions About The ISUZU GIGA 16T Flatbed Truck with Crane for Sale
What chassis is the ISUZU GIGA 16T Flatbed Truck with Crane for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu flatbed truck?
The factory table lists Loading Capacity 20Ton. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Flatbed Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
ISUZU ELF 5 Ton Flat Bed Truck
23 spec rowsView Details
ISUZU NPR 3.5 Ton Flatbed for Sale
23 spec rowsView Details
Quote The ISUZU GIGA 16T Flatbed Truck with Crane for Sale
This build is listed as power 300HP with emission EURO 4. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
